Nissan Qashqai J11. Manual - part 1593

BRM-200

< REMOVAL AND INSTALLATION >

[FOR EUROPE (RHD)]

REPLACEMENT OPERATIONS

Rear Side Member Extension

INFOID:0000000010313684

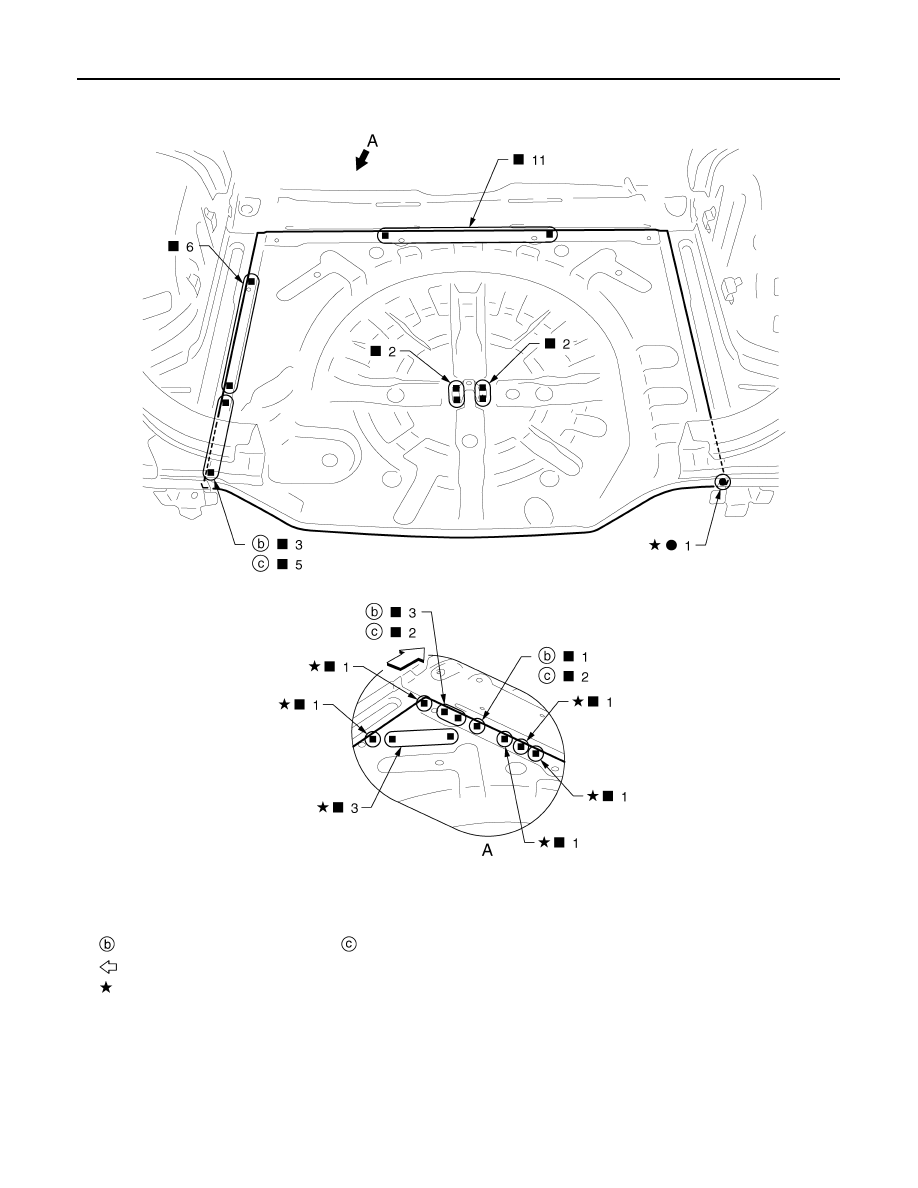

Work after rear panel is removed.

Left side

Right side

: Vehicle front

: Welding method and the number of welding points apply to both side of the vehicle.

Replacement part

z

Rear floor rear

z

Spare wheel clamp bracket assem-
bly

JSKIA4030ZZ

REPLACEMENT OPERATIONS

BRM-201

< REMOVAL AND INSTALLATION >

[FOR EUROPE (RHD)]

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

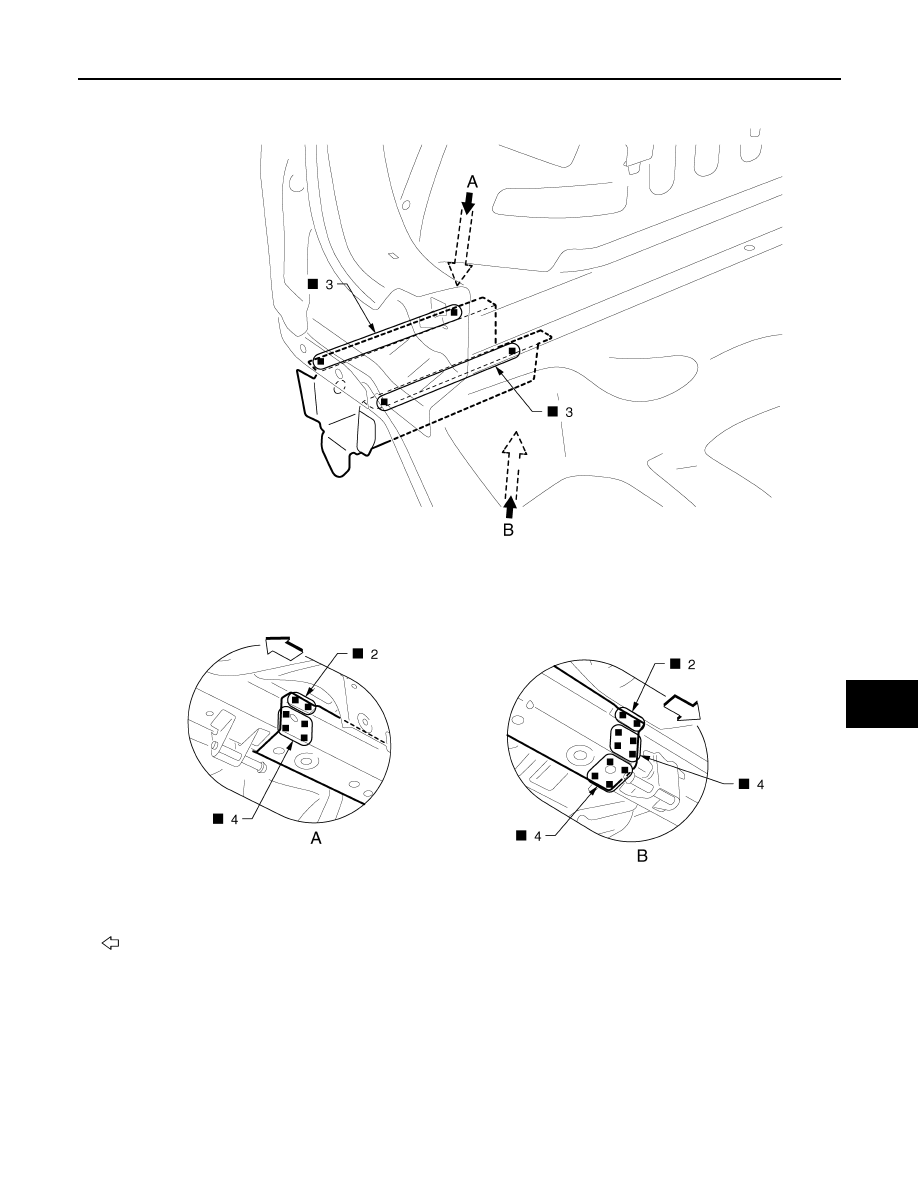

: Vehicle front

Replacement part

z

Rear side member extension assem-
bly

JSKIA4031ZZ

BRM-202

< REMOVAL AND INSTALLATION >

[FOR EUROPE (RHD)]

REPLACEMENT OPERATIONS

Roof (Without Sunroof Models)

INFOID:0000000010313685

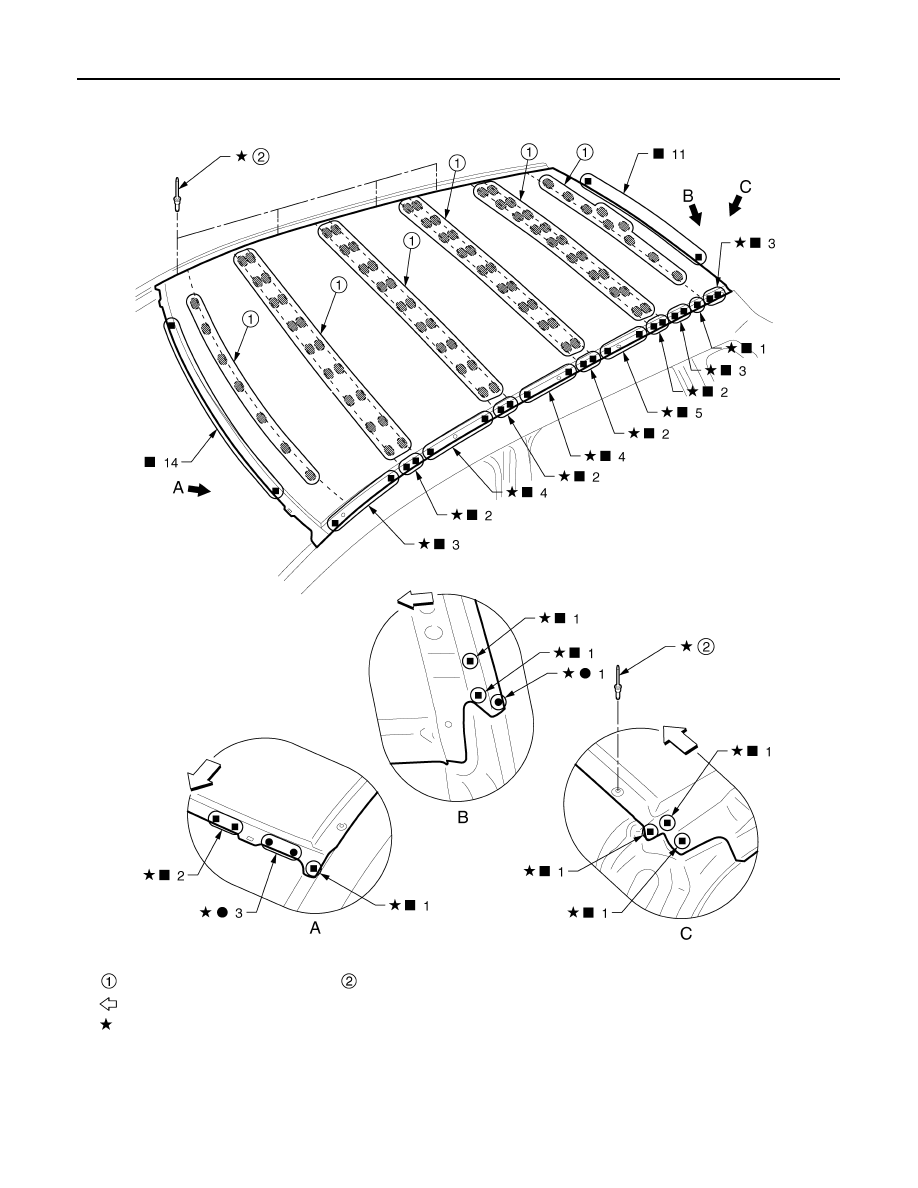

Body sealing

Rivet

: Vehicle front

: Welding method and the number of welding points apply to both side of the vehicle.

Replacement part

z

Roof

z

1st roof bow

z

2nd roof bow

z

3rd roof bow

z

4th roof bow

JSKIA4032ZZ

REPLACEMENT OPERATIONS

BRM-203

< REMOVAL AND INSTALLATION >

[FOR EUROPE (RHD)]

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

Roof (With Sunroof Models)

INFOID:0000000010313686

Roof Rail

INFOID:0000000010313687

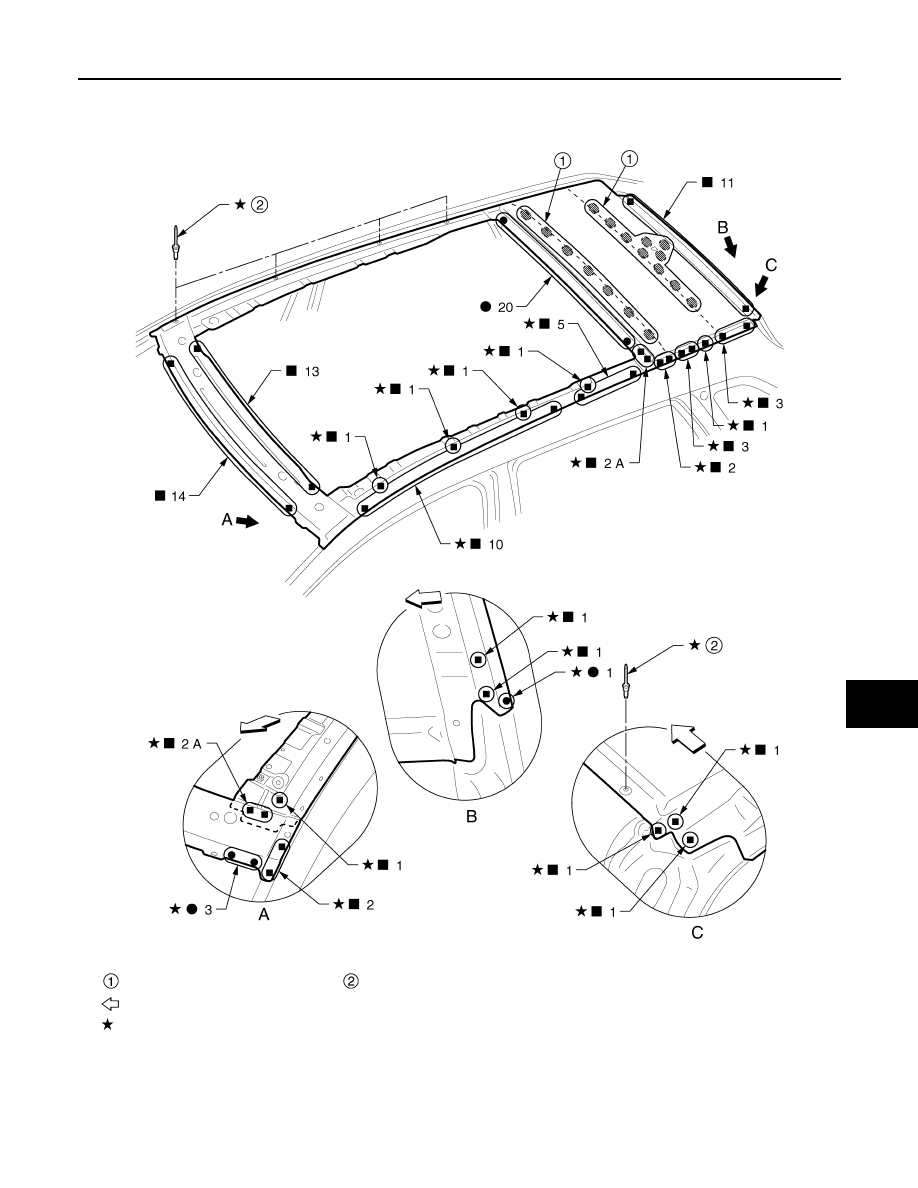

Work after roof is removed.

Body sealing

Rivet

: Vehicle front

: Welding method and the number of welding points apply to both side of the vehicle.

Replacement part

z

Sunroof assembly

z

Center roof bow

JSKIA4257ZZ
