REPLACEMENT OPERATIONS

Rear Fender

INFOID:0000000010313676

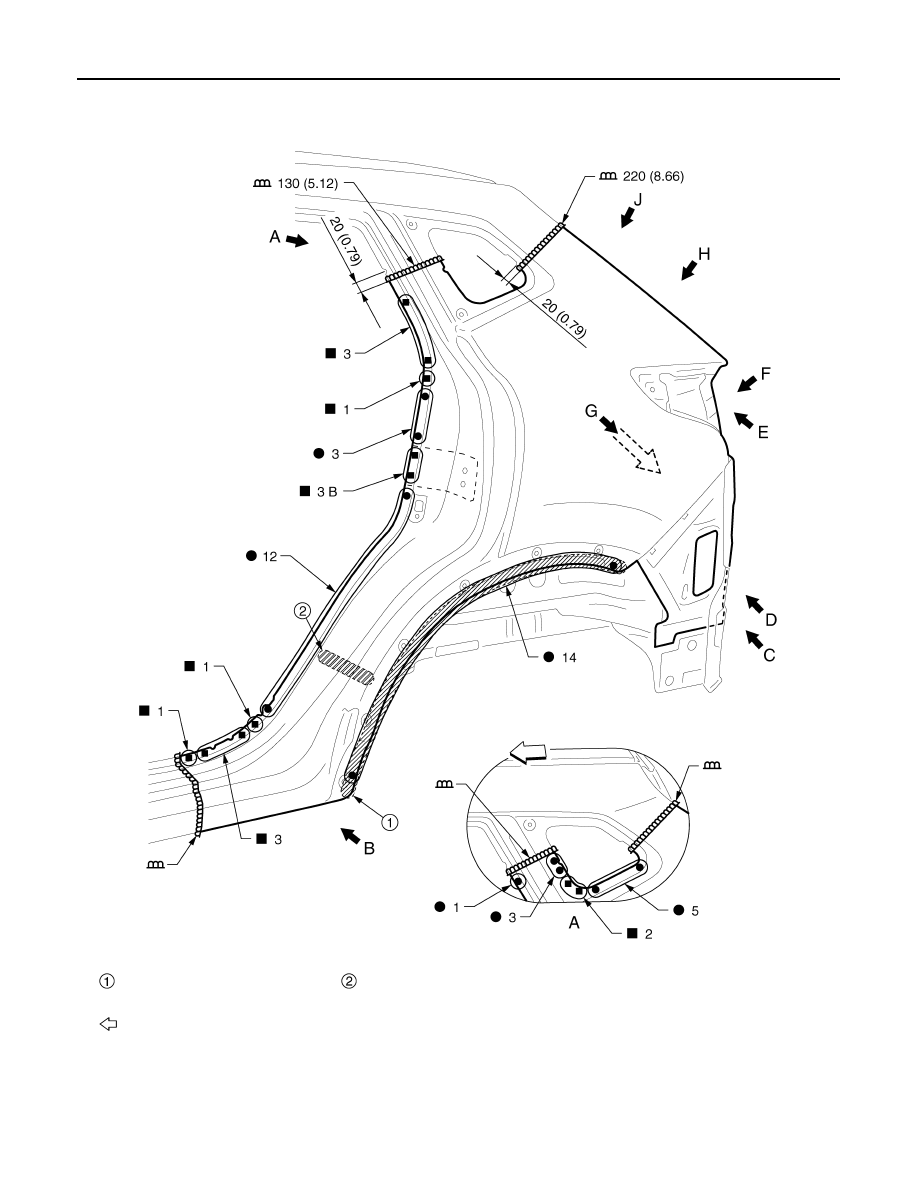

Body sealing

Urethane foam

Unit: mm (in)

: Vehicle front

Replacement part

z

Rear fender assembly

z

Rear fender extension complete

z

Striker retainer assembly

JSKIA4020GB

REPLACEMENT OPERATIONS

BRM-189

< REMOVAL AND INSTALLATION >

[FOR EUROPE (RHD)]

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

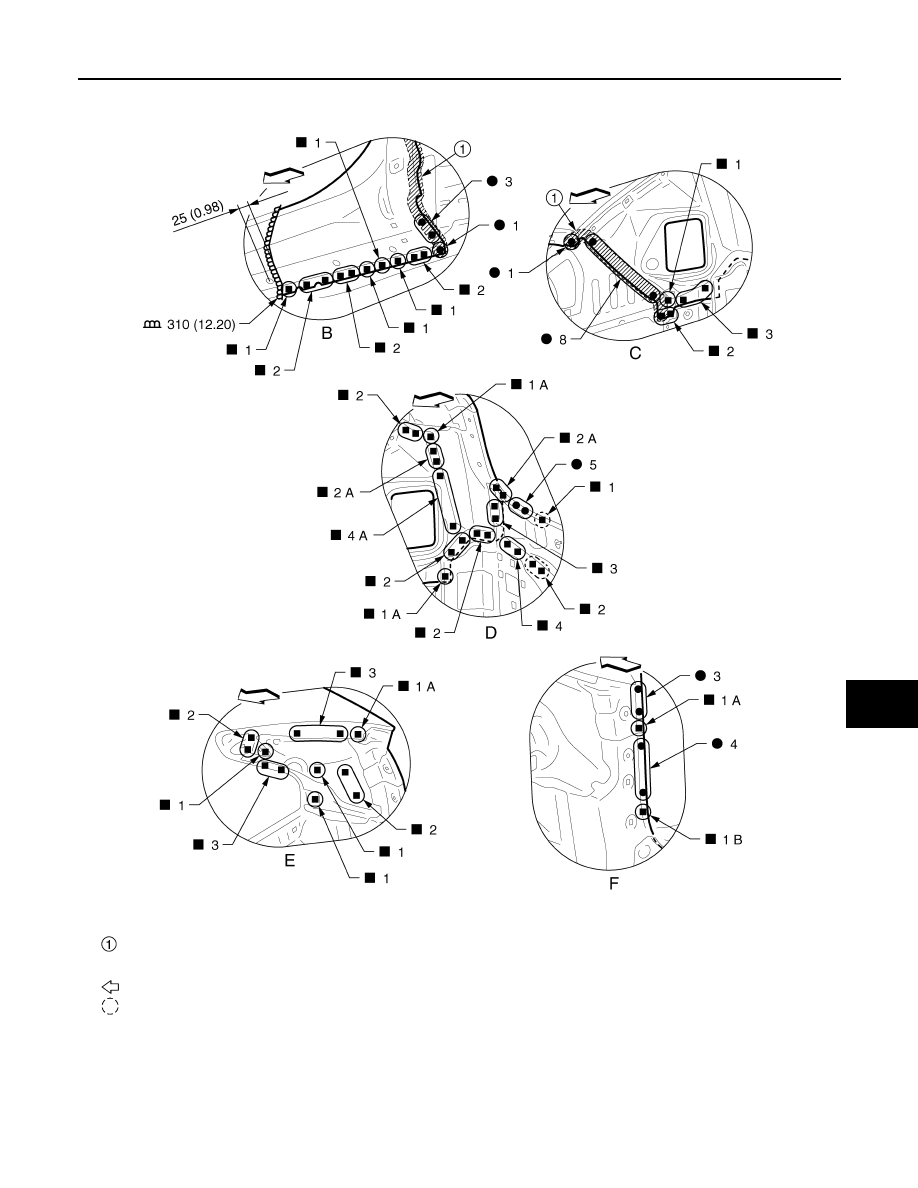

Body sealing

Unit: mm (in)

: Vehicle front

: Weld the parts onto the back of the component part.

JSKIA4021GB

BRM-190

< REMOVAL AND INSTALLATION >

[FOR EUROPE (RHD)]

REPLACEMENT OPERATIONS

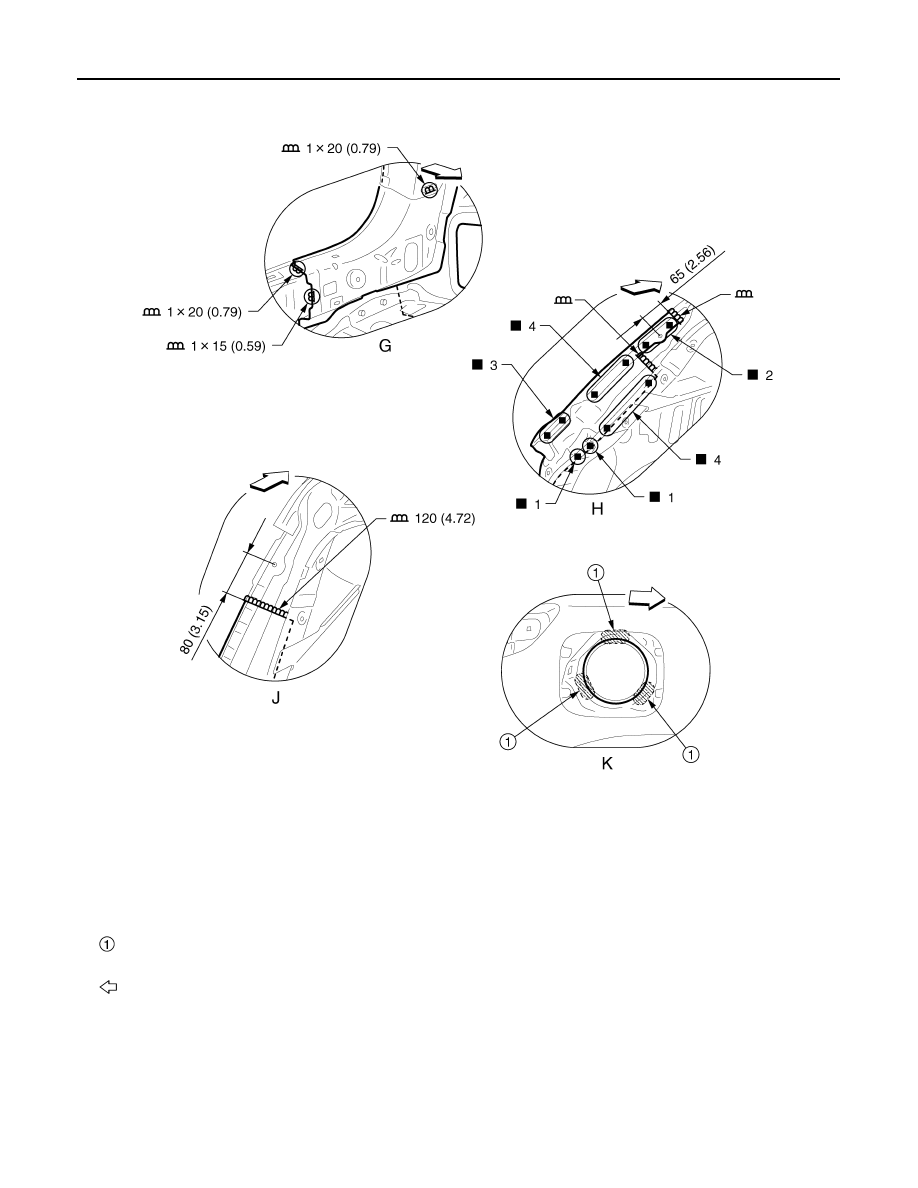

View J: Before installing rear fender assembly
View G: Right side rear fender

Adhesive

Unit: mm (in)

: Vehicle front

JSKIA4022GB

REPLACEMENT OPERATIONS

BRM-191

< REMOVAL AND INSTALLATION >

[FOR EUROPE (RHD)]

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

Rear Fender Extension

INFOID:0000000010313677

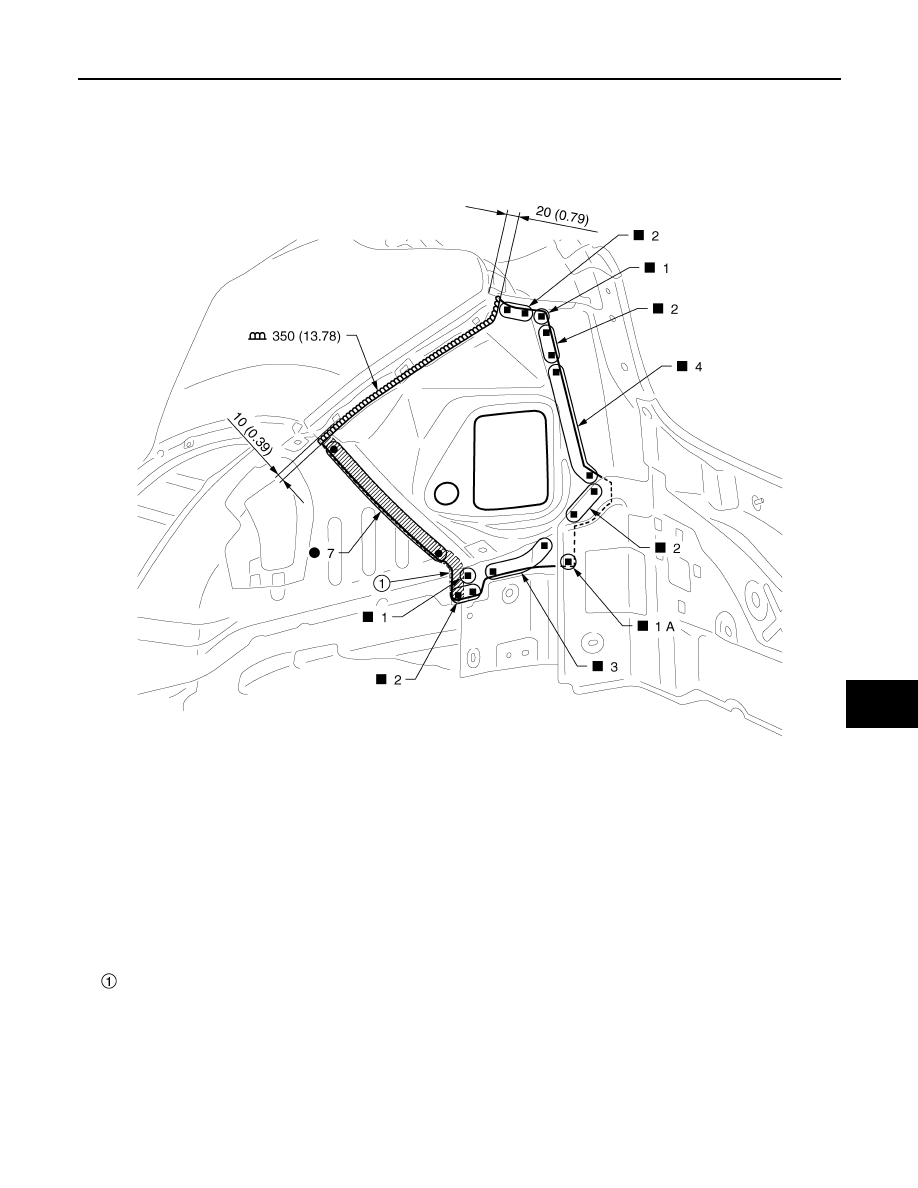

Outer Rear Wheelhouse (2WD)

INFOID:0000000010475426

Work after rear fender is removed.
Remove the inner rear wheelhouse reinforcement (reusable) for easier installation.

Body sealing

Unit: mm (in)

Replacement part

z

Rear fender assembly

JSKIA4023GB
