Nissan Qashqai J11. Manual - part 1588

BRM-180

< REMOVAL AND INSTALLATION >

[FOR EUROPE (RHD)]

REPLACEMENT OPERATIONS

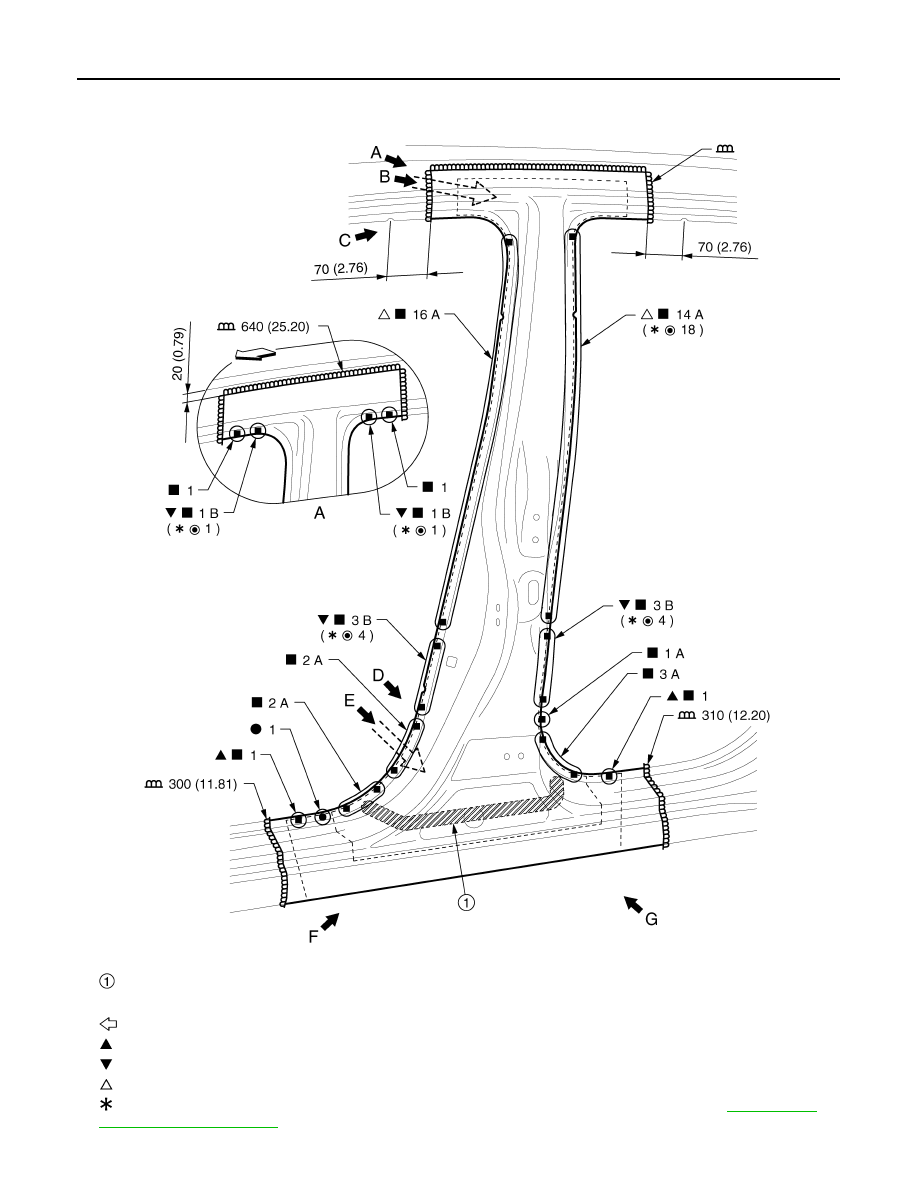

Center Pillar

INFOID:0000000010313671

Urethane foam

Unit: mm (in)

: Vehicle front

: Drill

φ

6 mm (0.24 in) hole for the plug welding hole (ultra high strength steel).

: Drill

φ

7 mm (0.28 in) hole for the plug welding hole (ultra high strength steel).

: Drill

φ

8 mm (0.31 in) hole for the plug welding hole (ultra high strength steel).

: For spot welding of steel plate of tensile strength 980 MPa, observe the indicated welding conditions. Refer to

BRM-48, "Weld-

ing of Ultra High Strength Steel"

JSKIA4012GB

REPLACEMENT OPERATIONS

BRM-181

< REMOVAL AND INSTALLATION >

[FOR EUROPE (RHD)]

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

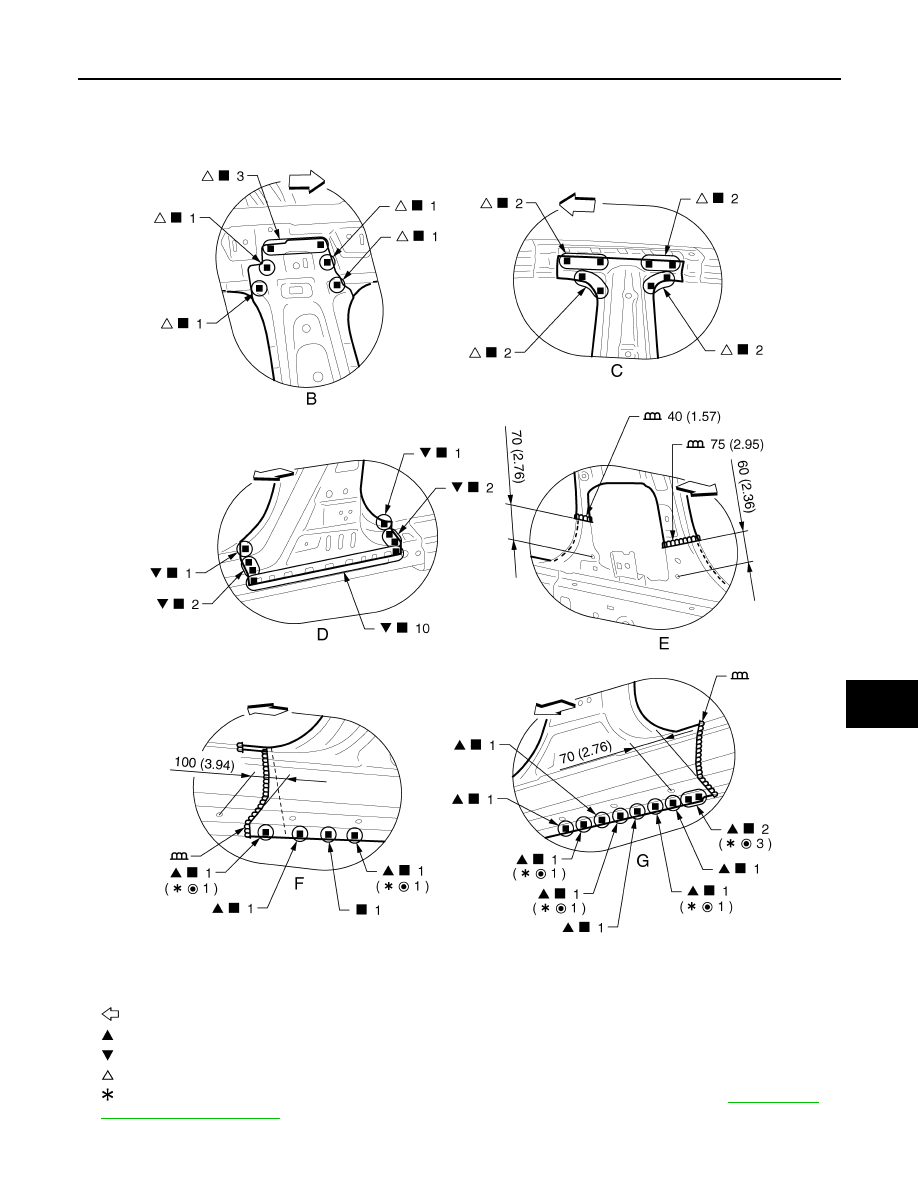

Replacement part

z

Outer front side body

z

Center pillar hinge brace assembly

z

Inner center pillar assembly

Unit: mm (in)

: Vehicle front

: Drill

φ

6 mm (0.24 in) hole for the plug welding hole (ultra high strength steel).

: Drill

φ

7 mm (0.28 in) hole for the plug welding hole (ultra high strength steel).

: Drill

φ

8 mm (0.31 in) hole for the plug welding hole (ultra high strength steel).

: For spot welding of steel plate of tensile strength 980 MPa, observe the indicated welding conditions. Refer to

BRM-48, "Weld-

ing of Ultra High Strength Steel"

JSKIA4013GB

BRM-182

< REMOVAL AND INSTALLATION >

[FOR EUROPE (RHD)]

REPLACEMENT OPERATIONS

View C and D: Before installing outer front side body

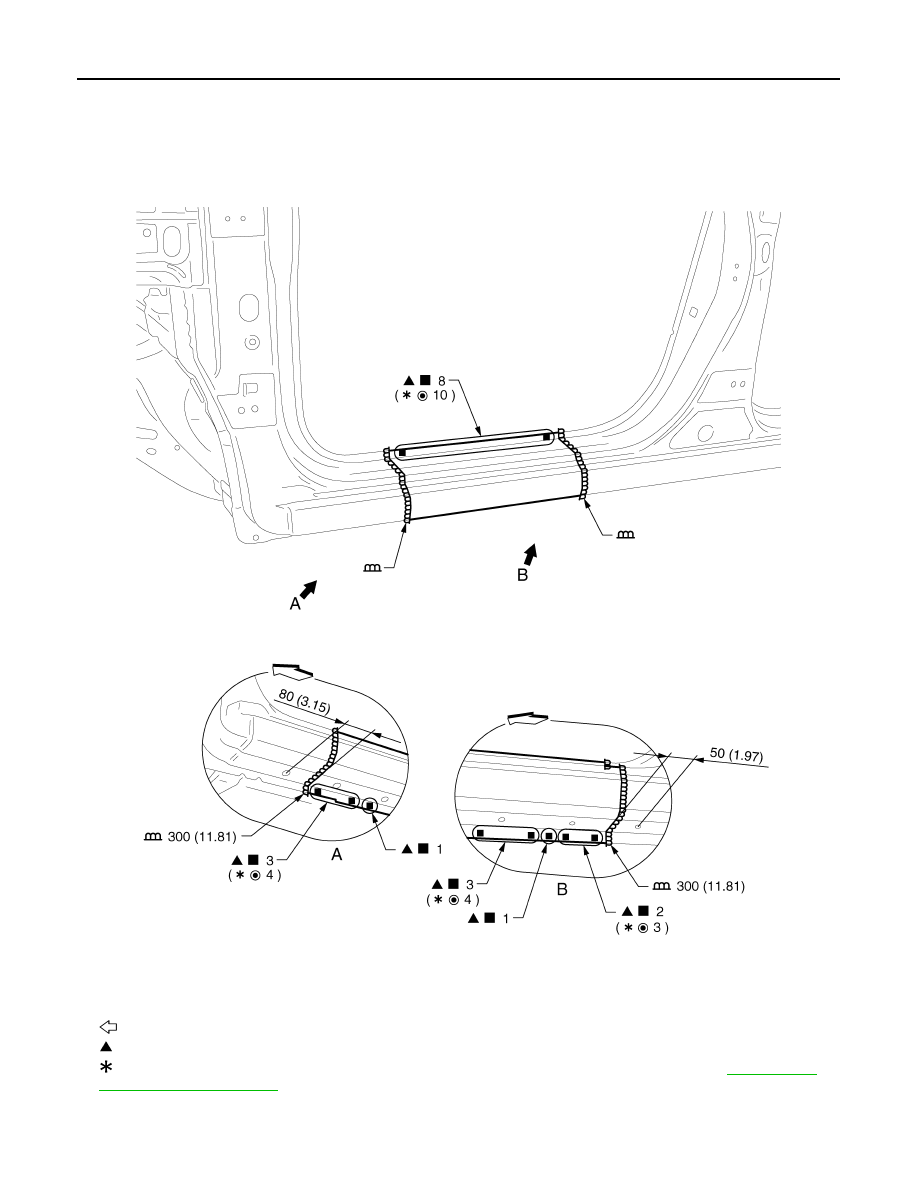

Outer Sill (Partial Replacement)

INFOID:0000000010313672

Unit: mm (in)

: Vehicle front

: Drill

φ

6 mm (0.24 in) hole for the plug welding hole (ultra high strength steel).

: For spot welding of steel plate of tensile strength 980 MPa, observe the indicated welding conditions. Refer to

BRM-48, "Weld-

ing of Ultra High Strength Steel"

Replacement part

z

Outer sill assembly

JSKIA4014GB

REPLACEMENT OPERATIONS

BRM-183

< REMOVAL AND INSTALLATION >

[FOR EUROPE (RHD)]

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

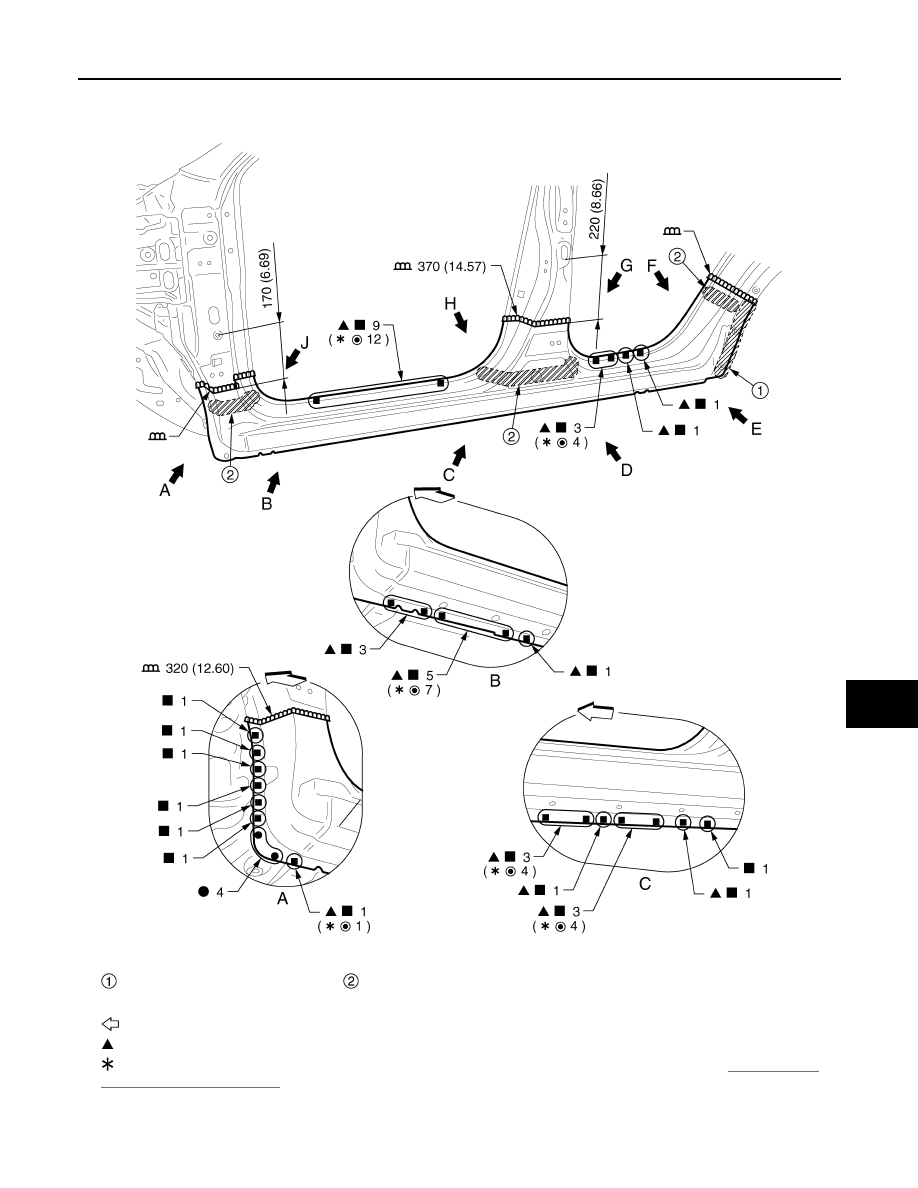

Outer Sill

INFOID:0000000010313673

Body sealing

Urethane foam

Unit: mm (in)

: Vehicle front

: Drill

φ

6 mm (0.24 in) hole for the plug welding hole (ultra high strength steel).

: For spot welding of steel plate of tensile strength 980 MPa, observe the indicated welding conditions. Refer to

BRM-48, "Weld-

ing of Ultra High Strength Steel"

Replacement part

z

Outer sill assembly

JSKIA4015GB
