BRM-84

< REMOVAL AND INSTALLATION >

[FOR EUROPE (LHD)]

REPLACEMENT OPERATIONS

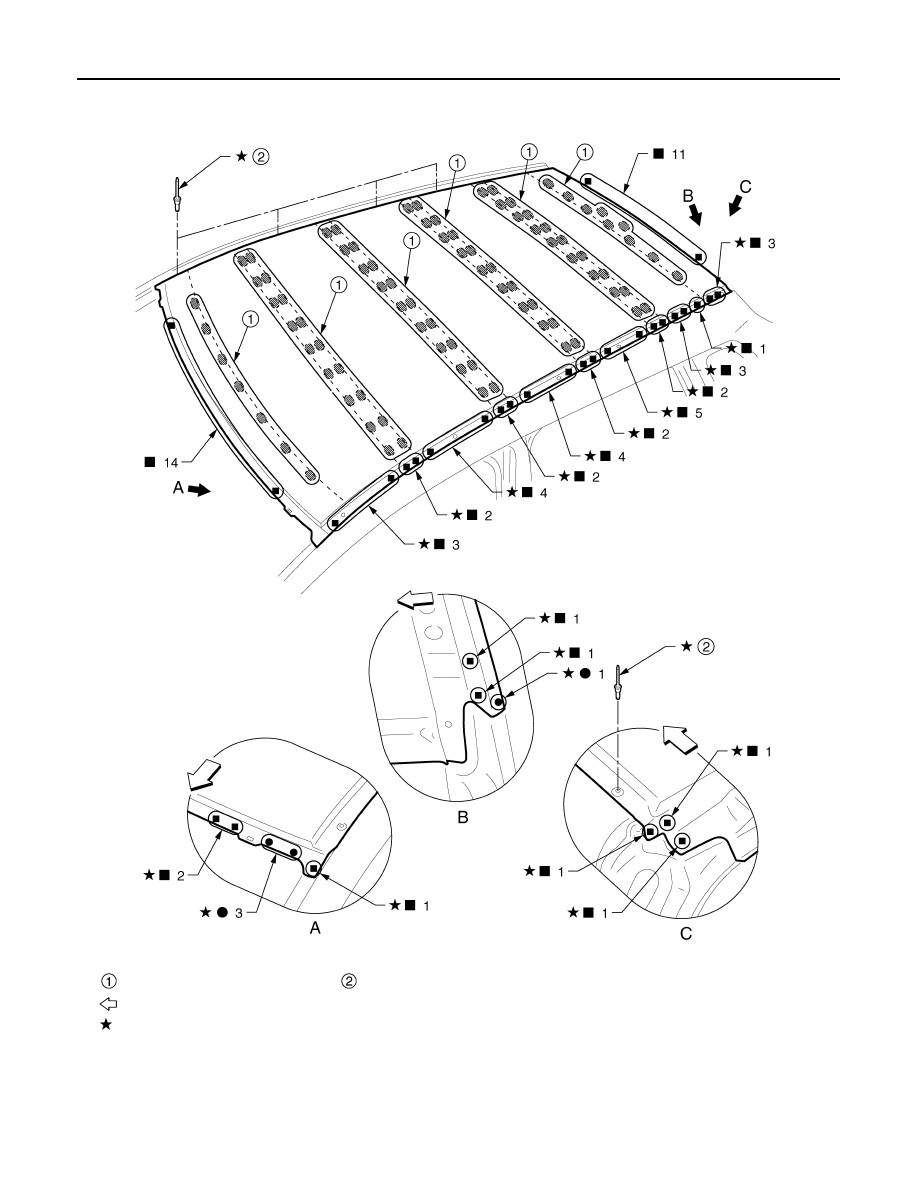

Roof (Without Sunroof Models)

INFOID:0000000010288002

Body sealing

Rivet

: Vehicle front

: Welding method and the number of welding points apply to both side of the vehicle.

Replacement part

z

Roof

z

1st roof bow

z

2nd roof bow

z

3rd roof bow

z

4th roof bow

JSKIA4032ZZ

REPLACEMENT OPERATIONS

BRM-85

< REMOVAL AND INSTALLATION >

[FOR EUROPE (LHD)]

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

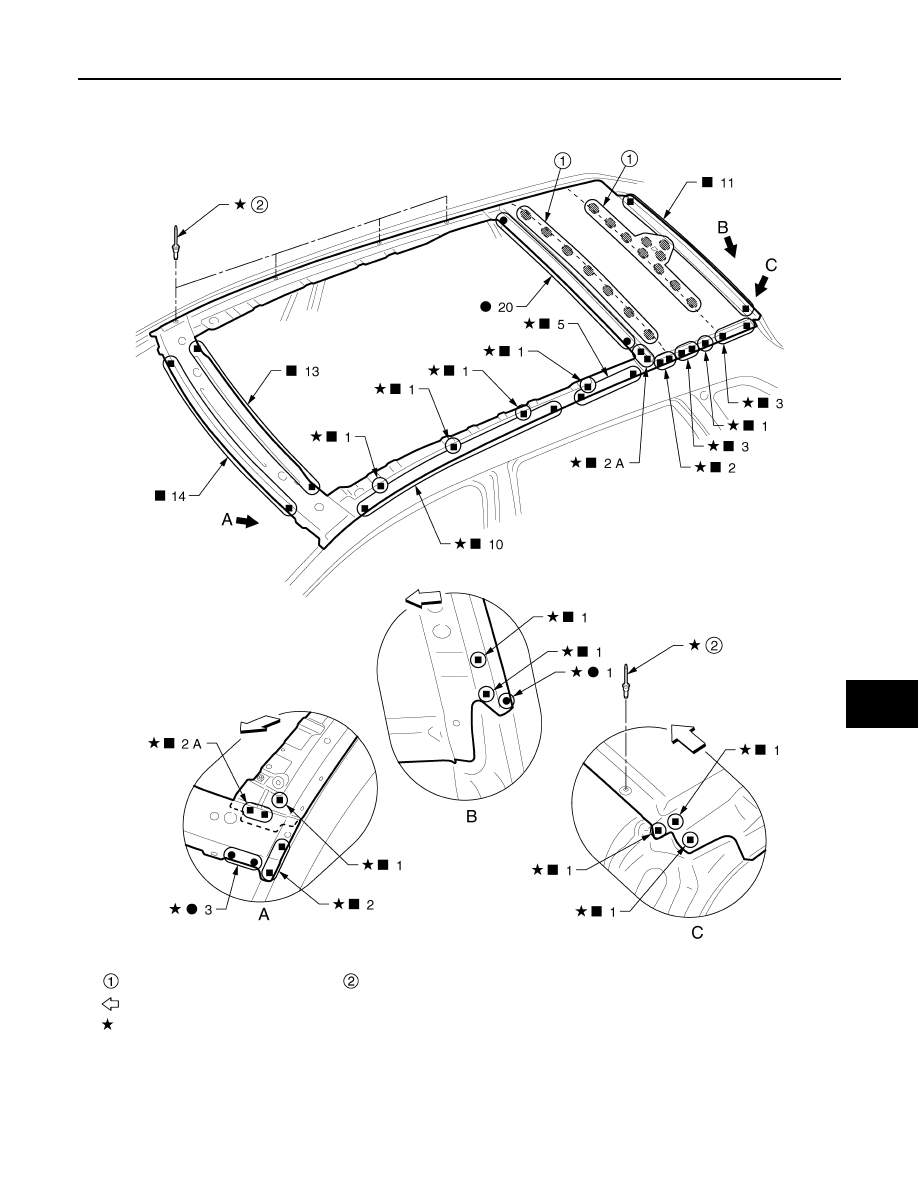

Roof (With Sunroof Models)

INFOID:0000000010288003

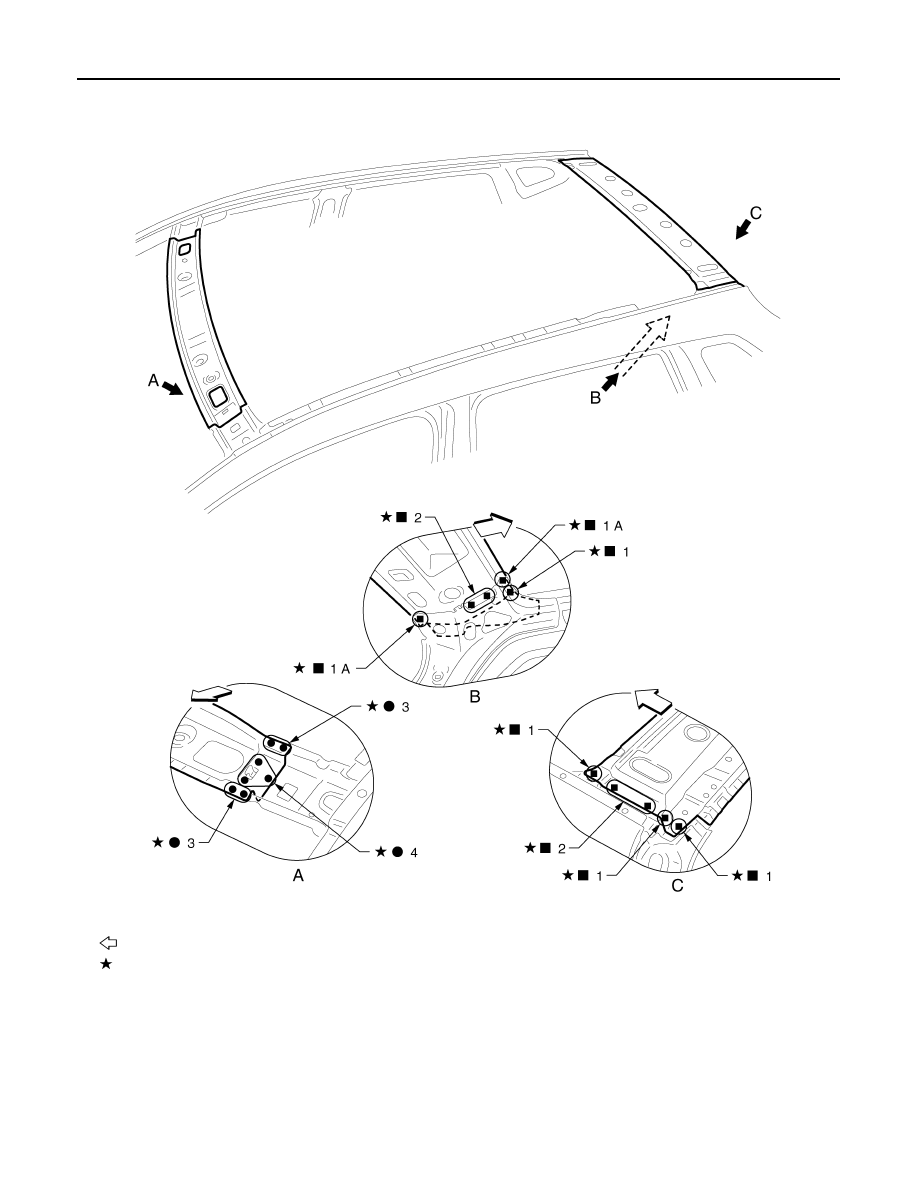

Roof Rail

INFOID:0000000010312607

Work after roof is removed.

Body sealing

Rivet

: Vehicle front

: Welding method and the number of welding points apply to both side of the vehicle.

Replacement part

z

Sunroof assembly

z

Center roof bow

JSKIA4257ZZ

BRM-86

< REMOVAL AND INSTALLATION >

[FOR EUROPE (LHD)]

REPLACEMENT OPERATIONS

: Vehicle front

: Welding method and the number of welding points apply to both side of the vehicle.

Replacement part

z

Front roof rail assembly

z

Rear roof rail assembly

JSKIA4033ZZ

BODY ALIGNMENT

BRM-87

< SERVICE DATA AND SPECIFICATIONS (SDS)

[FOR EUROPE (LHD)]

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

SERVICE DATA AND SPECIFICATIONS (SDS)

BODY ALIGNMENT

2WD

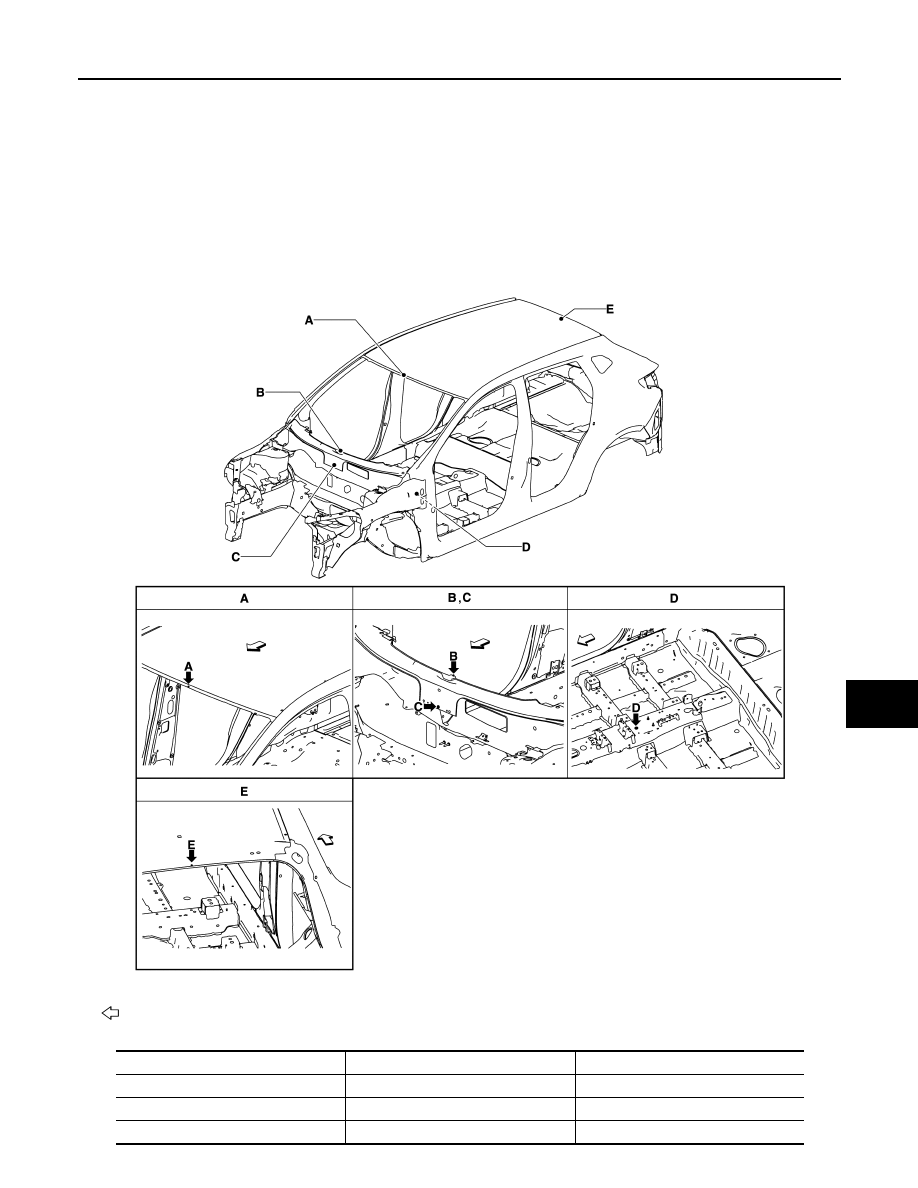

2WD : Body Center Marks (Without Sunroof Models)

INFOID:0000000010288005

A mark is placed on each part of the body to indicate the vehicle center. When repairing the vehicle frame
(members, pillars, etc.) damaged by an accident which it enables more accurate and effective repair by using
these marks together with body alignment specifications.

Unit: mm (in)

: Vehicle front

Points

Portion

Marks

A

Front roof

Embossment

B

Cowl top

indent

C

Cowl top

Hole

φ

8 (0.31)

JSKIA3903ZZ
