< REMOVAL AND INSTALLATION >

[FOR EUROPE (LHD)]

REPLACEMENT OPERATIONS

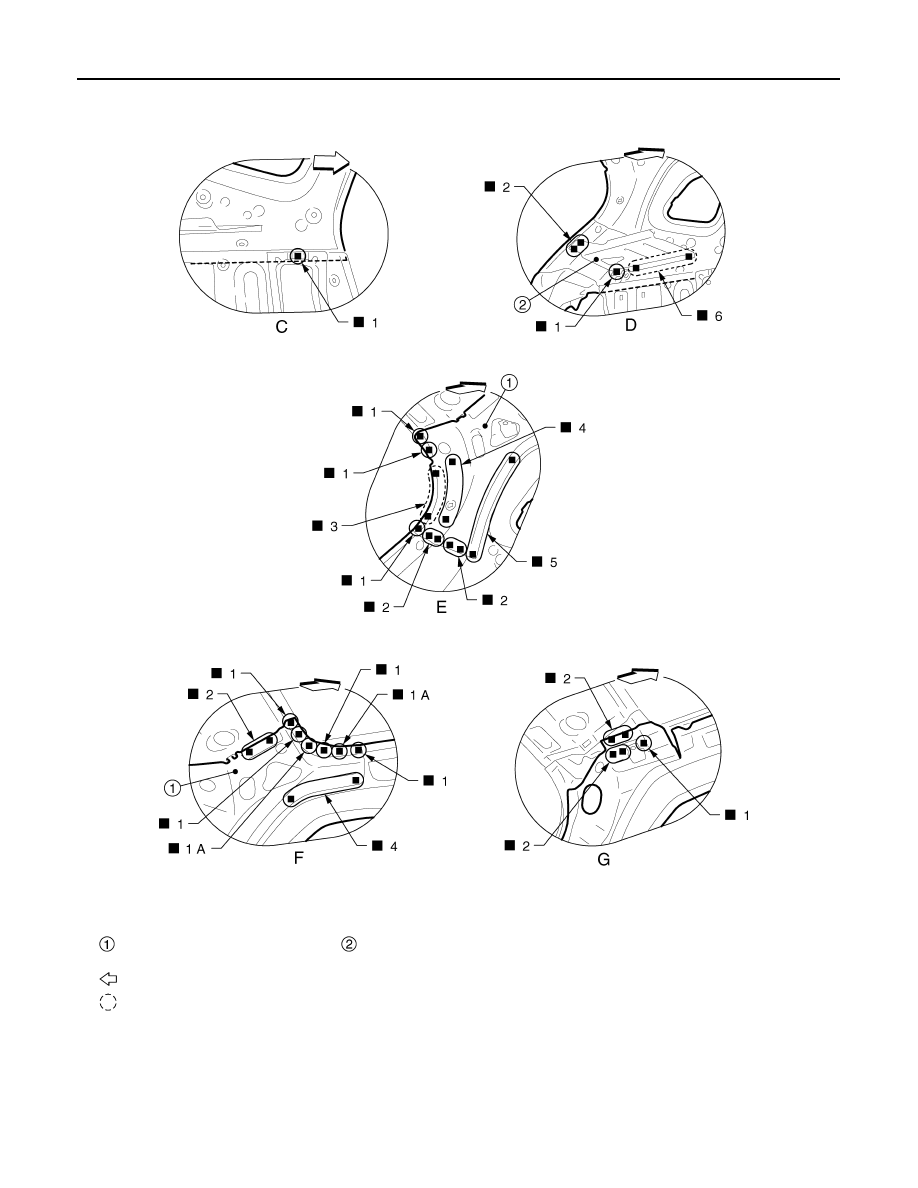

View E: Before installing rear seat belt anchor reinforcement
View G: Before installing rear roof rail brace and rear seat belt anchor reinforcement

Rear roof rail brace (reusable)

Rear seat belt anchor reinforcement
(reusable)

: Vehicle front.

: Weld the parts onto the back of the component part.

JSKIA4028ZZ

REPLACEMENT OPERATIONS

BRM-81

< REMOVAL AND INSTALLATION >

[FOR EUROPE (LHD)]

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

Rear Panel

INFOID:0000000010287999

Rear Floor Rear

INFOID:0000000010288000

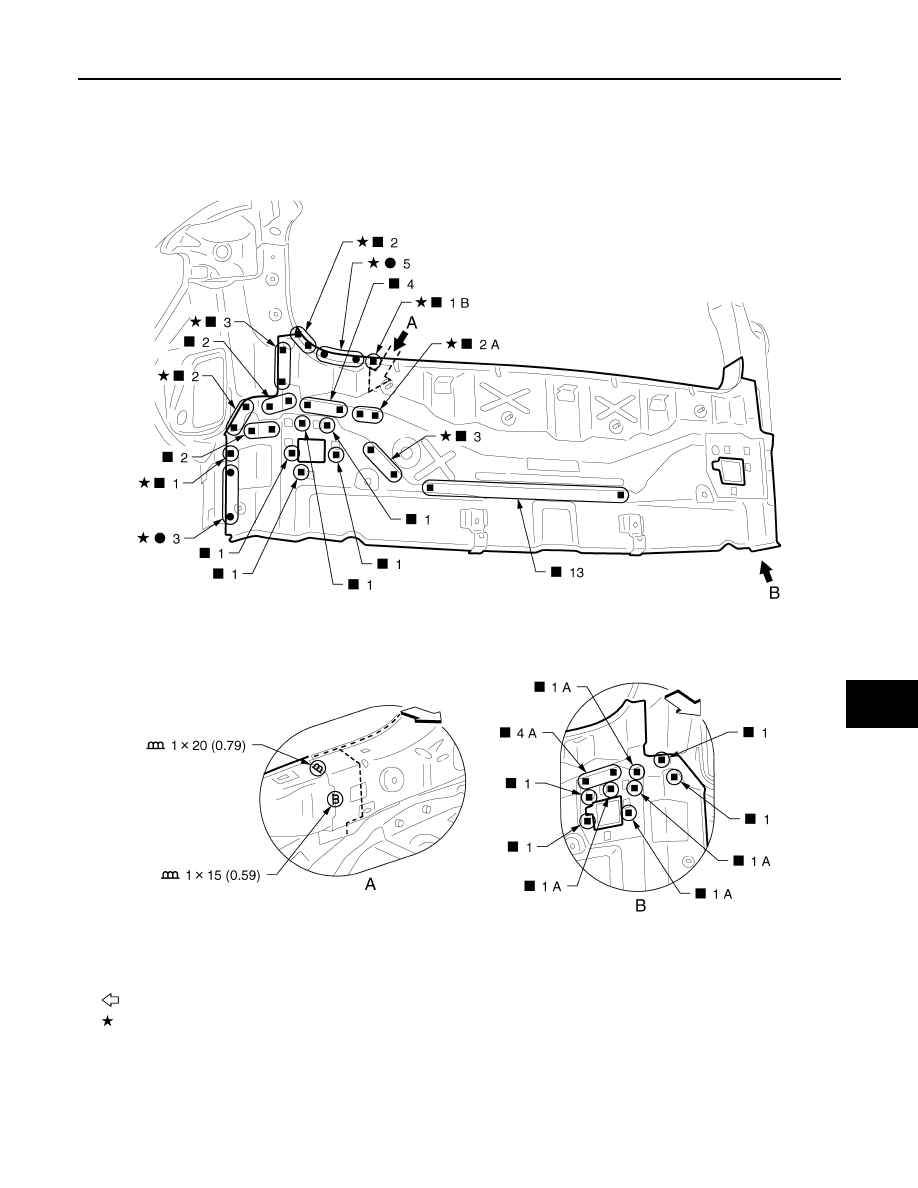

Work after rear panel is removed.

Unit: mm (in)

: Vehicle front

: Welding method and the number of welding points apply to both side of the vehicle.

Replacement part

z

Upper rear panel assembly

JSKIA4029GB

BRM-82

< REMOVAL AND INSTALLATION >

[FOR EUROPE (LHD)]

REPLACEMENT OPERATIONS

Rear Side Member Extension

INFOID:0000000010288001

Work after rear panel is removed.

Left side

Right side

: Vehicle front

: Welding method and the number of welding points apply to both side of the vehicle.

Replacement part

z

Rear floor rear

z

Spare wheel clamp bracket assem-
bly

JSKIA4030ZZ

REPLACEMENT OPERATIONS

BRM-83

< REMOVAL AND INSTALLATION >

[FOR EUROPE (LHD)]

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

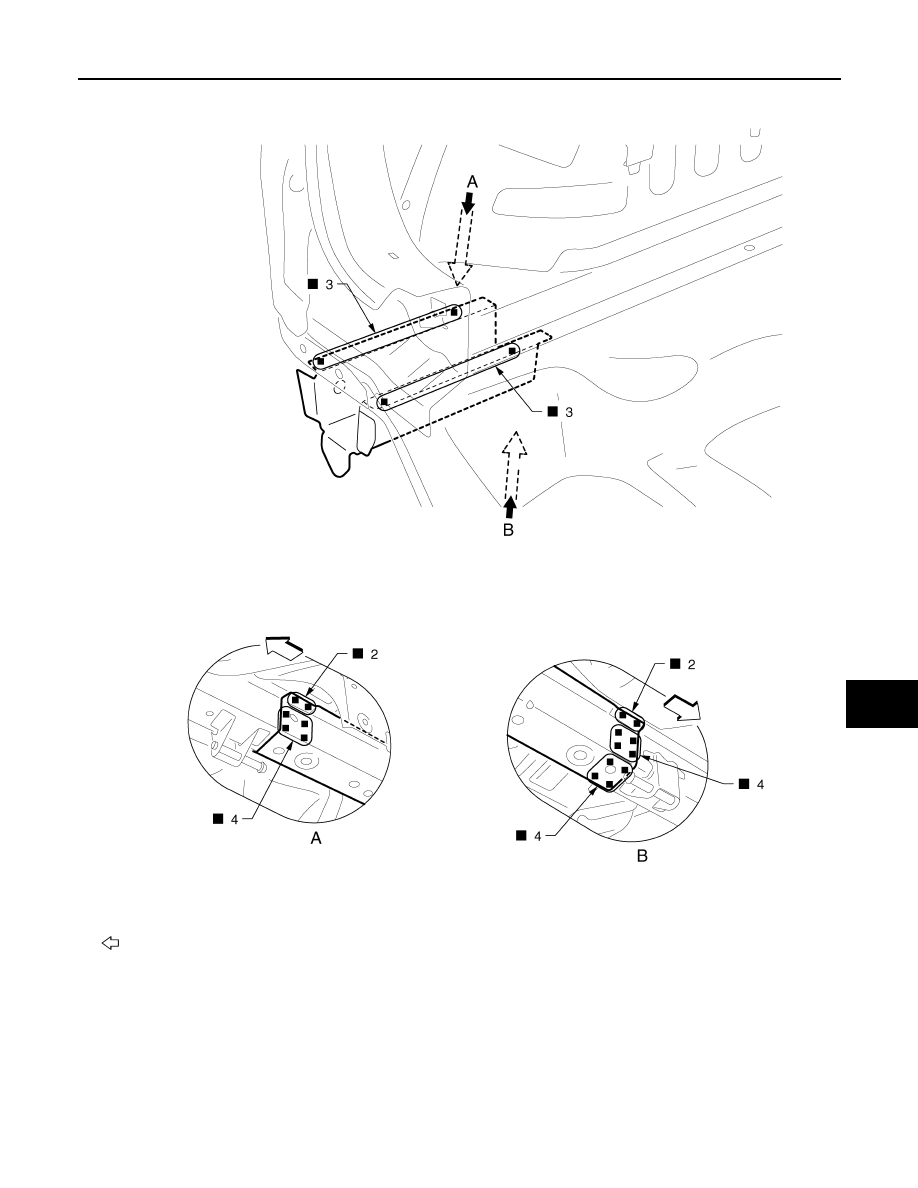

: Vehicle front

Replacement part

z

Rear side member extension assem-
bly

JSKIA4031ZZ
