Nissan Qashqai J11. Manual - part 1562

BRM-76

< REMOVAL AND INSTALLATION >

[FOR EUROPE (LHD)]

REPLACEMENT OPERATIONS

Inner Rear Wheelhouse (4WD)

INFOID:0000000010287997

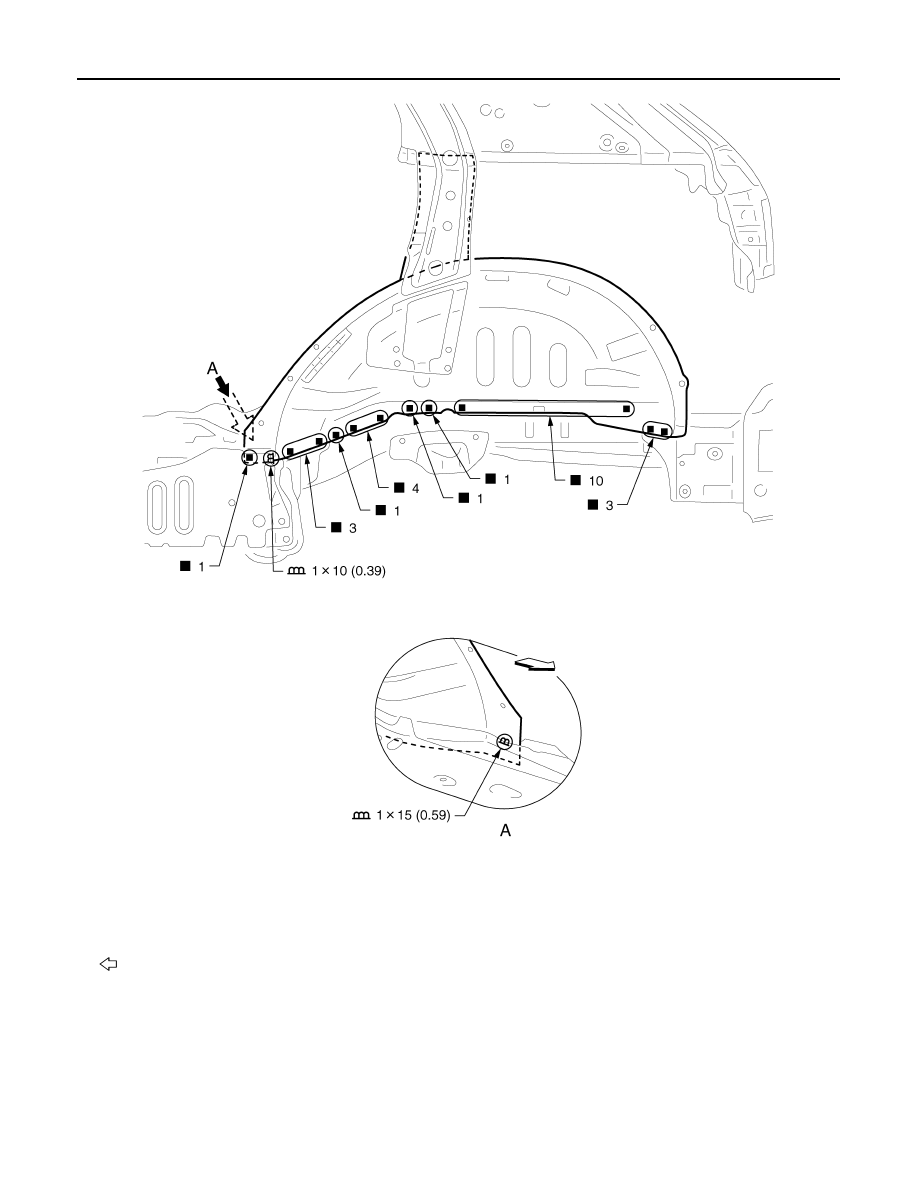

Work after rear fender and outer rear wheelhouse are removed.

Unit: mm (in)

: Vehicle front

Replacement part

z

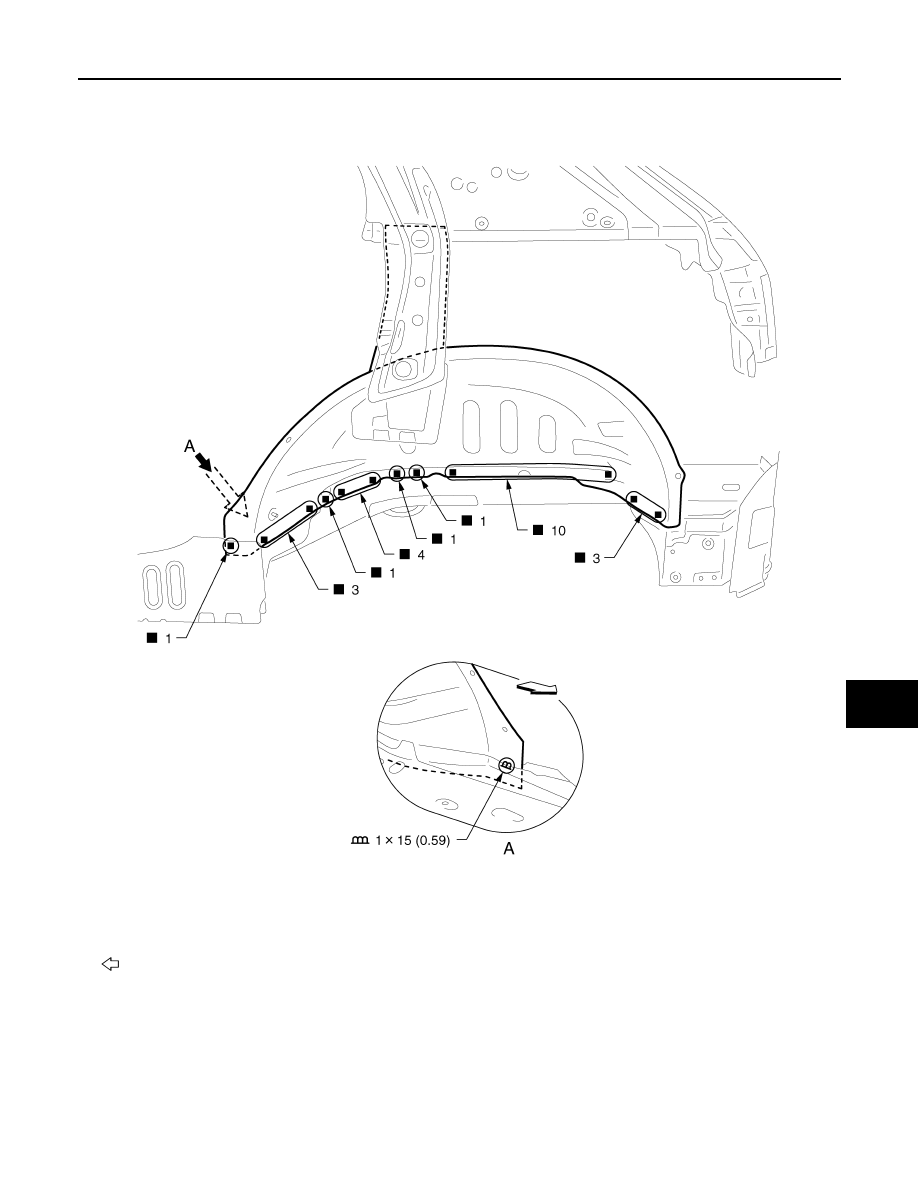

Inner rear wheelhouse assembly

JSKIA4256GB

REPLACEMENT OPERATIONS

BRM-77

< REMOVAL AND INSTALLATION >

[FOR EUROPE (LHD)]

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

Inner Rear Pillar Reinforcement

INFOID:0000000010287995

Work after rear fender is removed.

Unit: mm (in)

: Vehicle front

Replacement part

z

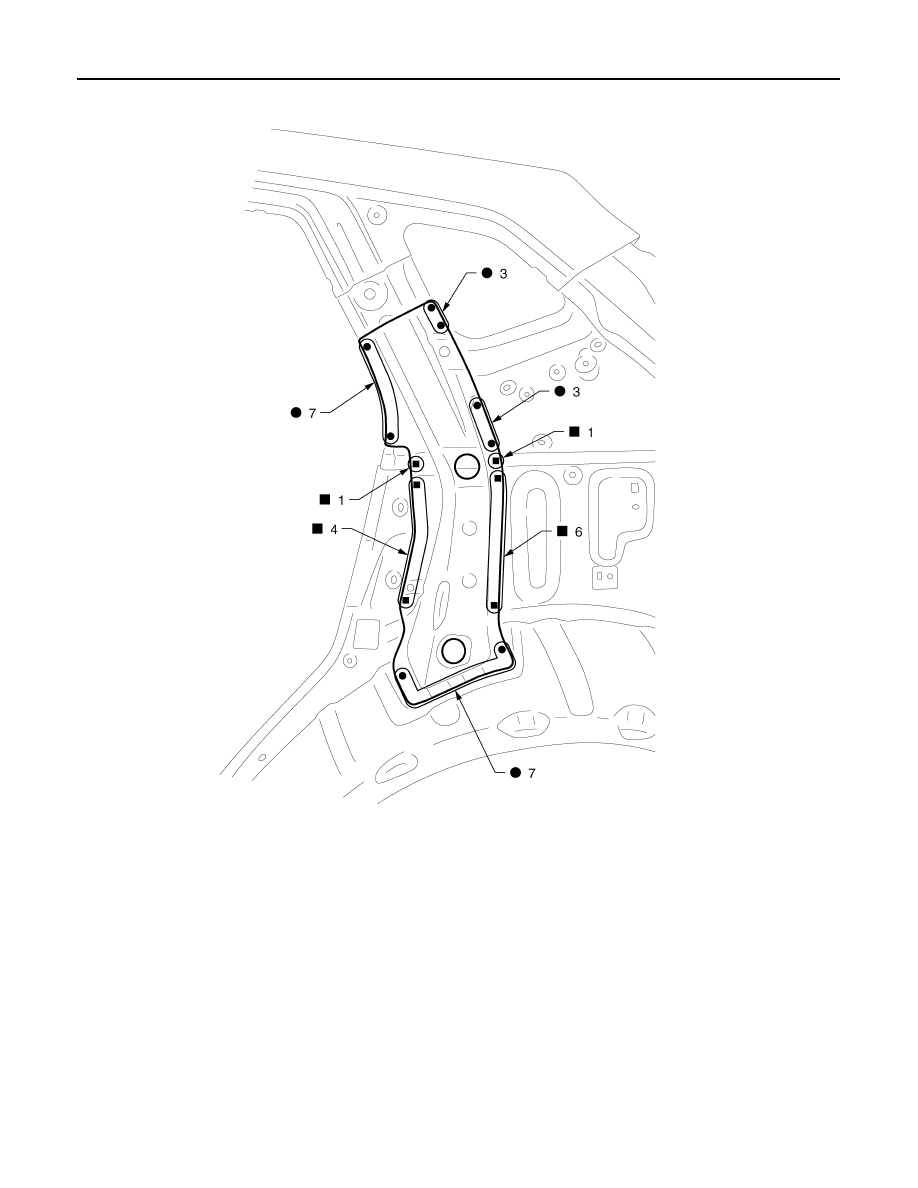

Inner rear wheelhouse assembly

JSKIA4025GB

BRM-78

< REMOVAL AND INSTALLATION >

[FOR EUROPE (LHD)]

REPLACEMENT OPERATIONS

Inner Rear Pillar

INFOID:0000000010287998

Work after rear fender is removed.
Remove the rear roof rail brace (reusable) and rear seat belt anchor reinforcement (reusable) from the service
part

″

Inner rear pillar assembly

″

 for easier installation.

Replacement part

z

Inner rear pillar reinforcement

JSKIA4026ZZ

REPLACEMENT OPERATIONS

BRM-79

< REMOVAL AND INSTALLATION >

[FOR EUROPE (LHD)]

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

Urethane foam

Rear roof rail brace (reusable)

: Vehicle front.

Replacement part

z

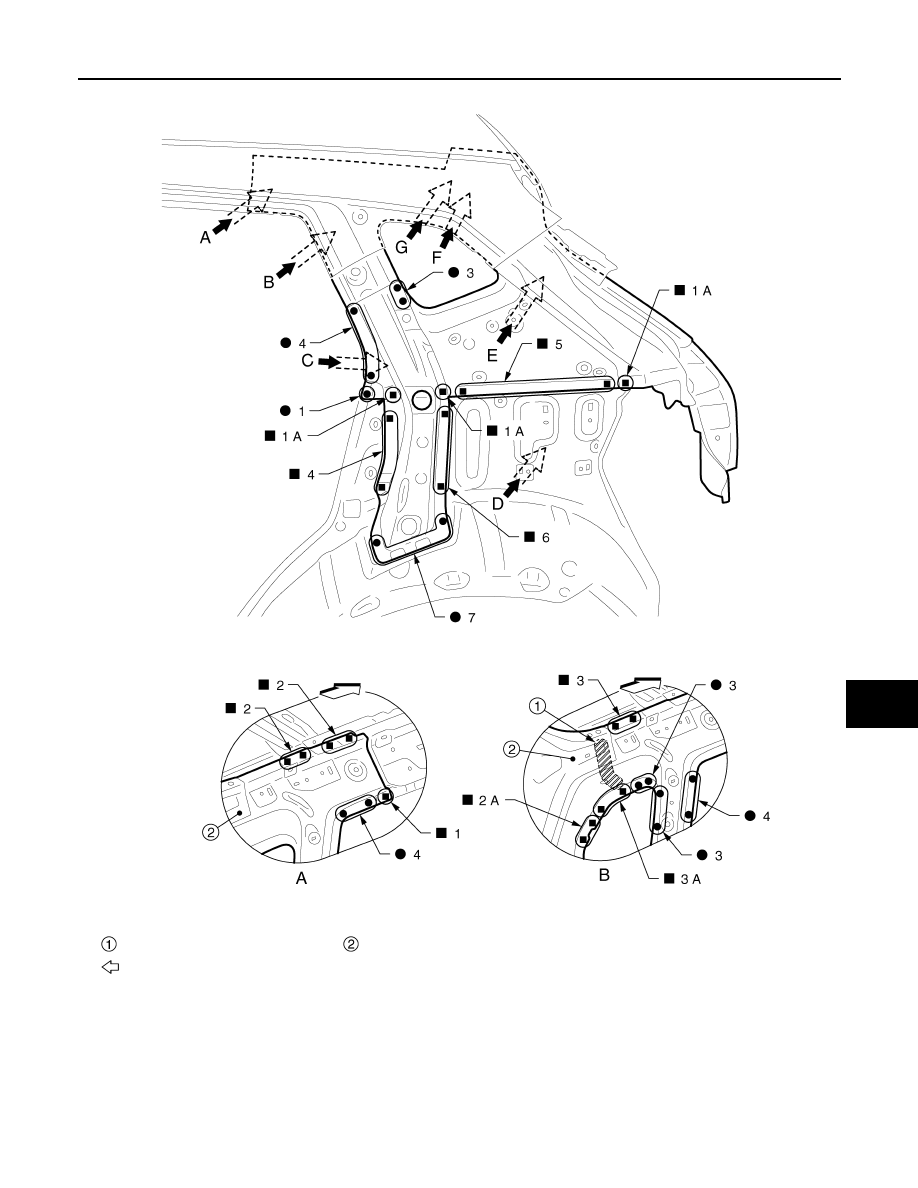

Inner rear pillar assembly

JSKIA4027ZZ
