Nissan Qashqai J11. Manual - part 1561

BRM-72

< REMOVAL AND INSTALLATION >

[FOR EUROPE (LHD)]

REPLACEMENT OPERATIONS

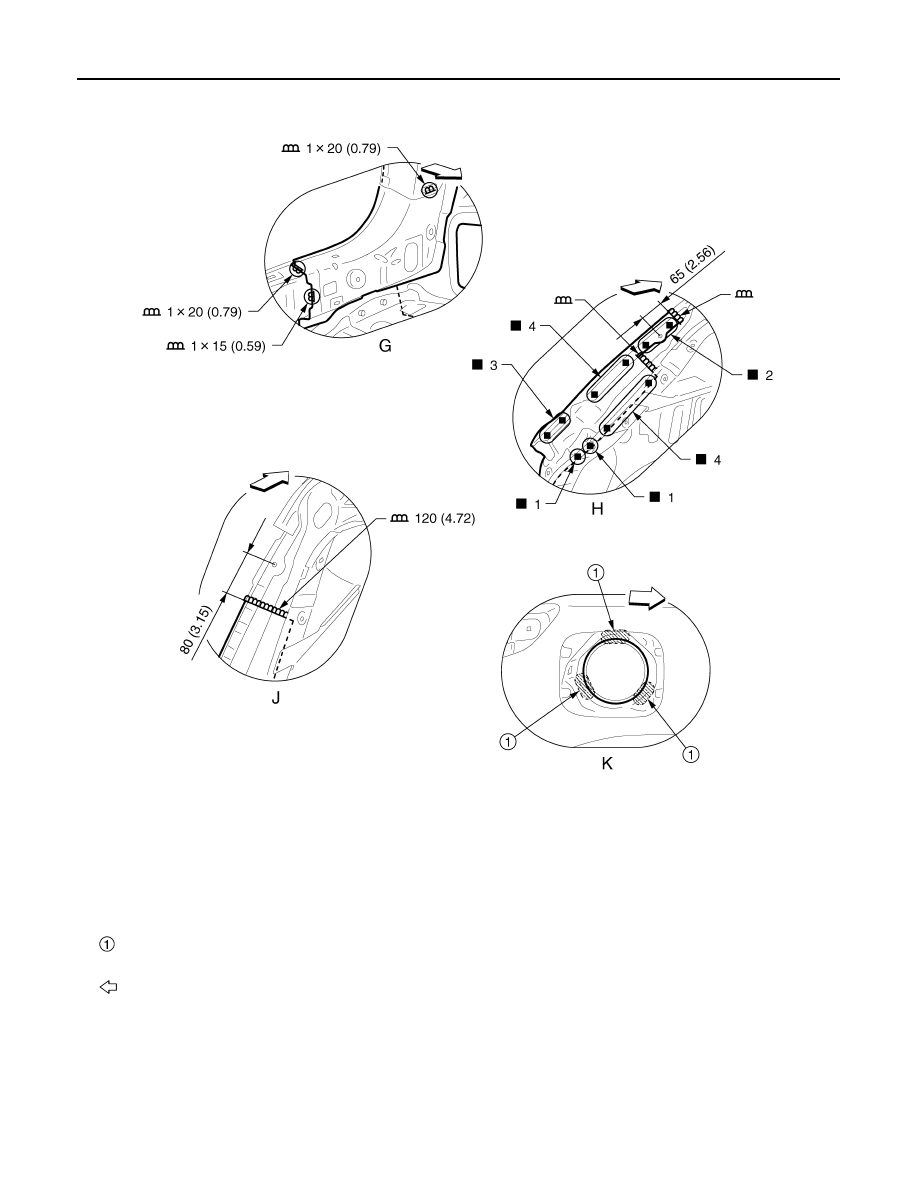

View J: Before installing rear fender assembly
View G: Right side rear fender

Adhesive

Unit: mm (in)

: Vehicle front

JSKIA4022GB

REPLACEMENT OPERATIONS

BRM-73

< REMOVAL AND INSTALLATION >

[FOR EUROPE (LHD)]

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

Rear Fender Extension

INFOID:0000000010287994

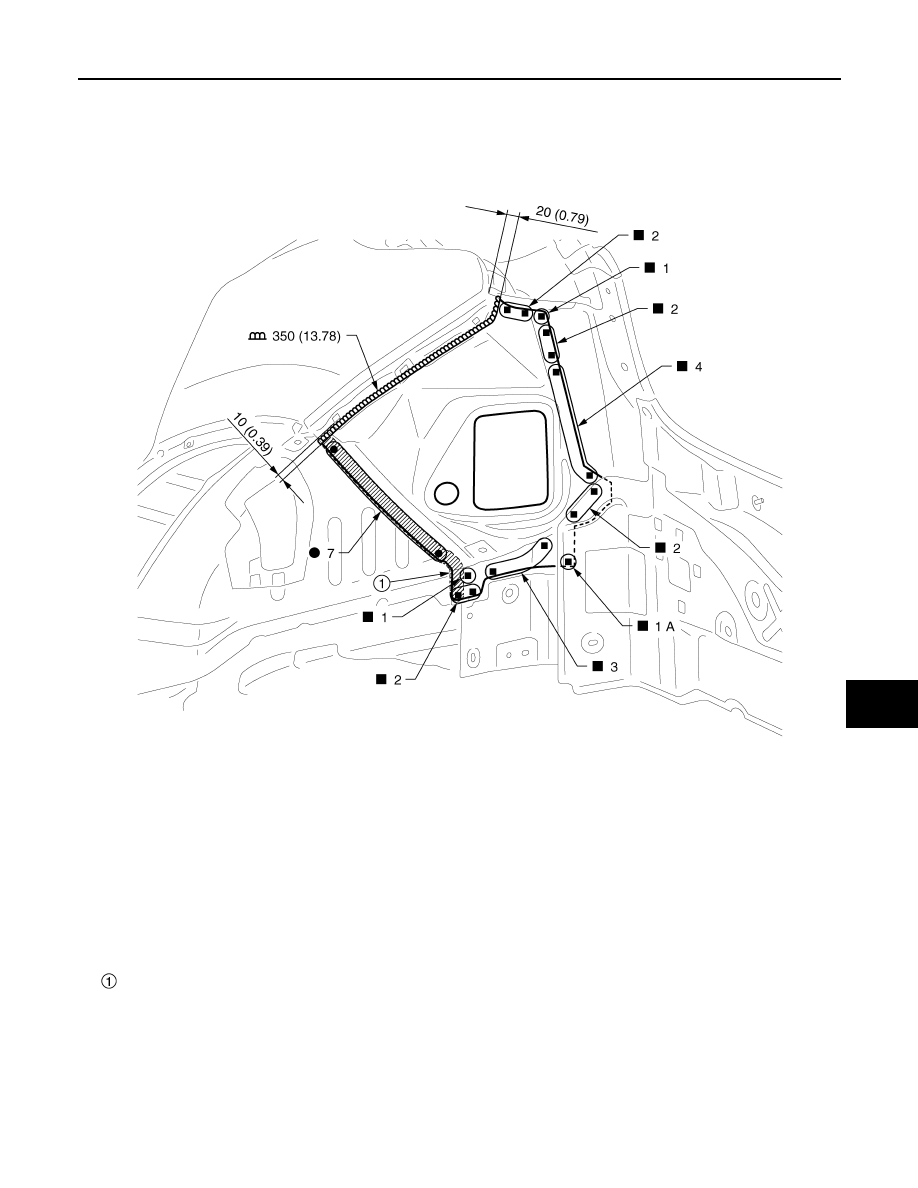

Outer Rear Wheelhouse (2WD)

INFOID:0000000010452586

Work after rear fender is removed.
Remove the inner rear wheelhouse reinforcement (reusable) for easier installation.

Body sealing

Unit: mm (in)

Replacement part

z

Rear fender assembly

JSKIA4023GB

BRM-74

< REMOVAL AND INSTALLATION >

[FOR EUROPE (LHD)]

REPLACEMENT OPERATIONS

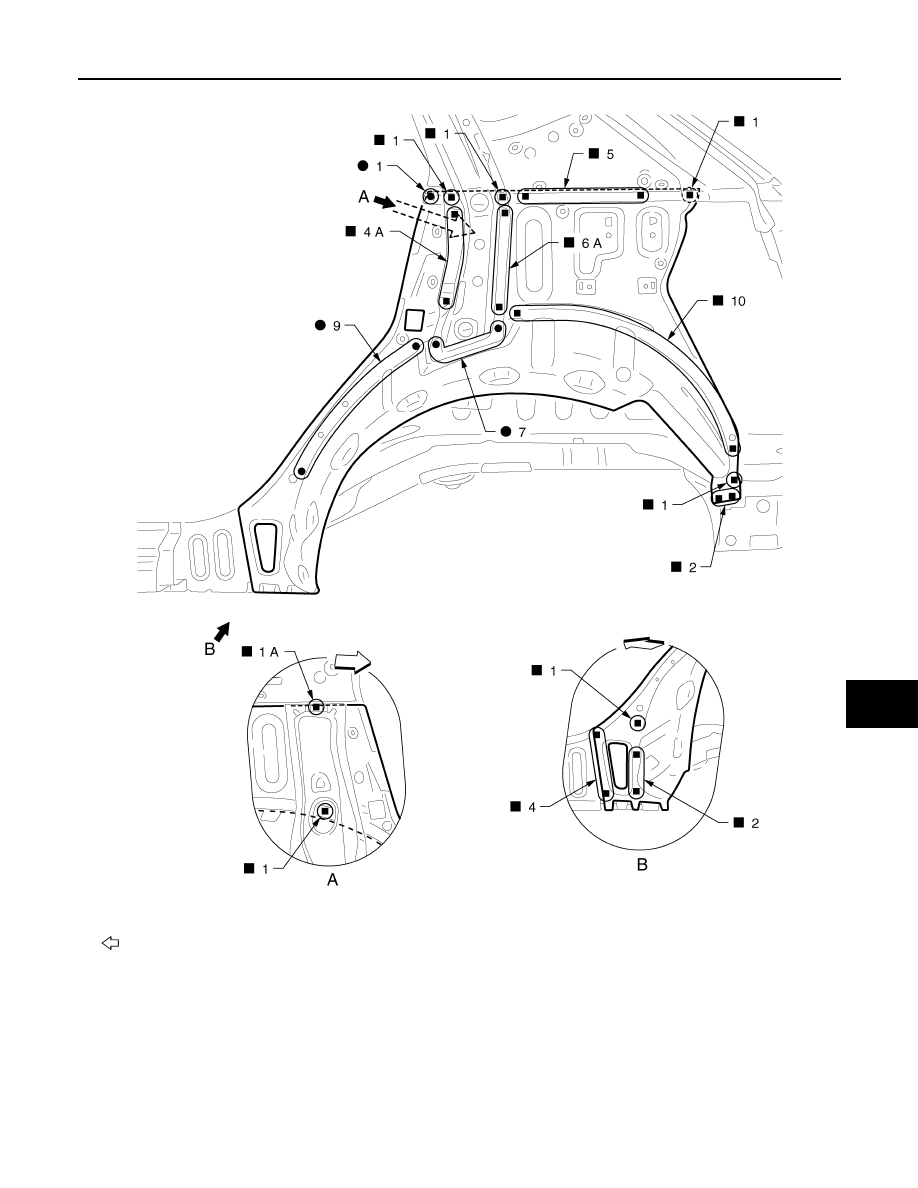

Outer Rear Wheelhouse (4WD)

INFOID:0000000010287996

Work after rear fender is removed.

Inner rear wheelhouse reinforcement
(reusable)

: Vehicle front

Replacement part

z

Outer rear wheelhouse assembly

JSKIA4255ZZ

REPLACEMENT OPERATIONS

BRM-75

< REMOVAL AND INSTALLATION >

[FOR EUROPE (LHD)]

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

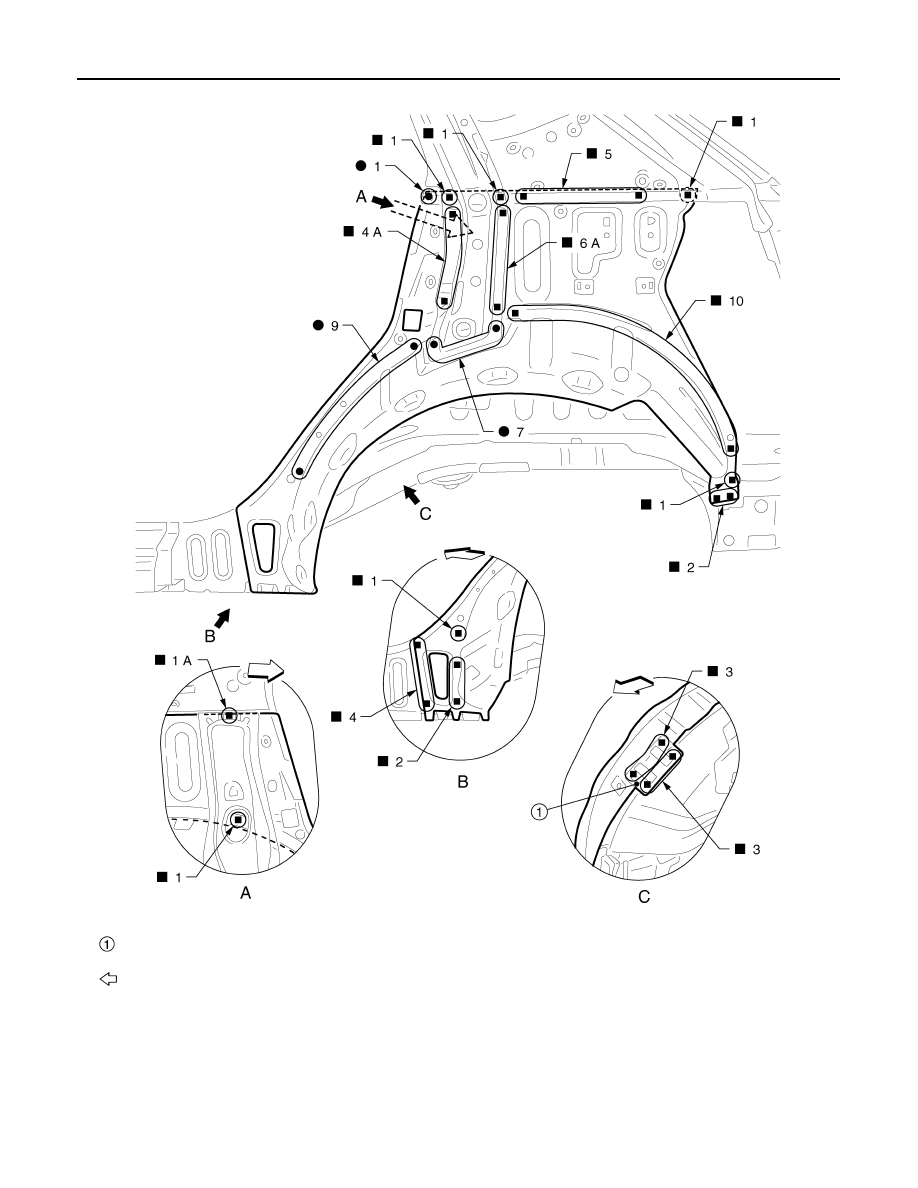

Inner Rear Wheelhouse (2WD)

INFOID:0000000010452587

Work after rear fender and outer rear wheelhouse are removed.

: Vehicle front

Replacement part

z

Outer rear wheelhouse assembly

JSKIA4024ZZ
