DOOR OUTSIDE MOLDING

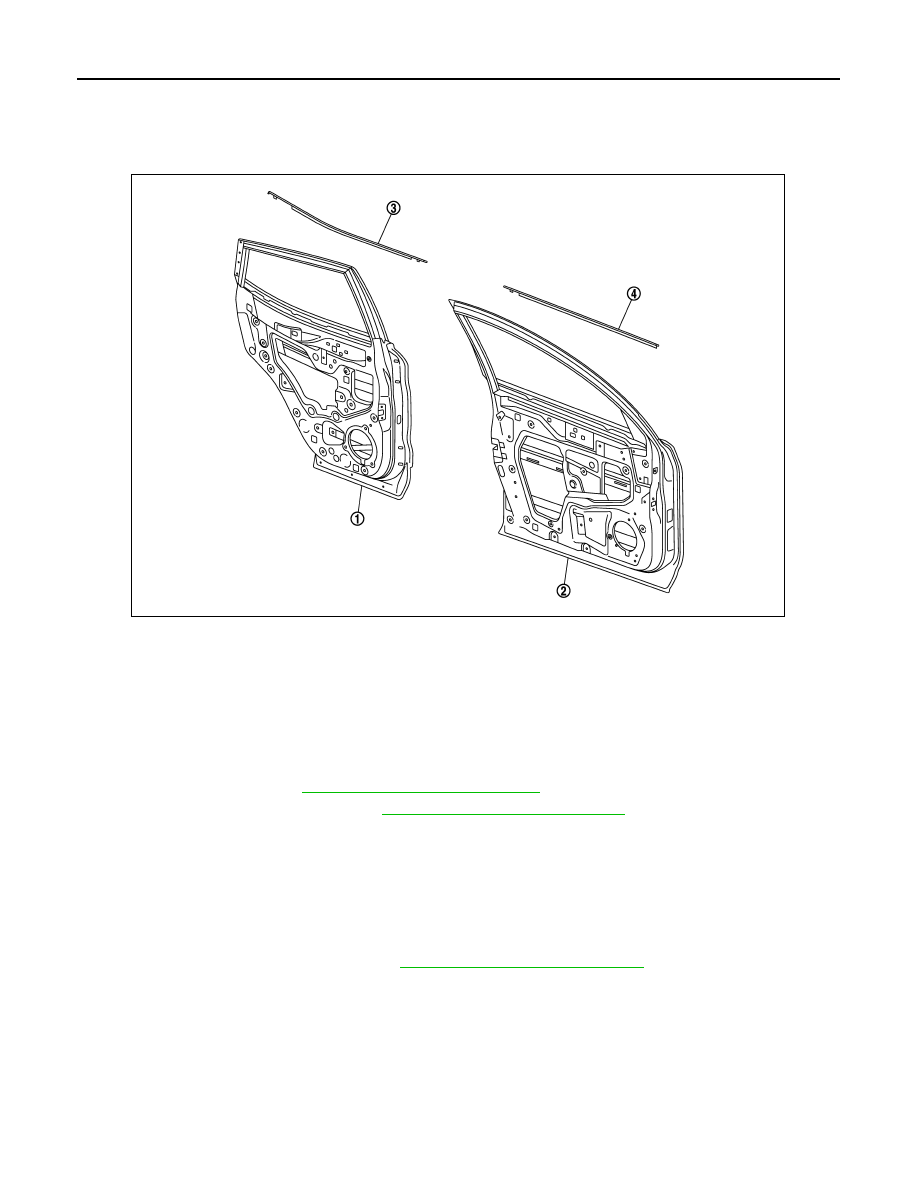

DOOR OUTSIDE MOLDING

Exploded View

INFOID:0000000010377925

Removal and Installation

INFOID:0000000010377926

REMOVAL

FRONT DOOR OUTSIDE MOLDING

1.

Remove door trim. Refer to

INT-18, "Removal and Installation"

.

2.

Remove door mirror assembly. Refer to

MIR-31, "Removal and Installation"

 .

3.

Fit front door glass to lower position.

4.

Remove front door lower weather strip upper end part fixing clip and then release front door lower weather
strip upper end part (1).

5.

Twist from rear to front and pull up to upper side, then remove front door outside molding.

REAR DOOR OUTSIDE MOLDING

1.

Fit rear door glass to lower position.

2.

Remove rear door sash molding. Refer to

EXT-41, "Removal and Installation"

.

3.

Remove rear door outside molding fixing screw adhesive cover.

4.

Remove rear door outside molding fixing screw.

CAUTION:

Attention, the screw might fall into the door.

5.

Twist from front to rear and pull up to upper side, then remove rear door outside molding (1).

INSTALLATION

Install in the reverse order of removal.

1.

Rear door panel

2.

Front door panel

3.

Rear door outside molding

4.

Front door outside molding

E1JIA0312ZZ

DOOR OUTSIDE LOWER MOLDING

EXT-43

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

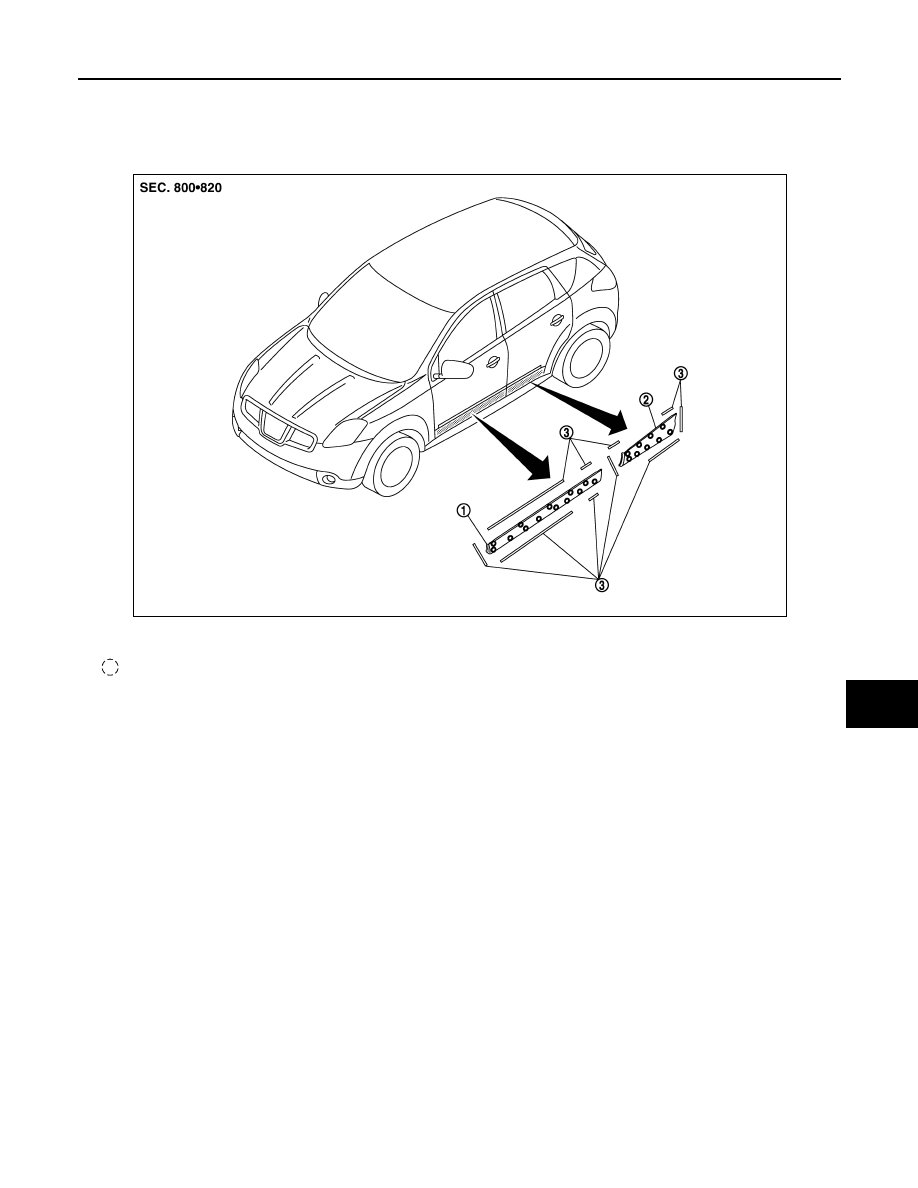

DOOR OUTSIDE LOWER MOLDING

Exploded View

INFOID:0000000010377927

Removal and Installation

INFOID:0000000010377928

REMOVAL

FRONT DOOR OUTSIDE LOWER MOLDING

1.

Using suitable tool, release adhesive tape from front door.

2.

Pull front door outside lower molding upper side outwards to release upper fixing clips.

3.

Pull front door outside lower molding outwards to release lower fixing clips.

4.

Remove front door outside lower molding.

REAR DOOR OUTSIDE LOWER MOLDING

1.

Using suitable tool, release adhesive tape from rear door.

2.

Pull rear door outside lower molding upper side outwards to release upper fixing clips.

3.

Pull rear door outside lower molding outwards to release lower fixing clips.

4.

Remove rear door outside lower molding.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

Always clean body and parts before installation.

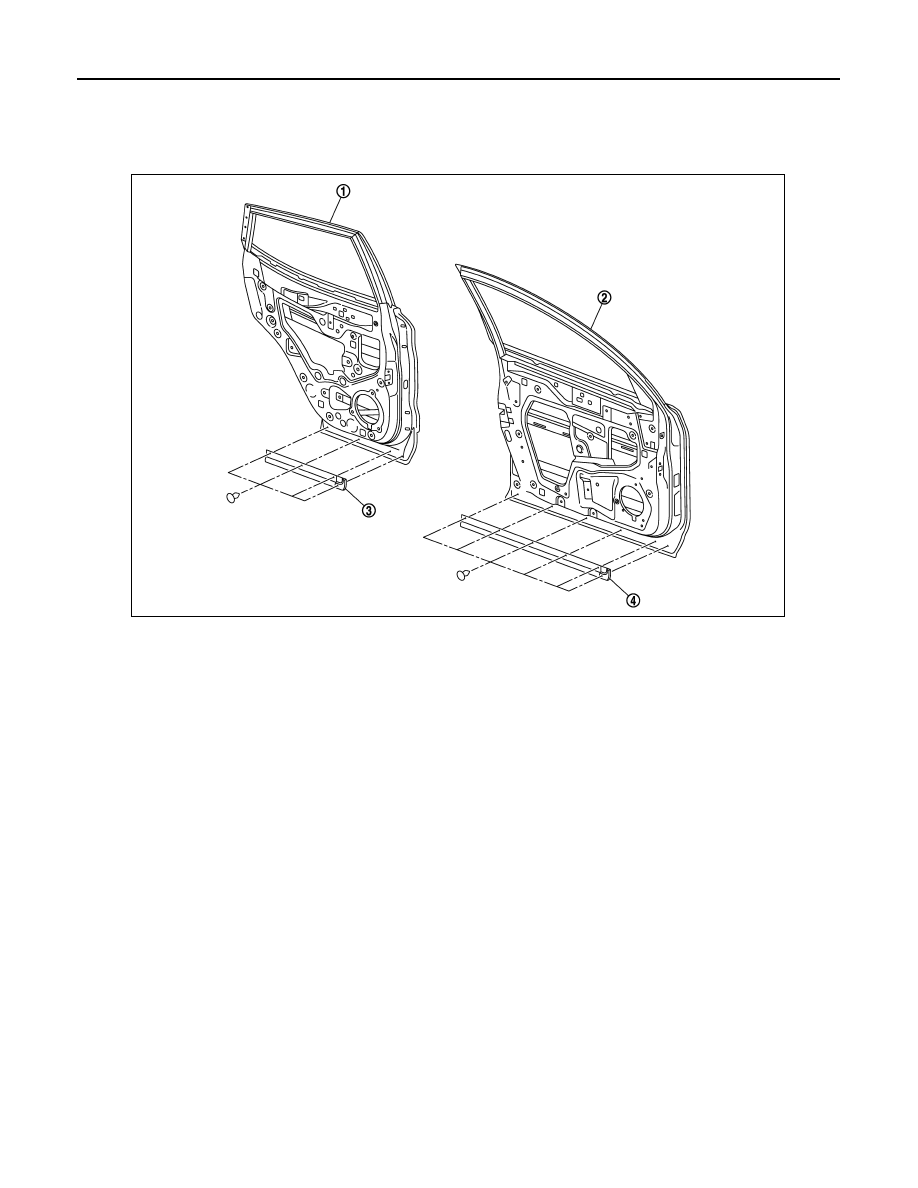

1

Front door outside lower molding

2

Rear door outside lower molding

3

Adhesive tape

clip

E1JIA0286ZZ

EXT-44

< REMOVAL AND INSTALLATION >

DOOR PARTING SEAL

DOOR PARTING SEAL

Exploded View

INFOID:0000000010377929

Removal and Installation

INFOID:0000000010377930

REMOVAL

FRONT DOOR PARTING SEAL

1.

Fully open front door.

2.

Remove front door parting seal mounting plastic clips.

3.

Remove front door parting seal.

REAR DOOR PARTING SEAL

1.

Fully open rear door.

2.

Remove rear door parting seal plastic mounting clips.

3.

Remove rear door parting seal.

INSTALLATION

Install in the reverse order of removal.

1.

Rear door panel

2.

Front door panel

3.

Rear door parting seal

4.

Front door parting seal

E1JIA0313ZZ

BACK DOOR FINISHER

EXT-45

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

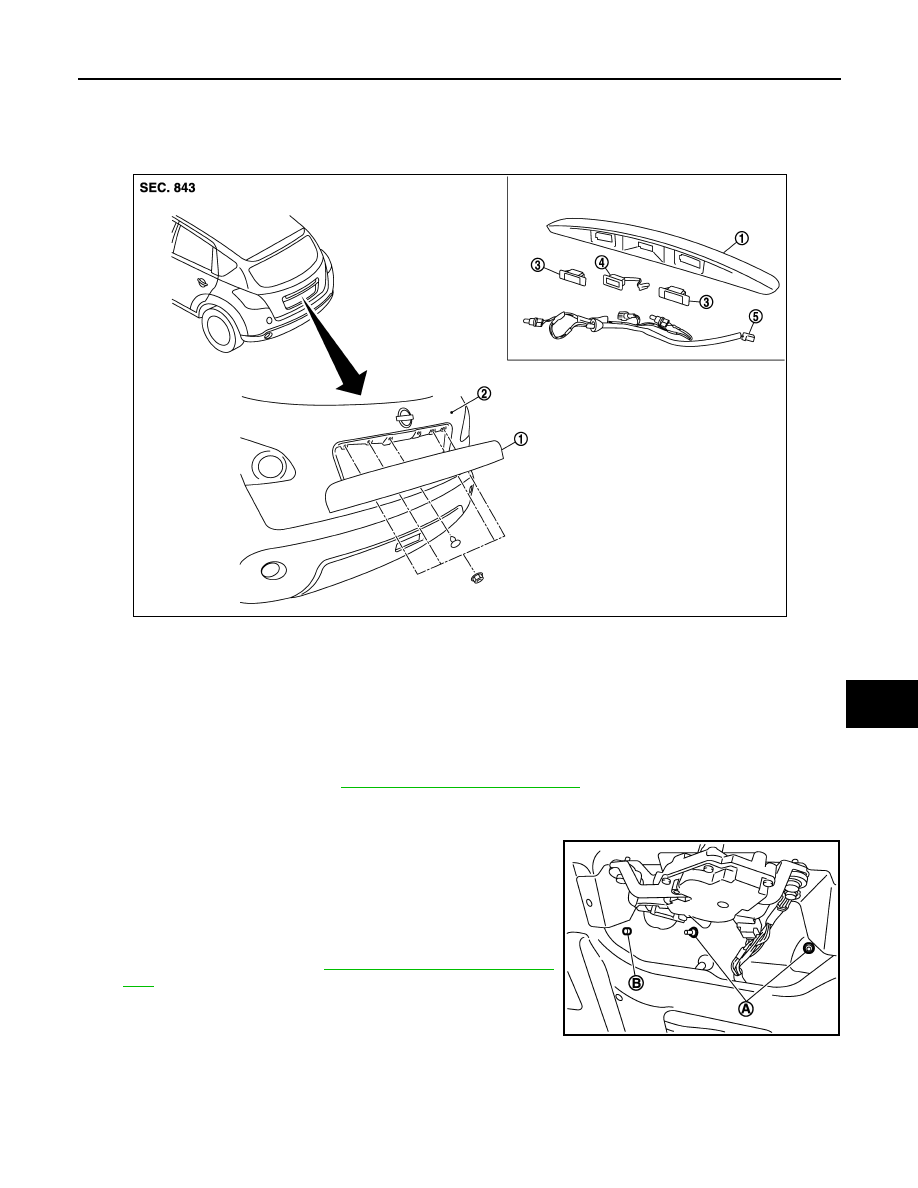

BACK DOOR FINISHER

Exploded View

INFOID:0000000010377931

Removal and Installation

INFOID:0000000010377932

REMOVAL

1.

Fully open back door.

2.

Remove back door trim. Refer to

INT-31, "Removal and Installation"

 .

3.

Disconnect rear view camera harness connector (if equipped).

4.

Disconnect back door opener request switch, and license plate light harness connector.

5.

Remove back door finisher fixing nuts (A) and release back door
finisher fixing clip (B).

6.

Pull harness grommet outwards to release back door finisher.

7.

Remove back door finisher.
• Pull back door finisher.

8.

Remove the following parts after removing back door finisher.
• License plate light. Refer to

EXL-178, "Removal and Installa-

tion"

.

• Opener request switch harness connector.
• Opener request switch.
• Bulb harness and opener switch connector.
• Back door finisher fixing bolts.
• Back door finisher fixing clip.

INSTALLATION

Install in the reverse order of removal.

1.

Back door finisher

2.

Back door panel

3.

License plate light

4.

Back door opener switch assembly

5.

Harness

E1KIA0053GB

E1KIA0054GB
