EXT-34

< REMOVAL AND INSTALLATION >

MUDGUARD

MUDGUARD

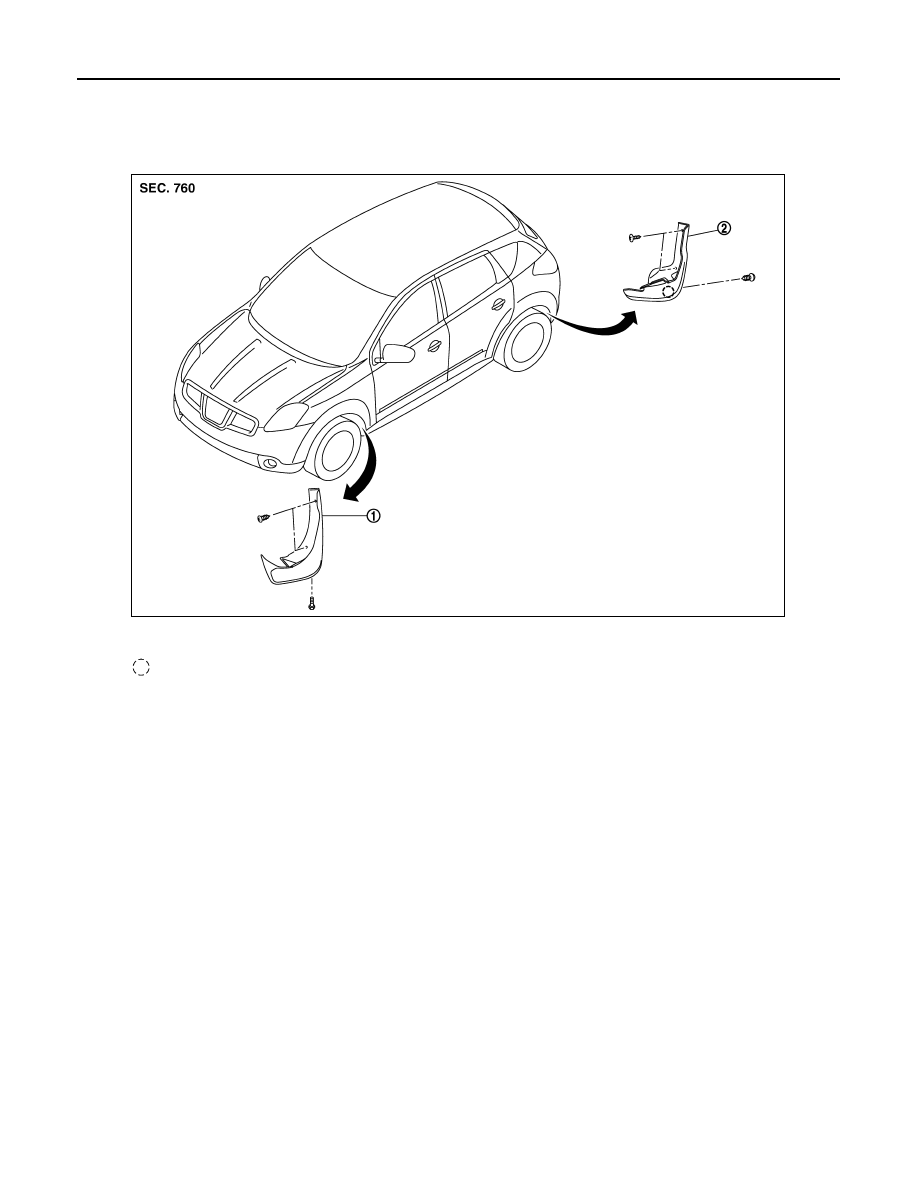

Exploded View

INFOID:0000000010377913

Removal and Installation

INFOID:0000000010377914

REMOVAL

FRONT MUDGUARD

1.

Remove fixing screws.

2.

Remove front mudguard.

REAR MUDGUARD

1.

Remove fixing screws.

2.

Remove clip.

3.

Remove rear mudguard.

INSTALLATION

Install in the reverse order of removal.

1.

Front mudguard (if equipped)

2.

Rear mudguard (if equipped)

Clips

E1JIA0287ZZ

FLOOR SIDE FAIRING

EXT-35

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

FLOOR SIDE FAIRING

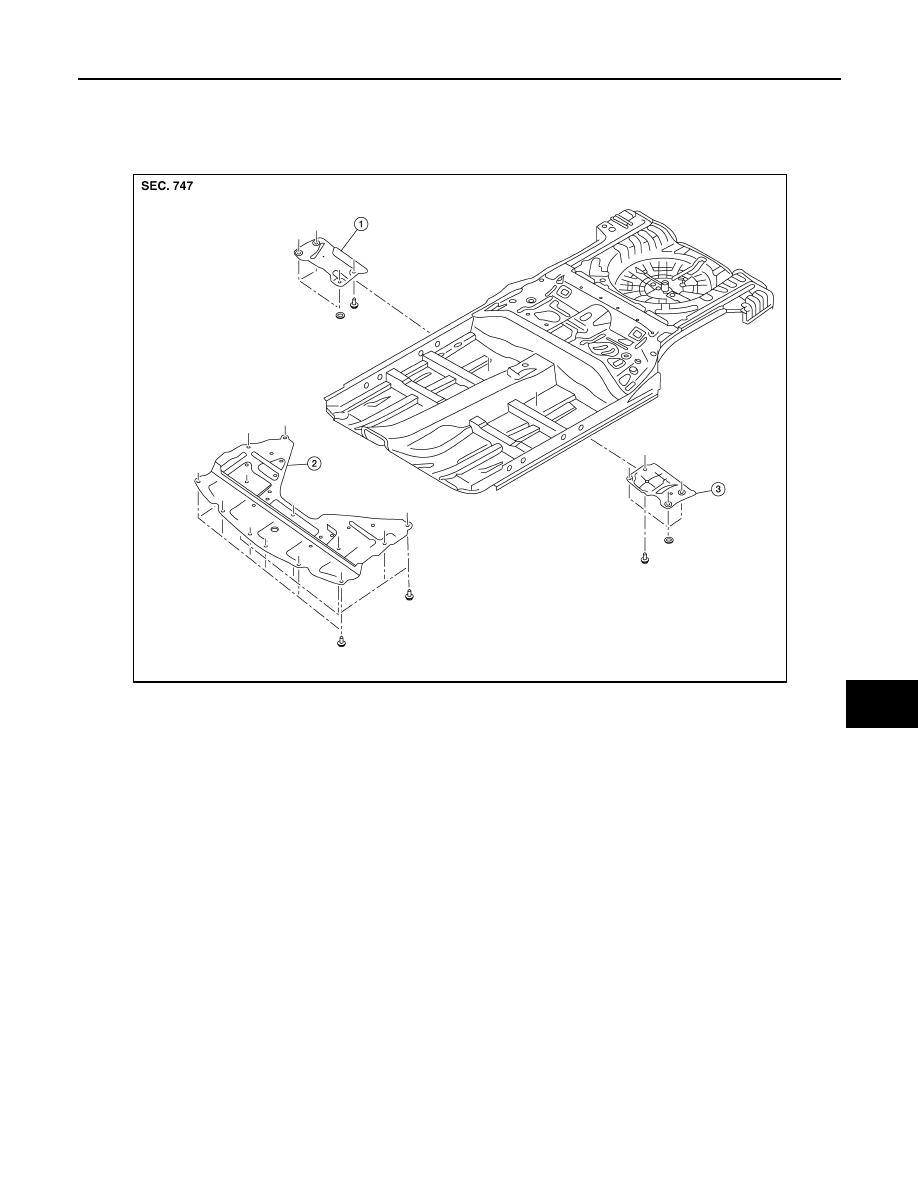

Exploded View

INFOID:0000000010508609

ENGINE UNDER COVER

ENGINE UNDER COVER : Removal and Installation

INFOID:0000000010508610

REMOVAL

1.

Remove engine under cover clips.

2.

Remove engine under cover.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

When installing engine under covers, check that clips are securely placed in body panel holes.

FLOOR UNDER COVER

FLOOR UNDER COVER : Removal and Installation

INFOID:0000000010508611

REMOVAL

1.

Floor under cover (RH)

2.

Engine under cover

3.

Floor under cover (LH)

ALKIA3342ZZ

EXT-36

< REMOVAL AND INSTALLATION >

FLOOR SIDE FAIRING

1.

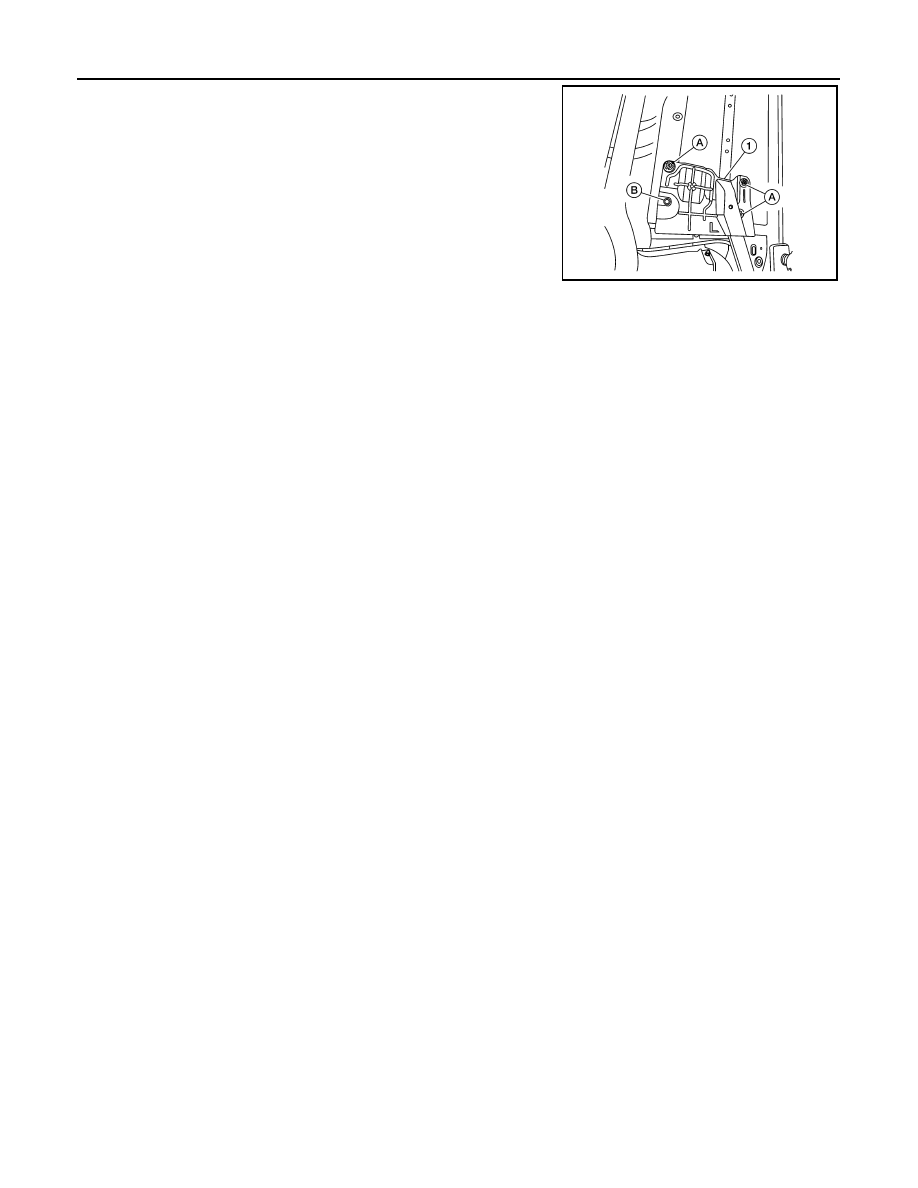

Remove floor under cover clip (B) and nuts (A).

2.

Remove floor under cover (1).

INSTALLATION

Install in the reverse order of removal.

CAUTION:

When installing floor under covers, check that clips are securely placed in body panel holes.

ALKIA3398ZZ

FILLET MOLDING

EXT-37

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

FILLET MOLDING

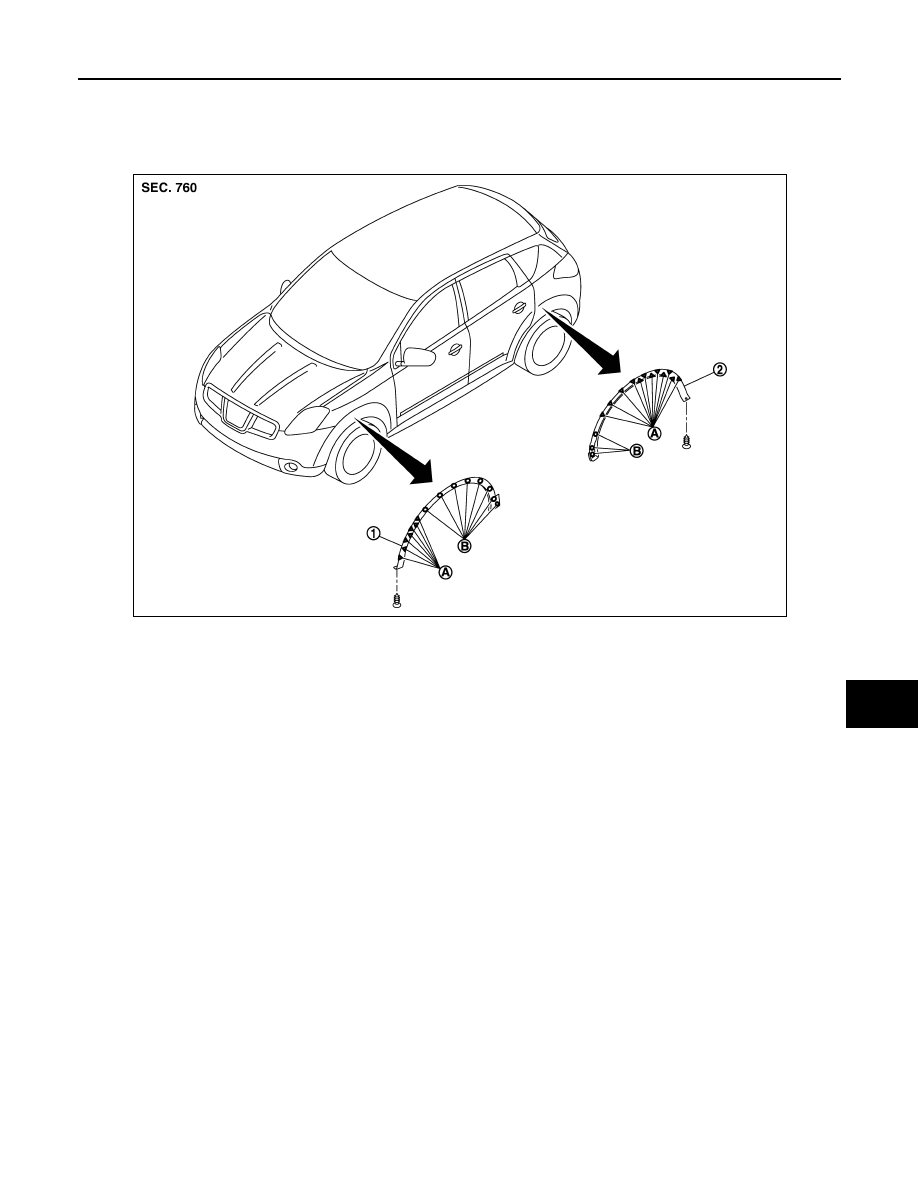

Exploded View

INFOID:0000000010377915

Removal and Installation

INFOID:0000000010377916

REMOVAL

FRONT FILLET MOLDING

1.

Remove front mudguard (if equipped).

2.

Release front fillet clips.

3.

Release front fillet pawls.

4.

Remove front fillet molding.

REAR FILLET MOLDING

1.

Remove rear mudguard (if equipped).

2.

Release rear fillet clips.

3.

Release rear fillet pawls.

4.

Remove rear fillet molding.

INSTALLATION

Install in the reverse order of removal.

1.

Front fillet molding

2.

Rear fillet molding

E1JIA0285ZZ
