EXT-26

< REMOVAL AND INSTALLATION >

FRONT GRILLE

3.

Slowly pull front grille upper side, and using a flat screwdriver,
depress clip barb to remove clips (1) (LH/RH) from headlamp
(2).

4.

Release front grille lower pawls from front bumper.

CAUTION:

To remove front grille assembly, slowly release lower pawls to avoid damaging pawls.

5.

Disconnect front camera harness (if equipped).

6.

Remove front grille assembly.

7.

Press barbs to release RH fixing clip (A) and then turn to remove
it from front grille (1) as shown.
For LH fixing clip, turn in opposite side to remove it from front
grille (1).

8.

Remove the following parts after removing front grille.

CAUTION:

To remove parts from front grille assembly, slowly release pawls to avoid damaging pawls.
• Front grille molding
• Front emblem
• Front camera (if equipped)

INSTALLATION

Install in the reverse order of removal.

E1KIA0018ZZ

E1KIA0075ZZ

ACTIVE GRILLE SHUTTER

EXT-27

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

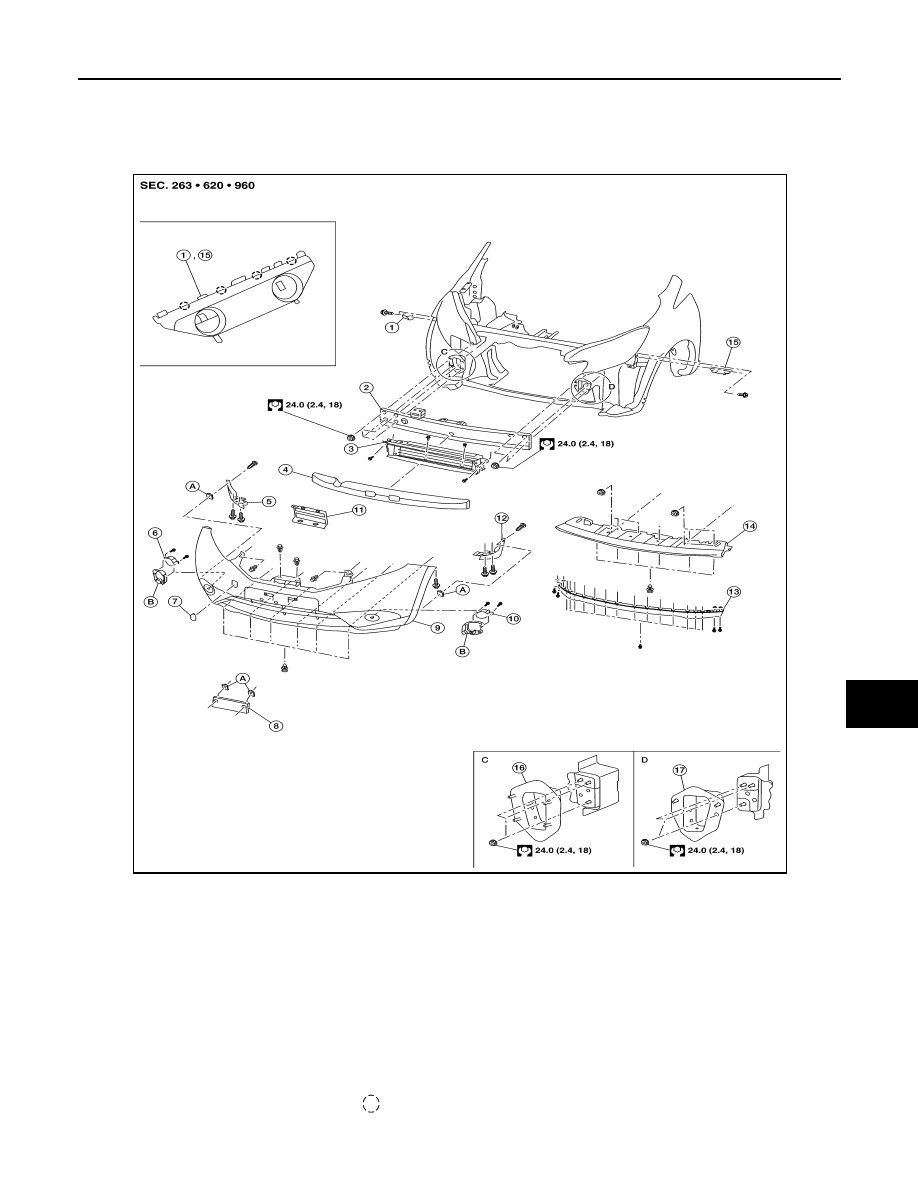

ACTIVE GRILLE SHUTTER

Exploded View

INFOID:0000000010784574

1.

Front bumper fascia side bracket
(RH)

2.

Front bumper reinforcement

3.

Active grille shutter

4.

Front energy absorber

5.

Front fascia side deflector
(RH)

6.

Front fog lamp (RH) (if equipped)

7.

Tow cover

8.

Front license plate bracket

9.

Front bumper fascia

10.

Front fog lamp (LH) (if equipped) 11.

Front bumper finisher
(if equipped)

12.

Front fascia side deflector (LH)

13.

Front air spoiler

14.

Front under cover

15.

Front bumper fascia side bracket
(LH)

16.

Front bumper reinforcement
bracket (RH)

17.

Front bumper reinforcement
bracket (LH)

A.

J nut

B.

Front fog lamp bracket

Pawl

AWKIA2516ZZ

EXT-28

< REMOVAL AND INSTALLATION >

ACTIVE GRILLE SHUTTER

Removal and Installation

INFOID:0000000010784575

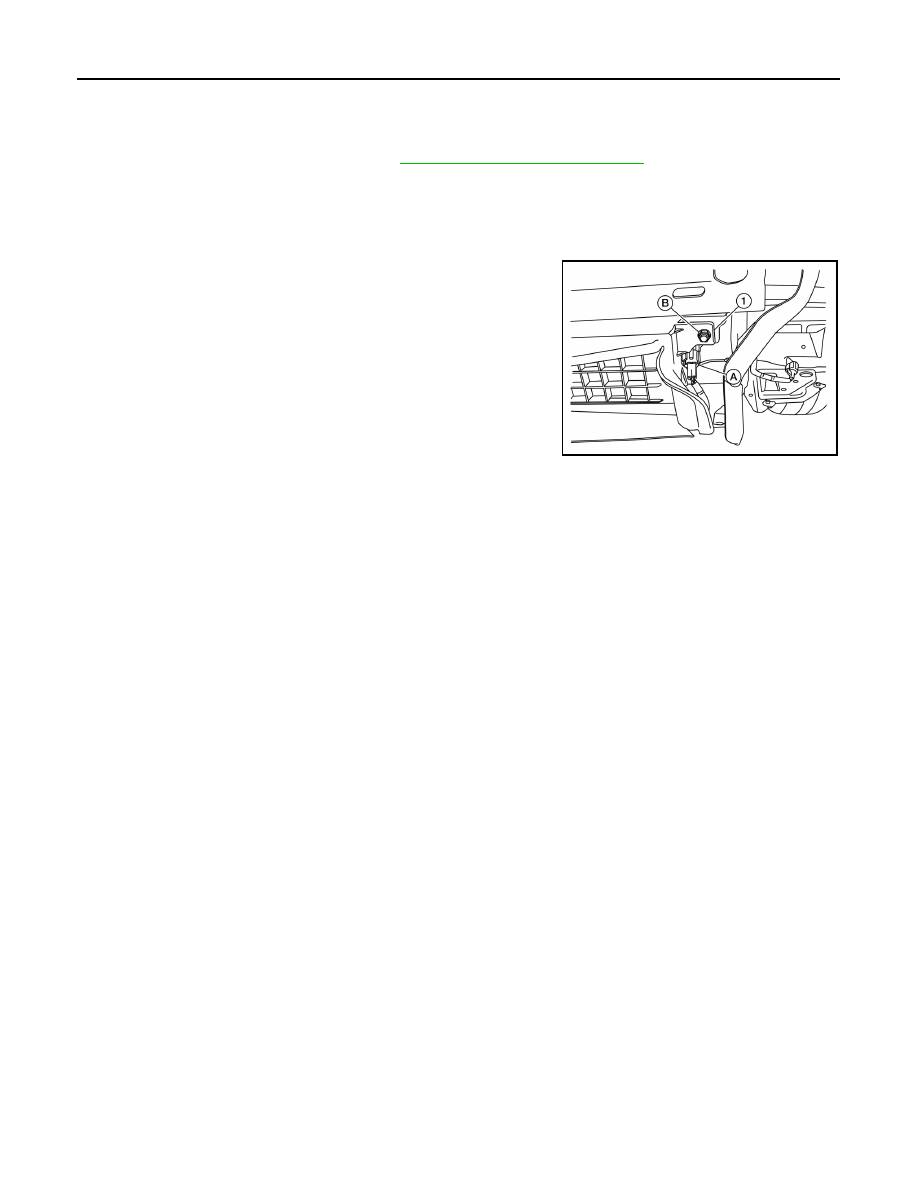

REMOVAL

1.

Remove the front bumper fascia. Refer to

EXT-19, "Removal and Installation"

.

2.

Remove the radiator core support upper.

3.

Reposition the radiator and condenser as necessary to access active grille shutter bolts.

4.

Remove the active grille shutter bolts.

5.

Release active grille shutter harness clips using a suitable tool.

6.

Disconnect the harness connector (A) from the active grille shut-
ter (1).

7.

Remove the active grille shutter nut (B) (LH/RH).

INSTALLATION

Installation is in the reverse order of removal.

ALKIA3150ZZ

COWL TOP

EXT-29

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

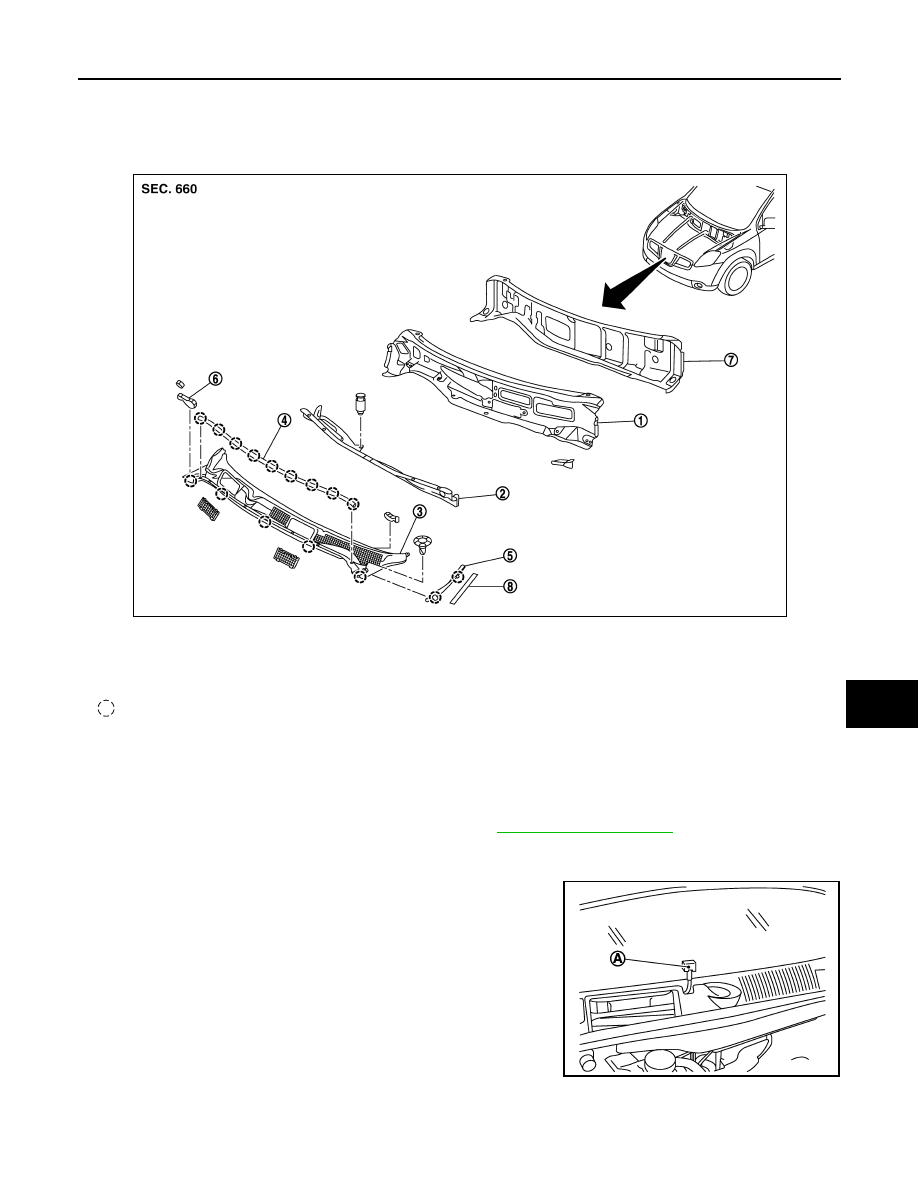

COWL TOP

Exploded View

INFOID:0000000010377909

Removal and Installation

INFOID:0000000010377910

REMOVAL

1.

Fully open hood assembly.

2.

Remove front wiper arm (LH/RH) from vehicle. Refer to

WW-75, "Exploded View"

.

3.

Remove vehicle identification covers (LH/RH).

4.

Remove windscreen washer nozzle (LH/RH).
• Pull nozzle upwards (A)
• Disconnect washer nozzle tube.

CAUTION:

Fit cap on washer nozzle tube to avoid spills and contami-
nation.

1.

Cowl top assembly

2.

Cowl top cover grille

3.

Cowl top cover

4.

Cowl top seal (if equipped)

5.

Front fender cover

6.

Cowl top foam insulator

7.

Upper dash assembly

8.

Double-adhesive tape

Clip

E1KIA0132ZZ

E1KIA0019ZZ
