Nissan Qashqai J11. Manual - part 1537

EXT-22

< REMOVAL AND INSTALLATION >

REAR BUMPER

REAR BUMPER

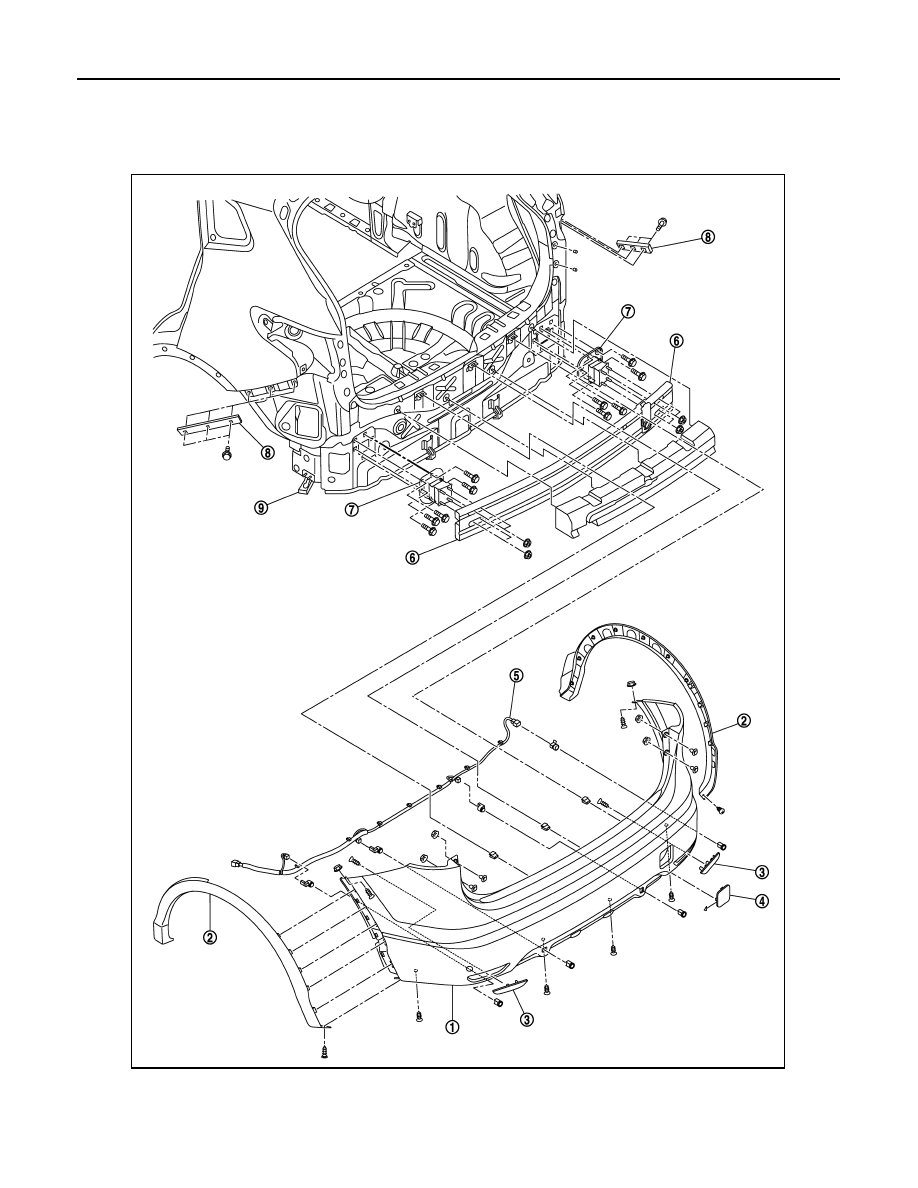

Exploded View

INFOID:0000000010377905

1.

Rear bumper fascia assembly

2.

Rear fillet molding (LH/RH)

3.

Reflector assembly

E1JIA0284ZZ

REAR BUMPER

EXT-23

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

Removal and Installation

INFOID:0000000010377906

REMOVAL

CAUTION:

Bumper fascia is made of resin. Do not apply strong force to it, and be careful to prevent contact with
oil.

1.

Fully open back door assembly.

2.

Remove rear bumper fixing screws.

3.

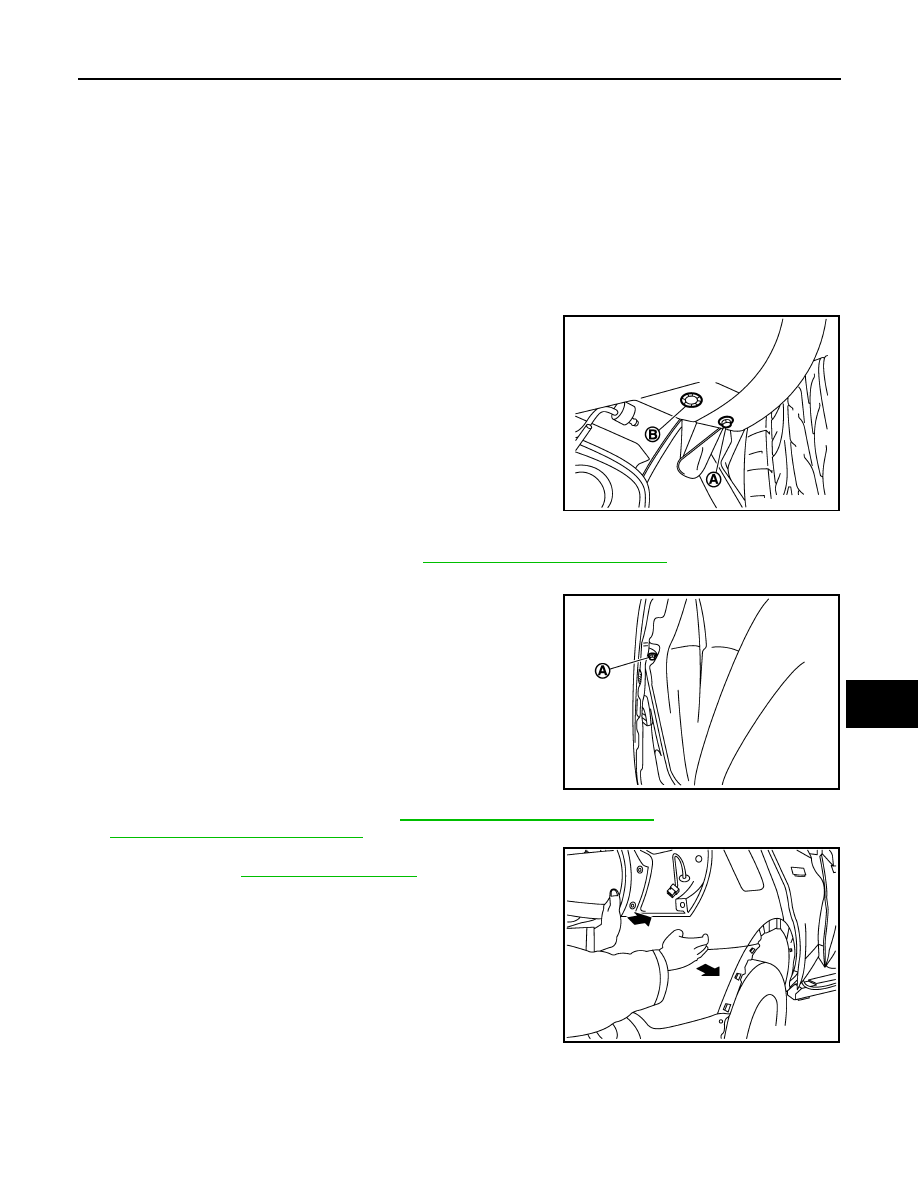

Remove rear bumper lower fixing screw (A) and clip (B) (LH/
RH).

4.

Remove rear bumper lower clips.

5.

Remove rear fillet molding (LH/RH). Refer to

EXT-37, "Removal and Installation"

.

6.

Remove rear fender protector fixing clips (LH/RH).

7.

Remove rear bumper upper fixing screw (A) (LH/RH).

8.

Remove rear combination lamp. Refer to

EXL-174, "Removal and Installation"

 (Vehicle with xenon type),

EXL-330, "Removal and Installation"

 (Vehicle with halogen type).

9.

Push forwards and then pull to release rear bumper from side
bracket B Refer to

EXT-22, "Exploded View"

.

4.

Rear tow hook

5.

Rear bumper harness (if equipped)

6.

Energy absorber

7.

Rear bumper stay assembly (LH/RH) 8.

Rear bumper side bracket assembly
(LH/RH)

9.

Rear bumper side retainer

E1KIA0013ZZ

E1KIA0015ZZ

E1KIA0016ZZ

EXT-24

< REMOVAL AND INSTALLATION >

REAR BUMPER

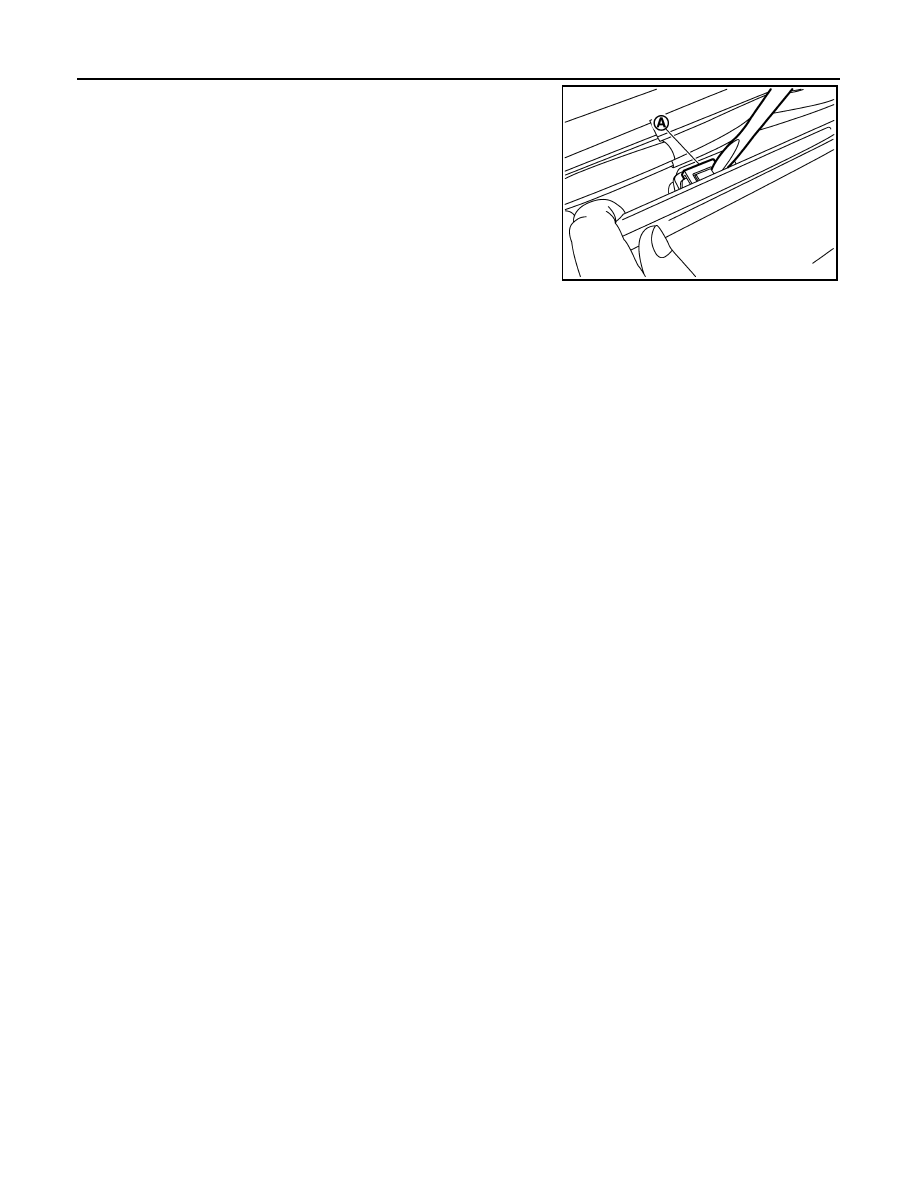

10. Release rear bumper clips (A).

11. Disconnect all harness connectors.
12. Remove rear bumper fascia assembly.

CAUTION:

When removing bumper fascia, 2 workers are required so as to prevent it from dropping.

13. Remove the following parts after removing rear bumper fascia.

• Rear bumper energy absorber
• Rear bumper side retainer (LH/RH)
• Rear bumper clips
• Rear bumper side bracket A (LH/RH)
• Reflector assembly (LH/RH)
• Rear bumper stays
• Tow Hook Cover

INSTALLATION

Install in the reverse order of removal.

E1KIA0017ZZ

FRONT GRILLE

EXT-25

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

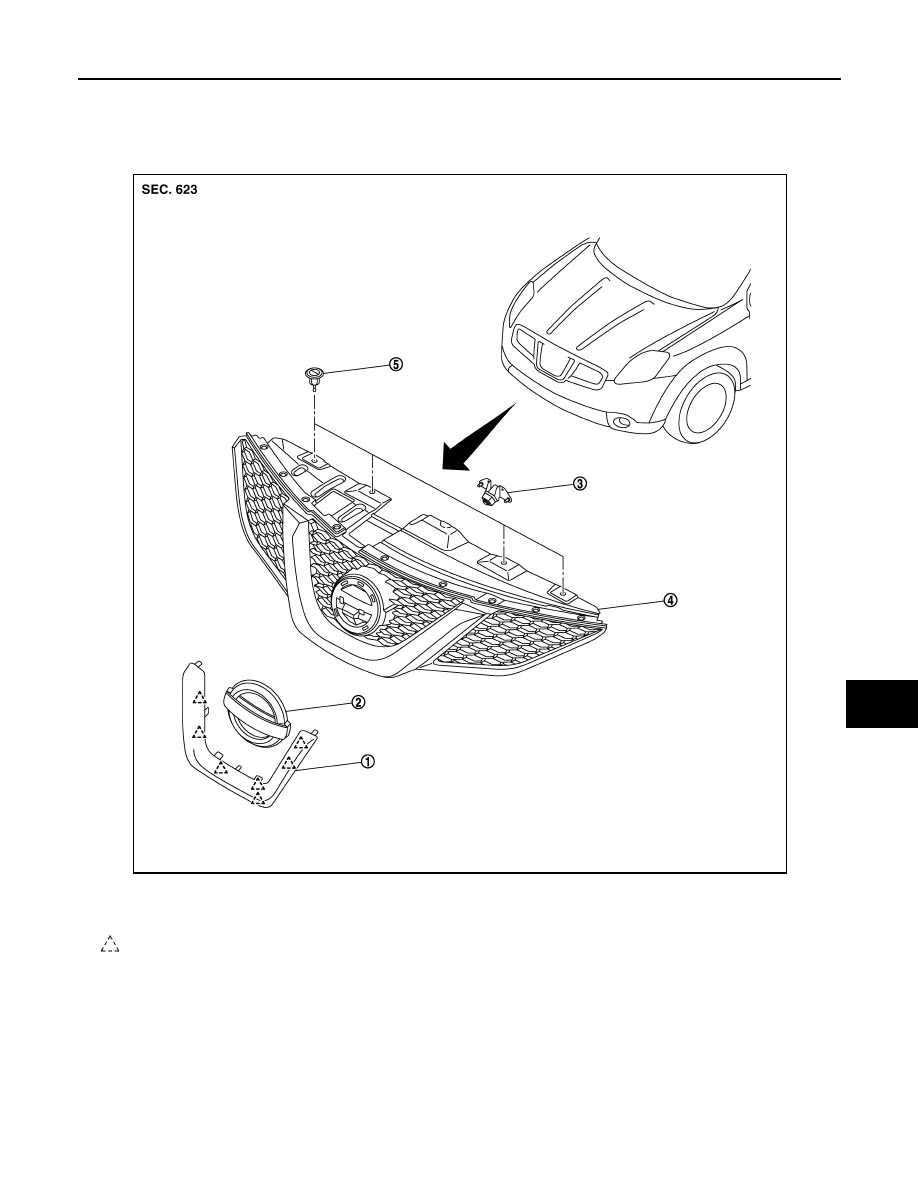

FRONT GRILLE

Exploded View

INFOID:0000000010377907

Removal and Installation

INFOID:0000000010377908

REMOVAL

CAUTION:

Apply protection tape around outer circumference of front grille (bumper fascia side).
1.

Fully open hood assembly.

2.

Remove front grille upper fixing clips.

1.

Front grille molding

2.

Front emblem

3.

Front camera

4.

Front grille

5.

Fixing clip

Pawl

E1JIA0288ZZ
