Nissan Qashqai J11. Manual - part 1229

FRONT DOOR LOCK

DLK-185

< REMOVAL AND INSTALLATION >

[TYPE 1]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

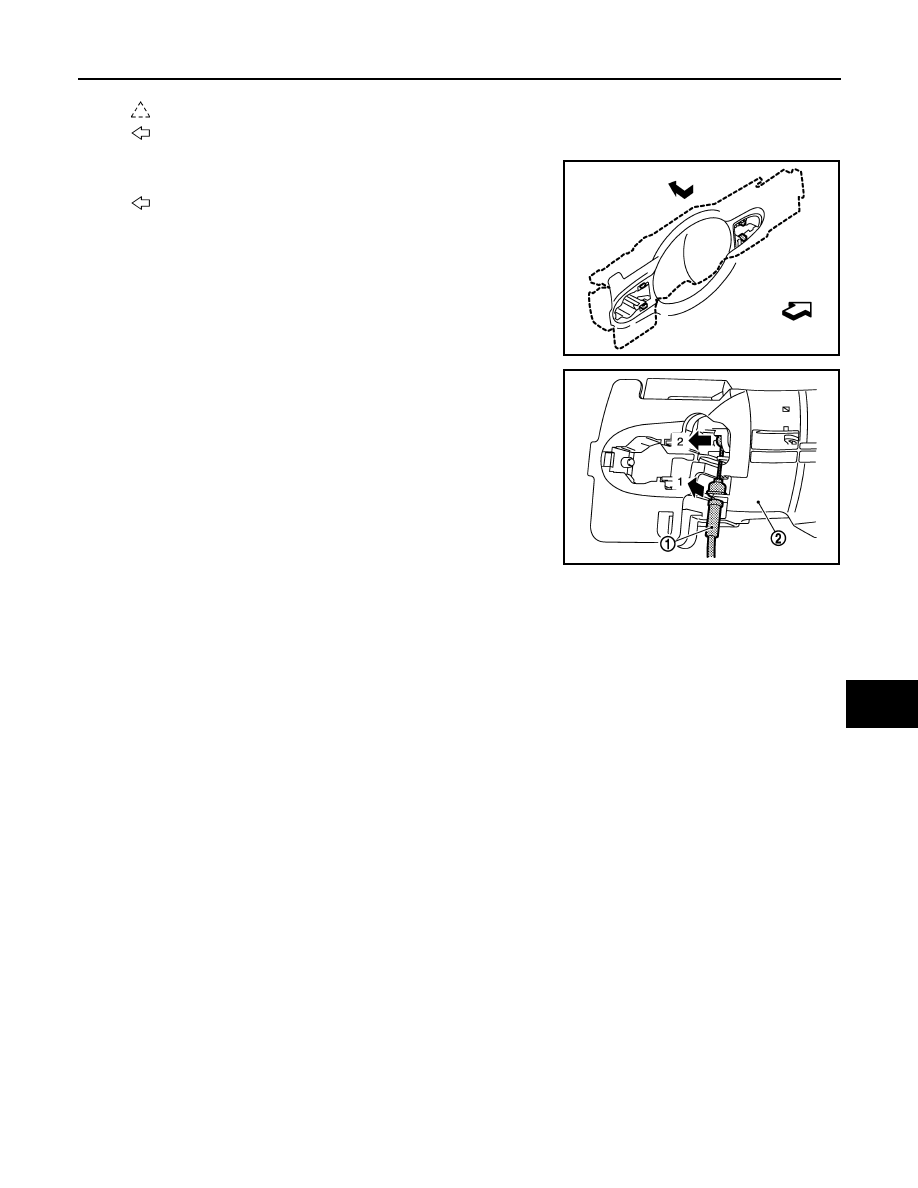

13. Slide outside handle bracket toward rear of vehicle to remove.

14. Disconnect outside handle cable (1) from outside handle bracket

(2) according to the numerical order 1

→

2 indicated by arrows as

shown in the figure.

CAUTION:

Never bend the outside handle cable end.

INSTALLATION

Note the following items, and install in the reverse order of removal.

CAUTION:

• When installing key rod, rotate key rod holder until a click is felt.
• Check that door lock cables are normally engaged with inside handle and outside handle.
• After installation, check door open/close, and lock/unlock operation.

: Pawl

: Vehicle front

: Vehicle front

JMKIA5935ZZ

JMKIA5936ZZ

DLK-186

< REMOVAL AND INSTALLATION >

[TYPE 1]

REAR DOOR LOCK

REAR DOOR LOCK

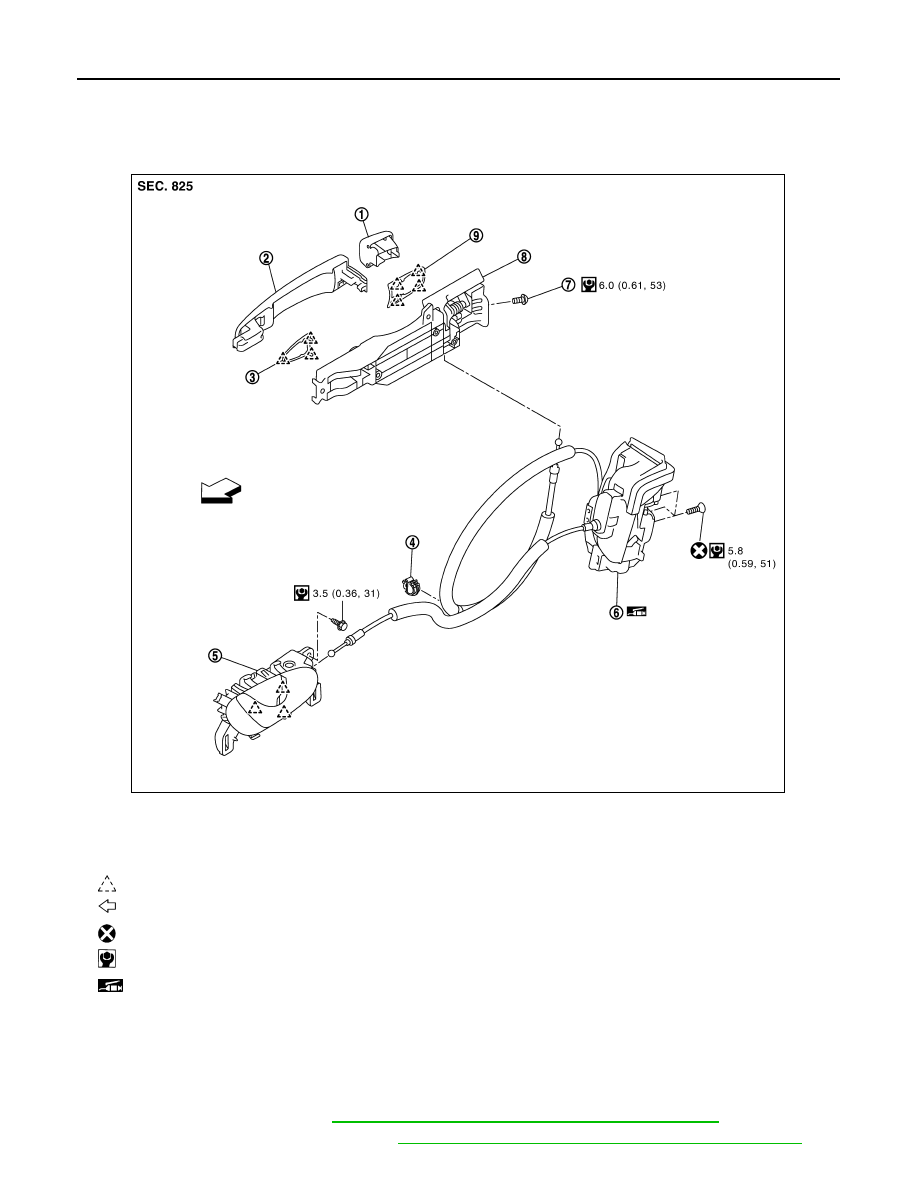

Exploded View

INFOID:0000000010434729

DOOR LOCK

DOOR LOCK : Removal and Installation

INFOID:0000000010434730

REMOVAL

1.

Remove inside handle. Refer to

DLK-187, "INSIDE HANDLE : Removal and Installation"

.

2.

Remove outside handle bracket. Refer to

DLK-187, "OUTSIDE HANDLE : Removal and Installation"

.

1.

Outside handle escutcheon

2.

Outside handle grip

3.

Front gasket

4.

Cable clip

5.

Inside handle

6.

Door lock assembly

7.

TORX bolt

8.

Outside handle bracket

9.

Rear gasket

: Pawl

: Vehicle front

: Always replace after every disassembly.

: N·m (kg-m, in-lb)

: Body grease

JMKIB3254GB

REAR DOOR LOCK

DLK-187

< REMOVAL AND INSTALLATION >

[TYPE 1]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

3.

Remove rear door lower sash mounting bolt, and then remove rear door lower sash.

4.

Disconnect door lock assembly harness connector.

5.

Remove door lock assembly screws, and then remove door lock assembly.

INSTALLATION

Note the following items, and install in the reverse order of removal.

CAUTION:

• Never reuse door lock assembly screw. Always replace it with a new one when it is removed.
• Check door lock cable is properly engaged with outside handle bracket.
• Check door lock assembly for poor lubrication. Refer to

DLK-187, "DOOR LOCK : Inspection"

• Check door open/close, lock/unlock operation after installation.

DOOR LOCK : Inspection

INFOID:0000000010434731

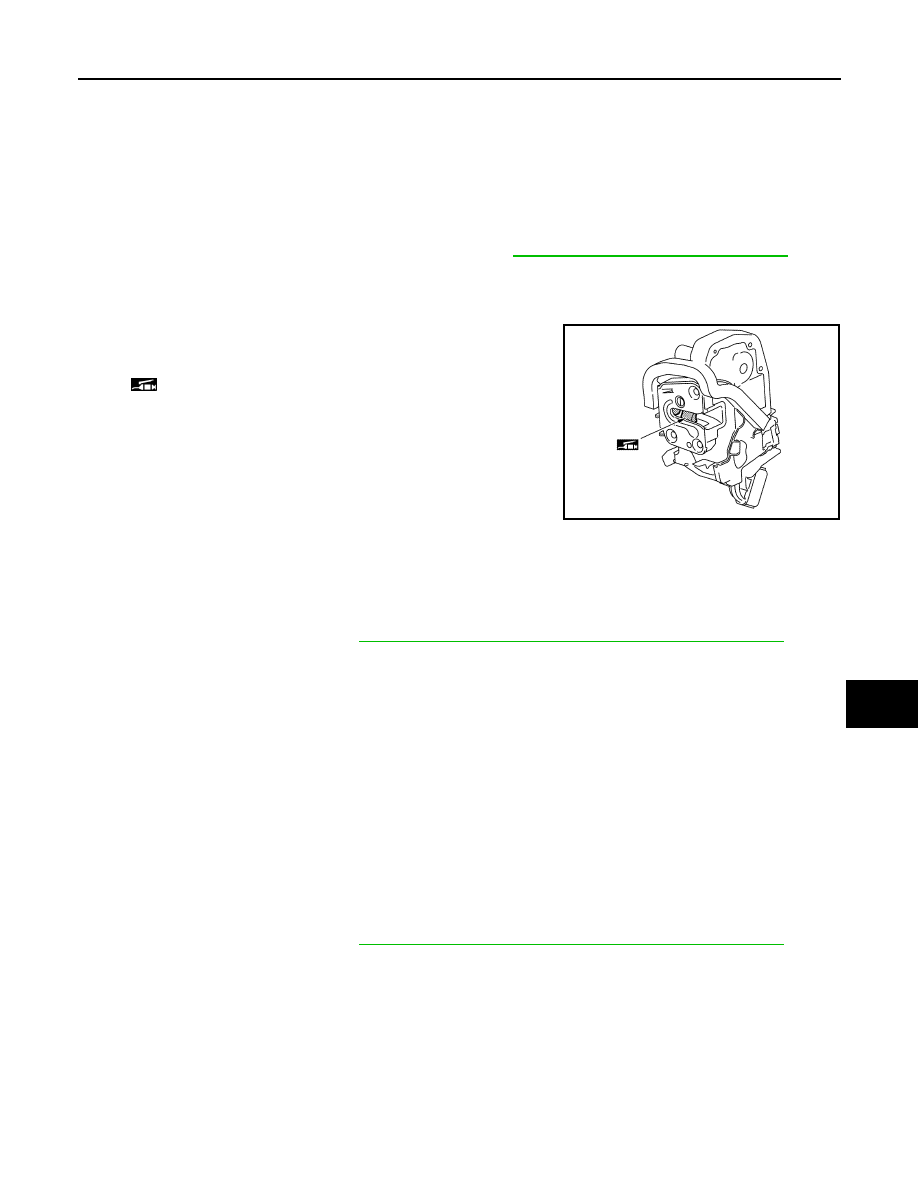

Check door lock assembly for poor lubrication. Apply body grease if
necessary.

INSIDE HANDLE

INSIDE HANDLE : Removal and Installation

INFOID:0000000010434732

REMOVAL

1.

Remove rear door finisher. Refer to

INT-15, "REAR DOOR FINISHER : Removal and Installation"

.

2.

Remove inside handle mounting bolt.

3.

Disengage inside handle from door panel while sliding inside handle toward vehicle rear, and then sepa-
rate inside handle.

4.

Disconnect inside handle cable, and then remove inside handle.

INSTALLATION

Note the following item, and install in the reverse order of removal.

CAUTION:

Check door open/close, lock/unlock operation after installation.

OUTSIDE HANDLE

OUTSIDE HANDLE : Removal and Installation

INFOID:0000000010434733

REMOVAL

1.

Fully close the rear door glass.

2.

Remove rear door finisher. Refer to

INT-15, "REAR DOOR FINISHER : Removal and Installation"

.

3.

Remove sealing screen.
NOTE:
Cut the butyl-tape so that some parts of the butyl-tape do not remain on the sealing screen, if the sealing
screen is reused.

: Body grease

JMKIA8534ZZ

DLK-188

< REMOVAL AND INSTALLATION >

[TYPE 1]

REAR DOOR LOCK

4.

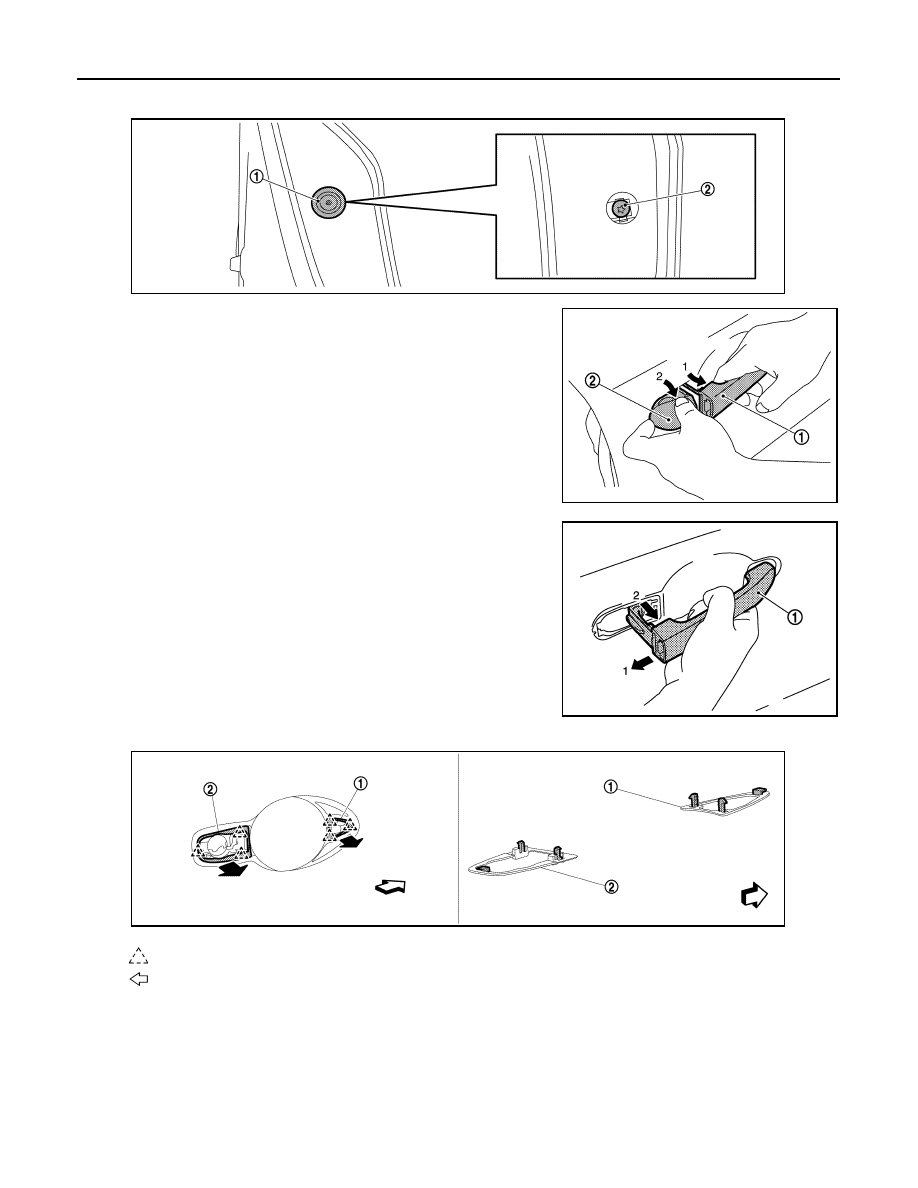

Remove grommet (1) of door side. Loosen, through grommet hole, TORX bolt (2) that fixes outside handle
escutcheon.

5.

While pulling outside handle (1) according to the numerical order
1

→

2 indicated by arrows as shown in the figure, remove outside

handle escutcheon (2).

6.

While pulling outside handle (1) according to the numerical order
1

→

2 indicated by arrows as shown in the figure, slide toward

rear of vehicle to remove outside handle.

7.

Remove front gasket (1) and rear gasket (2).

JMKIB0588ZZ

JMKIA9526ZZ

JMKIA2948ZZ

: Pawl

: Vehicle front

JMKIB2240ZZ
