8.

Slide outside handle bracket toward rear of vehicle to remove.

9.

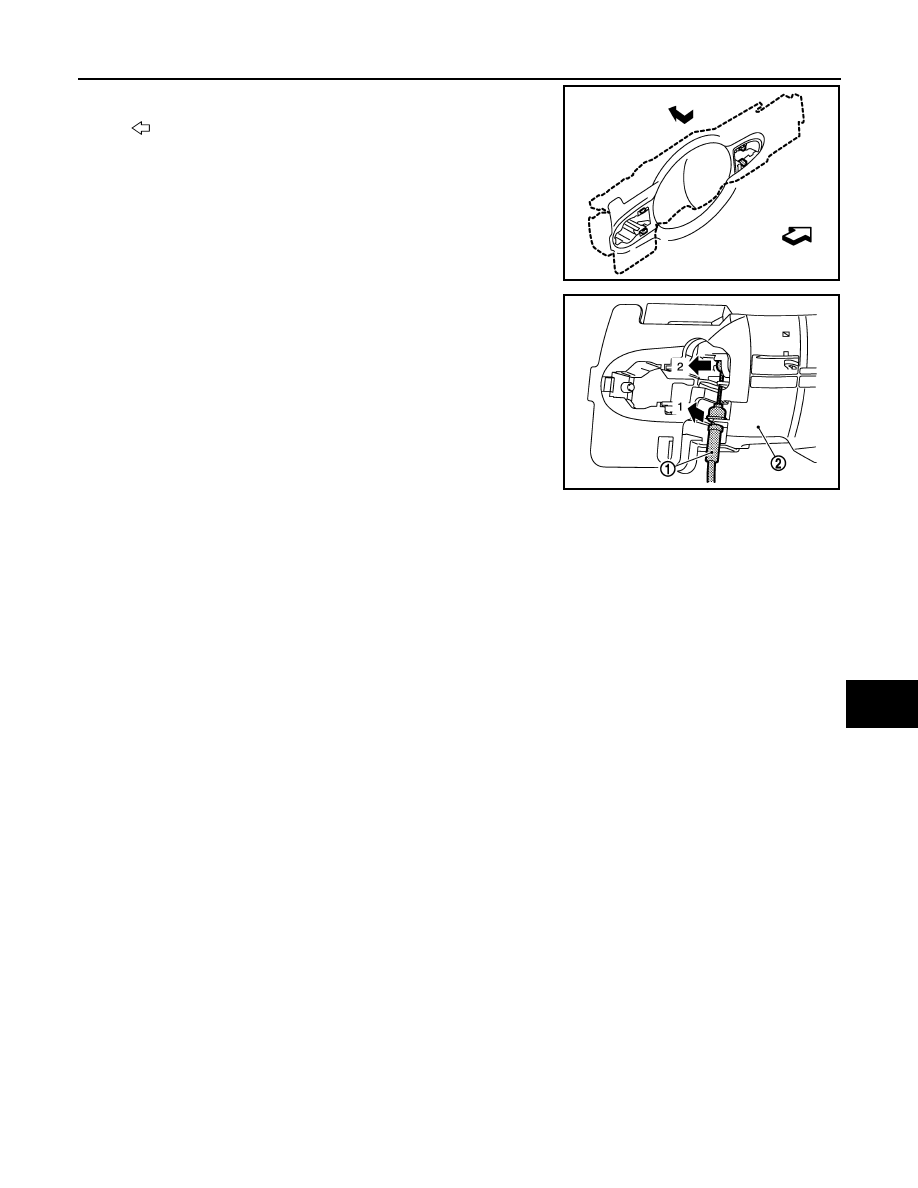

Disconnect outside handle cable (1) from outside handle bracket
(2) according to the numerical order 1

→

2 indicated by arrows as

shown in the figure.

CAUTION:

Never bend the outside handle cable end.

INSTALLATION

Note the following items, and install in the reverse order of removal.

CAUTION:

• Check that door lock cables are normally engaged with inside handle and outside handle.
• After installation, check door open/close, and lock/unlock operation.

: Vehicle front

JMKIA5935ZZ

JMKIA5936ZZ

DLK-190

< REMOVAL AND INSTALLATION >

[TYPE 1]

BACK DOOR LOCK

BACK DOOR LOCK

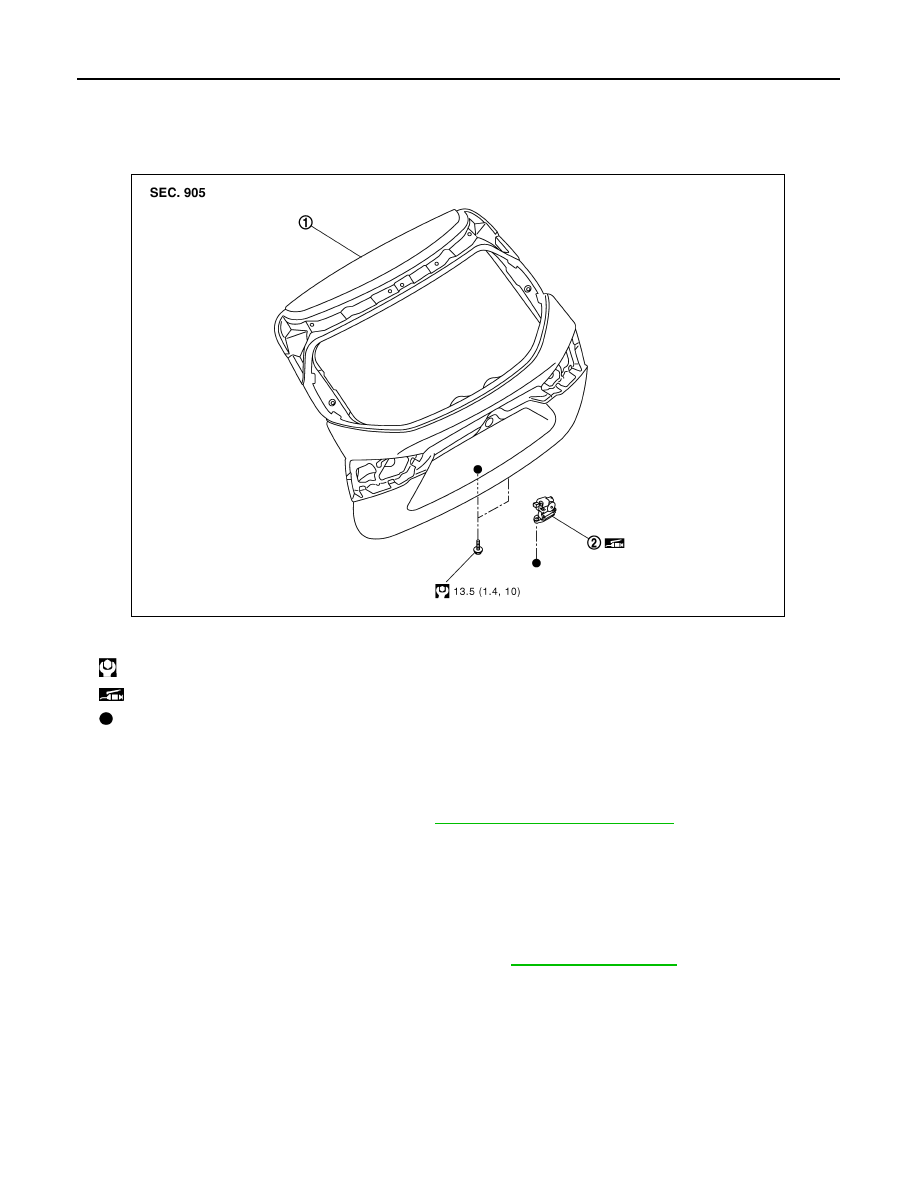

Exploded View

INFOID:0000000010434734

Removal and Installation

INFOID:0000000010434735

REMOVAL

1.

Remove back door trim finisher lower. Refer to

INT-31, "Removal and Installation"

.

2.

Disconnect back door lock harness connector.

3.

Remove back door assembly mounting bolts, and then remove back door lock assembly.

INSTALLATION

Note the following items, and install in the reverse order of removal.

CAUTION:

• After installation, check back door open/close, and lock/unlock operation.
• Check door lock assembly for poor lubrication. Refer to

DLK-191, "Inspection"

.

1.

Back door panel

2.

Back door lock assembly

: N·m (kg-m, ft-lb)

: Body grease

: Indicates that the part is connected at points with same symbol in actual vehicle.

JMKIB3271GB

BACK DOOR LOCK

DLK-191

< REMOVAL AND INSTALLATION >

[TYPE 1]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

Inspection

INFOID:0000000010434736

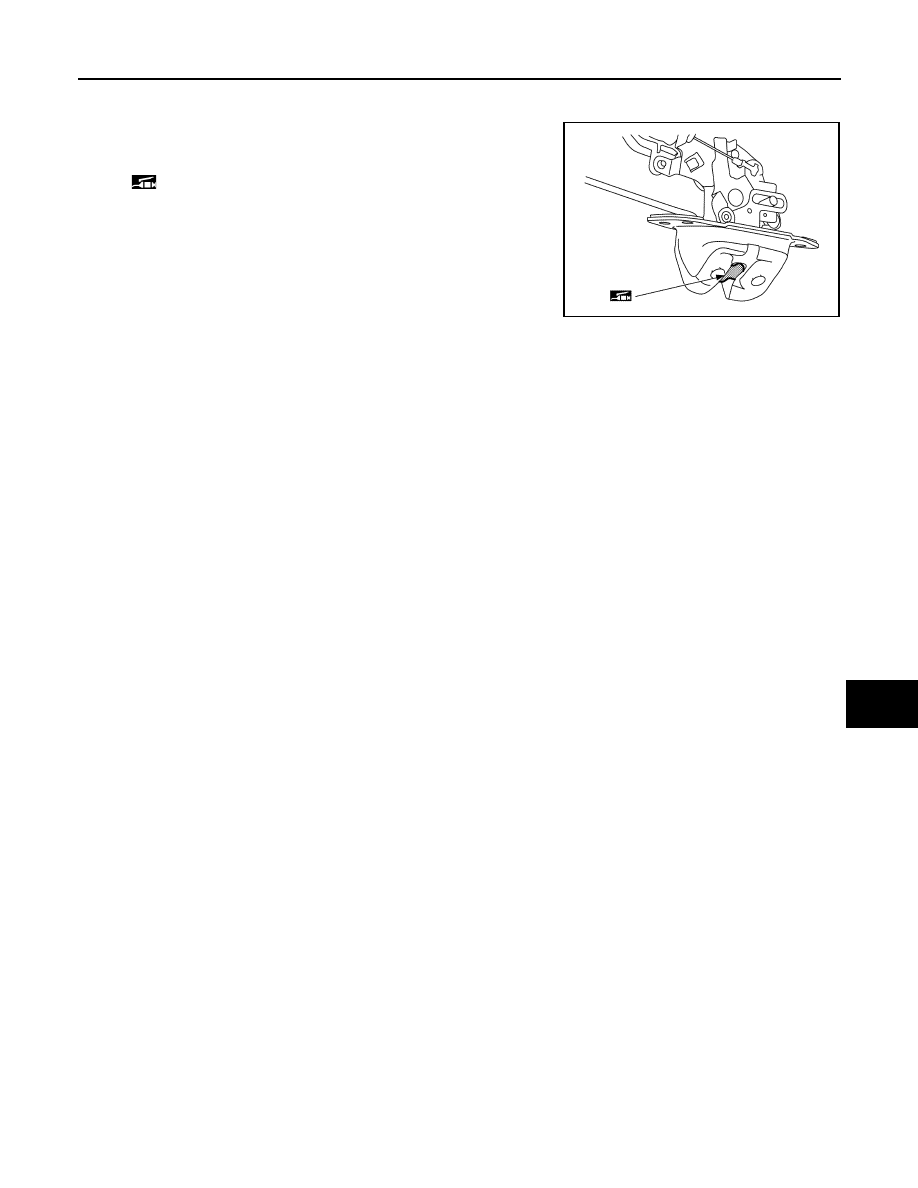

Check door lock assembly for poor lubrication. Apply body grease if
necessary.

: Body grease

JMKIB0629ZZ

DLK-192

< REMOVAL AND INSTALLATION >

[TYPE 1]

FUEL FILLER LID OPENER

FUEL FILLER LID OPENER

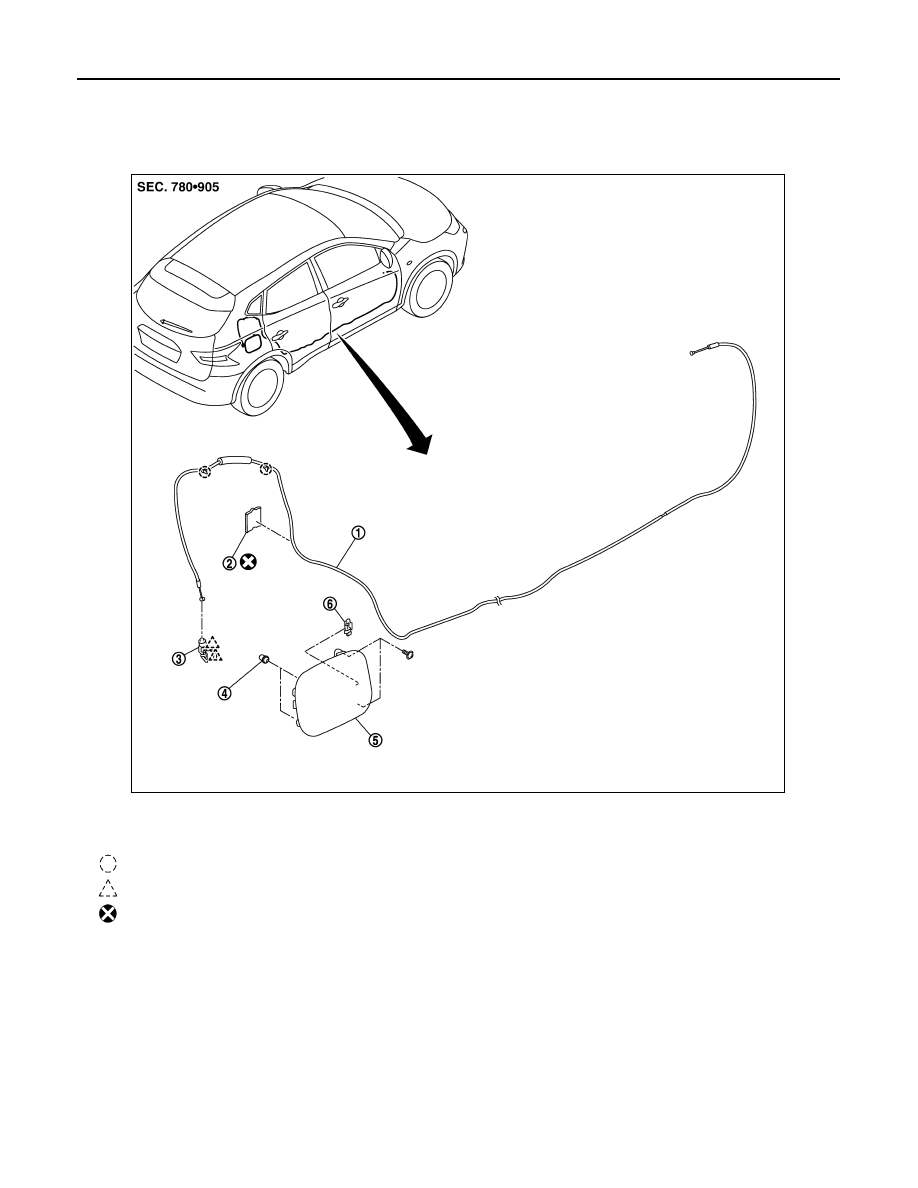

Exploded View

INFOID:0000000010434739

FUEL FILLER LID

FUEL FILLER LID : Removal and Installation

INFOID:0000000010434740

REMOVAL

1.

Fully open fuel filler lid assembly.

1.

Fuel opener cable

2.

Cable protector

3.

Fuel filler lid lock assembly

4.

Bumper rubber

5.

Fuel filler lid assembly

6.

Fuel filler spring

: Clip

: Pawl

: Always replace after every disassembly.

JMKIB3263ZZ
