Note the following items, and install in the reverse order of removal.

CAUTION:

• Check back door hinge rotating part for poor lubrication. Refer to

DLK-177, "BACK DOOR HINGE :

Inspection"

.

• After installation, perform the fitting adjustment. Refer to

DLK-174, "BACK DOOR ASSEMBLY :

Adjustment"

.

• After installation, apply touch-up paint (the body color) onto the head of door hinge mounting nuts.

BACK DOOR HINGE : Inspection

INFOID:0000000010434715

Check door hinge rotating part for poor lubrication. Apply body
grease if necessary.

BACK DOOR STAY

BACK DOOR STAY : Removal and Installation

INFOID:0000000010434716

REMOVAL

1.

Support the back door with the suitable material to prevent it from falling.

WARNING:

Bodily injury may occur if no supporting rod is holding the back door open when removing the
back door stay.

CAUTION:

Use protective tape or shop cloth to protect from damage during removal and installation.

2.

Remove back door stay of vehicle body side.

a.

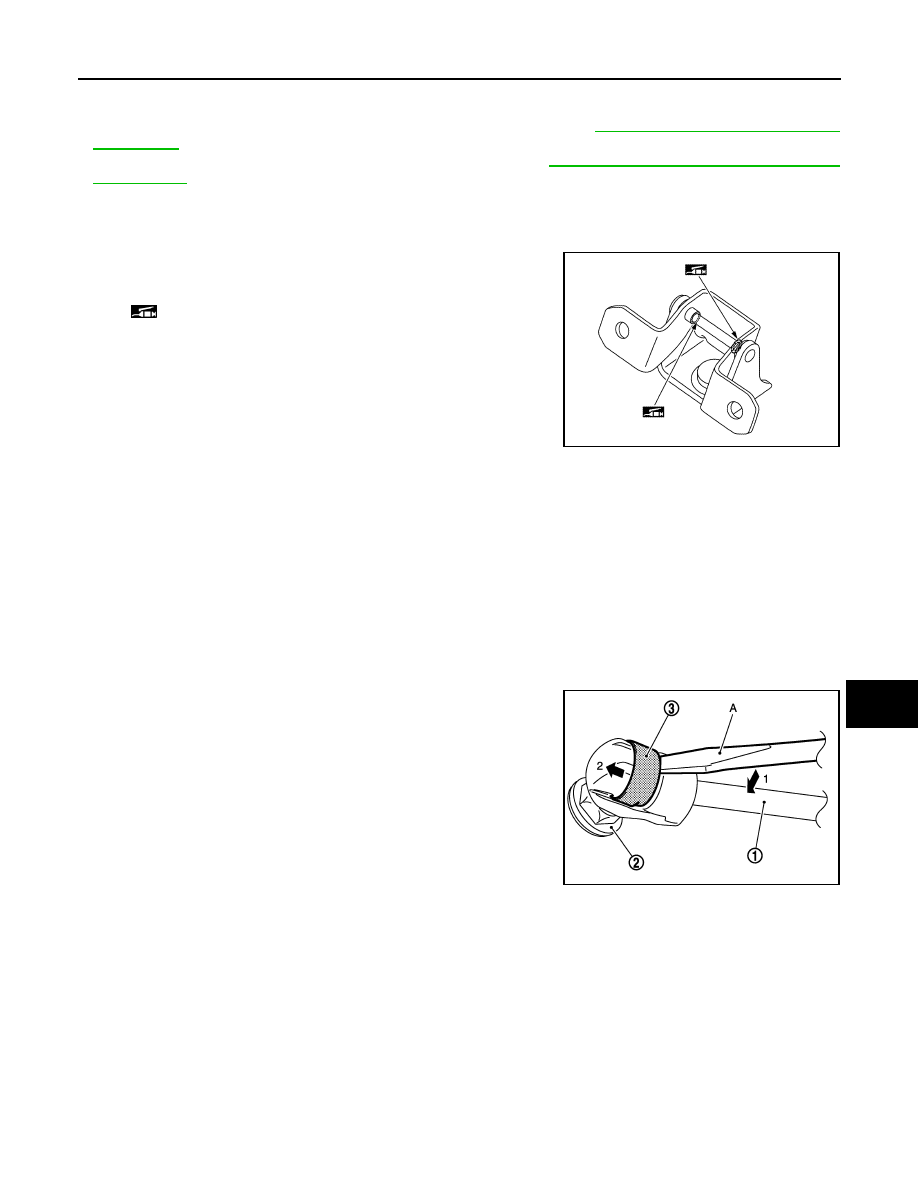

Remove the metal clip (3) located on the connection between
the back door stay (1) and the stud ball (2) by using a remover
tool (A) according to the numerical order 1

→

2 indicated by

arrows as shown in the figure.

b.

Disengage back door stay from stud ball.

3.

Remove back door stay mounting bolts of back door side, and then remove back door stay.

INSTALLATION

Note the following items, and install in the reverse order of removal.

CAUTION:

• Apply anticorrosive agent onto the mounting surface.
• After installation, check back door open/close, lock/unlock operation.

BACK DOOR STAY : Disposal

INFOID:0000000010434717

CAUTION:

When performing disposal operation, wear the protective glasses and protective gloves.

: Body grease

JMKIB0628ZZ

JMKIA2255ZZ

DLK-178

< REMOVAL AND INSTALLATION >

[TYPE 1]

BACK DOOR

1.

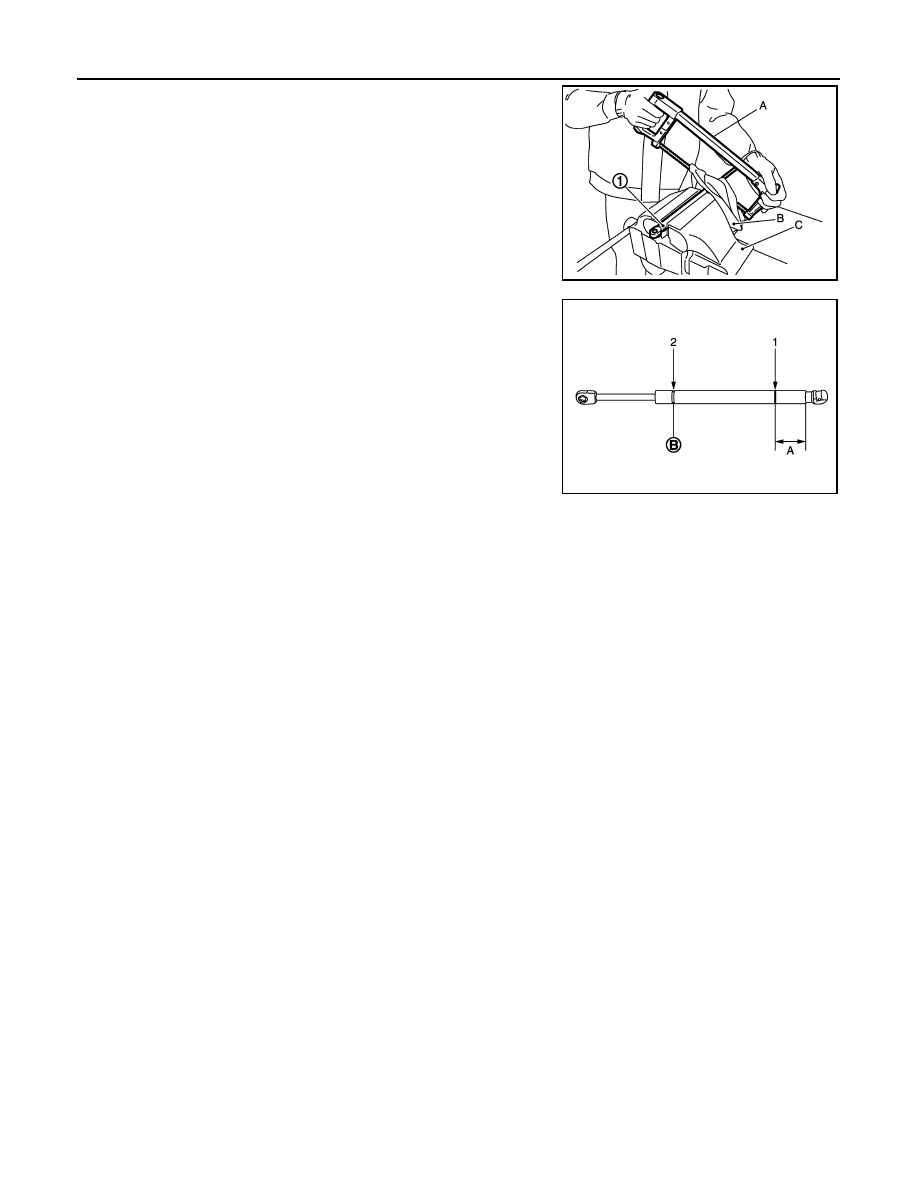

Fix back door stay (1) using a vise (C)

CAUTION:

When cutting a hole on back door stay, always cover a
hacksaw (A) using a shop cloth (B) to avoid scattering
metal fragments or oil.

2.

Slowly cut a hole and drain the gas in the order of 1

→

2 as

shown in the figure using a hacksaw at 2 positions of (1) and (2).

BACK DOOR WEATHER-STRIP

BACK DOOR WEATHER-STRIP : Removal and Installation

INFOID:0000000010434718

REMOVAL

Pull up and remove engagement with body from weather-strip joint.

CAUTION:

Never pull strongly on weather-strip.

INSTALLATION

1.

Working from the upper section, align weather-strip center mark with vehicle center position mark and
install weather-strip onto the vehicle.

2.

For the lower section, align the weather-strip seam with center of back door striker.

3.

Pull weather-strip gently to ensure that there is no loose section.

CAUTION:

Securely fit each corner.

JMKIA3336ZZ

A

: 20 mm (0.787 in)

B

: Cat at the groove

JMKIA3609ZZ

HOOD LOCK

DLK-179

< REMOVAL AND INSTALLATION >

[TYPE 1]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

HOOD LOCK

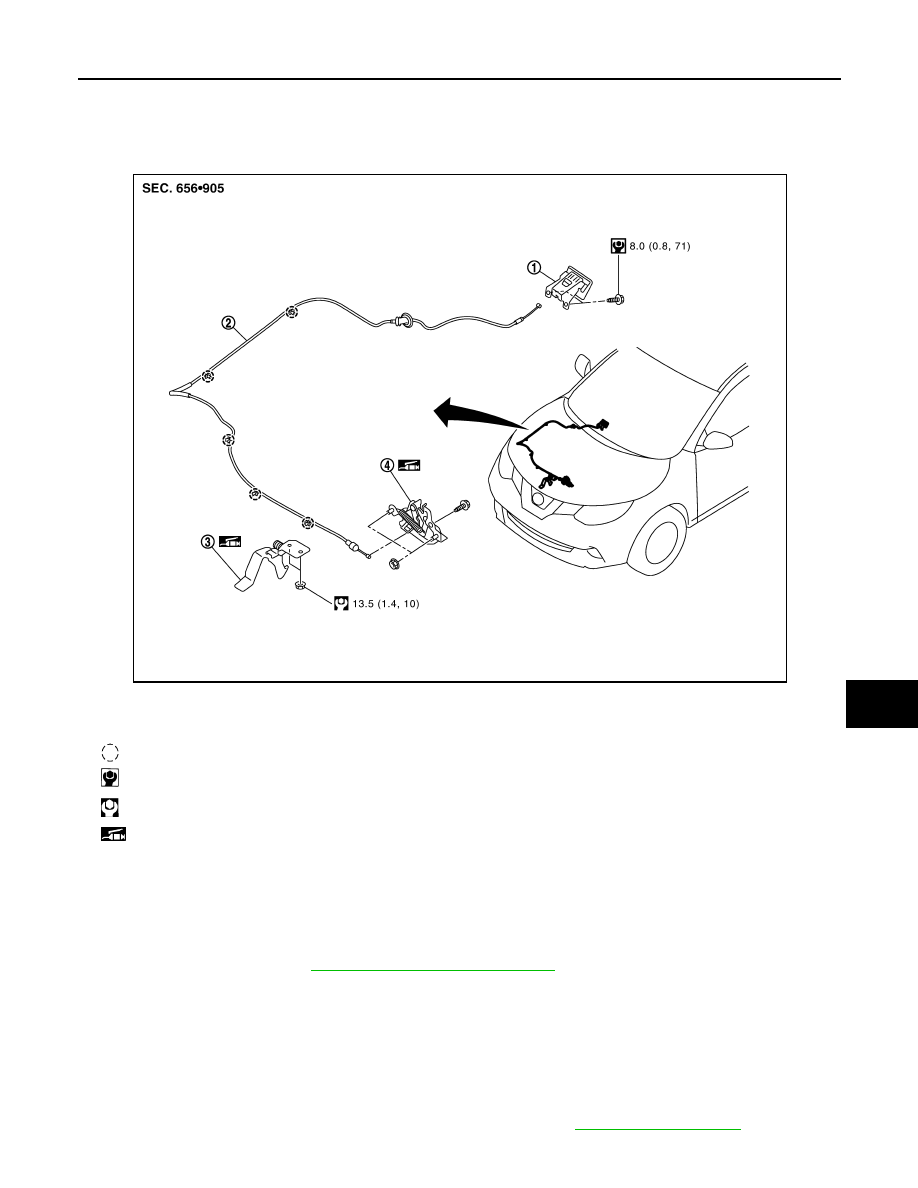

Exploded View

INFOID:0000000010434719

HOOD LOCK

HOOD LOCK : Removal and Installation

INFOID:0000000010434720

REMOVAL

1.

Remove front grille. Refer to

EXT-26, "Removal and Installation"

.

2.

Remove hood lock assembly mounting bolt and nuts, and then remove hood lock assembly from radiator
core support upper.

3.

Disconnect hood lock control cable assembly from hood lock assembly.

INSTALLATION

Note the following items, and install in the reverse order of removal.

CAUTION:

• Never bend cable too much, keeping the radius 100 mm (3.937 in) or more.
• After installation, perform hood lock control inspection. Refer to

DLK-181, "Inspection"

.

1.

Hood lock control handle

2.

Hood lock control cable

3.

Hood safety hook

4.

Hood lock assembly

: Clip

: N·m (kg-m, in-lb)

: N·m (kg-m, ft-lb)

: Body grease

JMKIB3308GB

DLK-180

< REMOVAL AND INSTALLATION >

[TYPE 1]

HOOD LOCK

• Check hood lock assembly for poor lubrication. Refer to

DLK-181, "Inspection"

.

• After installation, perform hood fitting adjustment. Refer to

DLK-152, "HOOD ASSEMBLY : Adjust-

ment"

.

HOOD LOCK CONTROL HANDLE

HOOD LOCK CONTROL HANDLE : Removal and Installation

INFOID:0000000010434722

REMOVAL

1.

Remove hood lock control handle mounting bolts, and then remove hood lock control handle.

2.

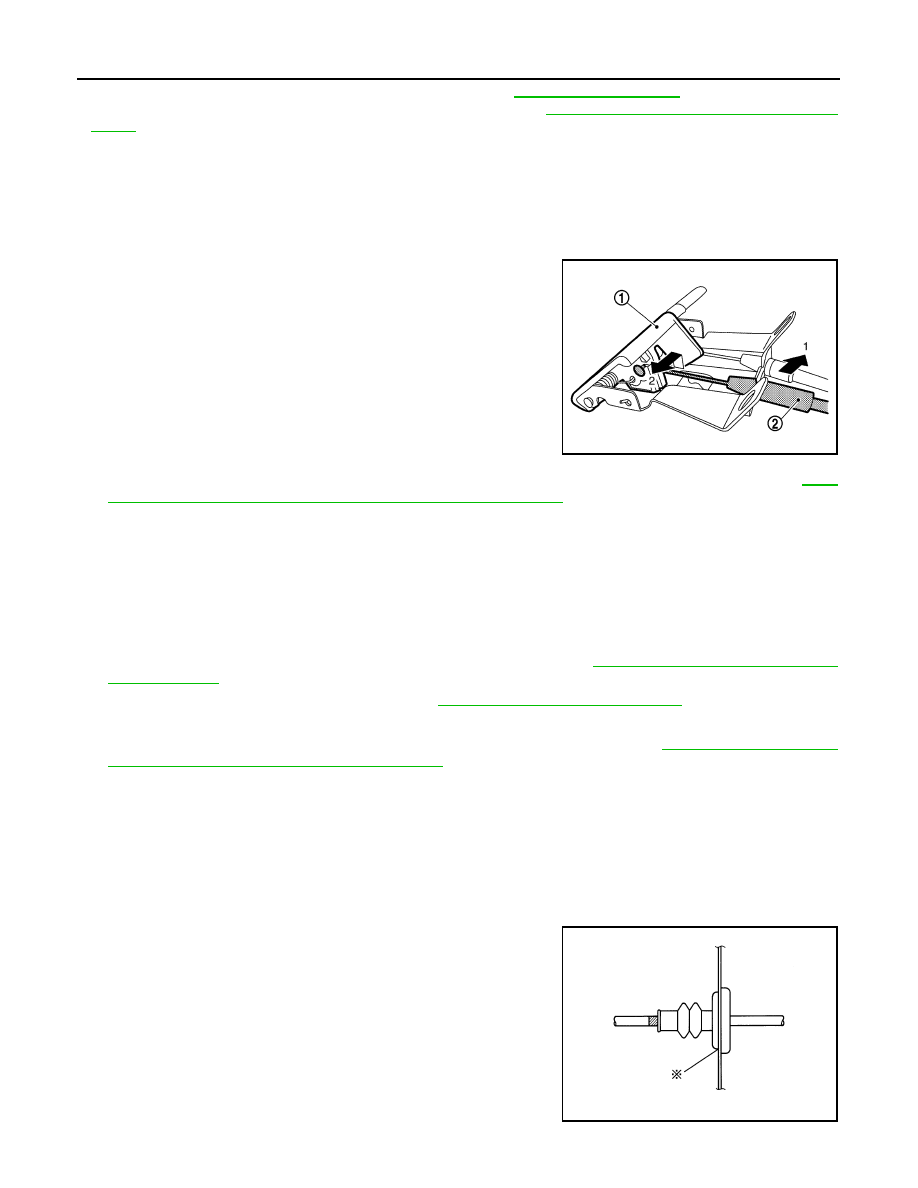

Disconnect hood lock control cable (2) from hood opener lever
(1) according to the numerical order 1

→

2 indicated by arrows as

shown in the figure.

3.

Disconnect fuel opener cable from fuel filler lid opener lever of hood lock control handle. Refer to

DLK-

194, "FUEL FILLER OPENER CABLE : Removal and Installation"

.

INSTALLATION

Install in the reverse order of removal.

HOOD LOCK CONTROL CABLE

HOOD LOCK CONTROL CABLE : Removal and Installation

INFOID:0000000010434721

REMOVAL

1.

Disconnect hood lock control cable from hood lock assembly. Refer to

DLK-179, "HOOD LOCK : Removal

and Installation"

.

2.

Remove fender protector (driver side). Refer to

EXT-33, "Removal and Installation"

.

3.

Remove hood lock control cable fixing clips.

4.

Disconnect hood lock control cable from hood lock control handle. Refer to

DLK-180, "HOOD LOCK

CONTROL HANDLE : Removal and Installation"

.

5.

Remove grommet on the lower dash, and pull the hood lock control cable toward the passenger compart-
ment.

CAUTION:

While pulling, never damage (peeling) the outside of hood lock control cable.

INSTALLATION

Note the following items, and install in the reverse order of removal.

CAUTION:

• Never bend cable too much, keeping the radius 100 mm (3.937 in) or more.
• Check that cable is not offset from the positioning grommet,

and apply the sealant to the grommet (at * mark) properly.
