PRECAUTIONS

SE-3

< PRECAUTION >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

5.

Wait at least 3 minutes. For vehicle with the engine listed below, remove the battery terminal after a lapse
of the specified time.

CAUTION:

While waiting, never operate the vehicle such as locking, opening, and closing doors. Violation of
this caution results in the activation of ACC power supply according to the Auto ACC function.

6.

Remove 12V battery terminal.

CAUTION:

After installing 12V battery, always check self-diagnosis results of all ECUs and erase DTC.

Service Notice

INFOID:0000000010436318

• When removing or installing various parts, place a cloth or padding onto the vehicle body to prevent

scratches.

• Handle trim, molding, instruments, grille, etc. carefully during removing or installing. Be careful not to oil or

damage them.

• Apply sealing compound where necessary when installing parts.
• When applying sealing compound, be careful that the sealing compound does not protrude from parts.
• When replacing any metal parts (for example body outer panel, members, etc.), be sure to take rust preven-

tion measures.

Precaution for Work

INFOID:0000000010436319

• When removing or disassembling each component, be careful not to damage or deform it. If a component

may be subject to interference, be sure to protect it with a shop cloth.

• When removing (disengaging) components with a screwdriver or similar tool, be sure to wrap the component

with a shop cloth or vinyl tape to protect it.

• Protect the removed parts with a shop cloth and keep them.
• Replace a deformed or damaged clip.
• If a part is specified as a non-reusable part, always replace it with new one.
• Be sure to tighten bolts and nuts securely to the specified torque.
• After re-installation is completed, be sure to check that each part works normally.
• Follow the steps below to clean components.
- Water soluble foul: Dip a soft cloth into lukewarm water, and wring the water out of the cloth to wipe the

fouled area.
Then rub with a soft and dry cloth.

- Oily foul: Dip a soft cloth into lukewarm water with mild detergent (concentration: within 2 to 3%), and wipe

the fouled area.
Then dip a cloth into fresh water, and wring the water out of the cloth to wipe the detergent off. Then rub with
a soft and dry cloth.

• Never use organic solvent such as thinner, benzene, alcohol, and gasoline.
• For genuine leather seats, use a genuine leather seat cleaner.

D4D engine

: 20 minutes

HRA2DDT

: 12 minutes

K9K engine

: 4 minutes

M9R engine

: 4 minutes

R9M engine

: 4 minutes

V9X engine

: 4 minutes

SE-4

< PREPARATION >

PREPARATION

PREPARATION

PREPARATION

Commercial Service Tool

INFOID:0000000010436320

Tool name

Description

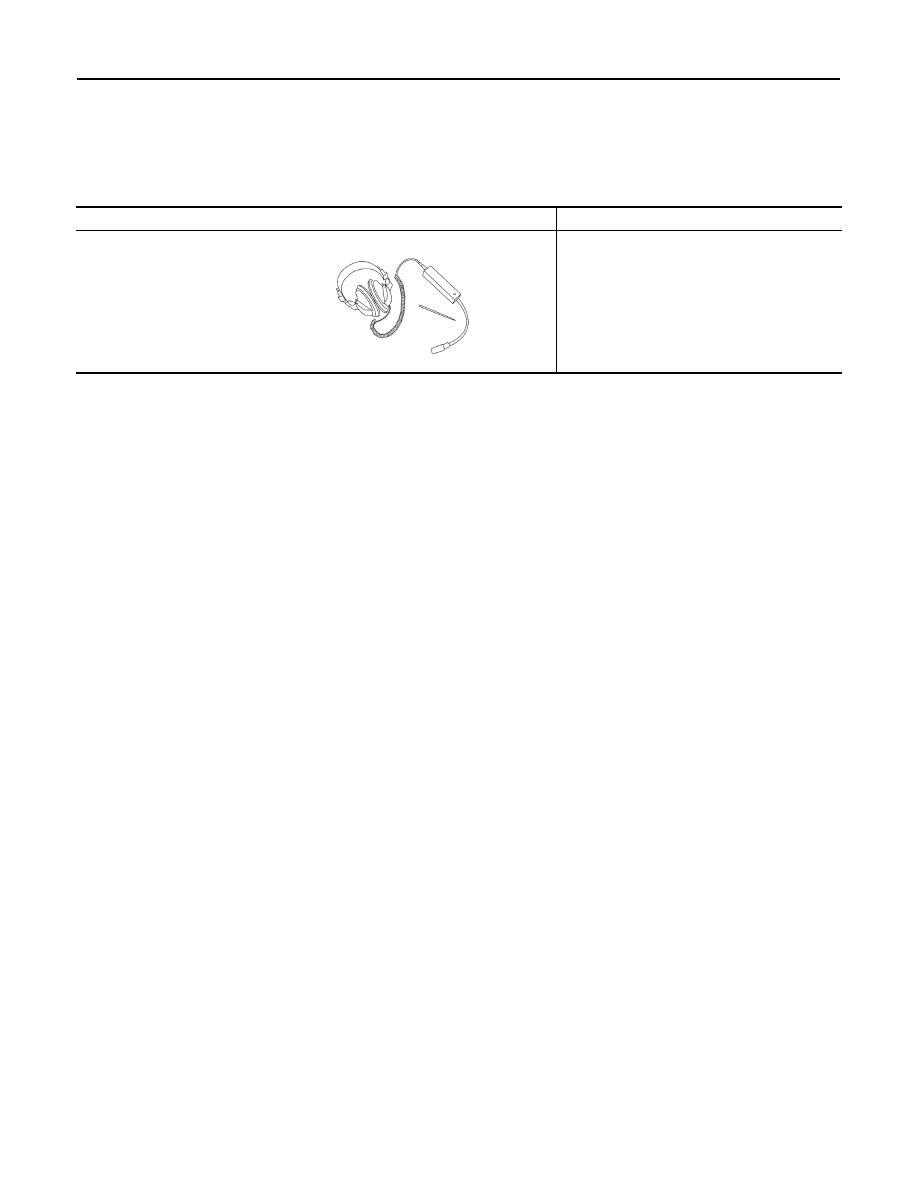

Engine ear

Locates the noise

SIIA0995E

CLIP LIST

SE-5

< PREPARATION >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

CLIP LIST

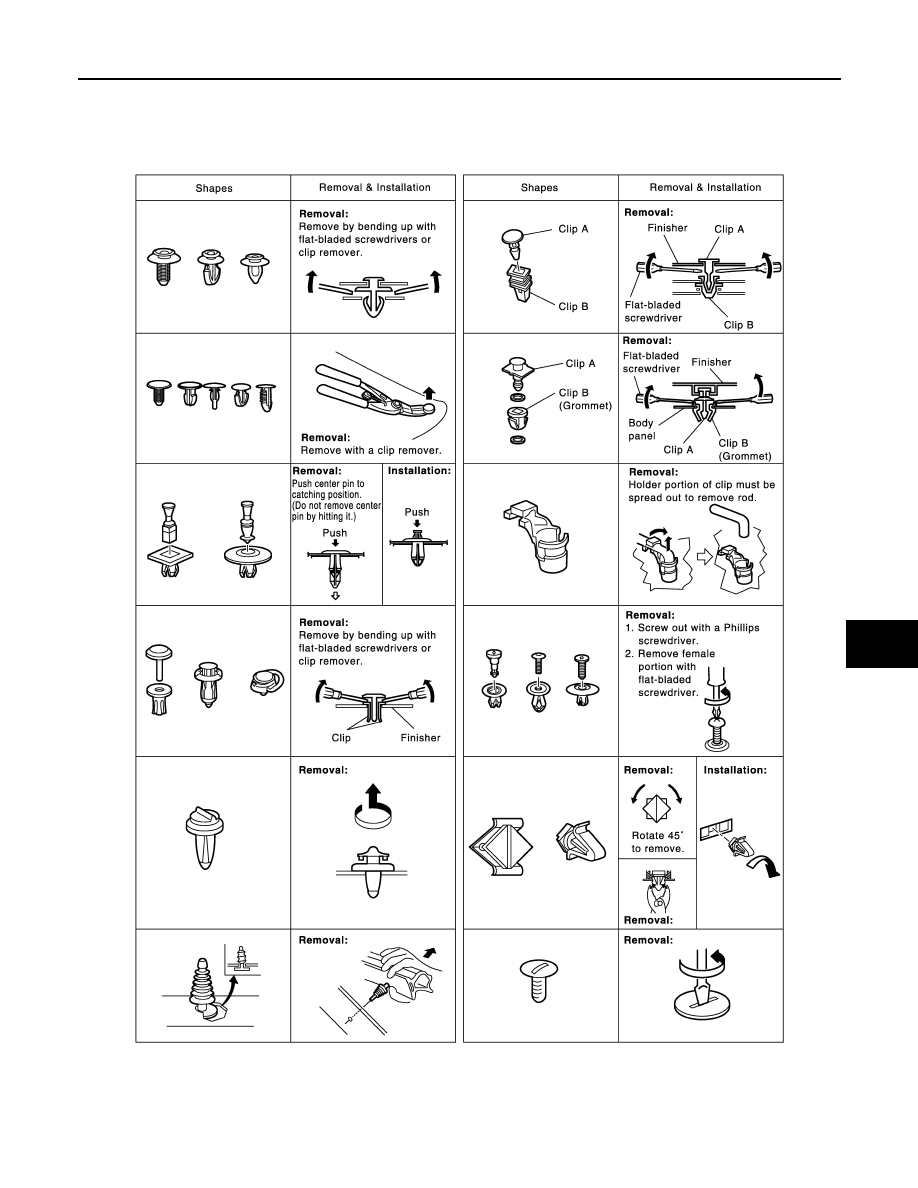

Clip List

INFOID:0000000010436321

JMJIA3734GB

SE-6

< SYSTEM DESCRIPTION >

COMPONENT PARTS

SYSTEM DESCRIPTION

COMPONENT PARTS

POWER SEAT SYSTEM

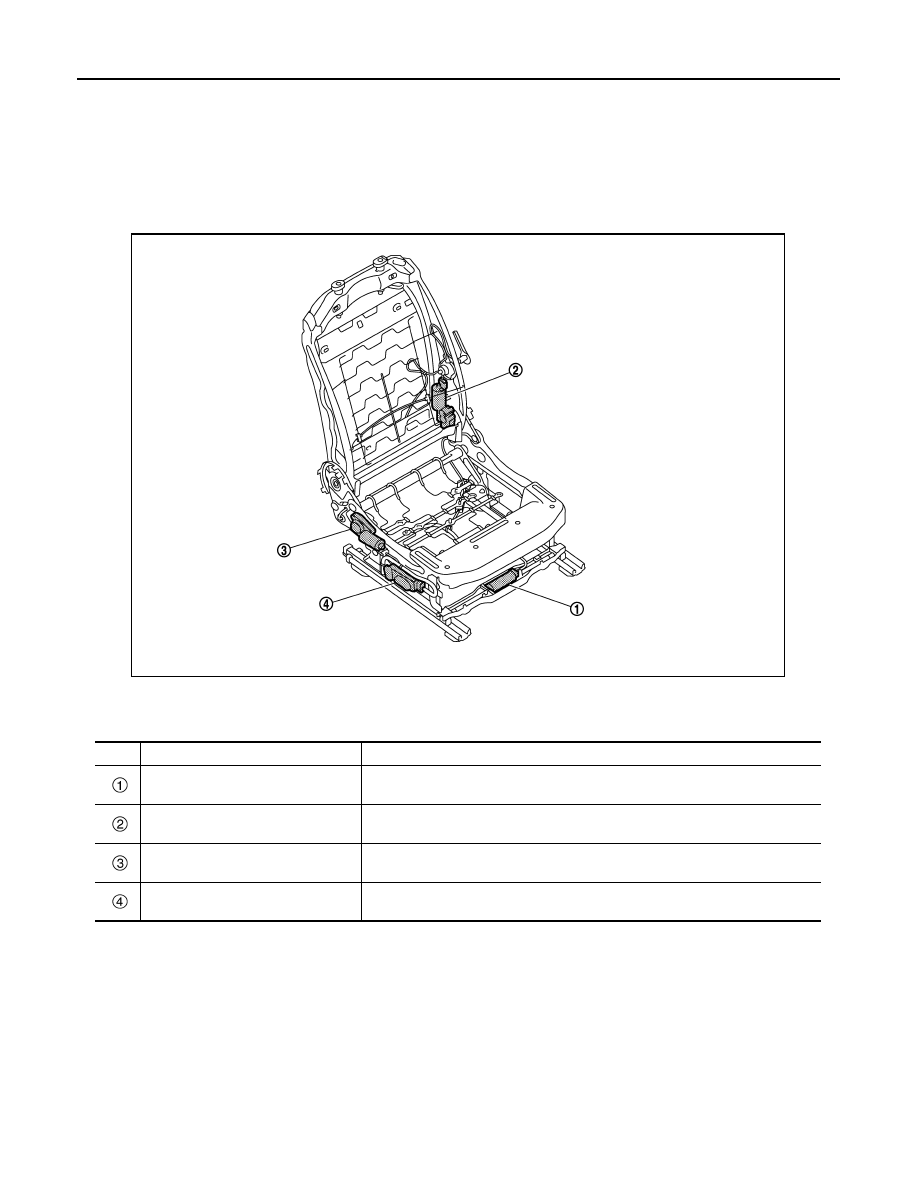

POWER SEAT SYSTEM : Component Parts Location

INFOID:0000000010436340

POWER SEAT SYSTEM : Component Description

INFOID:0000000010436341

HEATED SEAT SYSTEM

JMJIA9930ZZ

No.

Component

Function

Sliding motor

With the power supplied from power seat switch, operates the forward and back-
ward slide of seat

Reclining motor

With the power supplied from power seat switch, operates the forward and back-
ward movement of seatback

Lifting motor

With the power supplied from power seat switch, operates the up and down
movement of seat cushion

Power seat switch

Built-in reclining switch, sliding switch and lifting switch, controls the power sup-
plied to each motor
