Nissan Qashqai J11. Manual - part 1181

COMPONENT PARTS

SE-7

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

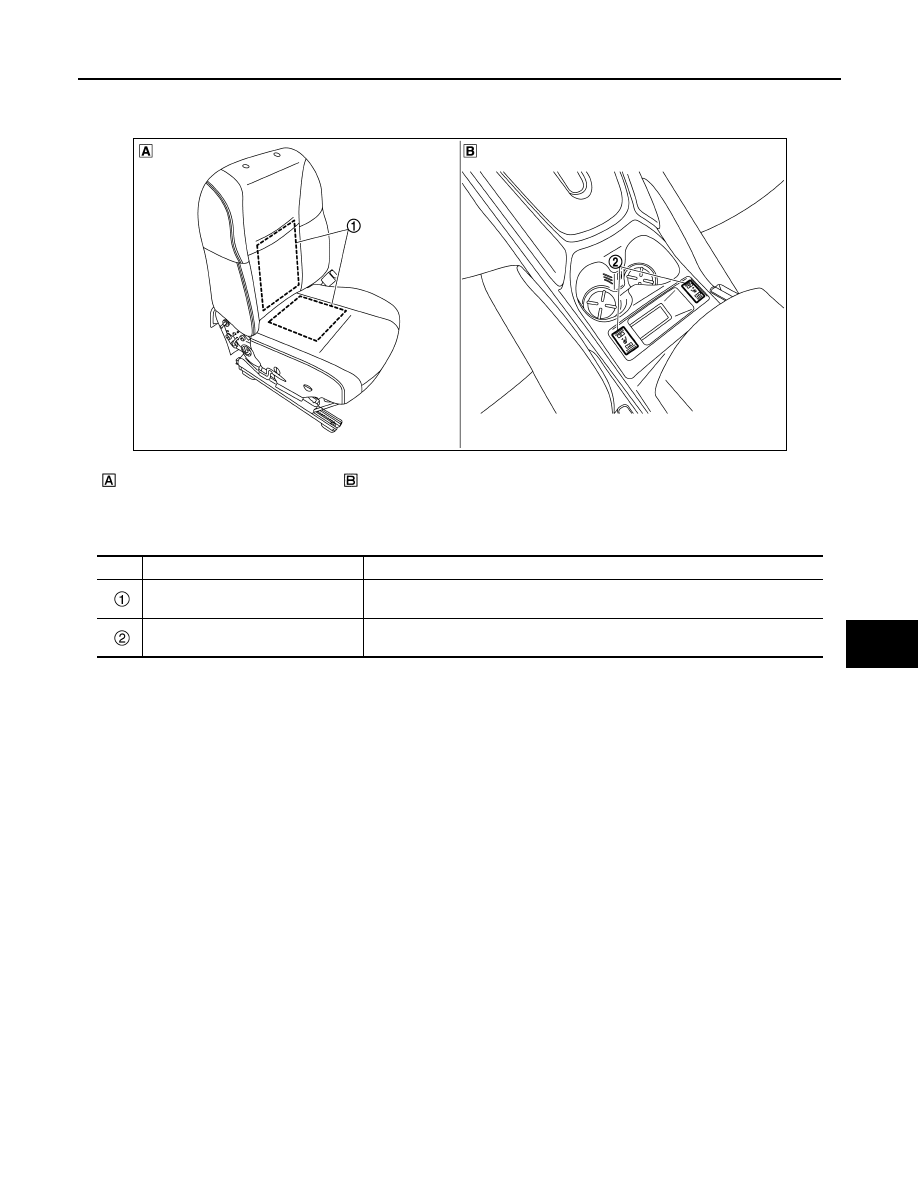

HEATED SEAT SYSTEM : Component Parts Location

INFOID:0000000010436322

HEATED SEAT SYSTEM : Component Description

INFOID:0000000010436323

The inside of front seat

View with console switch panel

JMJIA9768ZZ

No.

Component

Function

Front seat heater (driver side/passen-
ger side)

Front seat heater is located inside of front heated seat cushion and seat back,
and operates with power source provided via front heated seat switch.

Front heated seat switch (driver side/
passenger side)

Front heated seat switch changes ON/OFF operation and HI/LO operation, and
supplies power source to front heated seats.

SE-8

< SYSTEM DESCRIPTION >

SYSTEM

SYSTEM

POWER SEAT SYSTEM

POWER SEAT SYSTEM : System Description

INFOID:0000000010436339

Power seat switch can be operated regardless of the ignition switch position, because power supply is always
supplied to power seat switch.

SLIDING OPERATION

While operating the sliding switch located in power seat switch, sliding motor operates and makes possible the
seat front and back position adjustment.

RECLINING OPERATION

While operating the reclining switch located in power seat switch, reclining motor operates and makes possi-
ble the seat back forward and backward position adjustment.

LIFTING OPERATION

While operating the lifting switch located in power seat switch, lifting motor operates and makes possible the
seat cushion up and down position adjustment.

HEATED SEAT SYSTEM

HEATED SEAT SYSTEM : System Description

INFOID:0000000010436324

Heated seat is a system that operates when ignition switch is in ON position.

HEATER OPERATION

• When the heated seat switch is ON, seat heater and seat back heater operate.
• Temperature of seat can be adjusted by operating on heated seat switch.

POWER SEAT CONTROL SYSTEM

SE-9

< WIRING DIAGRAM >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

WIRING DIAGRAM

POWER SEAT CONTROL SYSTEM

Wiring Diagram

INFOID:0000000010436342

JRJWC6755GB

SE-10

< WIRING DIAGRAM >

POWER SEAT CONTROL SYSTEM

JRJWC9125GB
