CENTER CONSOLE ASSEMBLY

IP-19

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

IP

N

O

P

Removal and Installation

INFOID:0000000010502013

REMOVAL

WARNING:

Before servicing,turn ignition OFF, disconnect battery negative terminal and wait for 3 minutes or
more.

CAUTION:

Always use a remover tool that is made of plastic.

1.

Put selector lever in N position (CVT models.)

2.

Remove selector lever knob. Refer to

TM-25, "Removal and Installation"

 (RS6F94R),

TM-83, "Removal

and Installation"

 (RS6F95R),

TM-143, "Removal and Installation"

 (RS6F52A),

TM-617, "Removal and

Installation"

 (CVT models)

3.

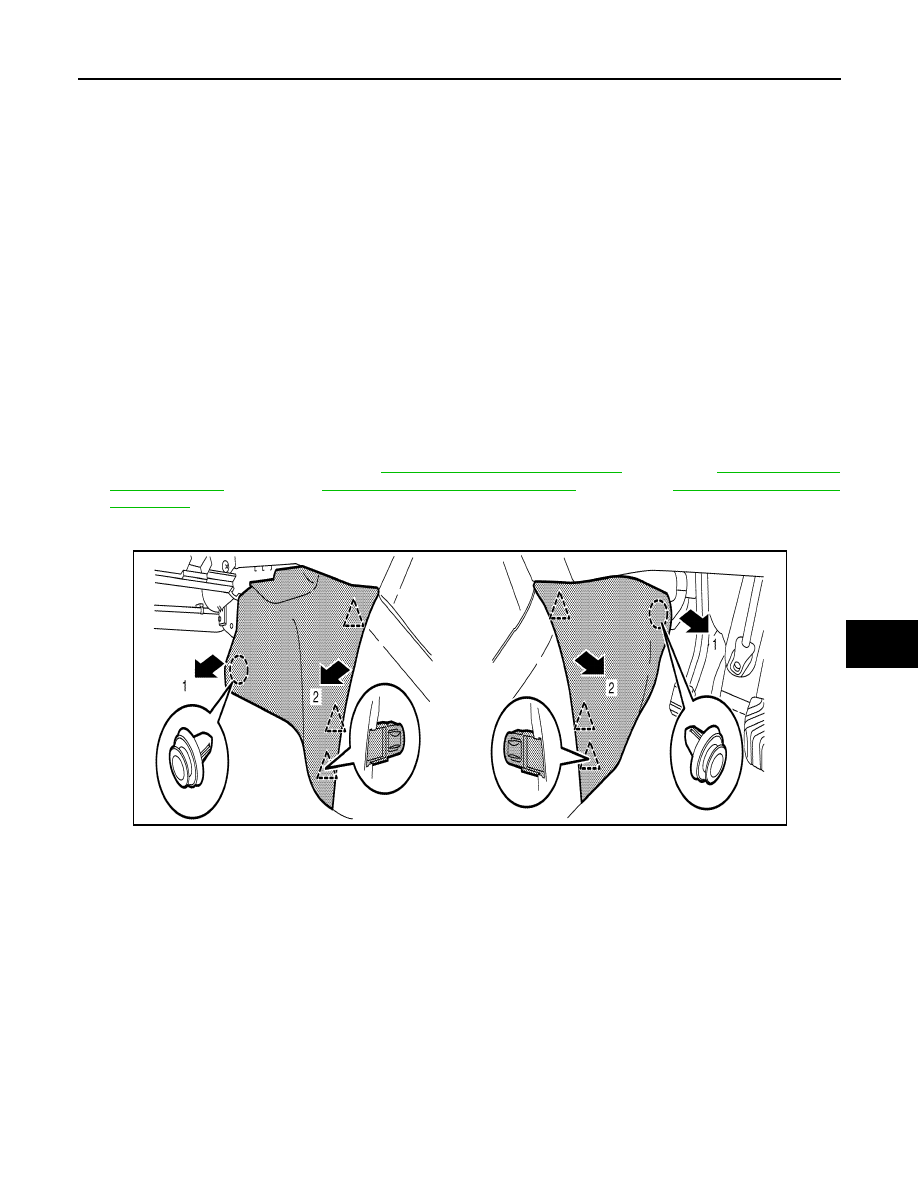

Disengage instrument lower cover fixing clips and pawls according to numerical order indicated by arrows
as shown in the figure.

4.

Remove instrument lower cover (LH/RH).

5.

Remove console panel (LH/RH).
• Disengage console panel fixing metal clips;

Start at rear 3 clip portion (2):
Partially unclip parts to allow minimum sufficient access to remove console finisher assembly.

CAUTION:

Be careful not to damage panel console LH/RH from fixing structure.

CAUTION:

1.

Center console assembly

2.

Center console rear finisher as-
sembly

3.

Inside key antenna

4.

Console bracket

5.

Console panel (if equipped)

6.

Instrument panel lower cover
(LH)

7.

Dash lower insulator (if equipped)

8.

Upper console finisher

9.

Console finisher assembly (CVT
models)

10. Console finisher assembly (MT models) 11. Instrument panel lower cover (RH) 12. Console panel finisher (RH)

13. Cup holder

14. Power socket assembly

JMJIA9741ZZ

IP-20

< REMOVAL AND INSTALLATION >

CENTER CONSOLE ASSEMBLY

Be careful not to disengage metal clips from console
panel.

• Disengage auto control console finisher upper fixing pawls and metal clips;
• Disconnect harness connectors;
• Remove auto control console finisher and console finisher upper as a set.
• Remove console panel fixing screws;
• Disconnect harness connectors;
• Disengage console panel fixing metal clips;
• Remove console panel.

6.

Remove rear console finisher.
• Disengage rear console finisher fixing metal clips.
• Disconnect harness connector (if equipped).
• Remove rear console finisher.

7.

Disconnect harness connectors.

8.

Remove harness fixing clip.

9.

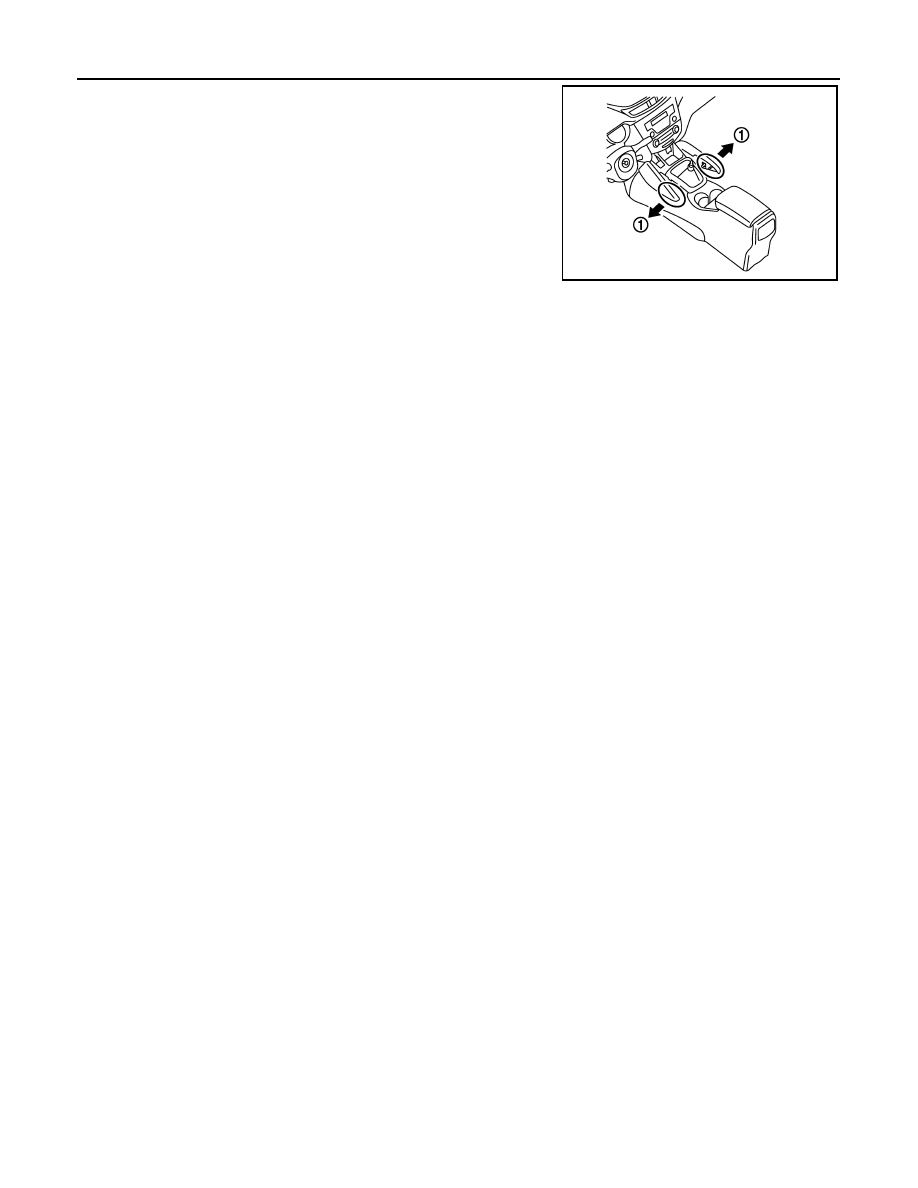

Disengage cup holder assembly fixing metal clips.

10. Disconnect harness connectors.
11. Remove cup holder assembly.

12. Remove center console assembly fixing screws.

13. Remove center console assembly.

INSTALLATION

Installation is in the reverse order of removal.

Disassembly and Assembly

INFOID:0000000010464153

Disassembly

1.

Remove instrument lower cover (RH/LH).
• Remove clips

2.

Remove rear console finisher assembly.
• Disconnect harness connectors.
• Remove screws.

3.

Remove instrument panel center cover.

4.

Remove lower dash insulator (if equipped).

Assembly

Assemble in the reverse order of disassembly.

E1JIA0314ZZ

SE-1

BODY INTERIOR

C

D

E

F

G

H

I

K

L

M

SECTION

SE

A

B

SE

N

O

P

CONTENTS

SEAT

PRECAUTION ...............................................

2

PRECAUTIONS ...................................................

2

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" ...................................................................

2

Precautions for Removing Battery Terminal  .............

2

Service Notice  ...........................................................

3

Precaution for Work  ..................................................

3

PREPARATION ............................................

4

PREPARATION ...................................................

4

Commercial Service Tool  ..........................................

4

CLIP LIST  ............................................................

5

Clip List  .....................................................................

5

SYSTEM DESCRIPTION  ..............................

6

COMPONENT PARTS  ........................................

6

POWER SEAT SYSTEM  .............................................

6

POWER SEAT SYSTEM : Component Parts Lo-
cation .........................................................................

6

POWER SEAT SYSTEM : Component Descrip-
tion ............................................................................

6

HEATED SEAT SYSTEM  ............................................

6

HEATED SEAT SYSTEM : Component Parts Lo-
cation .........................................................................

7

HEATED SEAT SYSTEM : Component Descrip-
tion ............................................................................

7

SYSTEM ..............................................................

8

POWER SEAT SYSTEM  .............................................

8

POWER SEAT SYSTEM : System Description  ........

8

HEATED SEAT SYSTEM  ............................................

8

HEATED SEAT SYSTEM : System Description  .......

8

WIRING DIAGRAM  .......................................

9

POWER SEAT CONTROL SYSTEM  .................

9

Wiring Diagram .........................................................

9

HEATED SEAT SYSTEM ..................................

12

Wiring Diagram ........................................................

12

SYMPTOM DIAGNOSIS  ..............................

18

SQUEAK AND RATTLE TROUBLE DIAG-
NOSES ..............................................................

18

Work Flow ................................................................

18

Inspection Procedure ...............................................

20

Diagnostic Worksheet ..............................................

22

REMOVAL AND INSTALLATION  ...............

24

FRONT SEAT ....................................................

24

Exploded View .........................................................

24

Removal and Installation  .........................................

28

SEATBACK ................................................................

28

SEATBACK : Disassembly and Assembly  ..............

28

SEAT CUSHION  ........................................................

31

SEAT CUSHION : Disassembly and Assembly .......

31

REAR SEAT  ......................................................

33

Exploded View .........................................................

33

Removal and Installation  .........................................

34

SEATBACK ................................................................

35

SEATBACK : Disassembly and Assembly  ..............

35

SEAT CUSHION  ........................................................

36

SEAT CUSHION : Disassembly and Assembly .......

36

POWER SEAT SWITCH  ...................................

37

Removal and Installation  .........................................

37

HEATED SEAT SWITCH  ..................................

38

Removal and Installation  .........................................

38

SE-2

< PRECAUTION >

PRECAUTIONS

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000011461870

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. Information necessary to service the system safely is included in the “SRS AIR BAG” and
“SEAT BELT” of this Service Manual.

WARNING:

Always observe the following items for preventing accidental activation.
• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision that would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag
Module, see “SRS AIR BAG”.

• Never use electrical test equipment on any circuit related to the SRS unless instructed to in this Ser-

vice Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or harness
connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

Always observe the following items for preventing accidental activation.
• When working near the Air Bag Diagnosis Sensor Unit or other Air Bag System sensors with the

ignition ON or engine running, never use air or electric power tools or strike near the sensor(s) with
a hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing
serious injury.

• When using air or electric power tools or hammers, always switch the ignition OFF, disconnect the

battery, and wait at least 3 minutes before performing any service.

Precautions for Removing Battery Terminal

INFOID:0000000010503414

• With the adoption of Auto ACC function, ACC power is automatically supplied by operating the intelligent key

or remote keyless entry or by opening/closing the driver side door. In addition, ACC power is supplied even
after the ignition switch is turned to the OFF position, i.e. ACC power is supplied for a certain fixed time.

• When disconnecting the 12V battery terminal, turn off the ACC

power before disconnecting the 12V battery terminal, observing
“How to disconnect 12V battery terminal” described below.
NOTE:
Some ECUs operate for a certain fixed time even after ignition
switch is turned OFF and ignition power supply is stopped. If the
battery terminal is disconnected before ECU stops, accidental DTC
detection or ECU data damage may occur.

•  For vehicles with the 2-batteries, be sure to connect the main bat-

tery and the sub battery before turning ON the ignition switch.
NOTE:
If the ignition switch is turned ON with any one of the terminals of
main battery and sub battery disconnected, then DTC may be detected.

•  After installing the 12V battery, always check "Self Diagnosis Result" of all ECUs and erase DTC.

NOTE:
The removal of 12V battery may cause a DTC detection error.

HOW TO DISCONNECT 12V BATTERY TERMINAL

Disconnect 12V battery terminal according to instruction described below.
1.

Open the hood.

2.

Turn ignition switch to the ON position.

3.

Turn ignition switch to the OFF position with the driver side door opened.

4.

Get out of the vehicle and close the driver side door.

SEF289H
