Nissan Qashqai J11. Manual - part 1177





CLIP LIST

IP-11

< PREPARATION >

C

D

E

F

G

H

I

K

L

M

A

B

IP

N

O

P

CLIP LIST

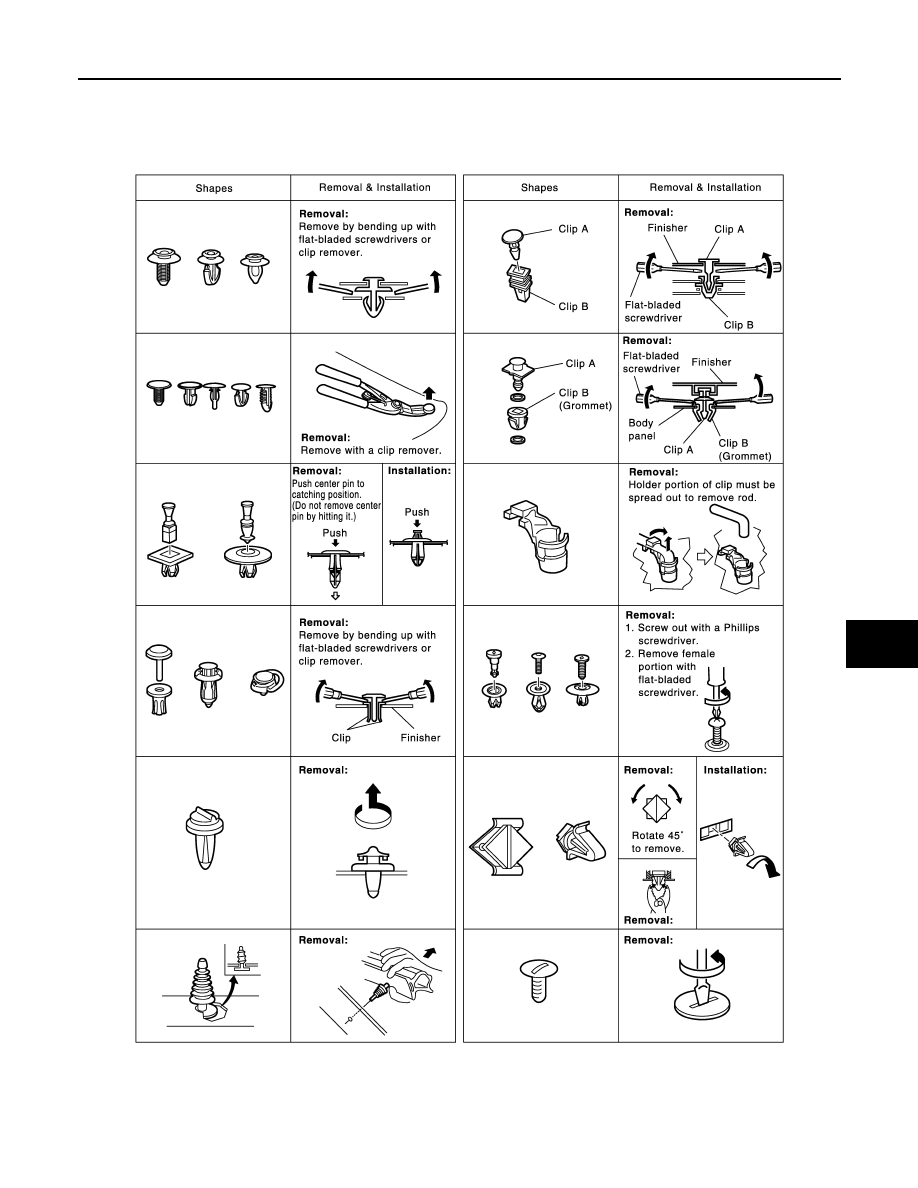

Clip List

INFOID:0000000010464148

JMJIA3734GB

IP-12

< REMOVAL AND INSTALLATION >

INSTRUMENT PANEL ASSEMBLY

REMOVAL AND INSTALLATION

INSTRUMENT PANEL ASSEMBLY

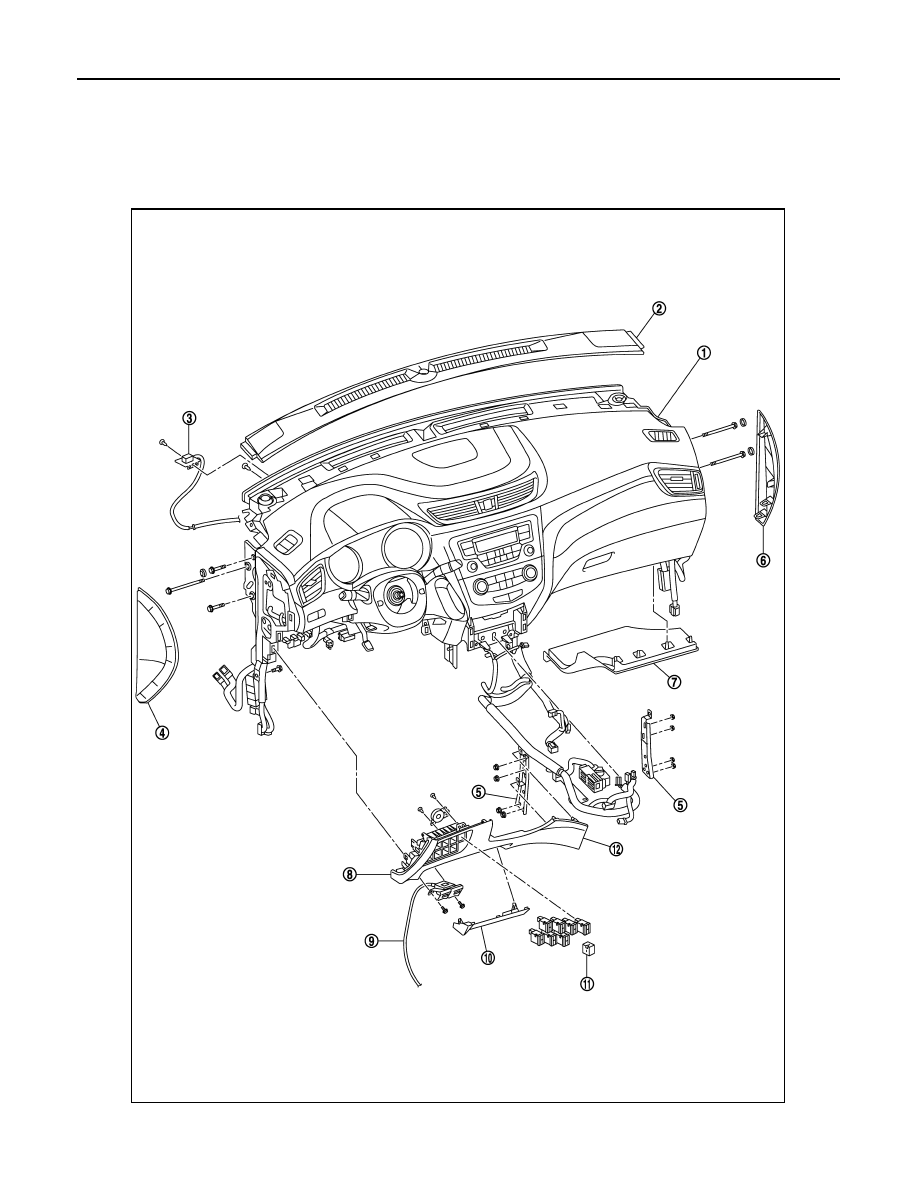

Exploded View

INFOID:0000000010464149

E1JIA0293ZZ

INSTRUMENT PANEL ASSEMBLY

IP-13

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

IP

N

O

P

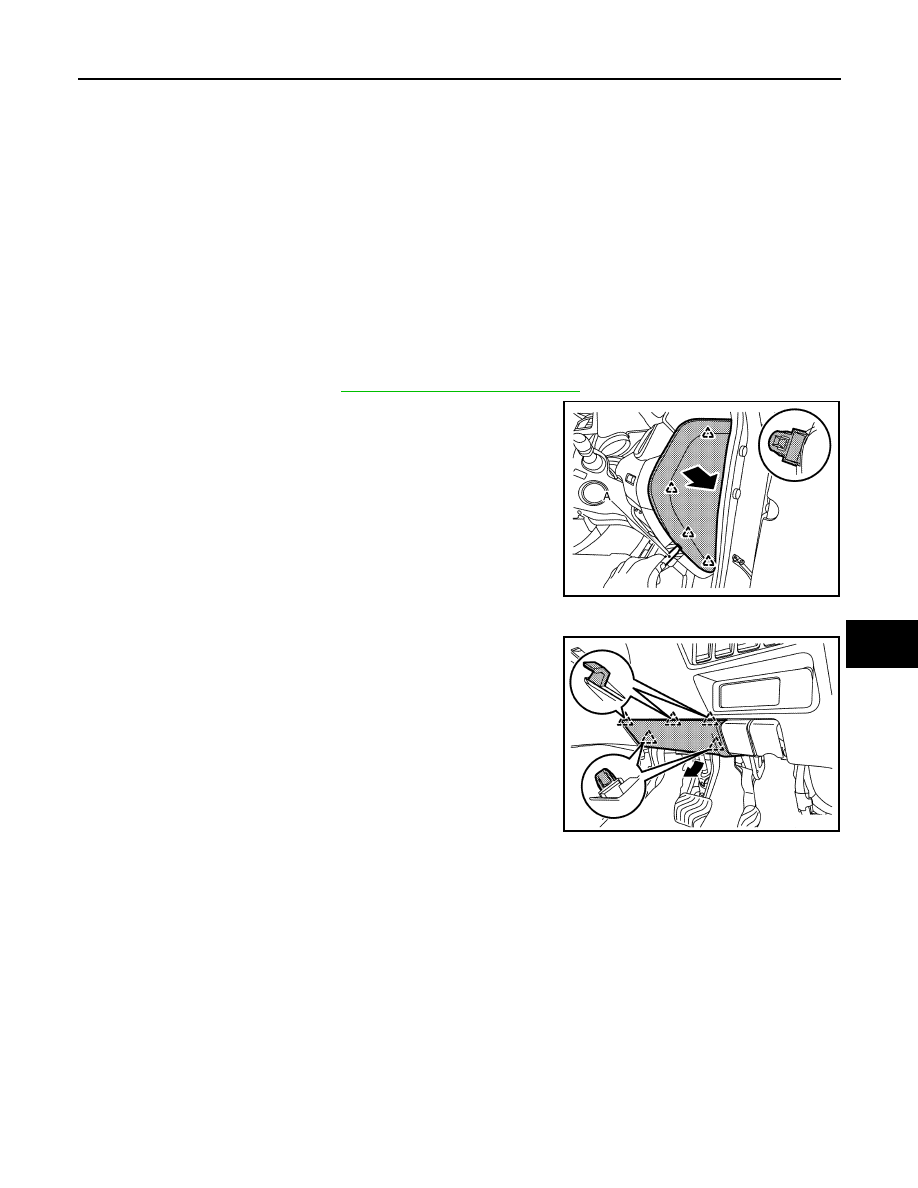

Removal and Installation

INFOID:0000000010464150

REMOVAL

WARNING:

Before servicing, turn ignition switch off, disconnect battery negative terminal and wait for 3 minutes
or more.

CAUTION:

When removing always use a remover tool that is made of plastic.

1.

Remove body side welt. Refer to

INT-18, "Removal and Installation"

.

2.

Disengage instrument side finisher fixing pawls.

3.

Remove instrument side finisher RH.

4.

Disengage fuse box lid fixing pawls.

5.

Remove fuse box lid.

6.

Remove hood lock control cable mounting bolts.

7.

Remove hood lock control cable.

8.

Disengage data link connector fixing pawls.

9.

Remove data link connector.

1.

Instrument panel assembly

2.

Defroster grille

3.

GPS antenna assembly

4.

Instrument panel side finisher, driver
side

5.

Bracket

6.

Instrument panel side finisher, pas-
senger side

7.

Lower instrument panel, passenger
side

8.

Buzzer assembly

9.

Fuel cable

10. Fuse box lid

11.

Switch holder finisher

12. Lower instrument panel, driver side

JMJIA9812ZZ

JMJIA9753ZZ

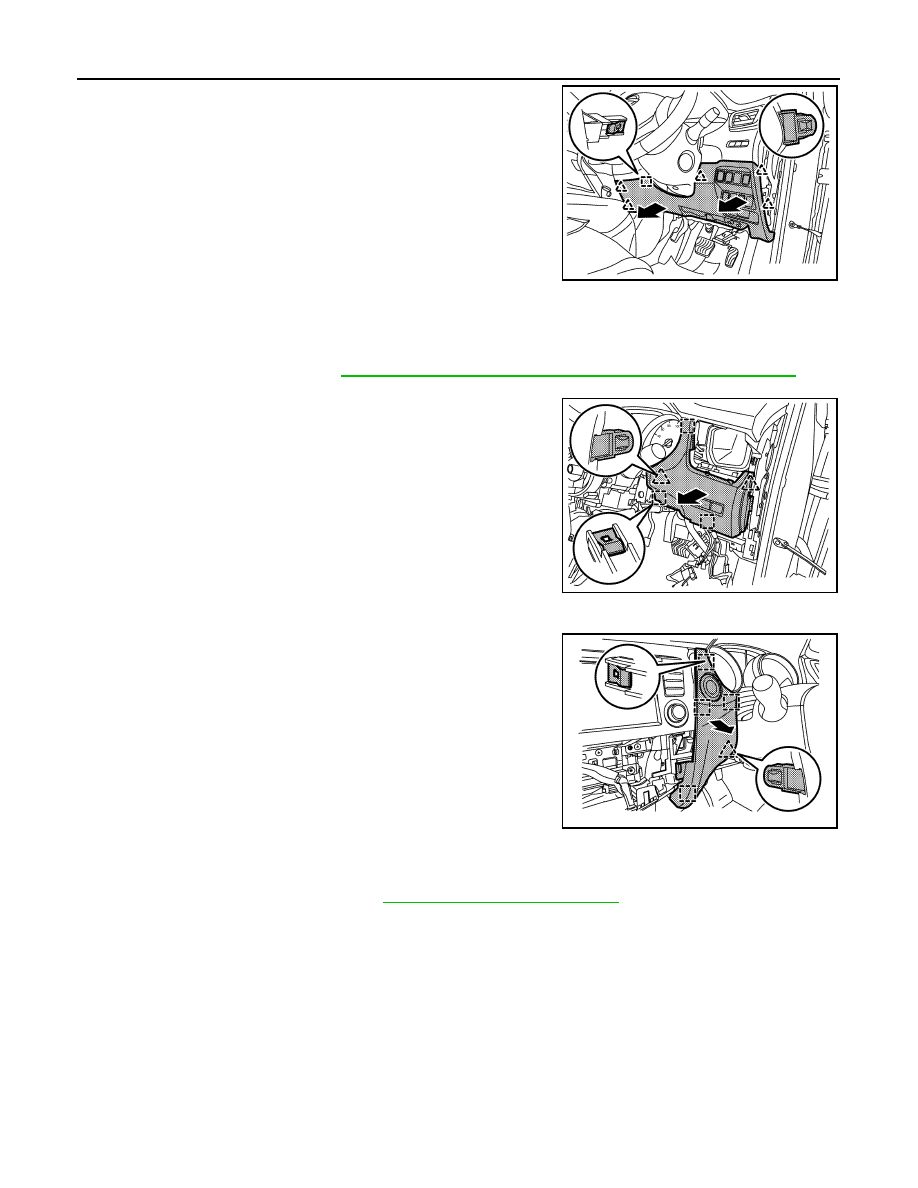

IP-14

< REMOVAL AND INSTALLATION >

INSTRUMENT PANEL ASSEMBLY

10. Disengage instrument lower panel RH fixing pawls and metal

clip.

11. Remove instrument lower panel.
12. Disconnect harness connectors.

13. Disengage harness fixing clips.

14. Remove ventilator grille. Refer to

VTL-12, "SIDE VENTILATOR GRILLE : Removal and Installation"

.

15. Disengage instrument finisher fixing pawls and metal clips.

16. Remove instrument panel finisher.

17. Disengage instrument panel finisher fixing pawls and metal clip.

18. Remove instrument panel finisher.
19. Disconnect harness connector.

20. Remove driver airbag module. Refer to

SR-14, "Removal and Installation"

.

21. Remove steering column fixing screws.
22. Disengage steering column cover upper fixing pawl.

23. Separate steering column cover  upper and steering column cover lower.

24. Remove steering column cover lower.

JMJIA9813ZZ

JMJIA9754ZZ

JMJIA9749ZZ
