Nissan Qashqai J11. Manual - part 1178

INSTRUMENT PANEL ASSEMBLY

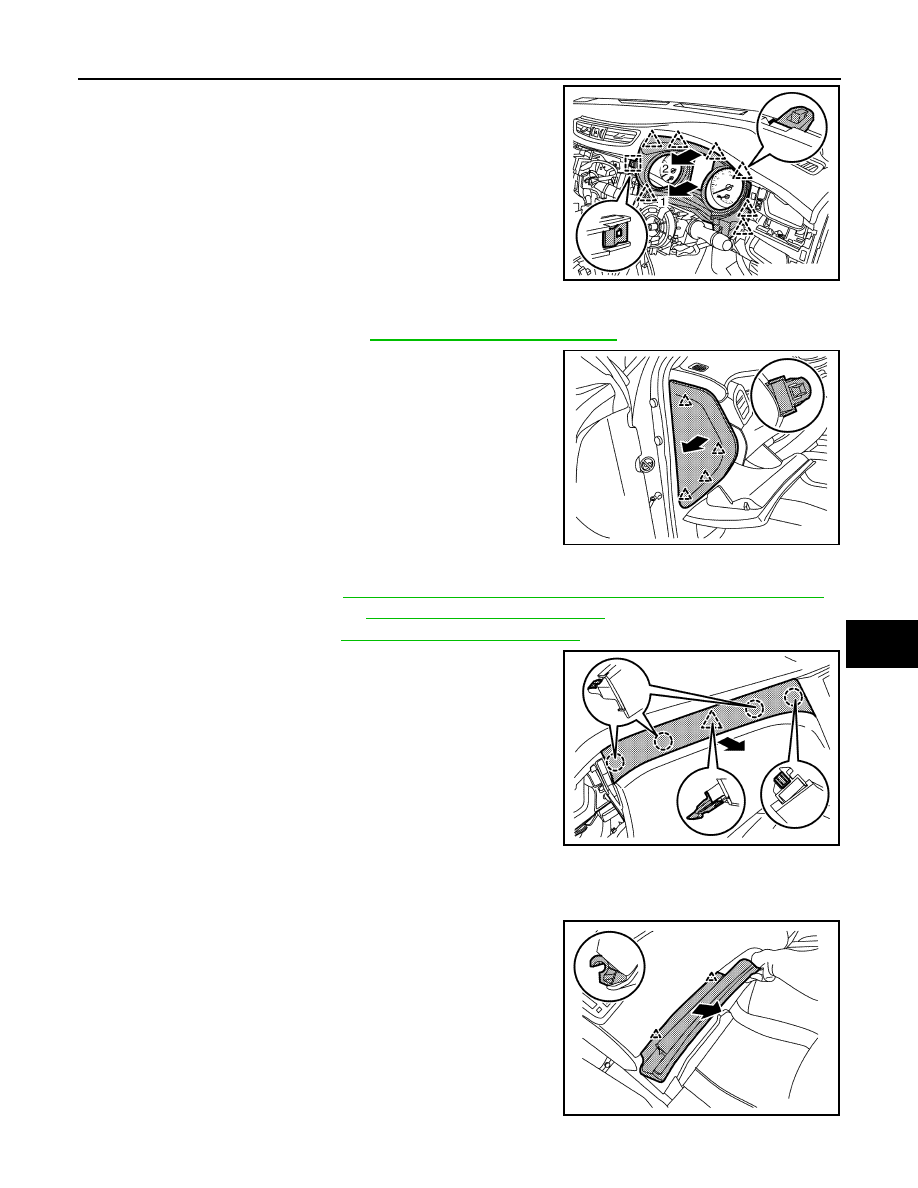

IP-15

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

IP

N

O

P

25. Disengage cluster lid A fixing pawls and metal clip according to

numerical order indicated by arrows as shown in the figure.

26. Remove cluster lid A and steering column cover upper as a set.

27. Remove combination meter. Refer to

MWI-84, "Removal and Installation"

.

28. Disengage instrument side finisher fixing pawls.

29. Remove instrument side finisher RH.

30. Remove ventilator grille. Refer to

VTL-11, "CENTER VENTILATOR GRILLE : Removal and Installation"

.

31. Remove front pillar garnish. Refer to

INT-18, "Removal and Installation"

.

32. Remove body side welt. Refer to

INT-18, "Removal and Installation"

.

33. Disengage instrument finisher fixing pawls.

34. Remove instrument finisher.

35. Remove glove box assembly:

• Open the glove box assembly.
• Pull back glove box assembly toward the direction of the arrow

to disengage glove box fixing pawls from instrument panel
assembly.

JMJIA9755ZZ

JMJIA9811ZZ

JMJIA9750ZZ

JMJIA9819ZZ

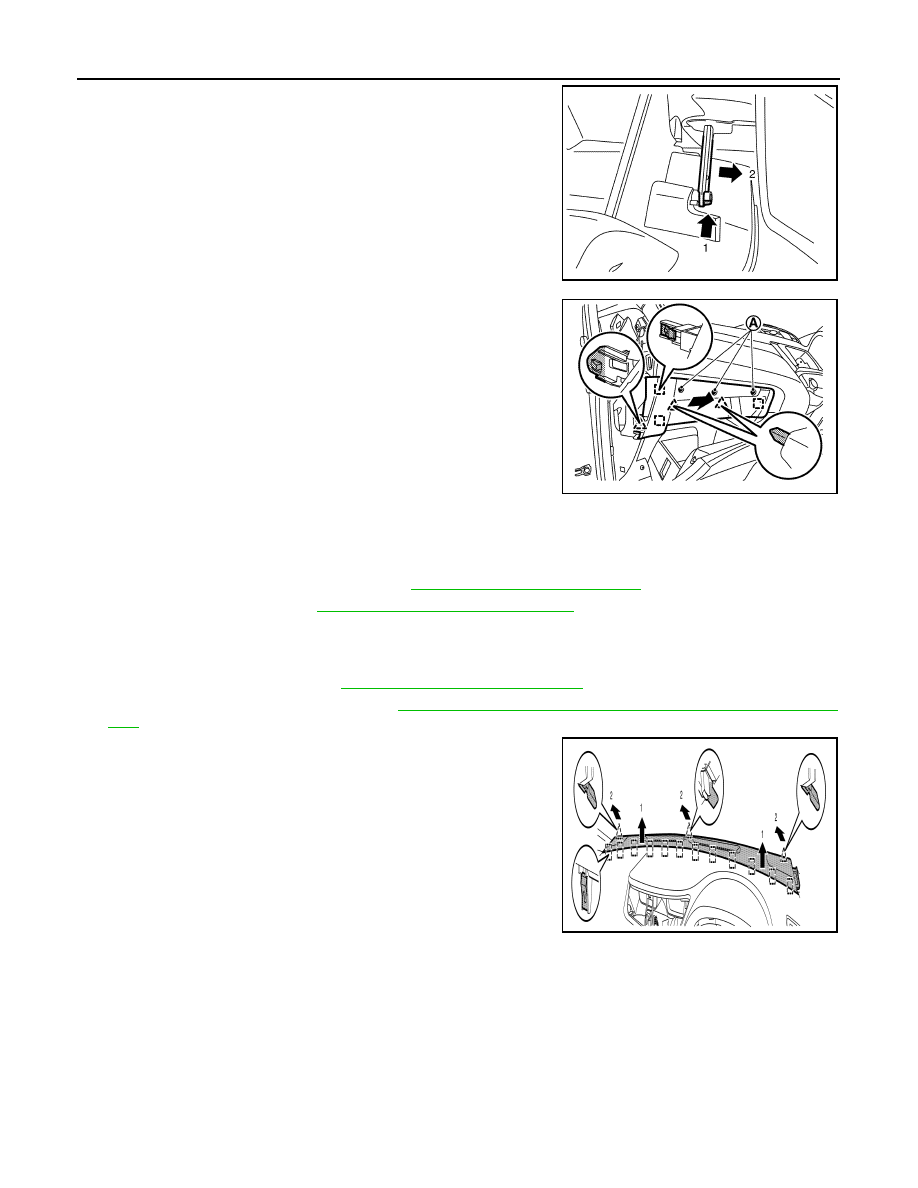

IP-16

< REMOVAL AND INSTALLATION >

INSTRUMENT PANEL ASSEMBLY

• Pull glove box assembly damper arm and remove it from glove

box assembly.

36. Remove glove box cover fixing screws (A).

37. Disengage glove box cover fixing pawls and metal clips.

38. Disconnect harness connectors.

39. Remove glove box cover.
40. Remove center console assembly. Refer to

IP-19, "Removal and Installation"

.

41. Remove A/C control. Refer to

HAC-127, "Removal and Installation"

.

42. Remove relay bracket fixing screw.

43. Remove relay bracket.
44. Remove AV control unit. Refer to

AV-264, "Removal and Installation"

45. Remove center ventilator grille. Refer to

VTL-12, "SIDE VENTILATOR GRILLE : Removal and Installa-

tion"

.

46. Disengage instrument garnish fixing pawls and metal clips

according to numerical order indicated by arrows as shown in
the figure.

47. Disconnect harness connector.

48. Remove instrument garnish.

JMJIA9817ZZ

JMJIA9783ZZ

JMJIA9752ZZ

INSTRUMENT PANEL ASSEMBLY

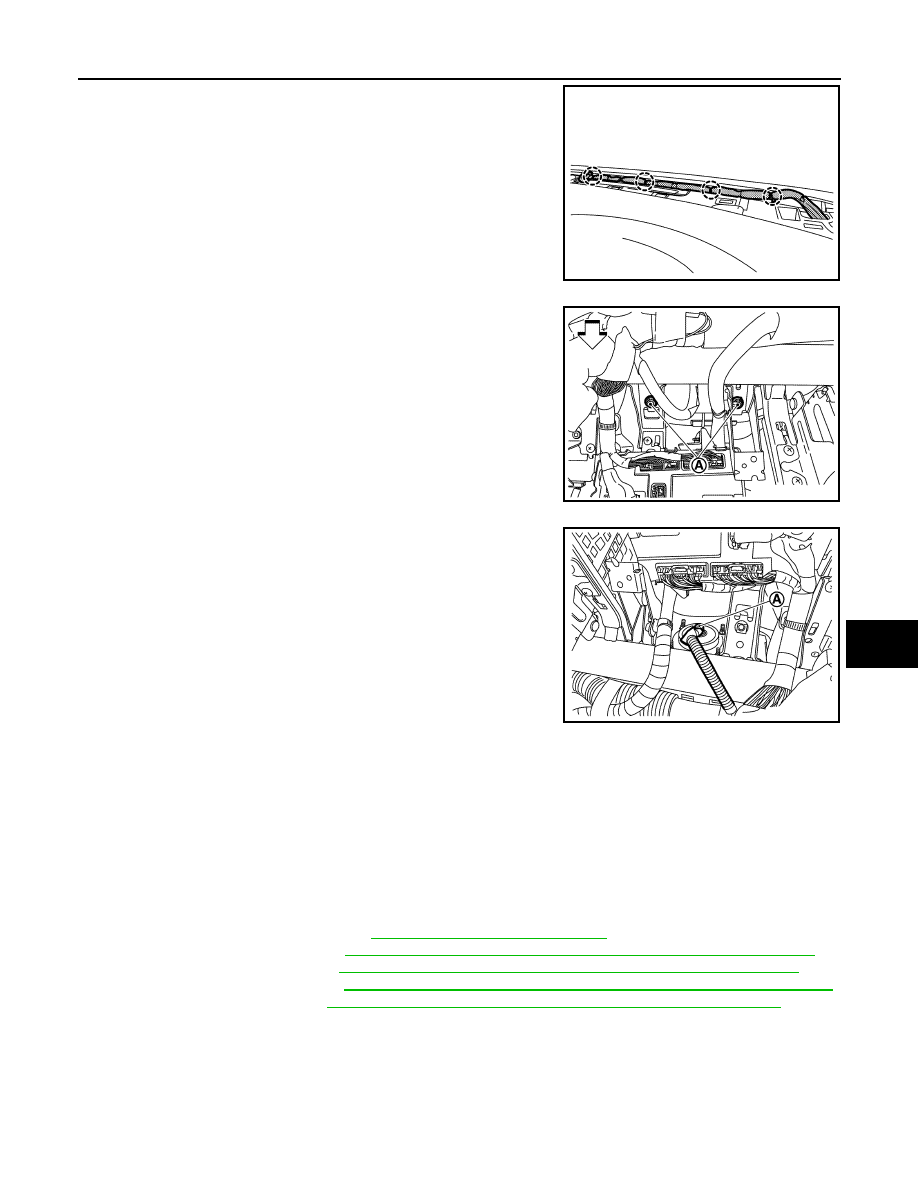

IP-17

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

IP

N

O

P

49. Remove harness fixing clips from instrument panel assembly.

50. Remove passenger airbag module mounting bolts (A).

51. Disconnect passenger airbag module harness connector (A).

52. Remove fuse box fixing screws.

53. Remove BCM fixing screw.
54. Remove instrument panel assembly fixing screws and mounting bolt.

55. Disconnect harness connector LH and RH

56. Remove instrument panel assembly.

CAUTION:

Cover shift selector upper surface with a shop cloth to prevent it from being damaged.
When removing instrument panel assembly, 2 workers are required to prevent it from dropping.

57. Remove the following parts after removing instrument panel assembly:

• Passenger airbag module. Refer to

SR-19, "Removal and Installation"

.

• Center ventilator duct. Refer  to

VTL-13, "CENTER VENTILATOR DUCT : Removal and Installation"

.

• Side defroster nozzle. Refer to

VTL-14, "SIDE DEFROSTER NOZZLE : Removal and Installation"

.

• Front defroster nozzle. Refer to

VTL-14, "CENTER DEFROSTER NOZZLE : Removal and Installation"

.

• Side defroster grille. Refer to

VTL-15, "SIDE DEFROSTER GRILLE : Removal and Installation"

INSTALLATION

Install in the reverse order of removal.

CAUTION:

Never use the steering wheel mounting nut after removal, replace with new nut.
Never use the driver airbag module mouting bolts after removal, replace with new bolts.
Never use the passenger airbag module mouting bolts after removal, replace with new bolts.

JMJIA9785ZZ

JMJIA9626ZZ

JMJIA9627ZZ

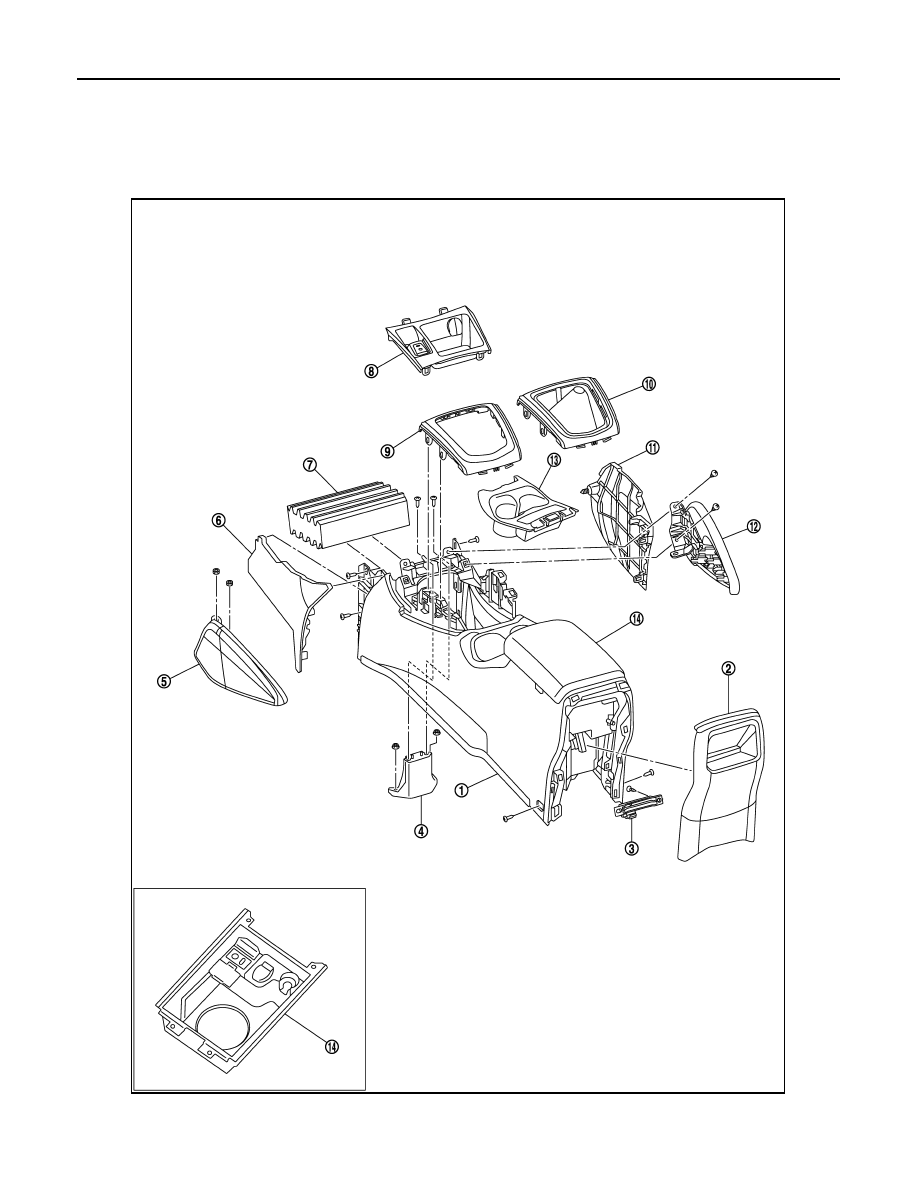

IP-18

< REMOVAL AND INSTALLATION >

CENTER CONSOLE ASSEMBLY

CENTER CONSOLE ASSEMBLY

Exploded View

INFOID:0000000010464151

CENTER CONSOLE

E1JIA0292ZZ
