Nissan Qashqai J11. Manual - part 1125

HAC-136

< REMOVAL AND INSTALLATION >

[AUTOMATIC AIR CONDITIONING]

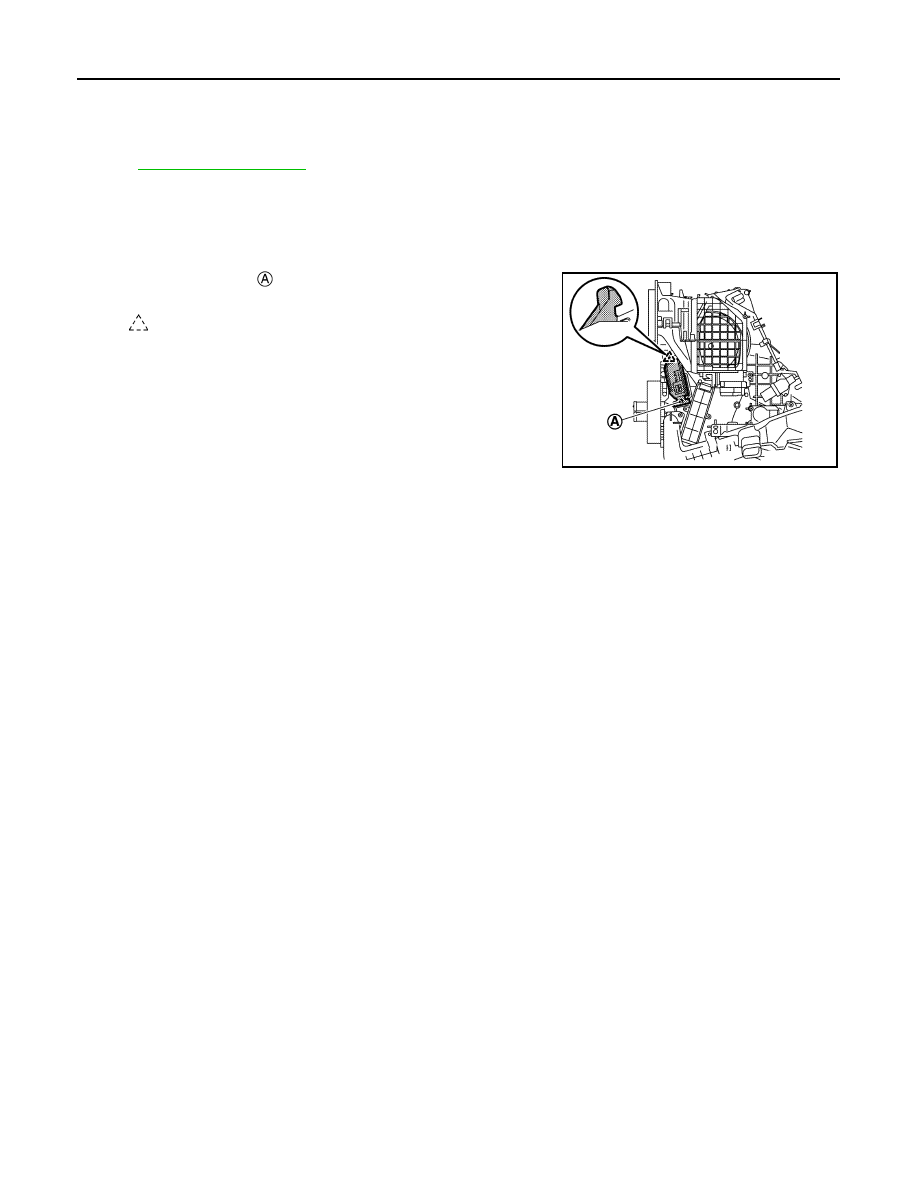

POWER TRANSISTOR

POWER TRANSISTOR

Exploded View

INFOID:0000000010432259

Refer to

HA-40, "Exploded View"

.

Removal and Installation

INFOID:0000000010432260

REMOVAL

1.

Disconnect power transistor harness connector.

2.

Remove fixing screw

 and disengage pawl.

3.

Remove power transistor from A/C unit assembly.

INSTALLATION

Install in the reverse order of removal.

: Pawl

JMIIA3399ZZ

DOOR MOTOR

HAC-137

< REMOVAL AND INSTALLATION >

[AUTOMATIC AIR CONDITIONING]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

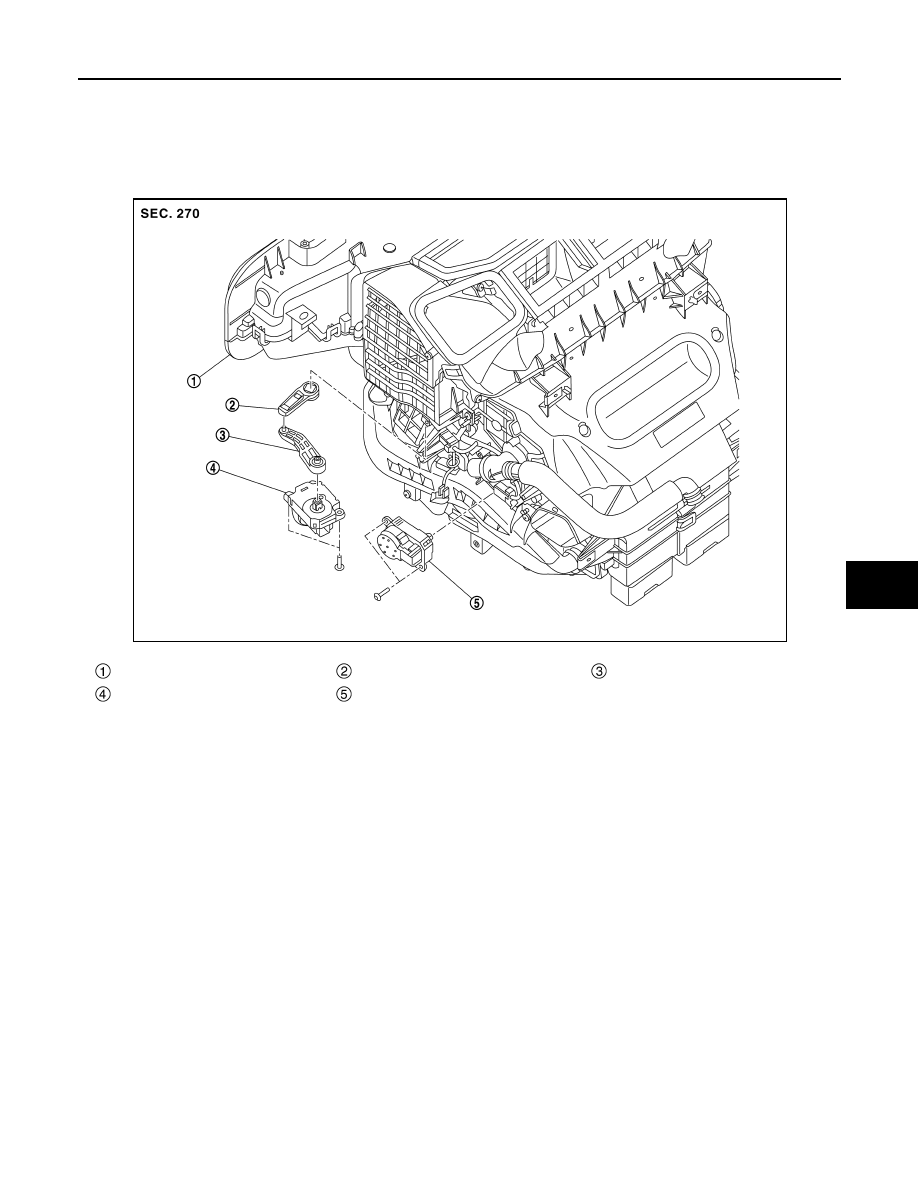

DOOR MOTOR

Exploded View

INFOID:0000000010432261

LEFT SIDE

RIGHT SIDE

A/C unit assembly

Intake door lever

Intake door link

Intake door motor

Air mix door motor LH

JMIIA3368GB

HAC-138

< REMOVAL AND INSTALLATION >

[AUTOMATIC AIR CONDITIONING]

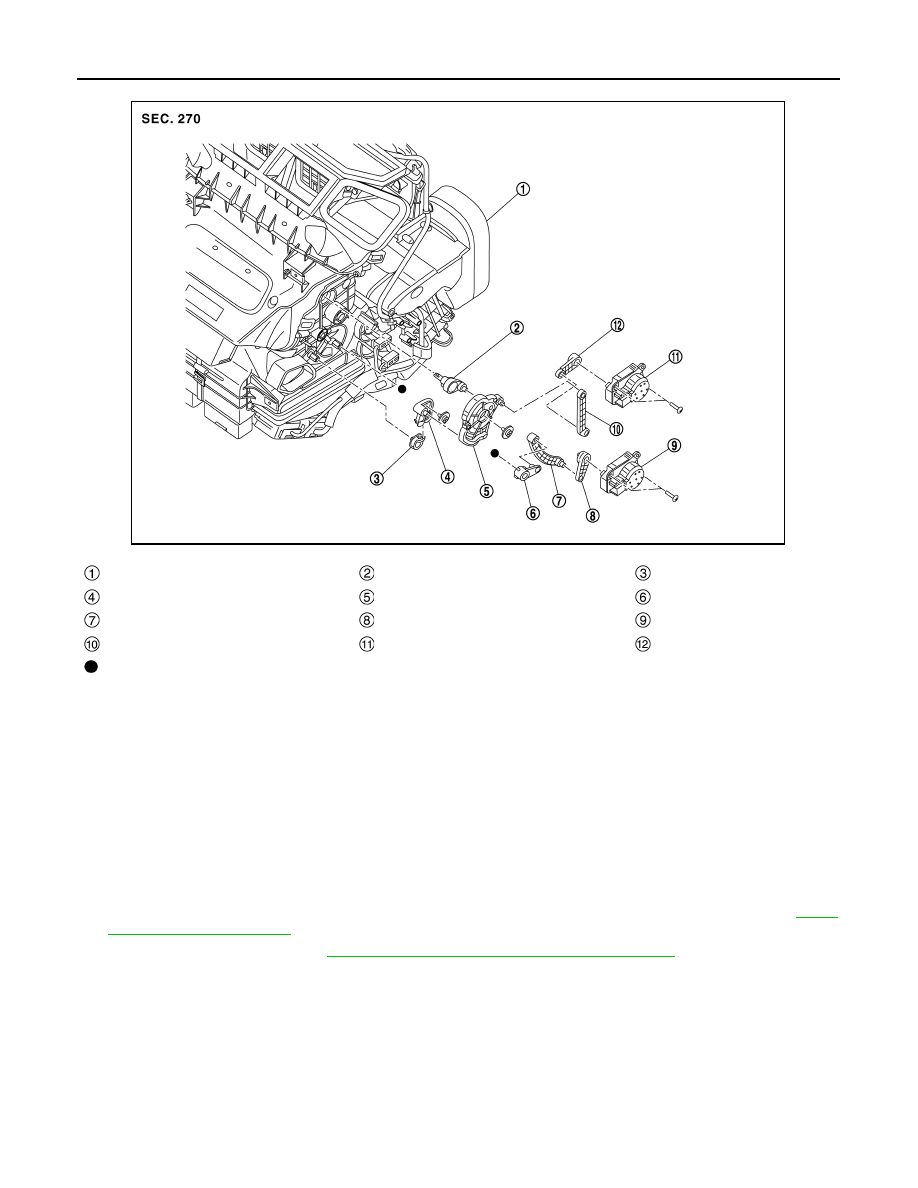

DOOR MOTOR

AIR MIX DOOR MOTOR

AIR MIX DOOR MOTOR : Removal and Installation

INFOID:0000000010432262

REMOVAL

Air Mix Door Motor RH

1.

Set the temperature at 32

°

C (90

°

F).

CAUTION:

Always perform the above procedure when removing air mix door motor. Otherwise, air mix door
may interfere in A/C unit assembly may be damaged.

2.

Remove instrument lower panel RH (RHD models) or glove box cover (LHD models). Refer to

IP-13,

"Removal and Installation"

.

3.

Remove foot duct RH. Refer to

VTL-14, "FOOT DUCT : Removal and Installation"

.

4.

Disconnect air mix door motor harness connector.

A/C unit assembly

Side ventilator door lever

Foot door link

Foot door link

Main link

Air mix door lever

Air mix door rod

Air mix door motor lever

Air mix door motor RH

Mode door link

Mode door motor

Mode door lever

 : Indicates that the part is connected at pints with same symbol in actual vehicle.

JMIIA3367GB

DOOR MOTOR

HAC-139

< REMOVAL AND INSTALLATION >

[AUTOMATIC AIR CONDITIONING]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

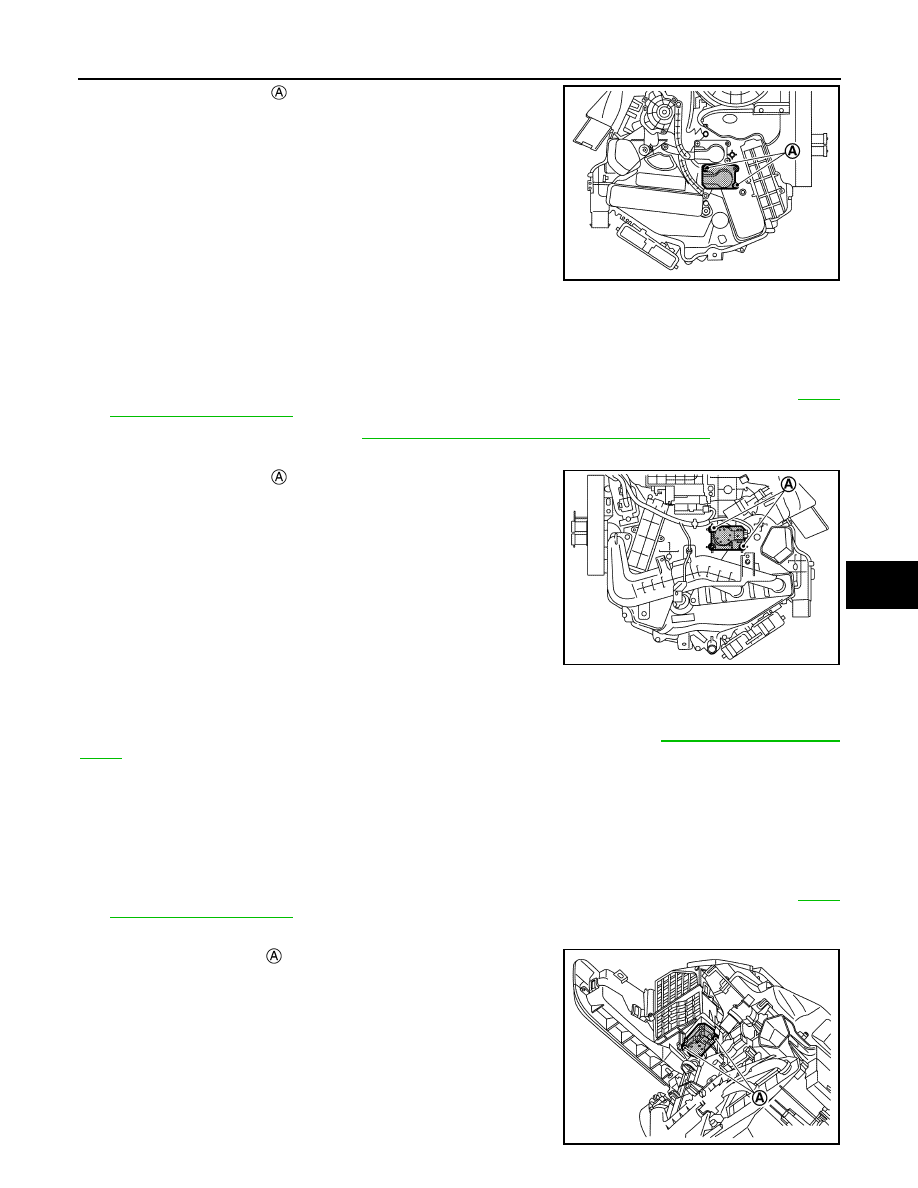

5.

Remove fixing screws

, and then remove air mix door motor

RH.

Air Mix Door Motor LH

1.

Set the temperature at 18

°

C (64

°

F).

CAUTION:

Always perform the above procedure when removing air mix door motor. Otherwise, air mix door
may interfere in A/C unit assembly may be damaged.

2.

Remove instrument lower panel LH (LHD models) or glove box cover (RHD models). Refer to

IP-13,

"Removal and Installation"

.

3.

Remove front foot duct LH. Refer to

VTL-14, "FOOT DUCT : Removal and Installation"

.

4.

Disconnect air mix door motor harness connector.

5.

Remove fixing screws

, and then remove air mix door motor

LH.

INSTALLATION

Note the following item, and then install in the reverse order of removal.

CAUTION:

After installing door motor, perform door motor starting position. Refer to

HAC-272, "Work Proce-

dure"

.

INTAKE DOOR MOTOR

INTAKE DOOR MOTOR : Removal and Installation

INFOID:0000000010432263

REMOVAL

1.

Remove instrument lower panel LH (LHD models) or glove box cover (RHD models). Refer to

IP-13,

"Removal and Installation"

.

2.

Disconnect intake door motor harness connector.

3.

Remove fixing screws

, and then remove intake door motor.

JMIIA3397ZZ

JMIIA3395ZZ

JMIIA3394ZZ
