Nissan Qashqai J11. Manual - part 1124

HAC-132

< REMOVAL AND INSTALLATION >

[AUTOMATIC AIR CONDITIONING]

REFRIGERANT PRESSURE SENSOR

REFRIGERANT PRESSURE SENSOR

Exploded View

INFOID:0000000010432257

Refer to

HA-33, "Exploded View"

 (HRA2DDT engine models),

HA-76, "Exploded View"

 (K9K engine models)

or

HA-123, "Exploded View"

 (R9M engine models).

Removal and Installation

INFOID:0000000010432258

REMOVAL

Refer to

HA-36, "REFRIGERANT PRESSURE SENSOR : Removal and Installation"

 (HRA2DDT engine mod-

els),

HA-80, "REFRIGERANT PRESSURE SENSOR : Removal and Installation"

 (K9K engine models) or

HA-

127, "REFRIGERANT PRESSURE SENSOR : Removal and Installation"

 (R9M engine models).

INSTALLATION

Install in the reverse order of removal.

PTC HEATER

HAC-133

< REMOVAL AND INSTALLATION >

[AUTOMATIC AIR CONDITIONING]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

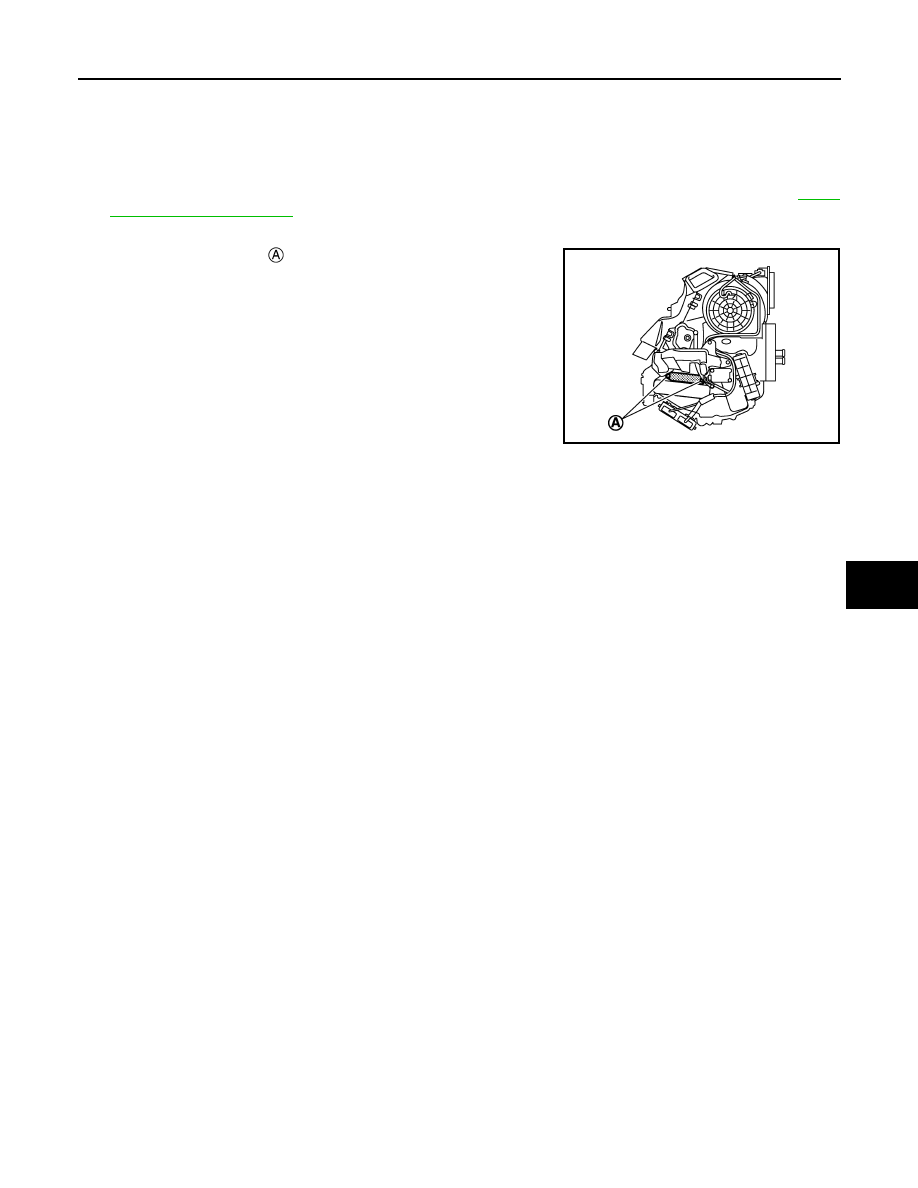

PTC HEATER

Removal and Installation

INFOID:0000000010500715

REMOVAL

1.

Remove instrument lower cover RH (RHD models) or glove box cover (LHD models). Refer to

IP-13,

"Removal and Installation"

.

2.

Disconnect PTC heater connector.

3.

Remove fixing screws

, and then remove PTC heater from A/

C unit assembly.

INSTALLATION

Install in the reverse order of removal.

JMIIA3532ZZ

HAC-134

< REMOVAL AND INSTALLATION >

[AUTOMATIC AIR CONDITIONING]

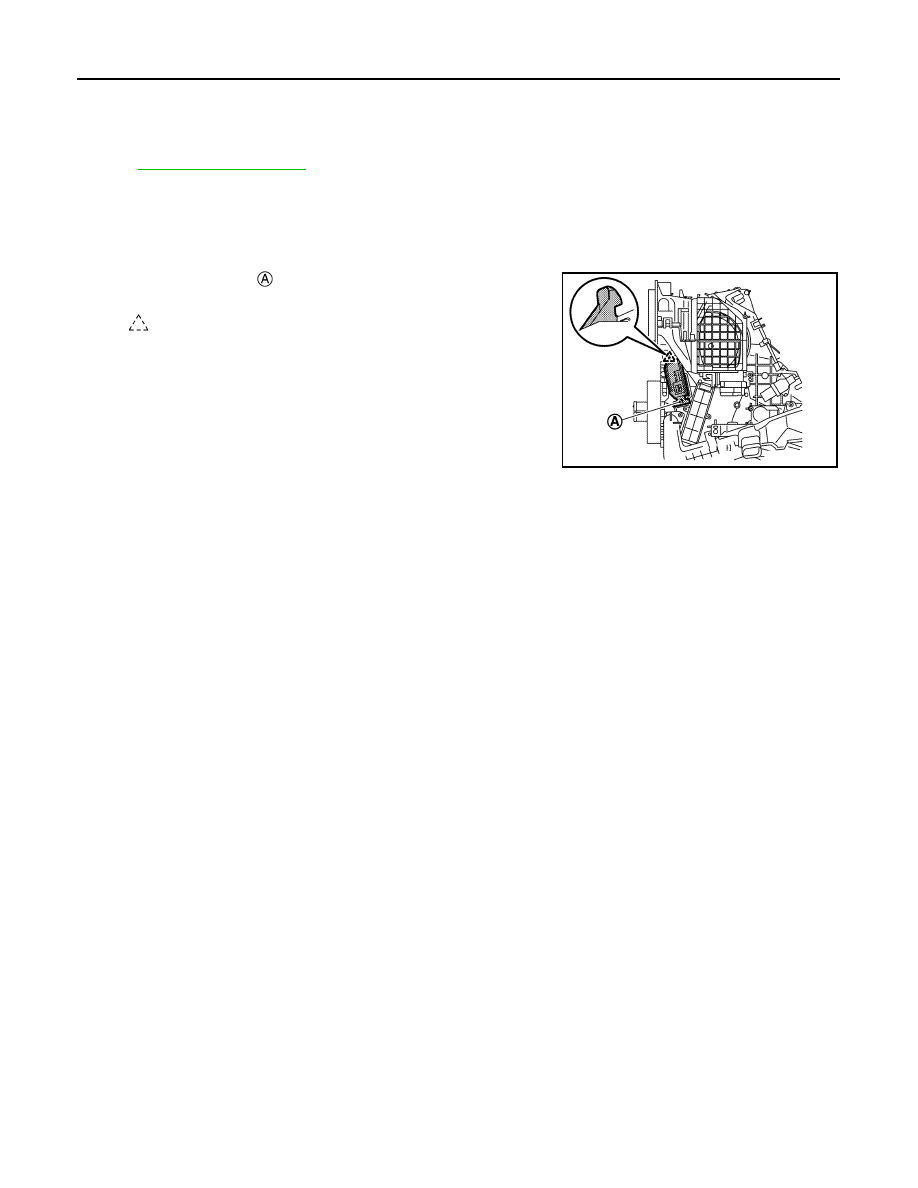

POWER TRANSISTOR

POWER TRANSISTOR

Exploded View

INFOID:0000000010432259

Refer to

HA-39, "Exploded View"

.

Removal and Installation

INFOID:0000000010432260

REMOVAL

1.

Disconnect power transistor harness connector.

2.

Remove fixing screw

 and disengage pawl.

3.

Remove power transistor from A/C unit assembly.

INSTALLATION

Install in the reverse order of removal.

: Pawl

JMIIA3399ZZ

DOOR MOTOR

HAC-135

< REMOVAL AND INSTALLATION >

[AUTOMATIC AIR CONDITIONING]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

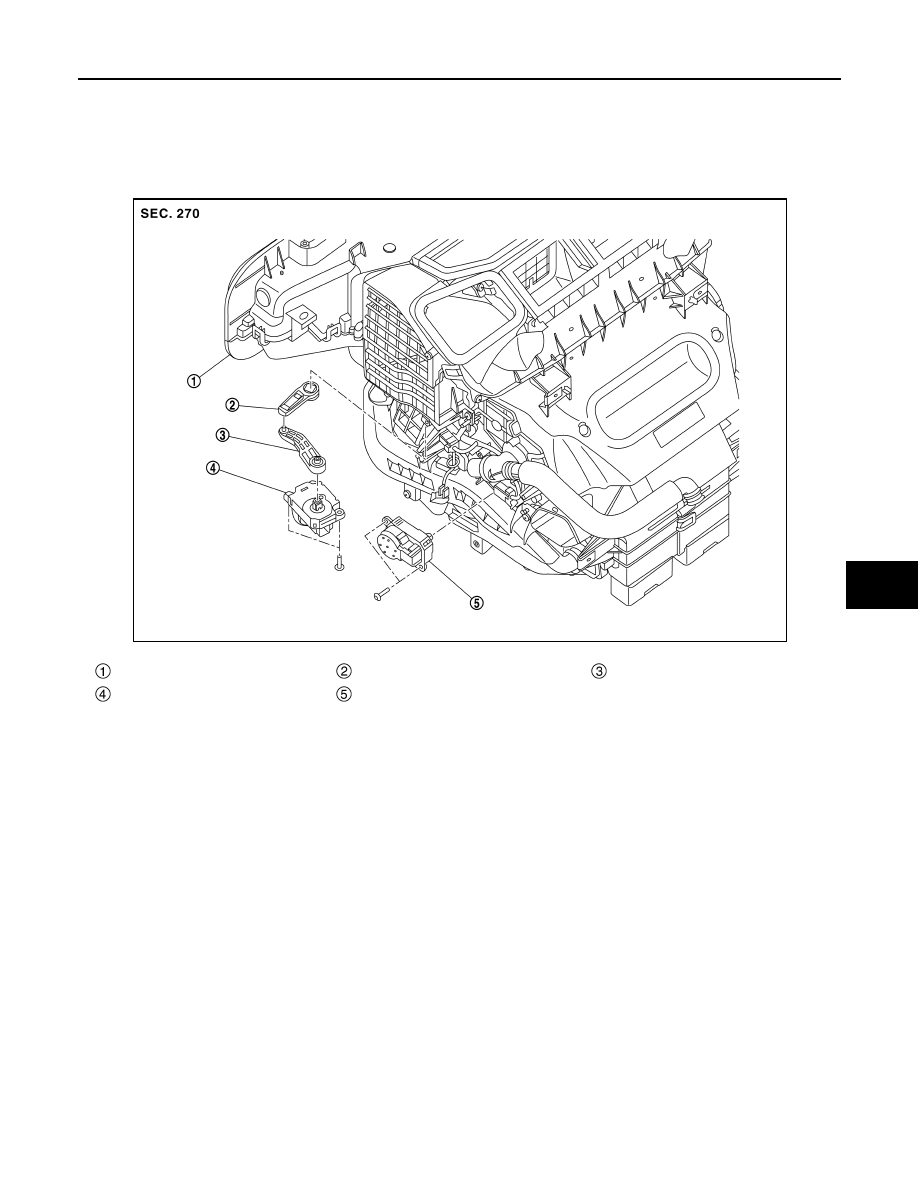

DOOR MOTOR

Exploded View

INFOID:0000000010432261

LEFT SIDE

RIGHT SIDE

A/C unit assembly

Intake door lever

Intake door link

Intake door motor

Air mix door motor LH

JMIIA3368GB
