AMBIENT SENSOR

AMBIENT SENSOR

Removal and Installation

INFOID:0000000010432252

REMOVAL

1.

Remove front bumper fascia assembly. Refer to

EXT-19, "Removal and Installation"

.

2.

Disconnect harness connector

.

3.

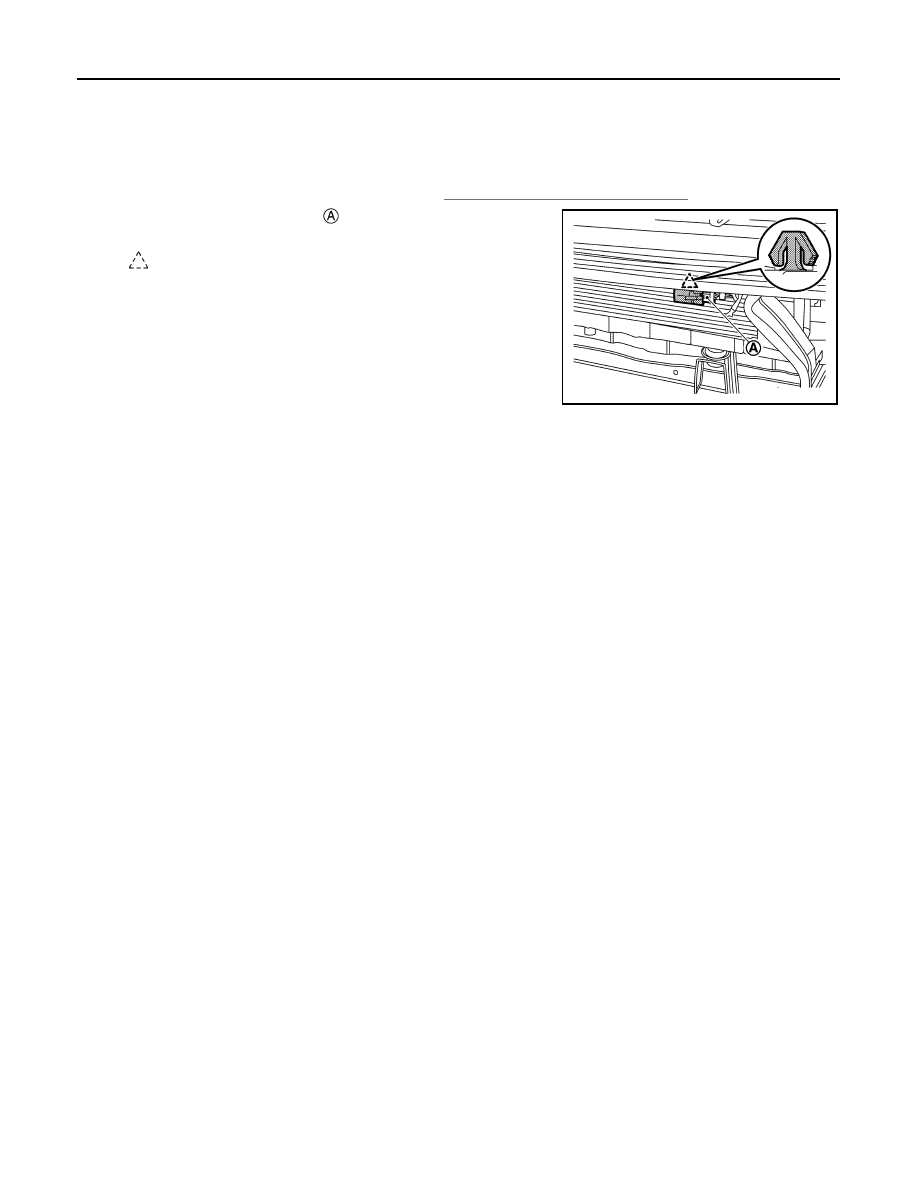

Disengage fixing pawl, and then remove ambient sensor.

INSTALLATION

Install in the reverse order of removal.

: Pawl

JMIIA3393ZZ

IN-VEHICLE SENSOR

HAC-129

< REMOVAL AND INSTALLATION >

[AUTOMATIC AIR CONDITIONING]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

IN-VEHICLE SENSOR

Removal and Installation

INFOID:0000000010432253

REMOVAL

1.

Remove instrument lower panel center. Refer to

IP-13, "Removal and Installation"

.

2.

Remove fixing screw, and then remove in-vehicle sensor.

INSTALLATION

Install in the reverse order of removal.

HAC-130

< REMOVAL AND INSTALLATION >

[AUTOMATIC AIR CONDITIONING]

SUNLOAD SENSOR

SUNLOAD SENSOR

Removal and Installation

INFOID:0000000010432254

REMOVAL

1.

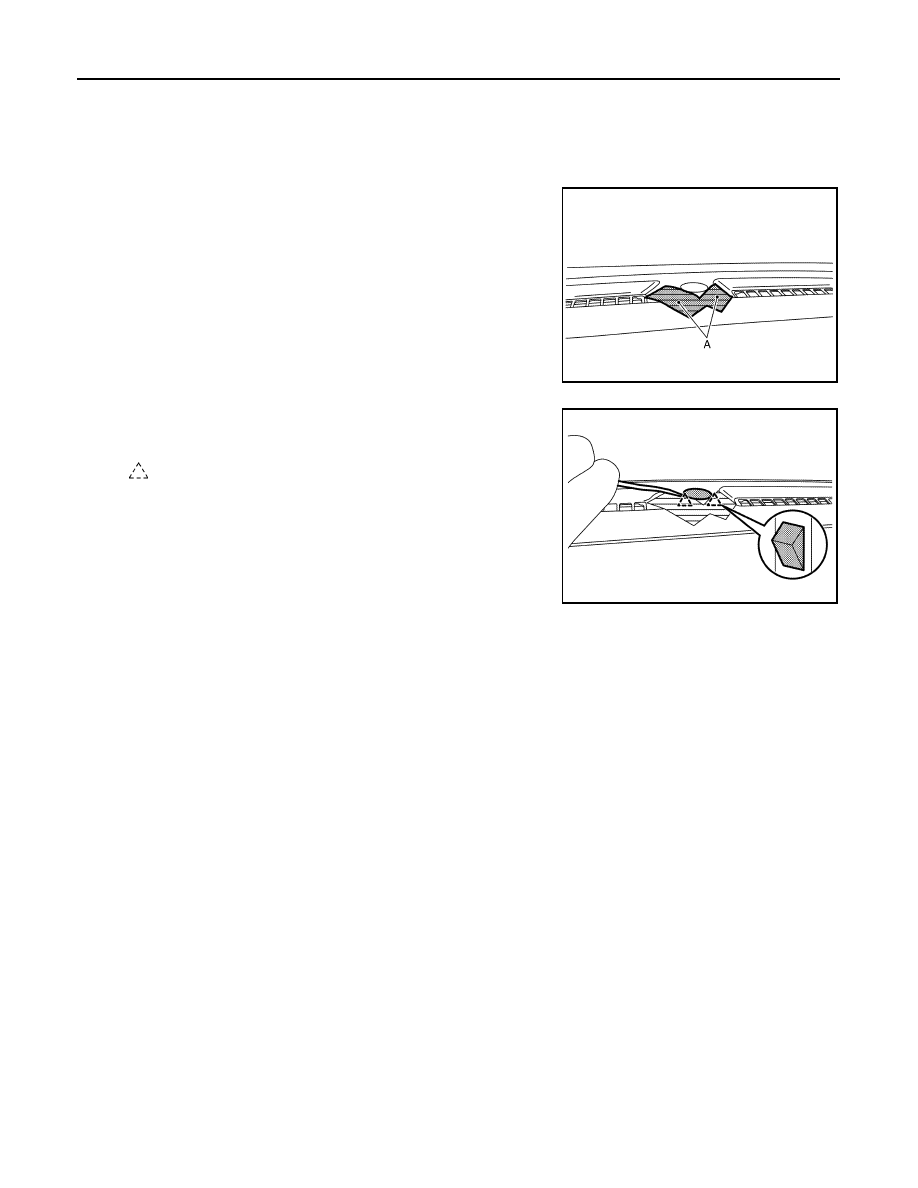

Apply protective tape (A) on instrument panel assembly to pro-
tect from damage.

2.

Disengage fixing pawls using a remover tool, and then pull up
sunload sensor.

CAUTION:

Using a remover tool wrapped in tape.

3.

Disconnect harness connector, and then remove sunload sensor.

INSTALLATION

Install in the reverse order of removal.

JMIIA3364ZZ

: Pawl

JMIIA3391ZZ

INTAKE SENSOR

HAC-131

< REMOVAL AND INSTALLATION >

[AUTOMATIC AIR CONDITIONING]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

INTAKE SENSOR

Exploded View

INFOID:0000000010432255

Refer to

HA-39, "Exploded View"

.

Removal and Installation

INFOID:0000000010432256

REMOVAL

1.

Remove instrument lower cover LH. Refer to

IP-13, "Removal and Installation"

.

2.

Remove intake sensor from A/C unit assembly.

3.

Disconnect harness connector from intake sensor.

CAUTION:

If disconnect harness connector from intake sensor, replace intake sensor with new one.

INSTALLATION

Note the following item, and then install in the order of removal.

CAUTION:

If disconnect harness connector from intake sensor, replace intake sensor with new one.
