SRC-6

< SYSTEM DESCRIPTION >

COMPONENT PARTS

SYSTEM DESCRIPTION

COMPONENT PARTS

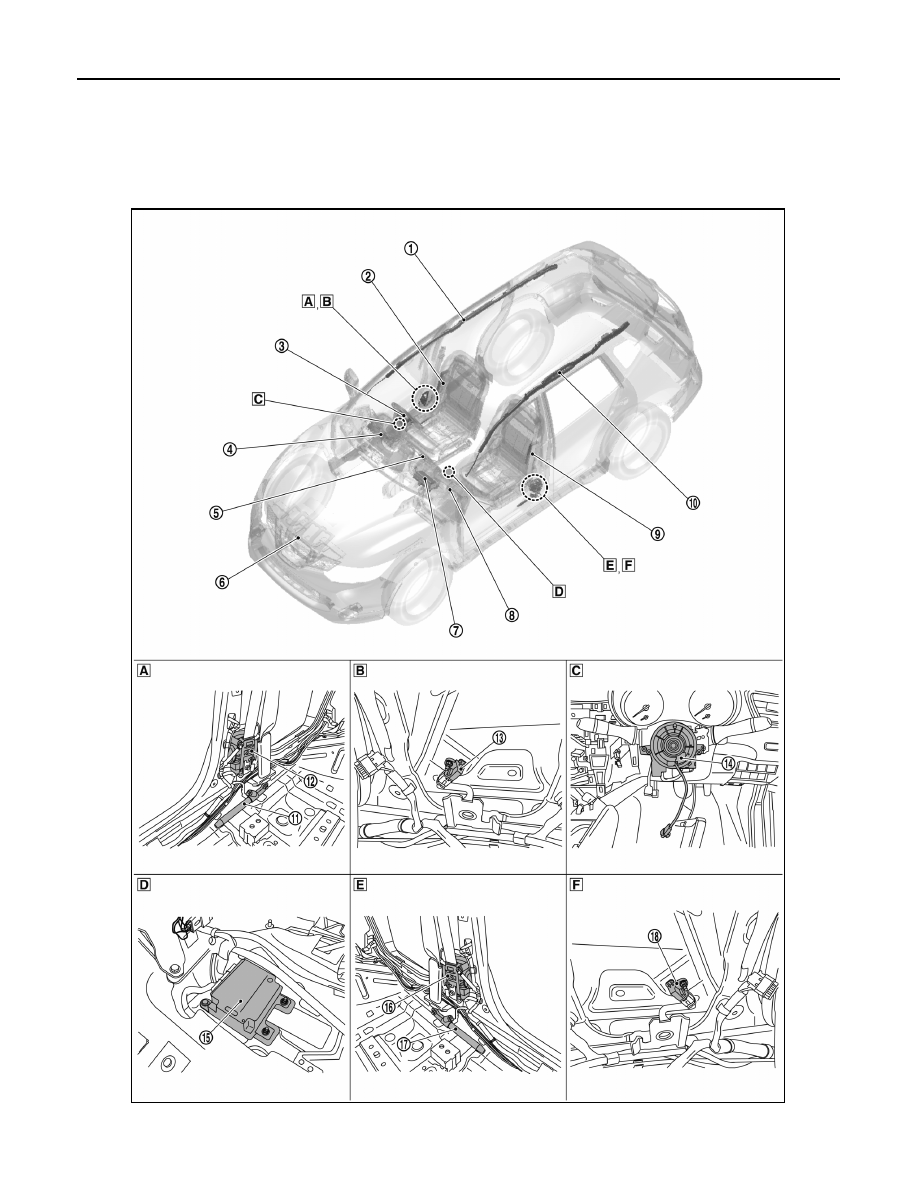

Component Parts Location

INFOID:0000000010377816

JMHIA2895ZZ

COMPONENT PARTS

SRC-7

< SYSTEM DESCRIPTION >

C

D

E

F

G

I

J

K

L

M

A

B

SRC

N

O

P

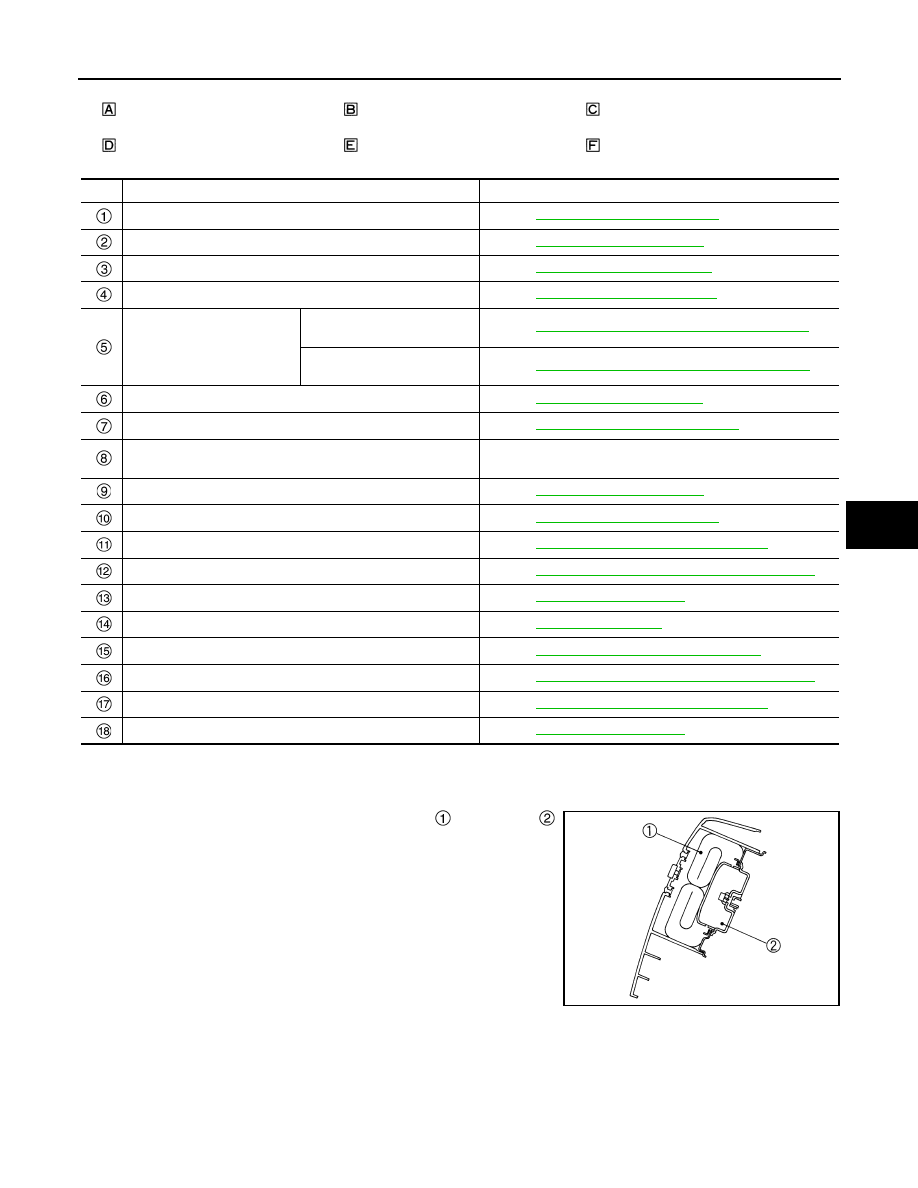

Driver air bag module

INFOID:0000000010513108

• Driver air bag module is built into steering wheel.
• Driver air bag module mainly consists of air bag

 and inflator

which inflates air bag.

Behind center pillar lower garnish
RH

Behind center pillar lower garnish
RH

View with steering wheel removed

View with center console assembly

Behind center pillar lower garnish LH

Behind center pillar lower garnish LH

No.

Component

Function

Curtain air bag module RH

Refer to

SRC-9, "Curtain air bag module"

.

Side air bag module RH

Refer to

SRC-8, "Side air bag module"

.

Driver air bag module

Refer to

SRC-7, "Driver air bag module"

.

Combination meter (air bag warning lamp)

Refer to

SRC-12, "Air bag warning lamp"

.

Indicator unit

Front passenger air bag OFF
indicator

Refer to

SRC-13, "Front Passenger Air Bag Off Indicator"

.

Front passenger air bag ON
indicator

Refer to

SRC-13, "Front Passenger Air Bag On Indicator"

.

Crash zone sensor

Refer to

SRC-11, "Crash zone sensor"

.

Passenger air bag module

Refer to

SRC-8, "Passenger air bag module"

.

Air bag cutoff switch

Deactivates passenger air bag module deployment by switch-
ing air bag cut OFF switch to the OFF position.

Side air bag module LH

Refer to

SRC-8, "Side air bag module"

.

Curtain air bag module LH

Refer to

SRC-9, "Curtain air bag module"

.

Lap pre-tensioner RH

Refer to

SRC-10, "Double pre-tensioner seat belt"

.

Seat belt pre-tensioner RH

Refer to

SRC-9, "Seat belt pre-tensioner with Load limiter"

.

Satellite sensor RH

Refer to

SRC-12, "Satellite sensor"

.

Combination switch (spiral cable)

Refer to

SRC-11, "Spiral cable"

.

Air bag diagnosis sensor unit

Refer to

SRC-12, "Air bag diagnosis sensor unit"

.

Seat belt pre-tensioner LH

Refer to

SRC-9, "Seat belt pre-tensioner with Load limiter"

.

Lap pre-tensioner LH

Refer to

SRC-10, "Double pre-tensioner seat belt"

.

Satellite sensor LH

Refer to

SRC-12, "Satellite sensor"

.

JMHIA1121ZZ

SRC-8

< SYSTEM DESCRIPTION >

COMPONENT PARTS

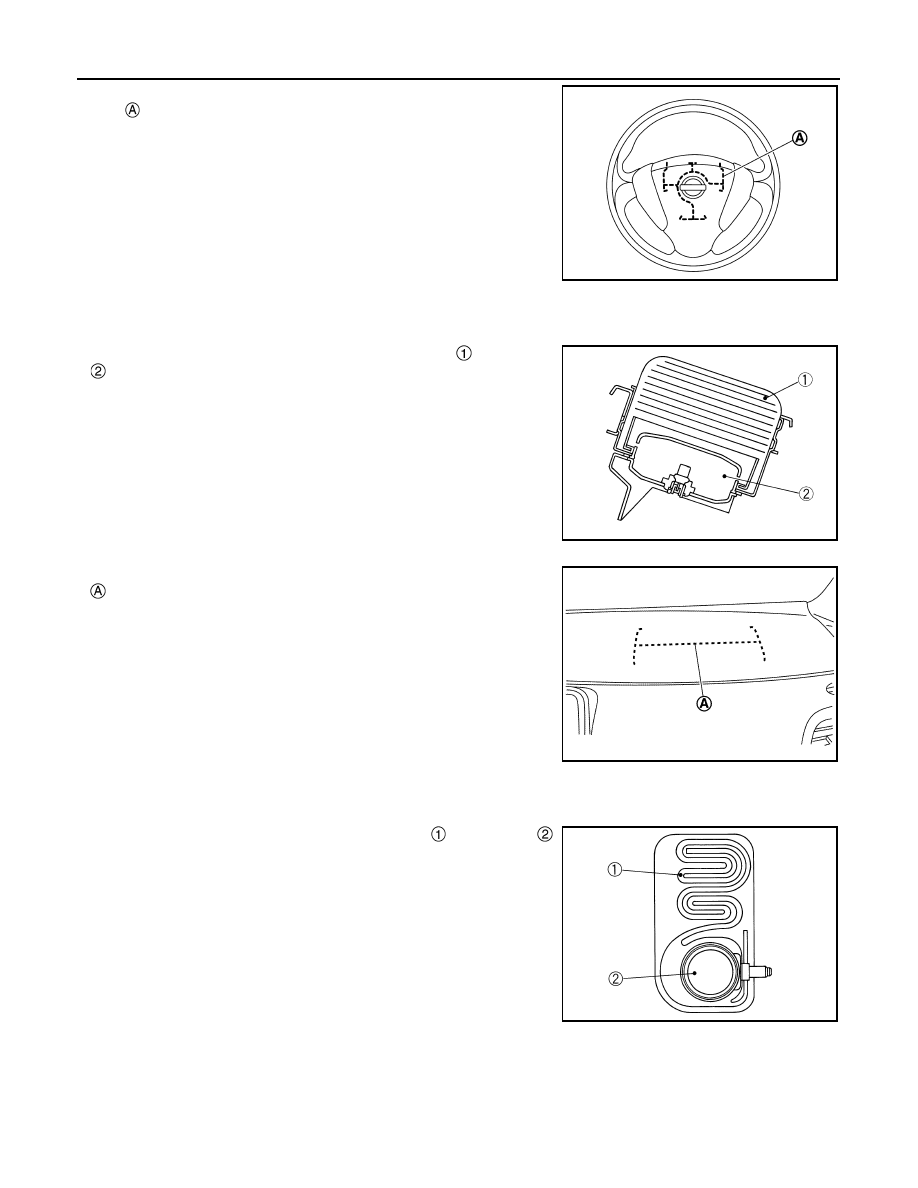

• Driver air bag inflates by breaking steering wheel center pad sur-

face .

Passenger air bag module

INFOID:0000000010513109

• Passenger air bag module is built into instrument panel.
• Passenger air bag module mainly consists of air bag

 and inflator

 which inflates air bag.

• Passenger air bag inflates by breaking instrument panel surface

.

Side air bag module

INFOID:0000000010513110

• Side air bag module is built into seatback side.
• Side air bag module mainly consists of air bag

 and inflator

which inflates air bag.

JMHIA2480ZZ

JMHIA0155ZZ

JMHIA2207ZZ

NNHIA0030ZZ

COMPONENT PARTS

SRC-9

< SYSTEM DESCRIPTION >

C

D

E

F

G

I

J

K

L

M

A

B

SRC

N

O

P

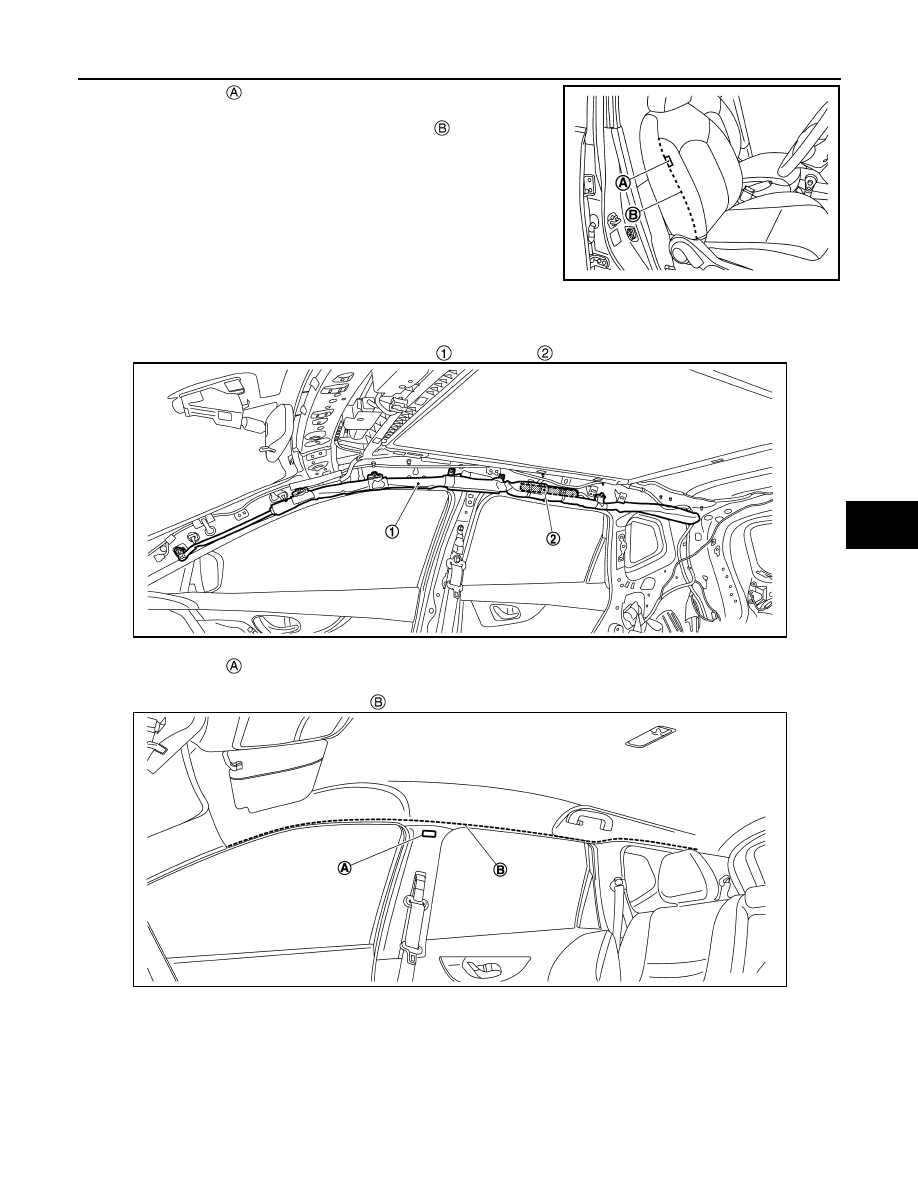

• Identification mark

 is installed to seatback side stitch indicating

that side air bag is equipped.

• Side air bag inflates through seatback side stitch

.

Curtain air bag module

INFOID:0000000010513111

• Curtain air bag module is built into roof side portion LH and RH.
• Curtain air bag module mainly consists of air bag

 and inflator

 which inflates air bag.

• Identification mark

 is installed to center pillar upper garnish upper indicating that SRS curtain air bag is

equipped.

• Curtain air bag inflates through a space

 between headliner and roof side portion.

Seat belt pre-tensioner with Load limiter

INFOID:0000000010513117

DESCRIPTION

The seat belt system is equipped with pre-tensioner mechanism, load limiter mechanism, and ELR mecha-
nism (front seat passenger restraint mechanism).

STRUCTURE

JMHIA2237ZZ

JMHIA2866ZZ

JMHIA2867ZZ
