Nissan Qashqai J11. Manual - part 1016





SRC-2

Diagnosis Procedure  ..............................................

47

B0021 CURTAIN AIR BAG MODULE  ...............

49

DTC Description  .....................................................

49

Diagnosis Procedure  ..............................................

49

B0028 SIDE AIR BAG MODULE .......................

51

DTC Description  .....................................................

51

Diagnosis Procedure  ..............................................

51

B0029 CURTAIN AIR BAG MODULE  ...............

53

DTC Description  .....................................................

53

Diagnosis Procedure  ..............................................

53

B0091 B-PILLAR SATELLITE SENSOR  ..........

55

DTC Description  .....................................................

55

Diagnosis Procedure  ..............................................

55

B0094 CRASH ZONE SENSOR  ........................

57

DTC Description  .....................................................

57

Diagnosis Procedure  ..............................................

57

B0096 B-PILLAR SATELLITE SENSOR  ..........

59

DTC Description  .....................................................

59

Diagnosis Procedure  ..............................................

59

B00D2 FRONT PASSENGER AIR BAG ON
INDICATOR .......................................................

61

DTC Description  .....................................................

61

Diagnosis Procedure  ..............................................

61

B00D5 FRONT PASSENGER AIR BAG OFF
INDICATOR .......................................................

63

DTC Description  .....................................................

63

Diagnosis Procedure  ..............................................

63

B00DF AIR BAG CUTOFF SWITCH  .................

65

DTC Description  .....................................................

65

Diagnosis Procedure  ..............................................

65

B0099 SATELLITE SENSOR  ............................

67

DTC Description  .....................................................

67

Diagnosis Procedure  ..............................................

67

B1400, B1401, B1402, B1403, B1404, B1405
AIR BAG DIAGNOSIS SENSOR UNIT  .............

69

DTC Description  .....................................................

69

Diagnosis Procedure  ..............................................

69

B1406, B1407, B1408, B1409, B1410 AIR
BAG DIAGNOSIS SENSOR UNIT .....................

71

DTC Description  .....................................................

71

Diagnosis Procedure  ..............................................

71

B1411, B1412, B1413, B1414, B1415 AIR
BAG DIAGNOSIS SENSOR UNIT  ....................

73

DTC Description ......................................................

73

Diagnosis Procedure ...............................................

73

B1416, B1417, B1418, B1419, B1420 AIR
BAG DIAGNOSIS SENSOR UNIT  ....................

75

DTC Description ......................................................

75

Diagnosis Procedure ...............................................

75

B1421 FRONTAL COLLISION DETECTION  ....

77

DTC Description ......................................................

77

Diagnosis Procedure ...............................................

77

B1422 SIDE COLLISION DETECTION  .............

78

DTC Description ......................................................

78

Diagnosis Procedure ...............................................

78

B1425 REAR COLLISION DETECTION  ...........

79

DTC Description ......................................................

79

Diagnosis Procedure ...............................................

79

B1427 CONFIG SETTING  .................................

80

DTC Description ......................................................

80

Diagnosis Procedure ...............................................

80

B142A IGN VOLTAGE  ......................................

81

DTC Description ......................................................

81

Diagnosis Procedure ...............................................

81

B1430 SEAT BELT PRE-TENSIONER  .............

83

DTC Description ......................................................

83

Diagnosis Procedure ...............................................

84

B1431 SEAT BELT PRE-TENSIONER  .............

85

DTC Description ......................................................

85

Diagnosis Procedure ...............................................

86

B1432 LAP PRE-TENSIONER ..........................

87

DTC Description ......................................................

87

Diagnosis Procedure ...............................................

87

B1433 LAP PRE-TENSIONER ..........................

89

DTC Description ......................................................

89

Diagnosis Procedure ...............................................

89

SYMPTOM DIAGNOSIS  ............................

91

SRS AIR BAG WARNING LAMP DOES NOT
TURN OFF  .........................................................

91

Diagnosis Procedure ...............................................

91

SRS AIR BAG WARNING LAMP DOES NOT
TURN ON ...........................................................

92

Diagnosis Procedure ...............................................

92

PRECAUTIONS

SRC-3

< PRECAUTION >

C

D

E

F

G

I

J

K

L

M

A

B

SRC

N

O

P

PRECAUTION

PRECAUTIONS

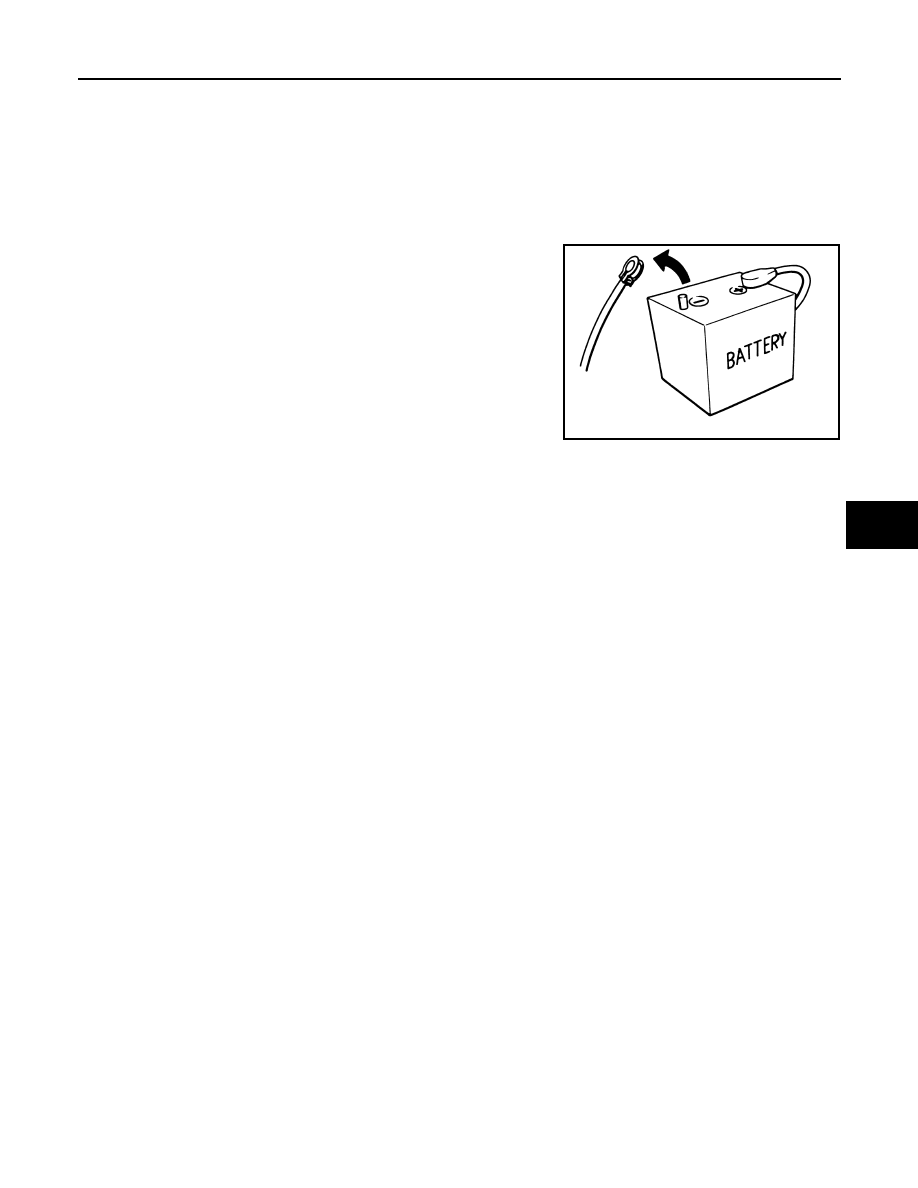

Precautions for Removing Battery Terminal

INFOID:0000000010506943

• With the adoption of Auto ACC function, ACC power is automatically supplied by operating the intelligent key

or remote keyless entry or by opening/closing the driver side door. In addition, ACC power is supplied even
after the ignition switch is turned to the OFF position, i.e. ACC power is supplied for a certain fixed time.

• When disconnecting the 12V battery terminal, turn off the ACC

power before disconnecting the 12V battery terminal, observing
“How to disconnect 12V battery terminal” described below.
NOTE:
Some ECUs operate for a certain fixed time even after ignition
switch is turned OFF and ignition power supply is stopped. If the
battery terminal is disconnected before ECU stops, accidental DTC
detection or ECU data damage may occur.

•  For vehicles with the 2-batteries, be sure to connect the main bat-

tery and the sub battery before turning ON the ignition switch.
NOTE:
If the ignition switch is turned ON with any one of the terminals of
main battery and sub battery disconnected, then DTC may be detected.

•  After installing the 12V battery, always check "Self Diagnosis Result" of all ECUs and erase DTC.

NOTE:
The removal of 12V battery may cause a DTC detection error.

HOW TO DISCONNECT 12V BATTERY TERMINAL

Disconnect 12V battery terminal according to Instruction 1 or Instruction 2 described below.
For vehicles parked by ignition switch OFF, refer to Instruction 2.

INSTRUCTION 1

1.

Open the hood.

2.

Turn key switch to the OFF position with the driver side door opened.

3.

Get out of the vehicle and close the driver side door.

4.

Wait at least 3 minutes. For vehicle with the engine listed below, remove the battery terminal after a lapse
of the specified time.

CAUTION:

While waiting, never operate the vehicle such as locking, opening, and closing doors. Violation of
this caution results in the activation of ACC power supply according to the Auto ACC function.

5.

Remove 12V battery terminal.

CAUTION:

After installing 12V battery, always check self-diagnosis results of all ECUs and erase DTC.

INSTRUCTION 2 (FOR VEHICLES PARKED BY IGNITION SWITCH OFF)

1.

Unlock the door with intelligent key or remote keyless entry.
NOTE:
At this moment, ACC power is supplied.

2.

Open the driver side door.

3.

Open the hood.

4.

Close the driver side door.

5.

Wait at least 3 minutes.

SEF289H

D4D engine

: 20 minutes

HRA2DDT

: 12 minutes

K9K engine

: 4 minutes

M9R engine

: 4 minutes

R9M engine

: 4 minutes

V9X engine

: 4 minutes

SRC-4

< PRECAUTION >

PRECAUTIONS

CAUTION:

While waiting, never operate the vehicle such as locking, opening, and closing doors. Violation of
this caution results in the activation of ACC power supply according to the Auto ACC function.

6.

Remove 12V battery terminal.

CAUTION:

After installing 12V battery, always check self-diagnosis results of all ECUs and erase DTC.

Precaution Necessary for Steering Wheel Rotation After Battery Disconnect

INFOID:0000000010506944

CAUTION:

Comply with the following cautions to prevent any error and malfunction.
• Before removing and installing any control units, first turn the ignition power source and accessory

power source to the OFF, then disconnect both battery cables.

• After finishing work, confirm that all control unit connectors are connected properly, then re-connect

both battery cables.

• Always use CONSULT to perform self-diagnosis as a part of each function inspection after finishing

work. If a DTC is detected, perform trouble diagnosis according to self-diagnosis results.

For vehicle with steering lock unit, if the battery is disconnected or discharged, the steering wheel will lock and
cannot be turned.
If turning the steering wheel is required with the battery disconnected or discharged, follow the operation pro-
cedure below before starting the repair operation.

OPERATION PROCEDURE

1.

Connect both battery cables.
NOTE:
Supply power using jumper cables if battery is discharged.

2.

Open driver door.

3.

Turn the ignition switch to the ON position.
(At this time, the steering lock will be released.)

4.

Turn the ignition switch to OFF position with driver door open.

5.

Wait for 3 minutes or longer with driver door open.
NOTE:
• Do not close driver door because the steering wheel locks when driver door is closed.
• The auto acc function is adapted to this vehicle. For this reason, even when the ignition switch is turned

to OFF position, the accessory power source does not turned OFF and continues to be supplied for a
certain amount of time.

6.

Disconnect both battery cables. The steering lock will remain released with both battery cables discon-
nected and the steering wheel can be turned.

7.

Perform the necessary repair operation.

8.

When the repair work is completed, re-connect both battery cables. With the brake pedal released, turn
the ignition switch from OFF position to ON position, then to LOCK position. (The steering wheel will lock
when the ignition switch is turned to LOCK position.)

9.

Perform self-diagnosis check of all control units using CONSULT.

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000010434386

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. Information necessary to service the system safely is included in the “SRS AIR BAG” and
“SEAT BELT” of this Service Manual.

WARNING:

Always observe the following items for preventing accidental activation.
• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision that would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.

PRECAUTIONS

SRC-5

< PRECAUTION >

C

D

E

F

G

I

J

K

L

M

A

B

SRC

N

O

P

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag
Module, see “SRS AIR BAG”.

• Never use electrical test equipment on any circuit related to the SRS unless instructed to in this Ser-

vice Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or harness
connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

Always observe the following items for preventing accidental activation.
• When working near the Air Bag Diagnosis Sensor Unit or other Air Bag System sensors with the

ignition ON or engine running, never use air or electric power tools or strike near the sensor(s) with
a hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing
serious injury.

• When using air or electric power tools or hammers, always switch the ignition OFF, disconnect the

battery, and wait at least 3 minutes before performing any service.

Service

INFOID:0000000010377815

• Never use electrical test equipment to check SRS circuits unless instructed to in this Service Manual.
• Before servicing the SRS, turn power switch OFF, disconnect battery negative terminal and wait 3 minutes

or more.
For approximately 3 minutes after the cables are removed, it is still possible for the air bag and seat belt pre-
tensioner to deploy. Therefore, never work on any SRS connectors or wires until at least 3 minutes have
passed.

• Diagnosis sensor unit must always be installed with their arrow marks “

” pointing towards the front of the

vehicle for proper operation. Also check diagnosis sensor unit for cracks, deformities or rust before installa-
tion and replace as required.

• The spiral cable must be aligned with the neutral position since its rotations are limited. Never turn steering

wheel and column after removal of steering gear.

• Handle air bag module carefully. Always place driver and front passenger air bag modules with the pad side

facing upward and seat mounted front side air bag module standing with the stud bolt side facing down.

• Conduct self-diagnosis to check entire SRS for proper function after replacing any components.
• After air bag inflates, the front instrument panel assembly should be replaced if damaged.
• Always replace instrument panel pad following front passenger air bag deployment.
• Never solder the harness when making repairs. Check that harness is not pinched and that there is no con-

tact with other components.

• Never allow harness to come in contact with oil, grease, waste oil, or water.
• Never insert foreign materials, such as a screwdriver, into the harness connector. (This is to prevent acci-

dental activation caused by static electricity.)

• Always use CONSULT or SRS air bag warning lamp to perform the circuit diagnosis. (Never use an electric

tester such as a circuit tester.)















Content   ..  1014  1015  1016  1017   ..
