Nissan Qashqai J11. Manual - part 1015





SR-38

< REMOVAL AND INSTALLATION >

DISPOSAL OF AIR BAG MODULE

4.

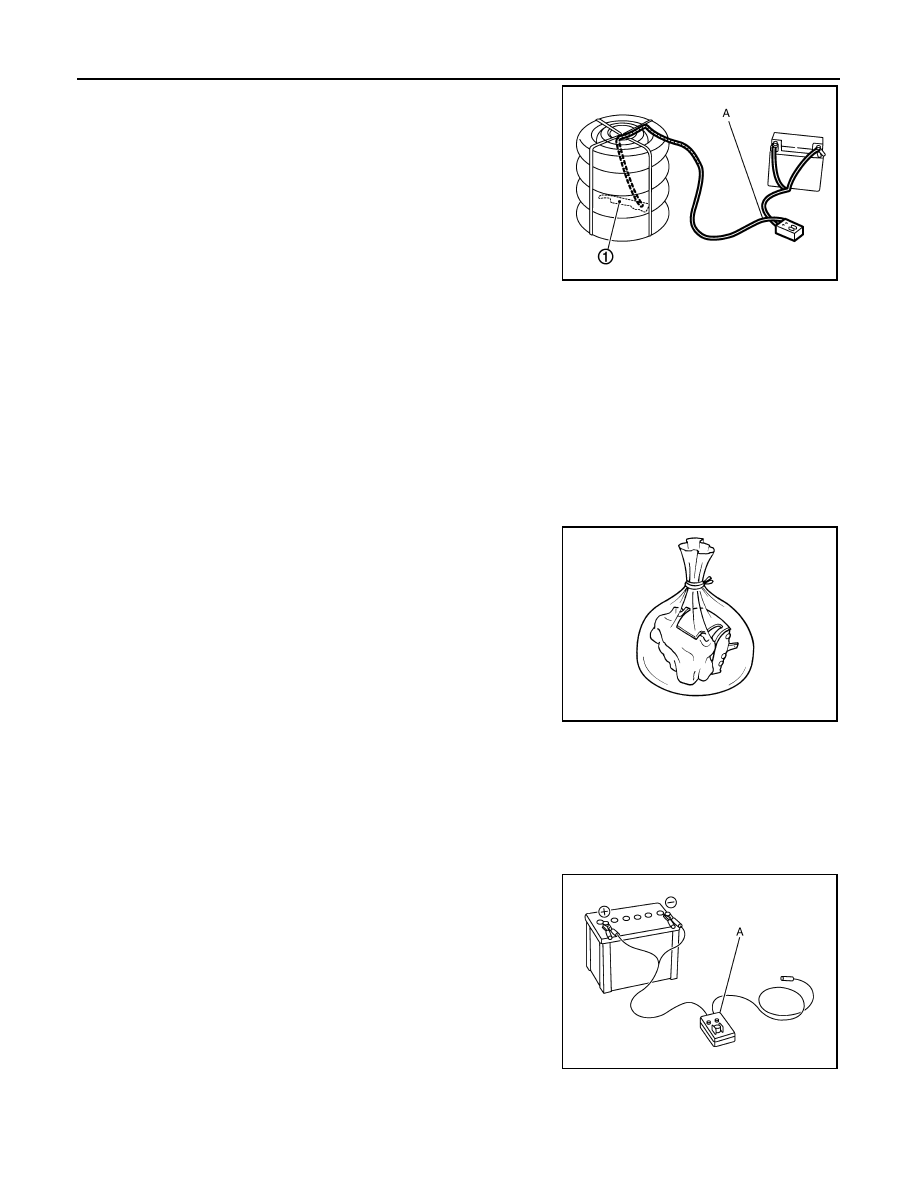

Put the tire with the inflator (1) onto another tire without a wheel.
Add an additional tire without a wheel and then a tire mounted
on a wheel on top.

CAUTION:

Tie all tires together with a strap in order keep them stand-
ing.

5.

Connect red clip of deployment tool (A) to battery positive termi-
nal and black clip to negative terminal.

6.

The lamp on the right side of the tool, marked “deployment tool
power”, should illuminate green, not red.

7.

Press the button on the deployment tool. The left side lamp on
the tool, marked “air bag connector voltage”, illuminates and the
air bag module inflator deploys.

CAUTION:

When deploying the curtain air bag module, stand at least 5.0 m (16.4 ft) away from the curtain air
bag module.

CURTAIN AIR BAG MODULE : Disposal

INFOID:0000000010499328

DISPOSING OF AIR BAG MODULE AND SEAT BELT PRE-TENSIONER

Deployed air bag module, seat belt pre-tensioner, and lap pre-tensioner are very hot. Before disposing of air
bag module and seat belt pre-tensioner, wait at least 30 minutes, and 10 minutes, respectively. Seal them in a
plastic bag before disposal.

CAUTION:

• Never apply water to a deployed air bag module or seat belt

pre-tensioner or lap pre-tensioner.

• Wear gloves when handling a deployed air bag module or seat

belt pre-tensioner or lap pre-tensioner.

• No poisonous gas is produced upon air bag module deploy-

ment. However, be careful not to inhale gas since it irritates
the throat and can cause choking.

• Never disassemble air bag module, seat belt pre-tensioner

and lap pre-tensioner.

• Air bag module, seat belt pre-tensioner and lap pre-tensioner

cannot be reused.

• Wash your hands clean after the work is complete.

SEAT BELT PRE-TENSIONER

SEAT BELT PRE-TENSIONER : Deployment

INFOID:0000000010499329

CHECKING DEPLOYMENT TOOL

Connecting to Battery

CAUTION:

The battery must show voltage of 9.6 V or more.
Remove the battery from the vehicle and place it on dry wood blocks
approximately 5.0 m (16.4 ft) away from the vehicle.
• Wait 3 minutes after the vehicle battery is disconnected before pro-

ceeding.

• Connect red clip of deployment tool (A) to battery positive terminal

and black clip to negative terminal.

Check that the polarity is correct. The right side lamp in the
tool, marked “deployment tool power”, should illuminate with a
green light. If the right side lamp illuminates red, reverse the
connections to the battery.

Deployment Tool Check

PHIA1173E

SBF276H

JMHIA0204ZZ

DISPOSAL OF AIR BAG MODULE

SR-39

< REMOVAL AND INSTALLATION >

C

D

E

F

G

I

J

K

L

M

A

B

SR

N

O

P

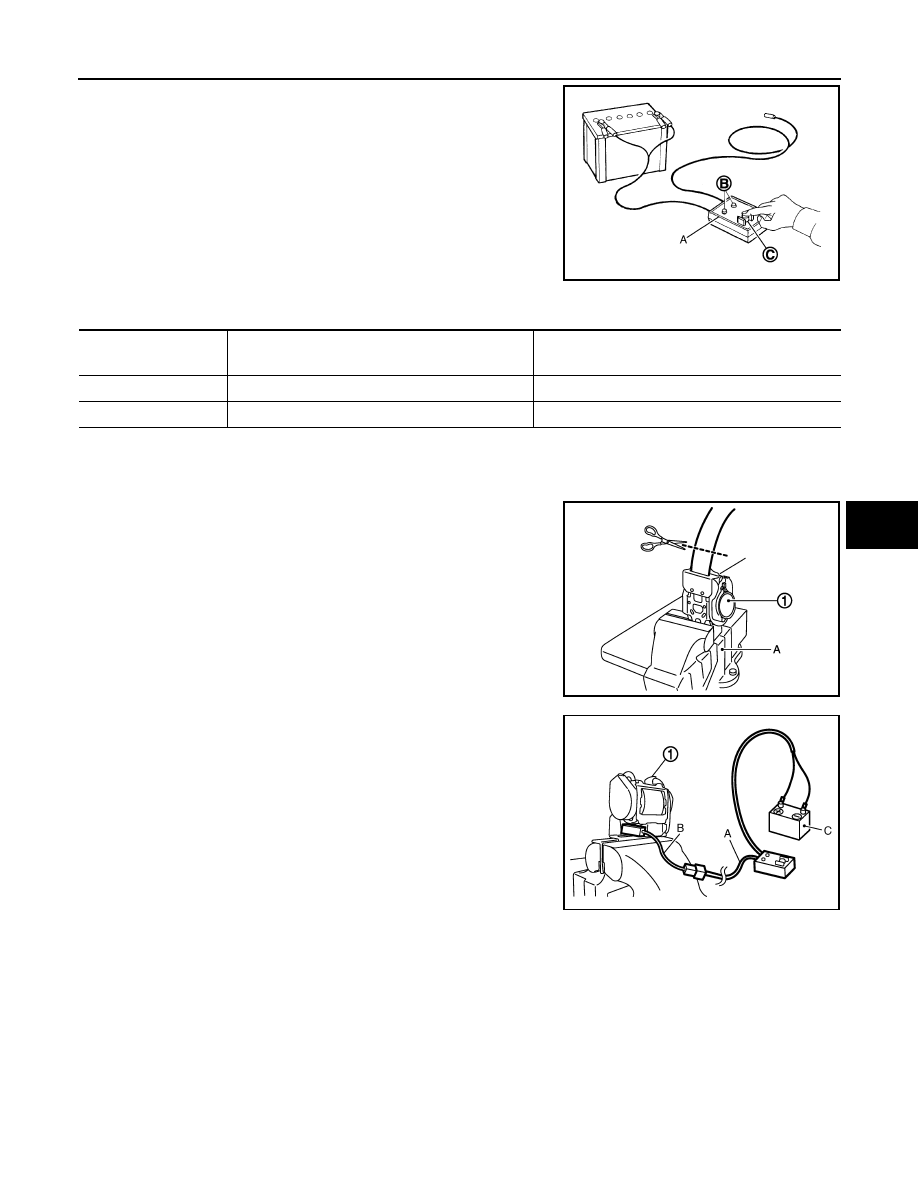

Press the deployment tool switch (C) to the ON position. The left
side lamp in the tool, marked “air bag connector voltage” should illu-
minate (B). If it does not illuminate, replace the deployment tool (A).

Air Bag Deployment Tool Lamp Illumination Chart (Battery Connected)

*: If this lamp illuminates red, the tool is connected to the battery incorrectly. Reverse the connections and check that the lamp illumi-
nates green.

DEPLOYMENT OF SEAT BELT PRE-TENSIONER (OUTSIDE OF VEHICLE)

1.

Firmly grip pre-tensioner (1) in a vise (A) and cut off the web-
bing.

2.

Connect deployment tool (SST: KV99106400) (A) and deploy-
ment tool adapter (SST: KV99110500) (B) yellow connector to
seat belt pre-tensioner (1).

3.

Connect red clip of deployment tool to battery positive terminal
and black clip to negative terminal (C).

4.

The lamp on the right side of the tool, marked “deployment tool
power”, should illuminate green, not red.

5.

Press the button on the deployment tool. The left side lamp on
the tool, marked “seat belt pre-tensioner connector voltage”, illu-
minates and the seat belt pre-tensioner deploys.

CAUTION:

When deploying the seat belt pre-tensioner, stand at least
5.0 m(16.4 ft) away from the seat belt pre-tensioner.

SEAT BELT PRE-TENSIONER : Disposal

INFOID:0000000010499330

DISPOSING OF AIR BAG MODULE AND SEAT BELT PRE-TENSIONER

Deployed air bag module, seat belt pre-tensioner, and lap pre-tensioner are very hot. Before disposing of air
bag module and seat belt pre-tensioner, wait at least 30 minutes, and 10 minutes, respectively. Seal them in a
plastic bag before disposal.

CAUTION:

JMHIA0205ZZ

Switch operation

Left side lamp, green*

“AIR BAG CONNECTOR VOLTAGE”

Right side lamp, green*

“DEPLOYMENT TOOL POWER”

OFF

OFF

ON

ON

ON

ON

JMHIA1688ZZ

JMHIA0214ZZ

SR-40

< REMOVAL AND INSTALLATION >

DISPOSAL OF AIR BAG MODULE

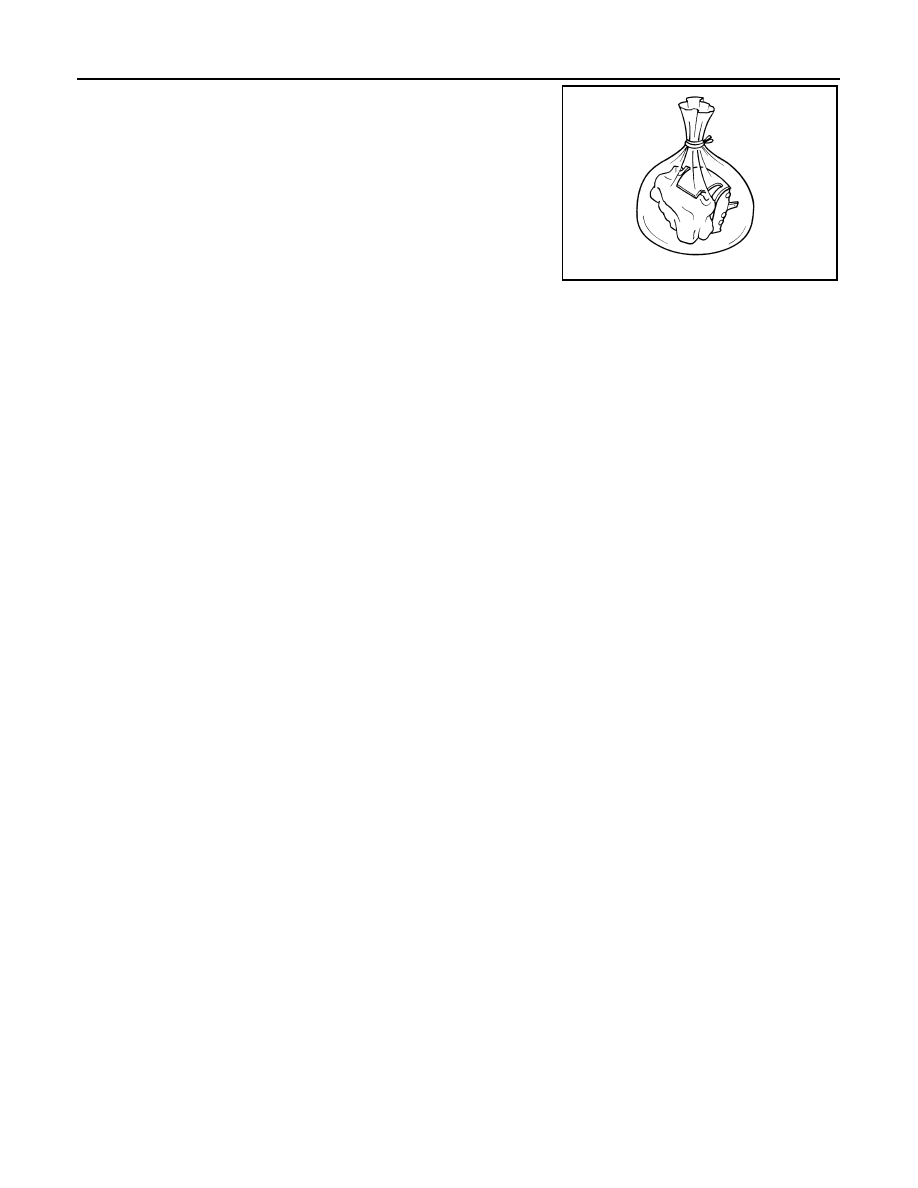

• Never apply water to a deployed air bag module or seat belt

pre-tensioner or lap pre-tensioner.

• Wear gloves when handling a deployed air bag module or seat

belt pre-tensioner or lap pre-tensioner.

• No poisonous gas is produced upon air bag module deploy-

ment. However, be careful not to inhale gas since it irritates
the throat and can cause choking.

• Never disassemble air bag module, seat belt pre-tensioner

and lap pre-tensioner.

• Air bag module, seat belt pre-tensioner and lap pre-tensioner

cannot be reused.

• Wash your hands clean after the work is complete.

SBF276H

SRC-1

RESTRAINTS

C

D

E

F

G

I

J

K

L

M

SECTION

SRC

A

B

SRC

N

O

P

CONTENTS

SRS AIRBAG CONTROL SYSTEM

PRECAUTION ...............................................

3

PRECAUTIONS ...................................................

3

Precautions for Removing Battery Terminal  .............

3

Precaution Necessary for Steering Wheel Rota-
tion After Battery Disconnect ...................................
..

4

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" .................................................................
..

4

Service ......................................................................

5

SYSTEM DESCRIPTION  ..............................

6

COMPONENT PARTS  ........................................

6

Component Parts Location ........................................

6

Driver air bag module  ................................................

7

Passenger air bag module  ........................................

8

Side air bag module  ..................................................

8

Curtain air bag module ..............................................

9

Seat belt pre-tensioner with Load limiter  ...................

9

Double pre-tensioner seat belt  ................................

10

Spiral cable  .............................................................

11

Crash zone sensor  ..................................................

11

Satellite sensor ........................................................

12

Air bag diagnosis sensor unit  ..................................

12

Air bag warning lamp  ..............................................

12

Front Passenger Air Bag Off Indicator  ....................

13

Front Passenger Air Bag On Indicator  ....................

13

SYSTEM .............................................................

14

System Description  .................................................

14

DIAGNOSIS SYSTEM (AIR BAG)  .....................

18

CONSULT Function  ................................................

18

ECU DIAGNOSIS INFORMATION  ..............

19

DIAGNOSIS SENSOR UNIT  ..............................

19

DTC Index ..............................................................

19

WIRING DIAGRAM  ......................................

23

SRS AIR BAG SYSTEM  ...................................

23

LHD ............................................................................

23

LHD : Wiring Diagram ..............................................

23

RHD ............................................................................

28

RHD : Wiring Diagram  .............................................

29

BASIC INSPECTION  ...................................

35

DIAGNOSIS AND REPAIR WORK FLOW  .......

35

Work Flow ................................................................

35

ADDITIONAL SERVICE WHEN REPLACING
AIR BAG DIAGNOSIS SENSOR UNIT .............

38

Description ...............................................................

38

Work Procedure .......................................................

38

CONFIGURATION (AIR BAG DIAGNOSIS
SENSOR UNIT)  .................................................

39

Work Procedure .......................................................

39

DTC/CIRCUIT DIAGNOSIS  .........................

40

U1000 CAN COMM CIRCUIT  ...........................

40

Description ...............................................................

40

DTC Logic ................................................................

40

Diagnosis Procedure  ...............................................

40

U1010 CONTROL UNIT (CAN) .........................

41

DTC Logic ................................................................

41

Diagnosis Procedure  ...............................................

41

B0001 DRIVER AIR BAG MODULE .................

42

DTC Description  ......................................................

42

Diagnosis Procedure  ...............................................

42

B0010 PASSENGER AIR BAG MODULE  ........

45

DTC Description  ......................................................

45

Diagnosis Procedure  ...............................................

45

B0020 SIDE AIR BAG MODULE  ......................

47

DTC Description  ......................................................

47
