Nissan Qashqai J11. Manual - part 1013

SR-30

< REMOVAL AND INSTALLATION >

SEAT BELT PRE-TENSIONER

SEAT BELT PRE-TENSIONER

Exploded View

INFOID:0000000010499319

Refer to

SB-6, "Exploded View"

.

Removal and Installation

INFOID:0000000010478332

For removal and installation procedures, refer to

SB-7, "SEAT BELT RETRACTOR : Removal and Installa-

tion"

.

DISPOSAL OF AIR BAG MODULE

SR-31

< REMOVAL AND INSTALLATION >

C

D

E

F

G

I

J

K

L

M

A

B

SR

N

O

P

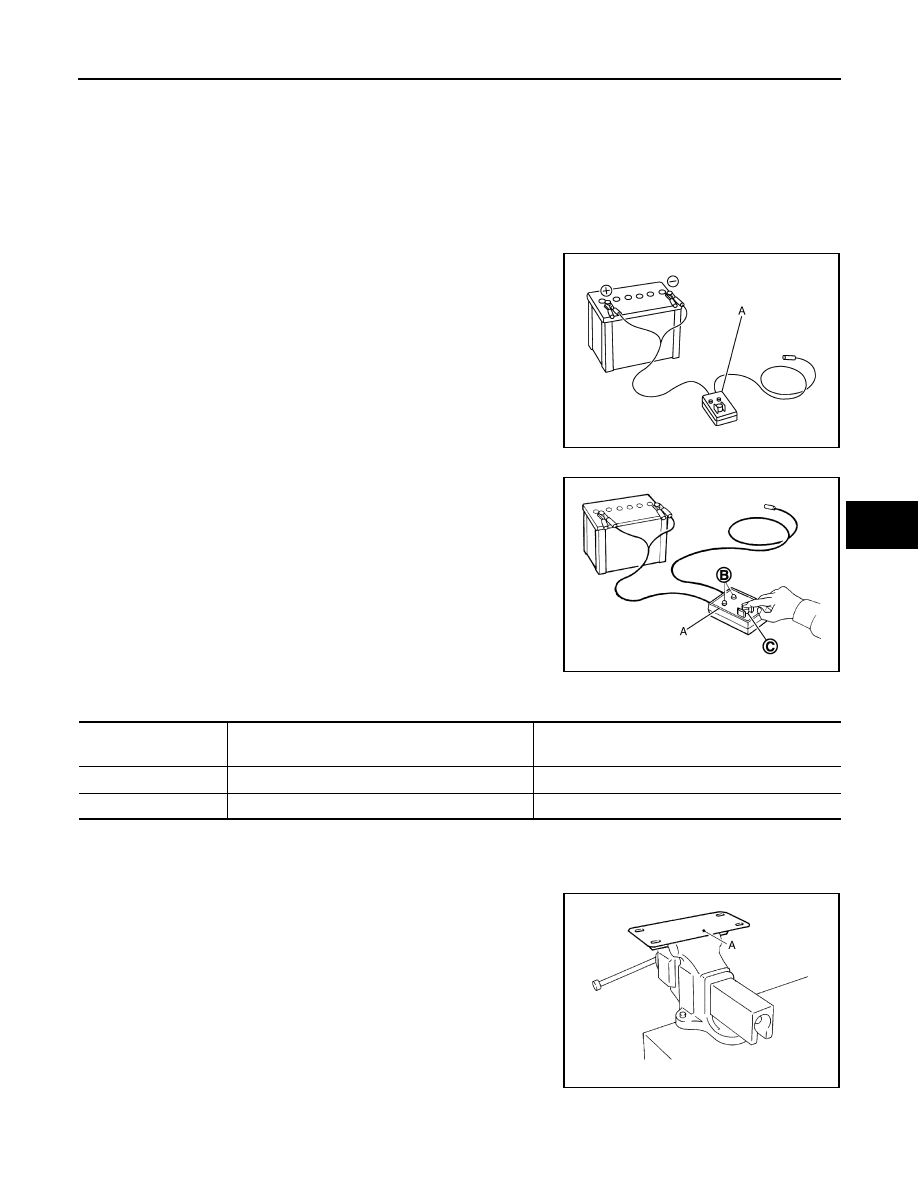

DISPOSAL OF AIR BAG MODULE

DRIVER AIR BAG MODULE

DRIVER AIR BAG MODULE : Deployment

INFOID:0000000010499321

CHECKING DEPLOYMENT TOOL

Connecting to Battery

CAUTION:

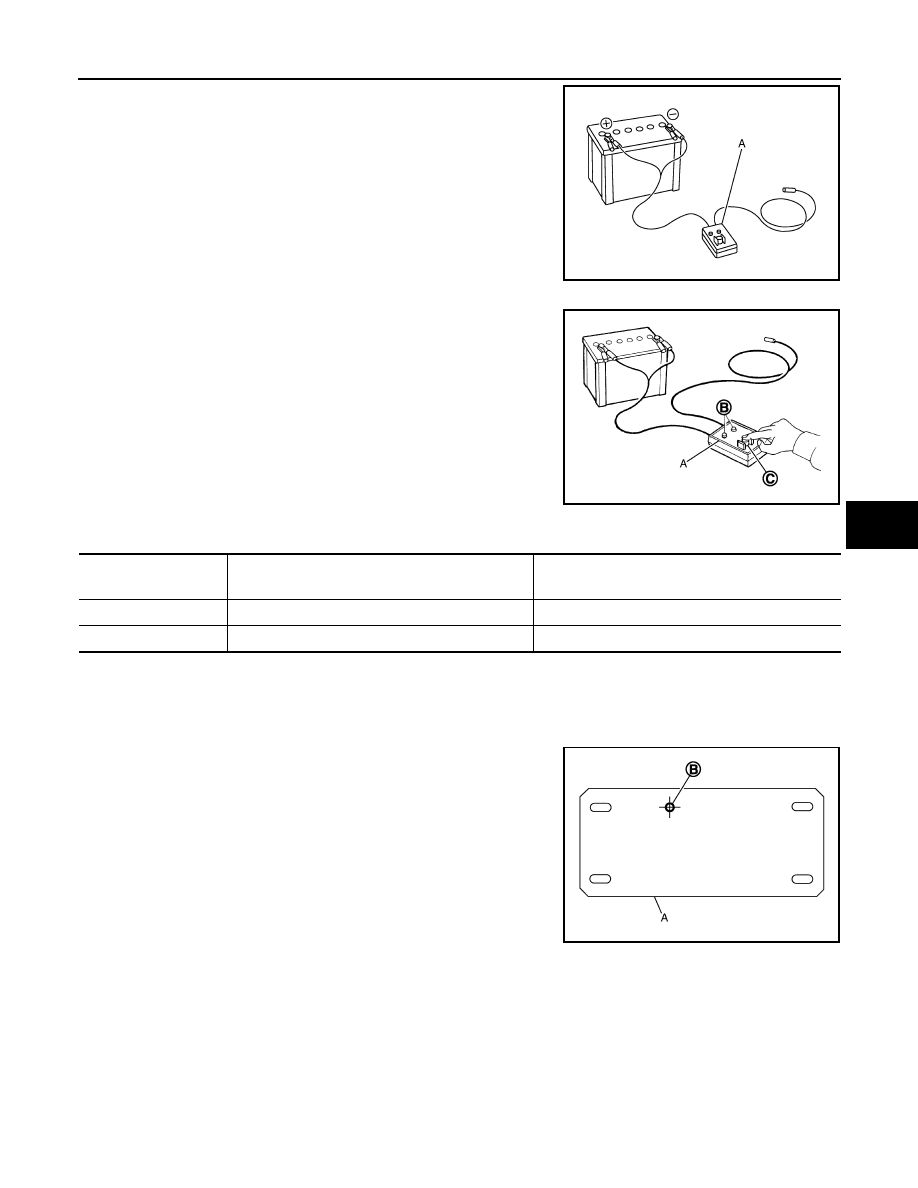

The battery must show voltage of 9.6 V or more.
Remove the battery from the vehicle and place it on dry wood blocks
approximately 5.0 m (16.4 ft) away from the vehicle.
• Wait 3 minutes after the vehicle battery is disconnected before pro-

ceeding.

• Connect red clip of deployment tool (A) to battery positive terminal

and black clip to negative terminal.

Check that the polarity is correct. The right side lamp in the
tool, marked “deployment tool power”, should illuminate with a
green light. If the right side lamp illuminates red, reverse the
connections to the battery.

Deployment Tool Check

Press the deployment tool switch (C) to the ON position. The left
side lamp in the tool, marked “air bag connector voltage” should illu-
minate (B). If it does not illuminate, replace the deployment tool (A).

Air Bag Deployment Tool Lamp Illumination Chart (Battery Connected)

*: If this lamp illuminates red, the tool is connected to the battery incorrectly. Reverse the connections and check that the lamp illumi-
nates green.

DEPLOYMENT OF DRIVER AIR BAG MODULE (OUTSIDE OF VEHICLE)

1.

Unless the vehicle is being scrapped, deploying the air bag in
the vehicle is not recommended. This may cause damage to the
vehicle interior.
Anchor air bag module bracket (SST: KV99105300) (A) in a vice
secured to a firm foundation deployment.

JMHIA0204ZZ

JMHIA0205ZZ

Switch operation

Left side lamp, green*

“AIR BAG CONNECTOR VOLTAGE”

Right side lamp, green*

“DEPLOYMENT TOOL POWER”

OFF

OFF

ON

ON

ON

ON

JMHIA0208ZZ

SR-32

< REMOVAL AND INSTALLATION >

DISPOSAL OF AIR BAG MODULE

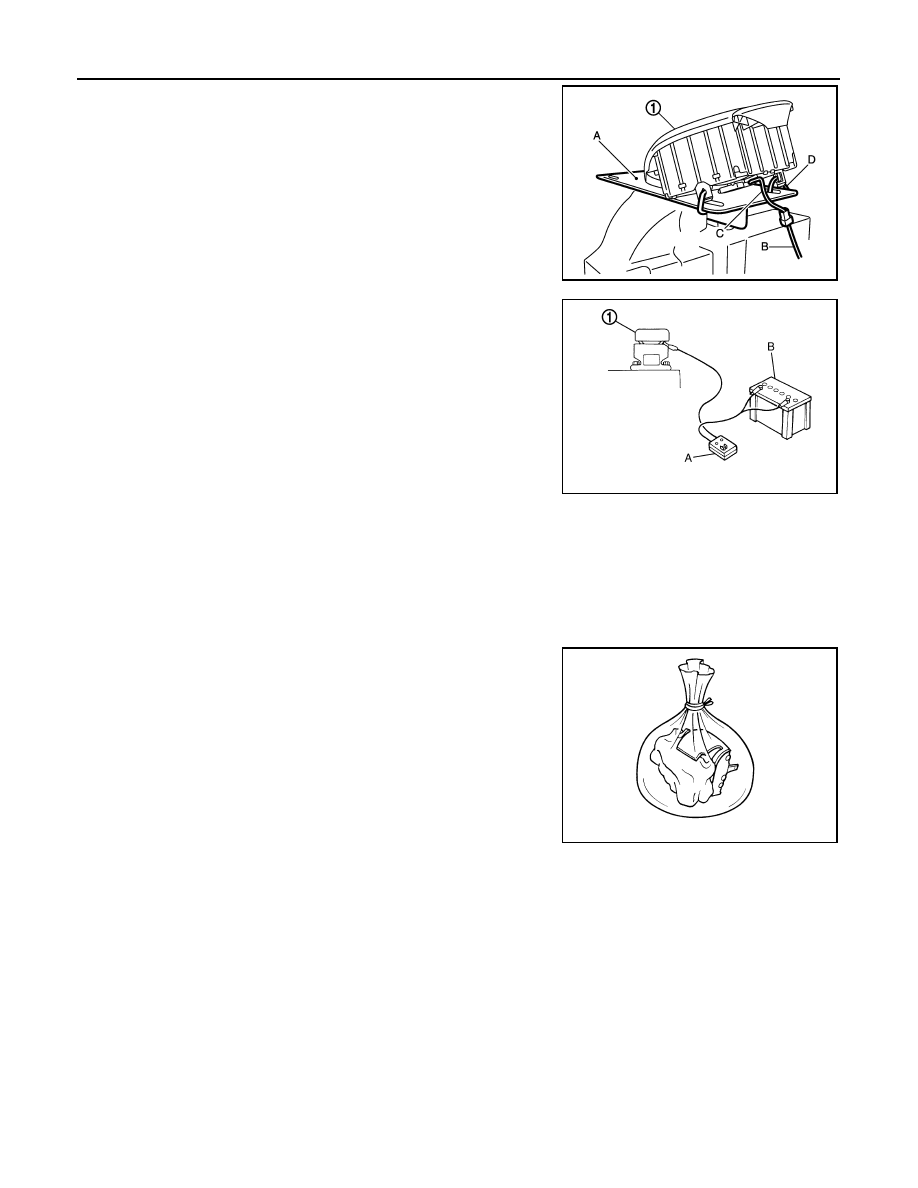

2.

Using wire (D), secure driver air bag module (1) to air bag mod-
ule bracket (SST: KV99105300) (A) at two places.

CAUTION:

Use wire of at least 1.0 mm (0.039 in) diameter.

3.

Firmly secure air bag module bracket (SST: KV99105300) with
driver air bag module attached, in a vise.

4.

Connect deployment tool adapter (SST: KV99110500) yellow
connector (C) to driver air bag module and deployment tool con-
nector (SST: KV99106400) (B).

5.

Connect red clip of deployment tool (A) to battery positive termi-
nal and black clip to negative terminal (B).

6.

The lamp on the right side of the tool, marked “deployment tool
power”, should illuminate green, not red.

7.

Press the button on the deployment tool. The left side lamp on
the tool, marked “air bag connector voltage”, illuminates and the
air bag module (1) deploys.

CAUTION:

When deploying the driver air bag module, stand at least 5.0
m (16.4 ft) away from the air bag module.

DRIVER AIR BAG MODULE : Disposal

INFOID:0000000010499322

DISPOSING OF AIR BAG MODULE AND SEAT BELT PRE-TENSIONER

Deployed air bag module, seat belt pre-tensioner, and lap pre-tensioner are very hot. Before disposing of air
bag module and seat belt pre-tensioner, wait at least 30 minutes, and 10 minutes, respectively. Seal them in a
plastic bag before disposal.

CAUTION:

• Never apply water to a deployed air bag module or seat belt

pre-tensioner or lap pre-tensioner.

• Wear gloves when handling a deployed air bag module or seat

belt pre-tensioner or lap pre-tensioner.

• No poisonous gas is produced upon air bag module deploy-

ment. However, be careful not to inhale gas since it irritates
the throat and can cause choking.

• Never disassemble air bag module, seat belt pre-tensioner

and lap pre-tensioner.

• Air bag module, seat belt pre-tensioner and lap pre-tensioner

cannot be reused.

• Wash your hands clean after the work is complete.

PASSENGER AIR BAG MODULE

PASSENGER AIR BAG MODULE : Deployment

INFOID:0000000010499323

CHECKING DEPLOYMENT TOOL

Connecting to Battery

CAUTION:

JMHIA0630ZZ

JMHIA0209ZZ

SBF276H

DISPOSAL OF AIR BAG MODULE

SR-33

< REMOVAL AND INSTALLATION >

C

D

E

F

G

I

J

K

L

M

A

B

SR

N

O

P

The battery must show voltage of 9.6 V or more.
Remove the battery from the vehicle and place it on dry wood blocks
approximately 5.0 m (16.4 ft) away from the vehicle.
• Wait 3 minutes after the vehicle battery is disconnected before pro-

ceeding.

• Connect red clip of deployment tool (A) to battery positive terminal

and black clip to negative terminal.

Check that the polarity is correct. The right side lamp in the
tool, marked “deployment tool power”, should illuminate with a
green light. If the right side lamp illuminates red, reverse the
connections to the battery.

Deployment Tool Check

Press the deployment tool switch (C) to the ON position. The left
side lamp in the tool, marked “air bag connector voltage” should illu-
minate (B). If it does not illuminate, replace the deployment tool (A).

Air Bag Deployment Tool Lamp Illumination Chart (Battery Connected)

*: If this lamp illuminates red, the tool is connected to the battery incorrectly. Reverse the connections and check that the lamp illumi-
nates green.

DEPLOYMENT OF PASSENGER AIR BAG MODULE (OUTSIDE OF VEHICLE)

1.

Remove the passenger air bag module from lid with remover tool.

2.

Make 8.5 mm (0.335 in) diameter hole (B) in air bag module
bracket (SST: KV99105300) (A) at the position shown in figure.

JMHIA0204ZZ

JMHIA0205ZZ

Switch operation

Left side lamp, green*

“AIR BAG CONNECTOR VOLTAGE”

Right side lamp, green*

“DEPLOYMENT TOOL POWER”

OFF

OFF

ON

ON

ON

ON

JMHIA0225ZZ
