Nissan Qashqai J11. Manual - part 1012





SR-26

< REMOVAL AND INSTALLATION >

SATELLITE SENSOR

SATELLITE SENSOR

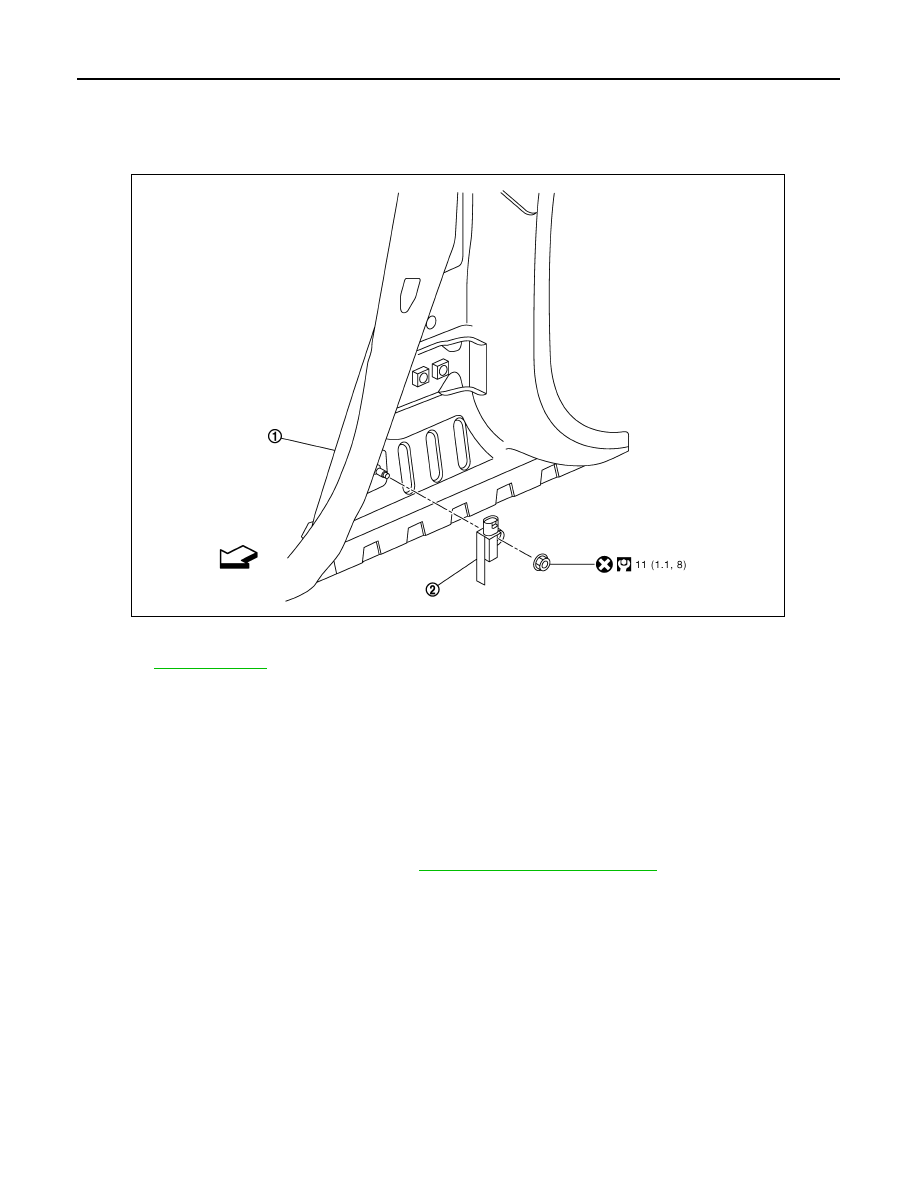

Exploded View

INFOID:0000000010478328

Removal and Installation

INFOID:0000000010478329

WARNING:

• Before servicing, turn ignition switch OFF, disconnect battery negative terminal and wait 3 minutes

or more.

• Never use air tools or electric tools for servicing.

SATELLITE SENSOR

Removal

1.

Remove center pillar lower garnish. Refer to

INT-18, "Removal and Installation"

.

2.

Remove the satellite sensor nut.

CAUTION:

Never reuse the satellite sensor nut.

3.

Disconnect the harness connector from the satellite sensor.

4.

Remove satellite sensor.

CAUTION:

• Replace the satellite sensor if it has been dropped or sustained an impact.
• Never impact the satellite sensor.

INSTALLATION

Note the following item, and install in the reverse order of removal.

CAUTION:

• Never reuse the satellite sensor nut.
• Never damage the harness while installing.

1.

Center pillar

2.

Satellite sensor

Refer to

GI-4, "Components"

 for symbols in the figure.

E1HIA0042GB

SATELLITE SENSOR

SR-27

< REMOVAL AND INSTALLATION >

C

D

E

F

G

I

J

K

L

M

A

B

SR

N

O

P

• Never install normally aligning to the cutout hole, because performance of the satellite sensor

excessively fluctuates according to the installation position.

• After the work is completed, check that no system malfunction is detected by air bag warning lamp.
• If a malfunction is detected by the air bag warning lamp, after repair or replacement of the malfunc-

tioning parts, reset the memory using self-diagnosis or CONSULT. Refer to

SRC-18, "CONSULT

Function"

.

SR-28

< REMOVAL AND INSTALLATION >

DIAGNOSIS SENSOR UNIT

DIAGNOSIS SENSOR UNIT

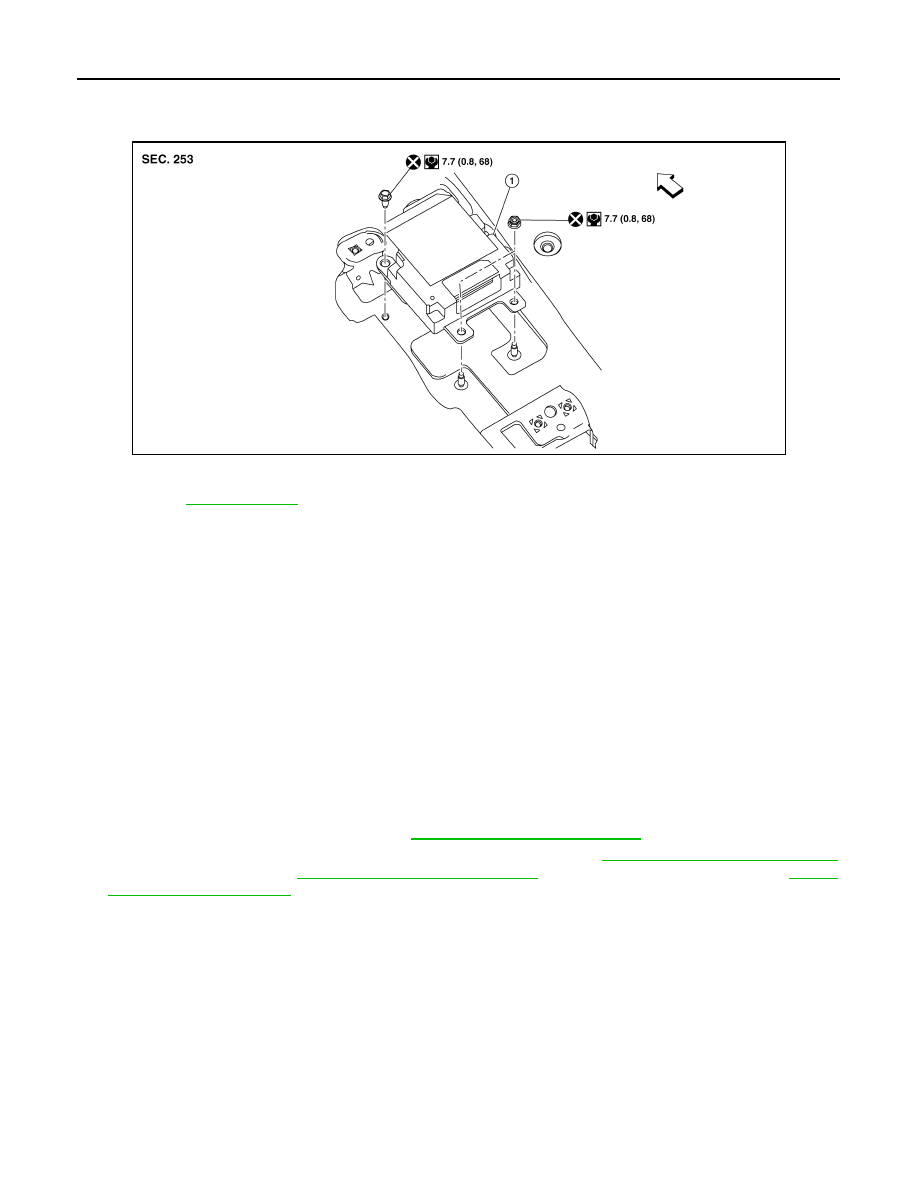

Exploded View

INFOID:0000000010478330

Removal and Installation

INFOID:0000000010478331

WARNING:

• Before servicing, turn ignition switch OFF, disconnect battery negative terminal and wait 3 minutes

or more.

• Before disconnecting the air bag diagnosis sensor unit harness connectors, be sure to disconnect

each harness connector of the air bag module and pre-tensioner seat belt to prevent air bag deploy-
ment by static electricity and pre-temsioner seat belt operation.

• Never use the air tools or electric tools for servicing.
• When replacing the air bag diagnosis sensor unit, always check with the parts department for the lat-

est parts information. Installing an incorrect air bag diagnosis sensor unit may or may not cause the
air bag warning lamp to illuminate and may cause incorrect deployment of the supplemental air bags
and seat belt pre-tensioners in a collision resulting in serious personal injury or death.

REMOVAL

1.

Always check the air bag diagnosis sensor unit ECU discriminated number (identification number) using
CONSULT.

2.

Remove center console assembly. Refer to

IP-19, "Removal and Installation"

.

3.

Disconnect the harness connectors for the following SRS components:

SR-21, "Removal and Installation"

(curtain air bag modules),

SR-30, "Removal and Installation"

 (front seat belt pre-tensioner) and

SR-23,

"Removal and Installation"

 (front side air bag module).

4.

Disconnect the harness connectors from the diagnosis sensor unit.

5.

Remove bolt and nuts, then remove the air bag diagnosis sensor unit.

CAUTION:

• Never reuse the air bag diagnosis sensor unit bolts.
• Replace the air bag diagnosis sensor unit of deployed SRS air bag and deployed SRS front seat

belt pre-tensioner.

AWHIA0599ZZ

1.

Diagnosis sensor unit

Refer to

GI-4, "Components"

 for symbols in the figure.

DIAGNOSIS SENSOR UNIT

SR-29

< REMOVAL AND INSTALLATION >

C

D

E

F

G

I

J

K

L

M

A

B

SR

N

O

P

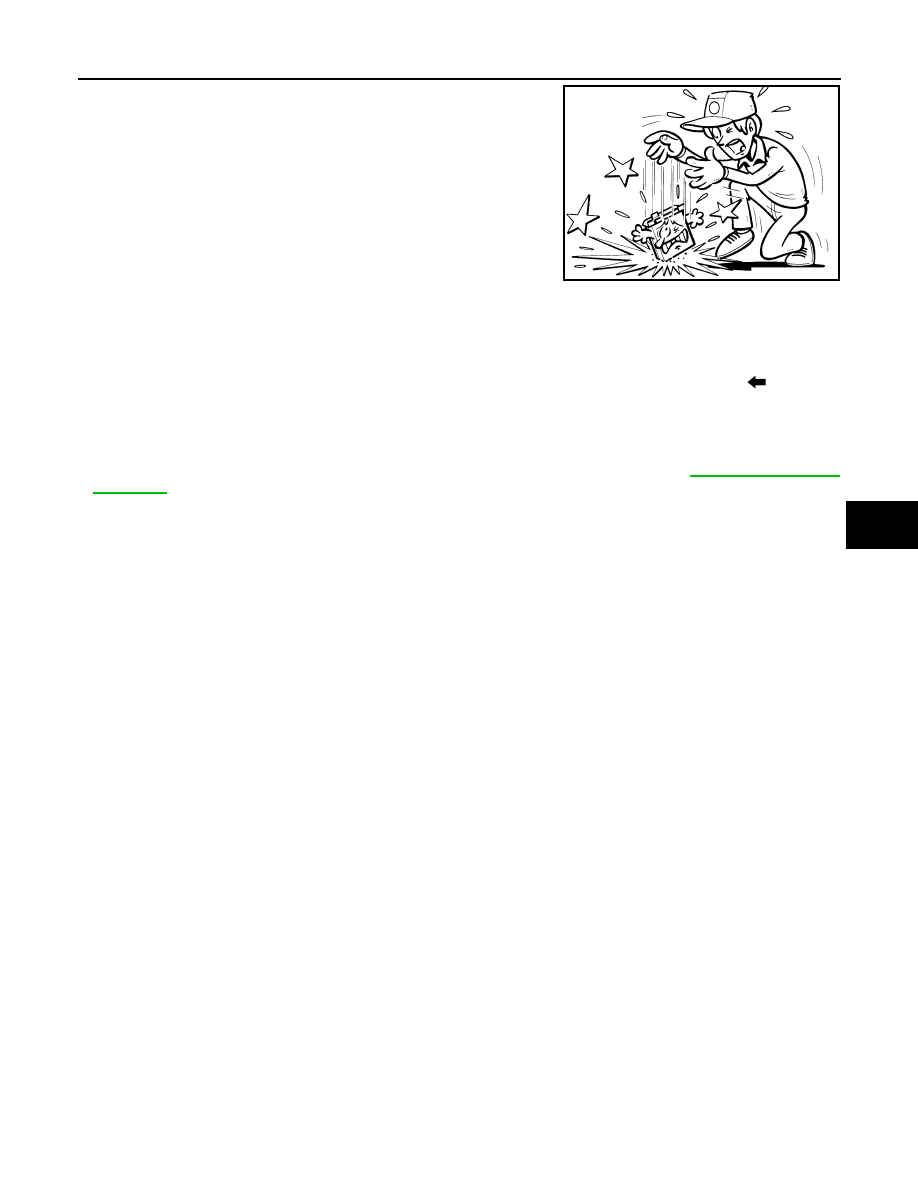

• Replace the air bag diagnosis sensor unit if it has been

dropped or sustained an impact.

• Never impatc the air bag diagnosis sensor unit.

INSTALLATION

Install air bag diagnosis sensor unit in the reverse order of removal.

CAUTION:

• Never reuse the air bag diagnosis sensor unit bolts.
• The air bag diagnosis sensor unit must always be installed with the label arrow mark "

" pointing

toward the front of the vehicle for proper operation.

• Never damage the harness while installing.
• After the work is completed, check that no system malfunction is detected by air bag warning lamp.
• If a malfunction is detected by the air bag warning lamp, after repair or replacement of the malfunc-

tioning parts, reset the memory using self-diagnosis or CONSULT. Refer to

SRC-18, "CONSULT

Function"

.

• After replacing the air bag diagnosis sensor unit, confirm using CONSULT that the ECU discrimi-

nated number (identification number) of the new replacement air bag diagnosis sensor unit matches
the ECU discriminated number (identification number) of the replaced (old) air bag diagnosis sensor
unit.

NOTE:
If the ECU discriminated number of the new replacement air bag diagnosis sensor unit differs from the ECU
discriminated number of the replaced air bag diagnosis sensor unit, reconfirm the parts information and verify
that the correct air bag diagnosis sensor unit was installed.

SGI787
