SR-18

< REMOVAL AND INSTALLATION >

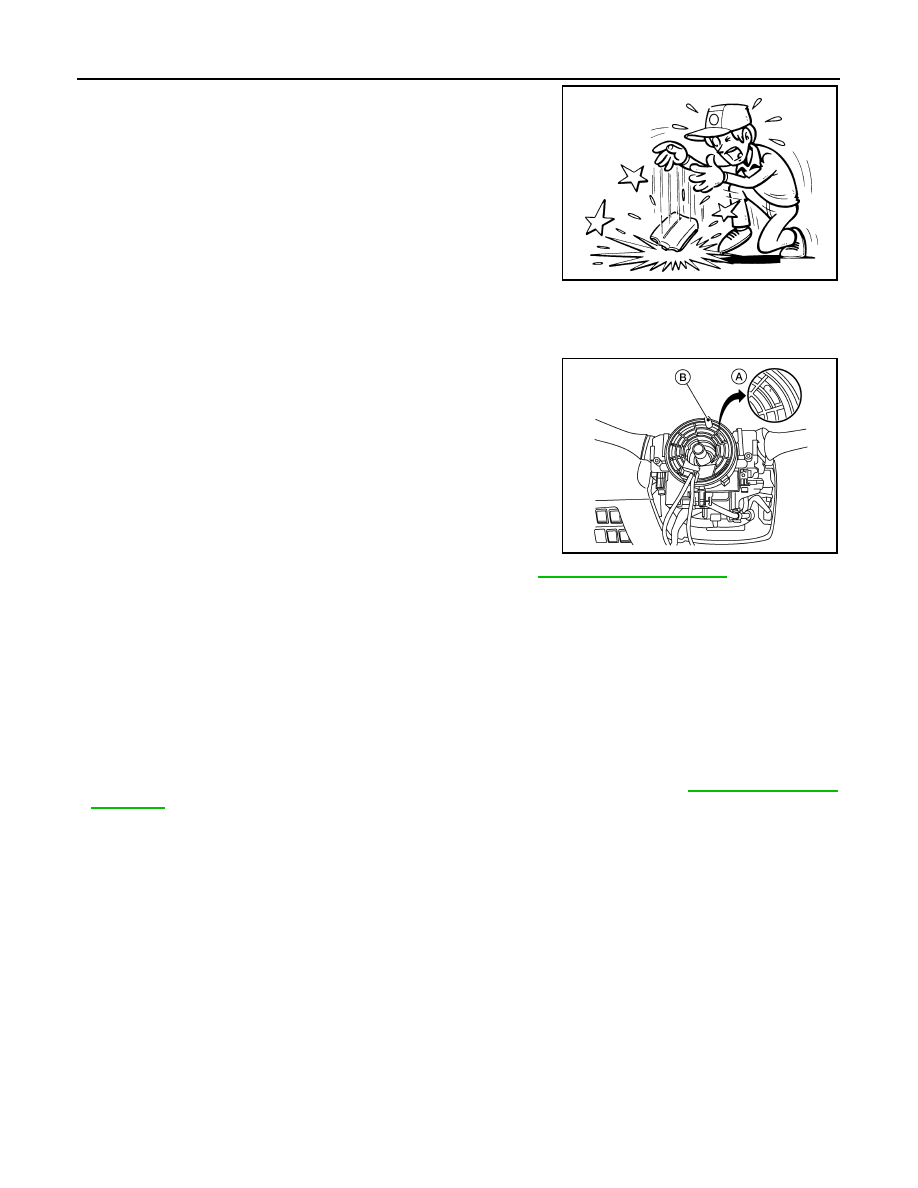

SPIRAL CABLE

• Never impact the spiral cable.
• Replace the spiral cable if it has been dropped or sus-

tained an impact.

• Never disassemble the spiral cable.
• Never apply lubricant to the spiral cable.
• Never allow oil, grease, detergent, or water to come in

contact with the spiral cable.

INSTALLATION

Installation is in the reverse order of removal.
• The turn signal lever must be in the neutral position for spiral cable installation.
• Set the spiral cable neutral position by carefully turning the spiral

cable clockwise to the end position. Turn the spiral cable counter-
clockwise 2.5 turns stopping when the locating pin (B) is at the top
most position and confirm that a yellow indicator with a vertical
black line will be shown in the window (A).
NOTE:
If a new service part is installed, the neutral position is already set
with a stopper clip in place and should not be adjusted after the
stopper clip is removed. Make sure the stopper is removed before
installing the steering wheel.

• During steering wheel installation, make sure the locating pin hole

is aligned with the locating pin (B) of the spiral cable.

• Adjust the neutral position of the steering angle sensor. Refer to

BRC-64, "Work Procedure"

.

CAUTION:

• The spiral cable may snap during steering operation if the spiral cable is installed in an improper

position.

• Never over turn the spiral cable or go beyond the maximum number of turns required. (This will

cause the cable to snap.)

• The turn signal lever must be in the neutral position for spiral cable installation.
• Never apply lubricant to the spiral cable.
• Never allow oil, grease, detergent or water to come in contact with the spiral cable.
• After the work is completed, check that no system malfunction is detected by air bag warning lamp.
• If a malfunction is detected by the air bag warning lamp, after repair or replacement of the malfunc-

tioning parts, reset the memory using self-diagnosis or CONSULT. Refer to

SRC-18, "CONSULT

Function"

.

JMHIA0009ZZ

ALHIA0385ZZ

PASSENGER AIR BAG MODULE

SR-19

< REMOVAL AND INSTALLATION >

C

D

E

F

G

I

J

K

L

M

A

B

SR

N

O

P

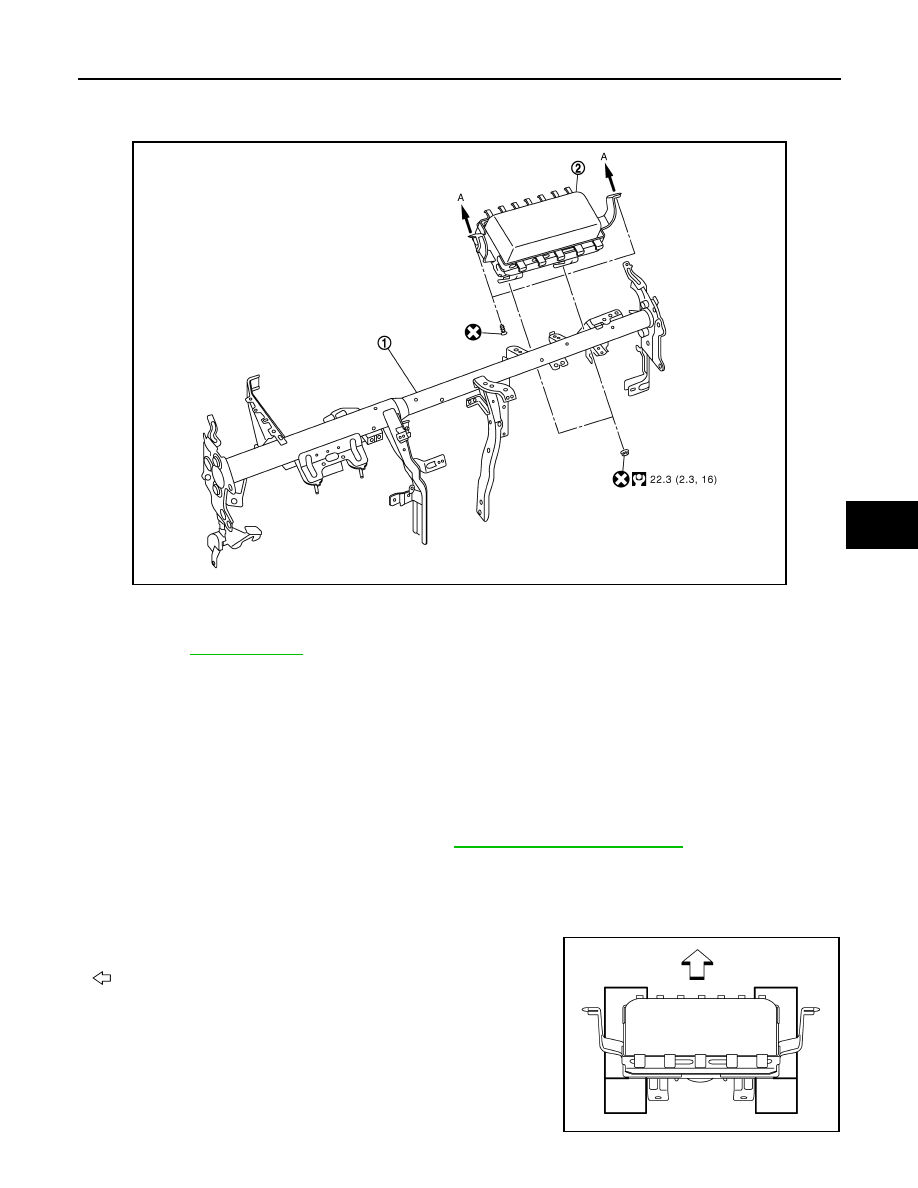

PASSENGER AIR BAG MODULE

Exploded View

INFOID:0000000010478321

Removal and Installation

INFOID:0000000010478322

WARNING:

• Before servicing, turn ignition switch OFF, disconnect battery negative terminal and wait 3 minutes

or more.

• Always work from the side of air bag module. Never work in front of it.
• Never use air tools or electric tools for servicing.

REMOVAL

1.

Remove the Instrument panel assembly. Refer to

IP-13, "Removal and Installation"

.

2.

Remove front passenger air bag module screws.

3.

Release the pawls by removing the front passenger air bag module.

CAUTION:

• Always place the front passenger air bag module with pad

side facing upward as shown.

: Upward

E1HIA0039GB

1.

Front passenger air bag module 2.

Steering member

A.

To instrument panel

Refer to

GI-4, "Components"

 for symbols in the figure.

ALHIA0387ZZ

SR-20

< REMOVAL AND INSTALLATION >

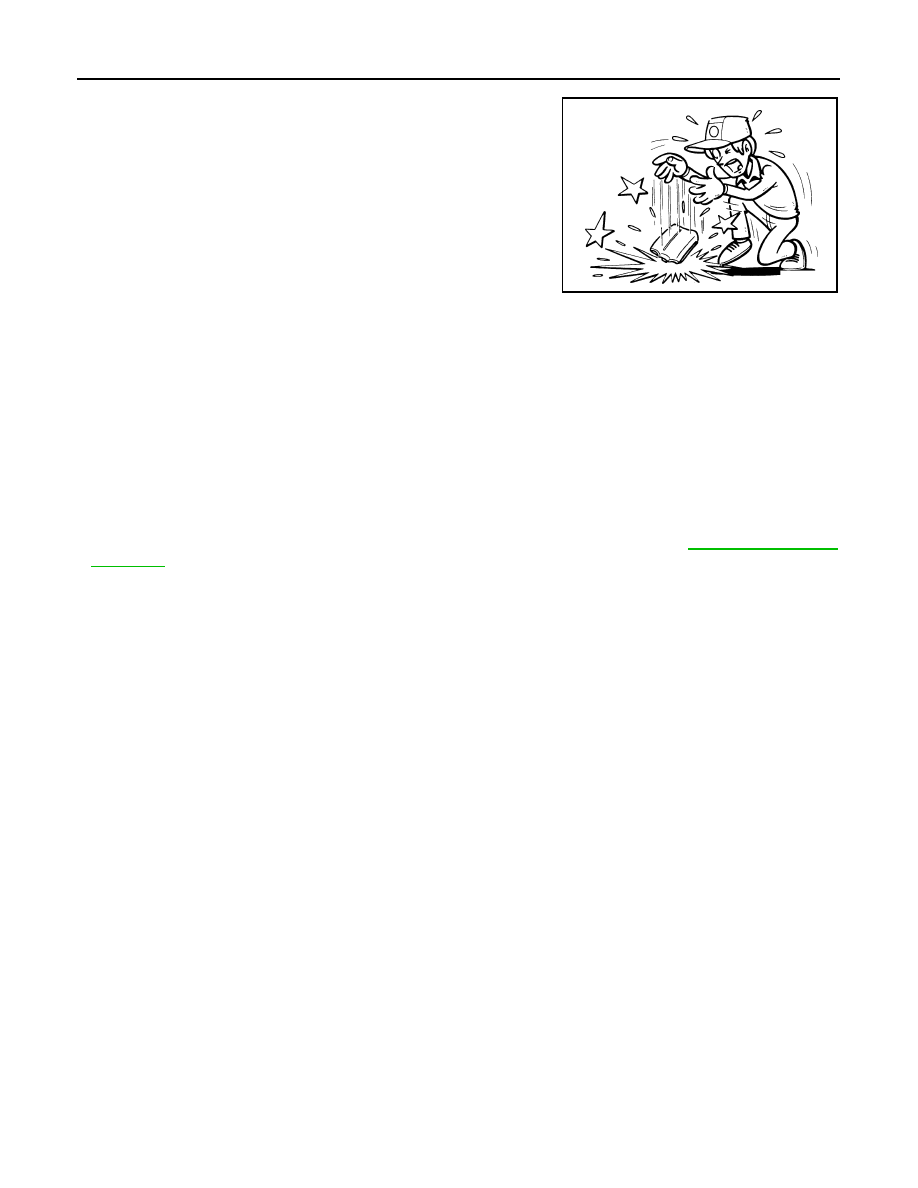

PASSENGER AIR BAG MODULE

• Replace the front passenger air bag module if it has been

dropped or sustained an impact.

• Never impact the front passenger air bag module.

• Never insert any foreign objects (screwdriver, etc.) into the passenger air bag module.
• Never disassemble the passenger air bag module.
• Never expose the passenger air bag module to temperatures exceeding 90

°

C (194

°

F).

• Never allow oil, grease, detergent, or water to come in contact with the front passenger air bag mod-

ule.

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:

• Never use the old fixing bolts after removal, replace with the new bolts.
• Never damage the harness while installing.
• After the work is completed, check that no system malfunction is detected by air bag warning lamp.
• If a malfunction is indicated by the air bag warning lamp, after repair or replacement of the malfunc-

tioning parts, reset the memory using self-diagnosis or CONSULT. Refer to

SRC-18, "CONSULT

Function"

.

JMHIA0009ZZ

CURTAIN AIR BAG MODULE

SR-21

< REMOVAL AND INSTALLATION >

C

D

E

F

G

I

J

K

L

M

A

B

SR

N

O

P

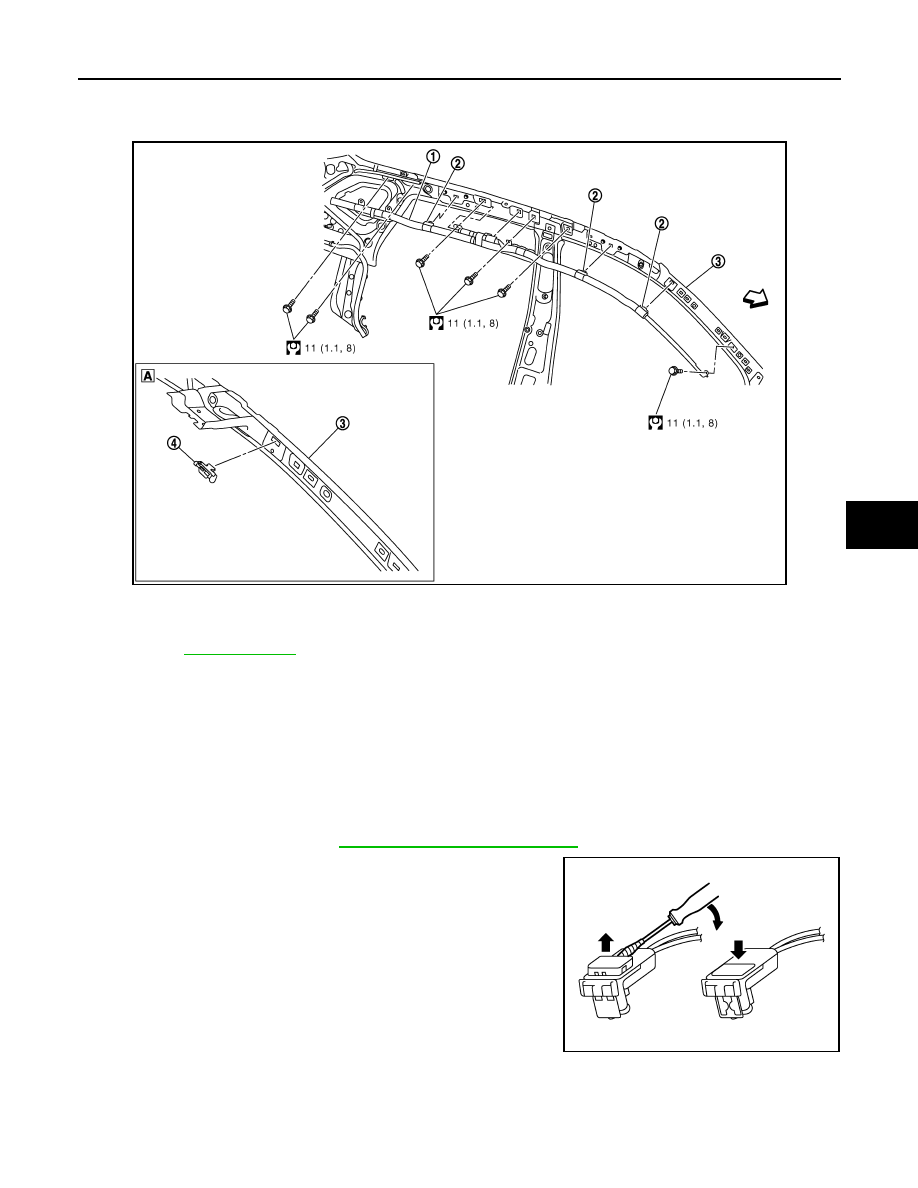

CURTAIN AIR BAG MODULE

Exploded View

INFOID:0000000010478323

Removal and Installation

INFOID:0000000010478324

WARNING:

• Before servicing, turn ignition switch OFF, disconnect battery negative terminals and wait 3 minutes

or more.

• Always work from the side of air bag module. Never work in front of it.
• Never use air tools or electric tools for servicing.

REMOVAL

1.

Remove the headlining. Refer to

INT-25, "Removal and Installation"

.

2.

Disconnect the harness connector from the curtain air bag mod-
ule.

CAUTION:

• For removing/installing the curtain air bag module har-

ness connector, insert thin screwdriver wrapped in tape
into notch, lift lock and remove the connector.

• Install the connector with lock raised, and push lock into

the connector.

• After installing the connector, check that the lock is

pushed in securely into it.

3.

Remove bolts, and curtain air bag module.

CAUTION:

• Replace the curtain air bag module if it has been dropped or sustained an impact.
• Never impact the curtain air bag module.

E1HIA0040GB

1.

Side curtain air bag module

2.

Mounting clip

3.

Front pillar

4.

Trim clip

A.

No curtain airbag variant

Refer to

GI-4, "Components"

 for symbols in the figure.

PHIA0953J
