PRE-TENSIONER MECHANISM

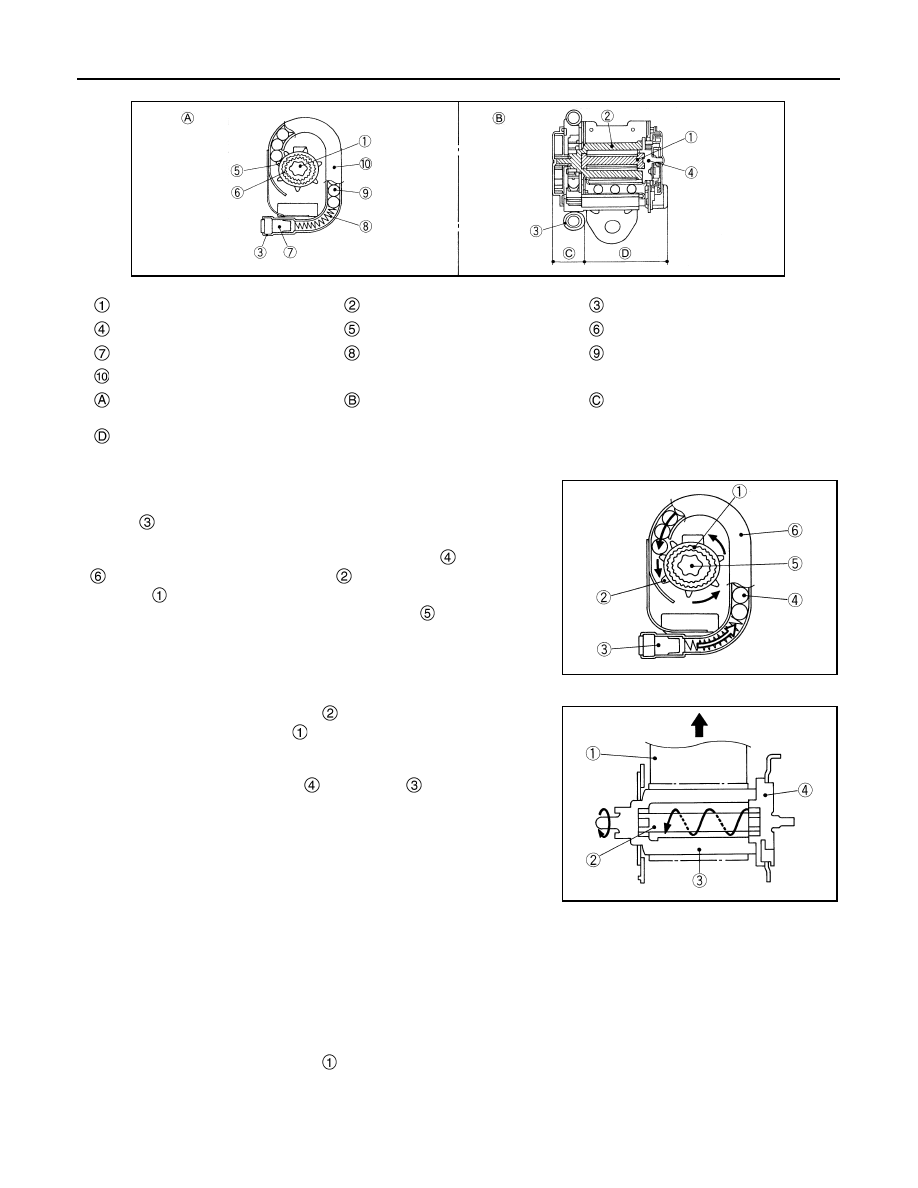

• In a frontal collision that exceeds the specified limit, air bag sensor

unit detects the collision, transmits an electrical signal to gas gen-
erator

 in manifold case, and activates gas generator. Gas is

generated.

• The pressure of the generated gas moves the ball

 inside of pipe

. The ball then presses ring gear

 which is engaged to the pin-

ion gear

• The rotation of the ring gear rotates the shaft

 in the retracting

direction of the seat belt. Seat belt is retracted.

LOAD LIMITER (ELR) MECHANISM

• In a collision, when ELR shaft

 is locked, a load caused by

impact is applied to webbing

• When a load is continuously applied to webbing and reaches or

exceeds the specified level, a rotating force is applied to ELR shaft
that is engaged to lock portion

 and bobbin

. ELR shaft twists.

• As ELR shaft is twisted, webbing is pulled out while keeping a cer-

tain level of tension and easing the impact to the chest of front seat
passenger.

Double pre-tensioner seat belt

INFOID:0000000010513118

DESCRIPTION

The system combines lap pre-tensioner mechanism for lumbar seat belt and pre-tensioner seat belt with load
limiter. The system upgrades passenger restraint by reducing lumbar movement during a frontal collision.

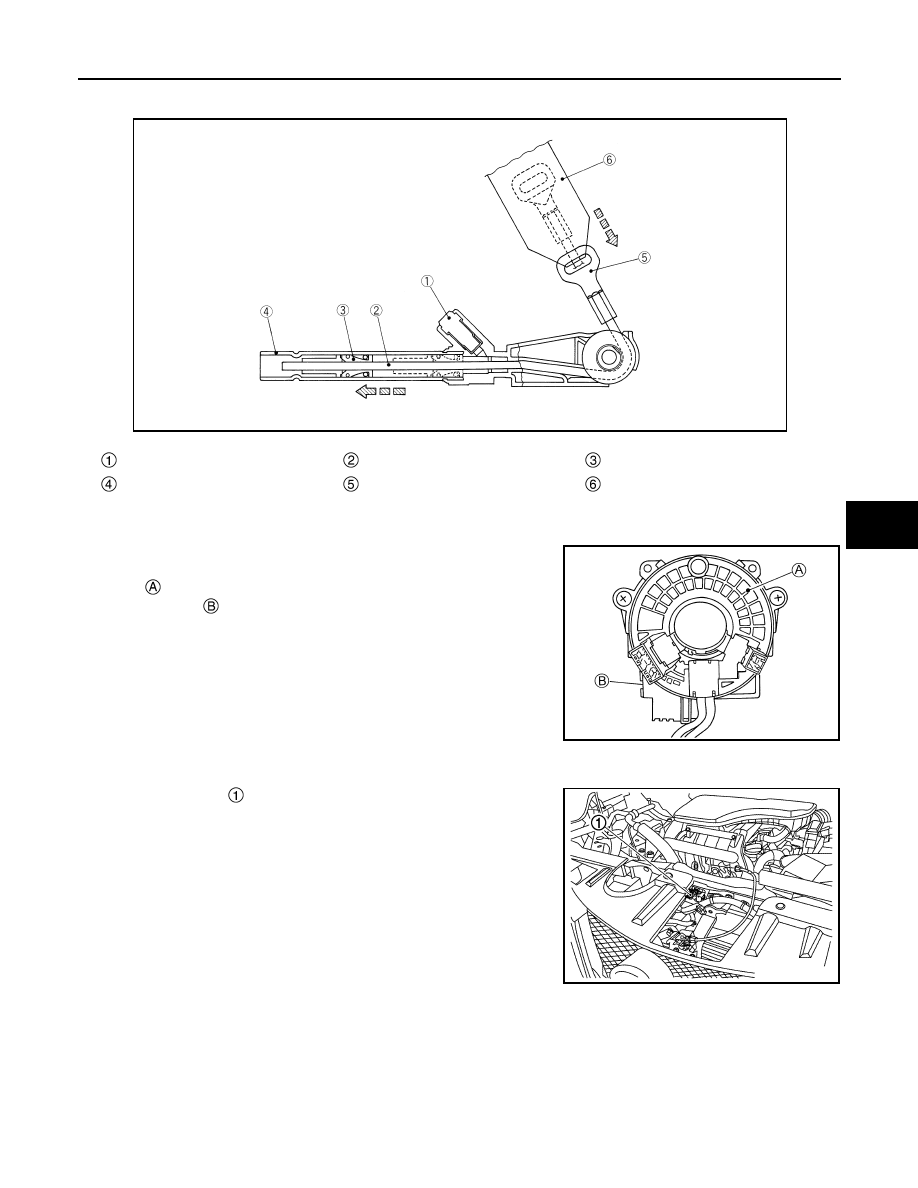

LAP PRE-TENSIONER MECHANISM

• In a frontal collision that exceeds the specified limit, air bag sensor unit detects the collision, transmits an

electrical signal to gas generator

 in pipe, and activates gas generator. Gas is generated. The pressure of

the generated gas moves the piston inside of pipe toward pipe front direction, and retracts wire.

• Lap anchor is installed to end of the wire and end of seat belt is connected to lap anchor. The wire therefore

retracts seat belt.

ELR shaft (torsion bar)

Bobbin

Manihold case

Lock portion

Ring gear

Pinion gear

Gas generator

Spring

Ball

Pipe

Pre-tensioner mechanism cross sec-
tion

ELR mechanism portion cross sec-
tion

Pre-tensioner mechanism portion

Load limiter portion

JMHIA0167ZZ

JMHIA0168ZZ

JMHIA0169ZZ

COMPONENT PARTS

SRC-11

< SYSTEM DESCRIPTION >

C

D

E

F

G

I

J

K

L

M

A

B

SRC

N

O

P

• When piston stops, clutch mechanism integrated to piston prevents piston from moving in the original direc-

tion. Wire and lap anchor therefore remain in the retracted status.

Spiral cable

INFOID:0000000010513112

• Spiral cable electrically connects air bag diagnosis sensor unit and

driver air bag module. Spiral cable mainly consists of the rotating
portion

 which performs the same movement as steering wheel,

the fixed case

 which is installed on steering wheel, and the

cable which connects the rotating portion.

• Spiral cable is built into steering angle sensor which is installed to

a space between combination switch and steering wheel.

Crash zone sensor

INFOID:0000000010513113

• Crush zone sensor

 is located in front of the radiator. Crash zone

sensor integrates frontal collision “G” sensor which detects frontal
collision impact that exceeds the specified limit of the vehicle.

• In a frontal collision that exceeds the specified limit of the vehicle,

crush zone sensor detects impact. If frontal collision safing sensor
in air bag diagnosis sensor unit judges that impact is due to a colli-
sion, driver air bag, passenger air bag and seat belt pre-tensioner
operate.

Gas generator

Wire

Piston

Pipe

Lap anchor

Seat belt

PHIA1226J

NNHIA0038ZZ

JMHIA2871ZZ

SRC-12

< SYSTEM DESCRIPTION >

COMPONENT PARTS

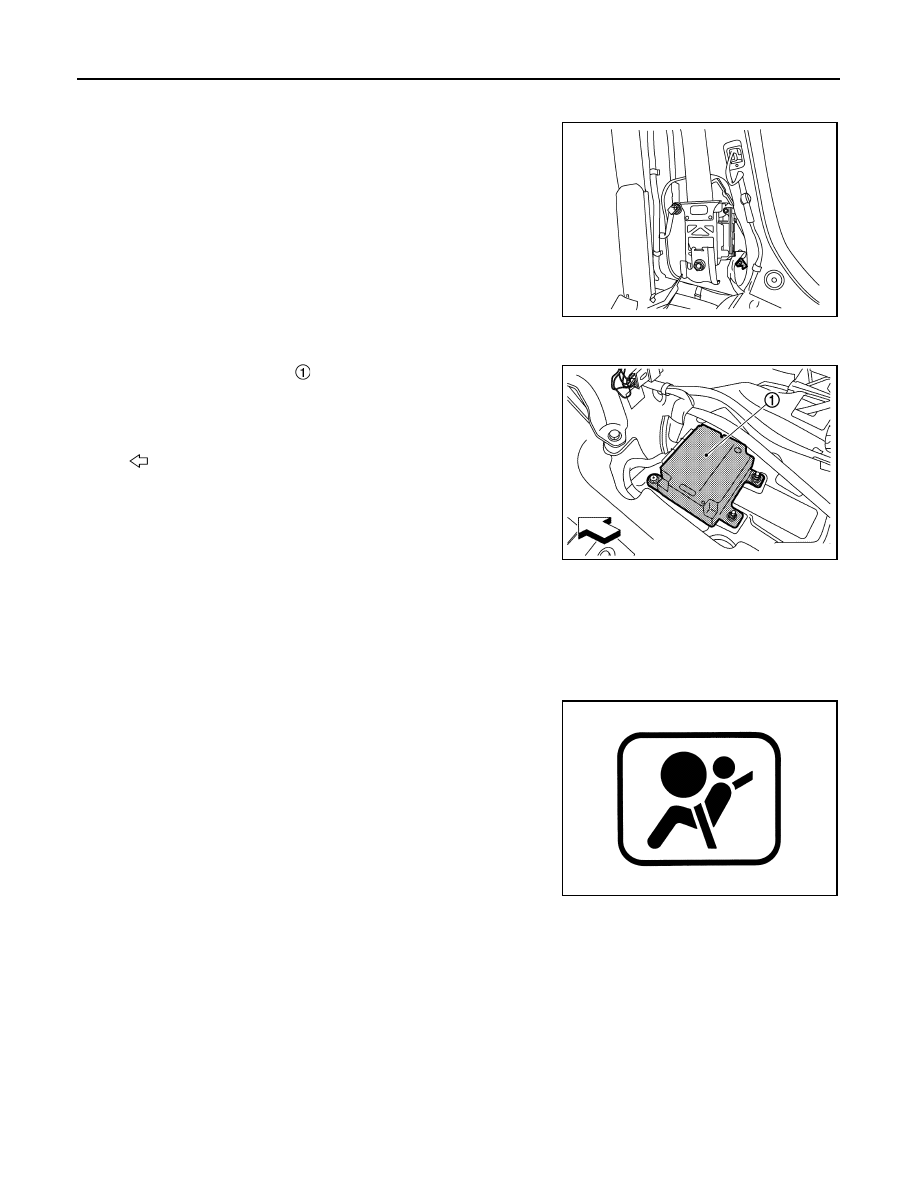

Satellite sensor

INFOID:0000000010513114

• Satellite sensor in installed to center pillar lower portion of front

seat belt retractor front side.

• Satellite sensor integrates lateral collision “G” sensor which

detects lateral collision impact that exceeds the specified limit of
the vehicle. (Lateral collision “G” sensor adopts electronic sensor
of which operating principles are the same as those of frontal colli-
sion “G” sensor in air bag diagnosis sensor unit.)

• In a lateral collision that exceeds the specified limit of the vehicle,

satellite sensor detects impact. If lateral collision safing sensor in
air bag diagnosis sensor unit judges that impact is due to a colli-
sion, side air bag and curtain air bag operate.

Air bag diagnosis sensor unit

INFOID:0000000010513115

• Air bag diagnosis sensor unit

 is installed to front seat center por-

tion (under center console). Air bag diagnosis sensor unit inte-
grates control functions of driver air bag, passenger air bag, side
air bag, curtain air bag, and seat belt pre-tensioner.

• Air bag diagnosis sensor unit integrates frontal collision “G” sensor,

frontal collision safing sensor, and lateral collision safing sensor
(only for models with curtain air bag).

• Air bag diagnosis sensor unit has a function that judges impact due

to frontal and lateral collisions exceeding the specified limit of the
vehicle. Air bag diagnosis sensor unit also has an auxiliary power
supply function that supplements battery power supply in the event battery is damaged in a collision.

• Air bag diagnosis sensor unit diagnoses electric system of entire system. Self-diagnosis function is adopted,

which indicates system malfunction by turning ON air bag warning lamp on combination meter when a mal-
function is detected. Diagnosis using CONSULT is possible.

Air bag warning lamp

INFOID:0000000010513116

• Air bag warning lamp turns ON indicating a system malfunction

when a malfunction is detected for electric system of SRS air bag
system and seat belt pre-tensioner system.

• For operation check purposes, air bag warning lamp turns ON for 7

seconds after power switch is turned ON. During this period of
time, air bag diagnosis sensor unit performs system diagnosis.

• Air bag warning lamp indicates self-diagnosis result according to

the number of times it blinks. (in diagnosis mode)
NOTE:
SRS air bag and seat belt pre-tensioner do not operate for approx-
imately 7 seconds (air bag warning lamp is turning ON or blinking)
after power switch is turned ON.

AWHIA0627ZZ

: Vehicle front

JMHIA2873ZZ

BF-1845D

COMPONENT PARTS

SRC-13

< SYSTEM DESCRIPTION >

C

D

E

F

G

I

J

K

L

M

A

B

SRC

N

O

P

Front Passenger Air Bag Off Indicator

INFOID:0000000010435464

Front passenger air bag OFF indicator turns ON when turning air
bag cutoff switch OFF position.

Front Passenger Air Bag On Indicator

INFOID:0000000010435465

Front passenger air bag ON indicator turns ON when turning air bag
cutoff switch ON position.

JSHIA0048ZZ

JSHIA0049ZZ
