Nissan Qashqai J11. Manual - part 27





OIL PAN (LOWER)

EM-47

< REMOVAL AND INSTALLATION >

[HRA2DDT]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

a.

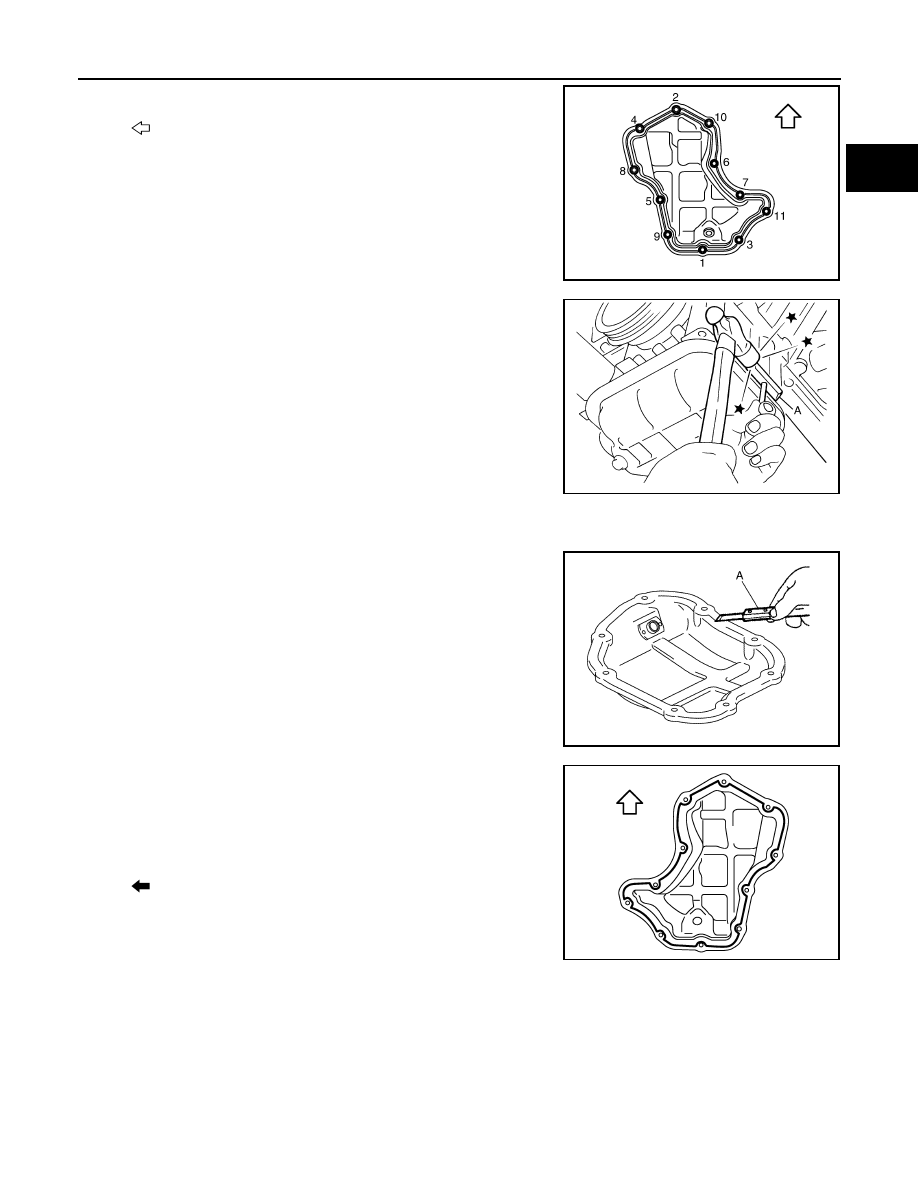

Loosen mounting bolts in reverse order as shown in the figure.

b.

Insert seal cutter [SST: KV10111100] (A) between oil pan (upper)
and oil pan (lower).

CAUTION:

• Be careful not to damage the mating surface.
• Never insert a screwdriver. This damages the mating sur-

faces.

c.

Slide the seal cutter [SST: KV10111100] by tapping on the side
of tool with a hammer.

d.

Remove oil pan (lower).

INSTALLATION

1.

Install oil pan (lower) as follows:

a.

Use a scraper (A) to remove old liquid gasket from mating sur-
faces.
• Also remove old liquid gasket from mating surface of oil pan

(upper).

• Remove old liquid gasket from the bolt holes and threads.

CAUTION:

Never scratch or damage the mating surface when cleaning
off old liquid gasket.

b.

Apply a continuous bead of liquid gasket (B) with a tube presser
(commercial service tool) as shown in the figure.

Use Genuine Liquid Gasket or equivalent.

CAUTION:

Attaching should be done within 5 minutes after liquid gas-
ket application.

: Engine front

E1BIA1041ZZ

JPBIA0276ZZ

JPBIA4745ZZ

a

: 7.5 - 9.5 mm (0.295 - 0.374 in)

c

φ

4.0 - 5.0 mm (0.157 - 0.197 in)

1

: Oil pan (lower)

: Engine outside

E1BIA1040ZZ

EM-48

< REMOVAL AND INSTALLATION >

[HRA2DDT]

OIL PAN (LOWER)

c.

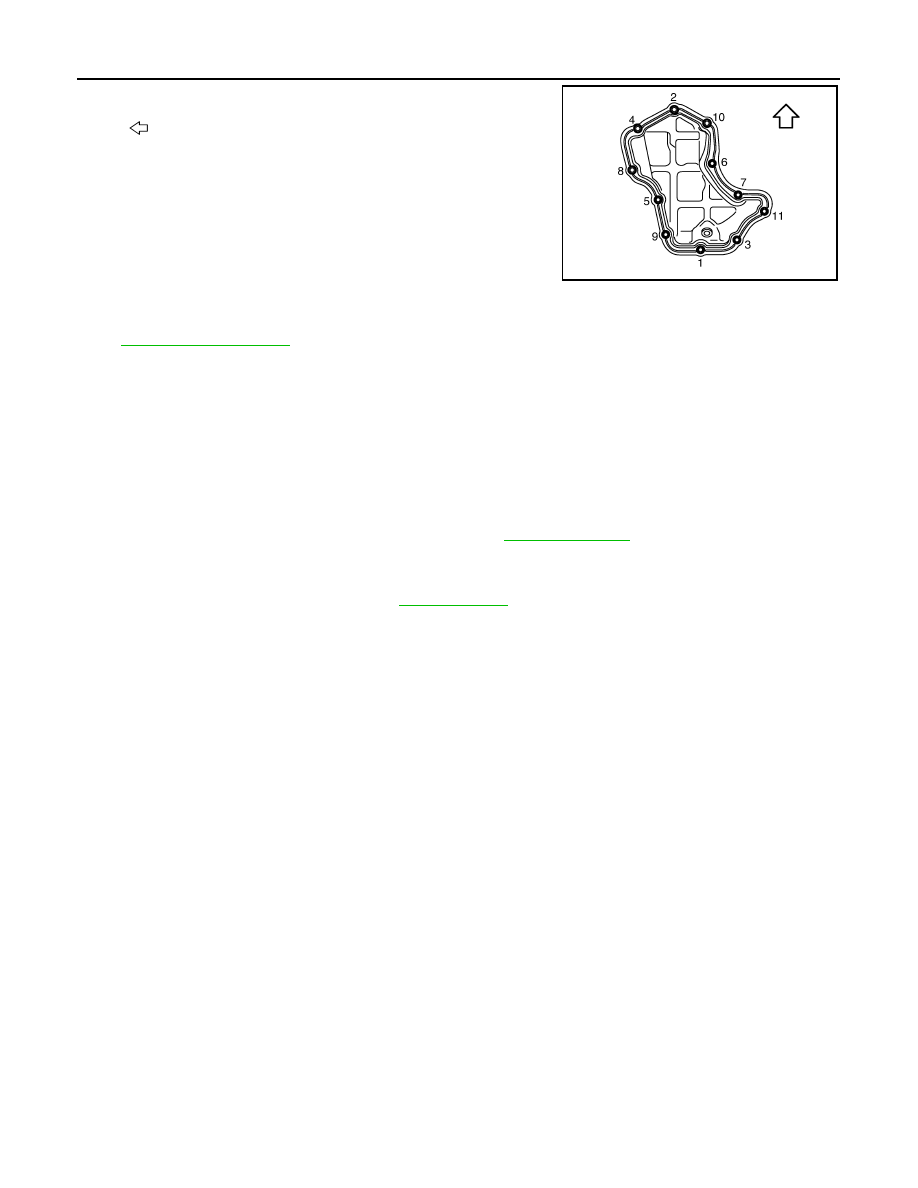

Tighten bolts in numerical order as shown in the figure.

2.

Install oil pan drain plug.
• Refer to the figure of components of former page for installation direction of drain plug washer. Refer to

EM-46, "Exploded View"

.

3.

Install in the reverse order of removal after this step.
NOTE:
Wait at last 30 minutes after oil pan (lower) is installed before pouring engine oil.

Inspection

INFOID:0000000010282225

INSPECTION AFTER REMOVAL

Clean oil strainer if any object attached.

INSPECTION AFTER INSTALLATION

1.

Check the engine oil level and adjust engine oil. Refer to

LU-8, "Inspection"

.

2.

Start engine, and check there is no leakage of engine oil.

3.

Stop engine and wait for 10 minutes.

4.

Check the engine oil level again. Refer to

LU-9, "Refilling"

.

: Engine front

E1BIA1041ZZ

IGNITION COIL, SPARK PLUG AND ROCKER COVER

EM-49

< REMOVAL AND INSTALLATION >

[HRA2DDT]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

IGNITION COIL, SPARK PLUG AND ROCKER COVER

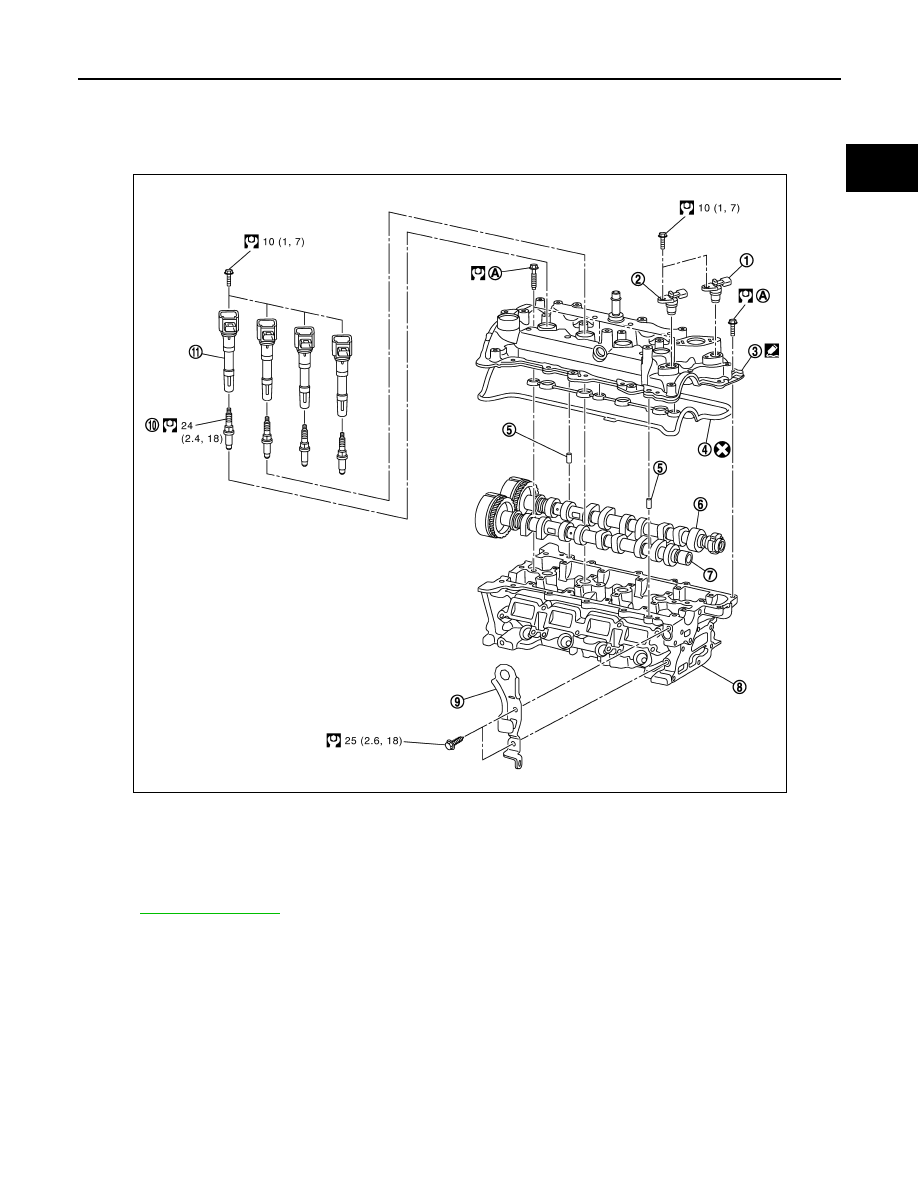

Exploded View

INFOID:0000000010282226

Refer to

GI-4, "Components"

 for symbol marks in the figure.

Removal and Installation

INFOID:0000000010282227

REMOVAL

1.

Camshaft position sensor (EXH)

2.

Camshaft position sensor (INT)

3.

Rocker cover

4.

Rocker cover gasket

5.

Dowel pin

6.

Camshaft (EXH)

7.

Camshaft (INT)

8.

Cylinder head

9.

Engine slinger

10.

Spark plug

11.

Ignition coil

E1BIA1014GB

EM-50

< REMOVAL AND INSTALLATION >

[HRA2DDT]

IGNITION COIL, SPARK PLUG AND ROCKER COVER

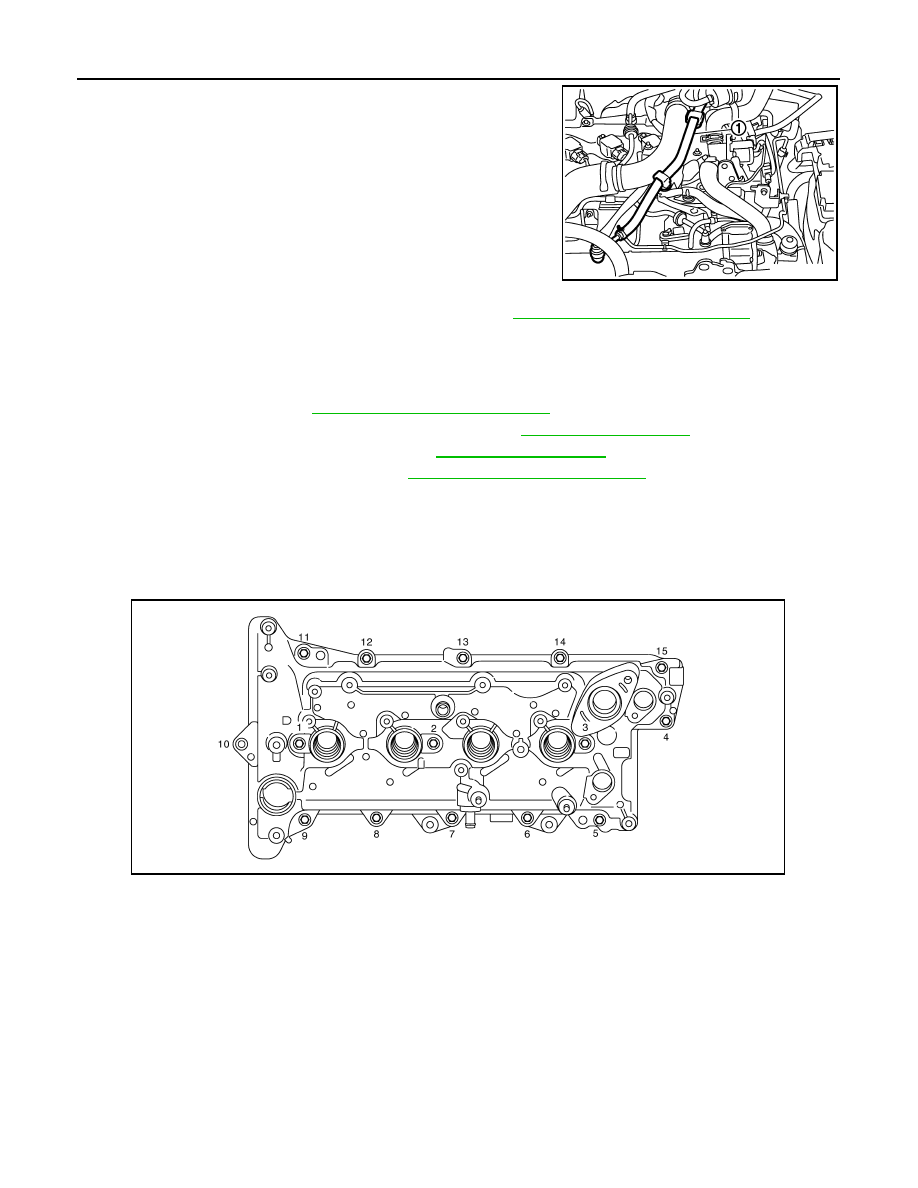

1.

Remove brake booster hose (1).

2.

Remove air inlet hose and electric blow off valve. Refer to

EM-27, "Removal and Installation"

.

3.

Remove ignition coil.

CAUTION:

• Never drop or shock ignition coil.
• Never disassemble ignition coil.

4.

Remove spark plug. Refer to

EM-20, "Removal and Installation"

.

5.

Remove camshaft position sensor (INT and EXH). Refer to

EM-49, "Exploded View"

.

6.

Remove PCV hose from rocker cover. Refer to

EM-25, "Exploded View"

.

7.

Remove high pressure fuel pump. Refer to

EM-38, "Removal and Installation"

.

8.

Remove turbocharger heat shield.

9.

Disconnect and unclip A/F sensors harness.

10. Remove rocker cover.

• Loosen bolts in reverse order as shown in the figure.

NOTE:
Rocker cover bolts are not same, mark their positions.

11. Remove rocker cover gasket from rocker cover.
12. Use scraper to remove all traces of liquid gasket from cylinder head and front cover.

CAUTION:

Never scratch or damage the mating surface when cleaning off old liquid gasket.

INSTALLATION

1.

Rocker cover with the following procedure:

E1BIA1035ZZ

E1BIA1030ZZ
