MWI-18

< SYSTEM DESCRIPTION >

SYSTEM

NOTE:

• Current fuel consumption on the information display is updated approximately every 0.5 seconds.

• Current fuel consumption on the information display shows 0 l/100km (0 mpg) when vehicle speed is 0 km/h

(0 MPH).

Average Fuel Consumption

The combination meter calculates average fuel consumption based on the following signals, and the calcu-

lated value is displayed on the information display.

NOTE:

• Average fuel consumption on the information display is updated approximately every 30 seconds.

• Soon after a reset or when the ignition switch is turned ON right after battery removal and installation, “

−−−”

is displayed until after a travel of 30 seconds and approximately 500 m (0.31 mile).

Distance to Empty

The combination meter calculates distance to empty based on the following signals, and the calculated value

is displayed on the information display.

NOTE:

• Distance to empty on the information display is updated approximately every 30 seconds.

• When the ignition switch is turned ON right after battery removal and installation, “

−−−” is displayed until after

a travel of 30 seconds.

• The indicated values may not match each other when refueling with the ignition switch ON.

Torque Distribution Indicator

Refer to

DLN-12, "Torque Distribution Indicator"

.

INTERRUPT INDICATION

• The combination meter displays an interrupt regarding a warning, alert, and maintenance on the information

display, based on signals received from each unit and switch.

• When conditions are satisfied, the normal screen switches to a warning screen to display an interrupt.

Meter Illumination Level

The combination meter displays the illuminance level of the back light on the information display by turning the

meter control switch.

Fuel Filler Cap Warning

Signal name

Signal path

Ignition signal

—

Fuel consumption monitor signal

ECM

Combination

meter

Vehicle speed signal

ABS actuator and electric unit (control unit)

 Combination meter

Signal name

Signal path

Ignition signal

—

Fuel consumption monitor signal

ECM

Combination

meter

Vehicle speed signal

ABS actuator and electric unit (control unit)

 Combination meter

Signal name

Signal path

Ignition signal

—

Fuel level sensor signal

Fuel level sensor unit

 Combination meter

Fuel consumption monitor signal

ECM

Combination

meter

Vehicle speed signal

ABS actuator and electric unit (control unit)

 Combination meter

MWI

SYSTEM

MWI-19

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

• The combination meter judges showing/hiding of “fuel filler cap warning”, according to the signals below:

• For further information, refer to

EC-62, "FUEL FILLER CAP WARNING SYSTEM : System Description"

 (MR

FOR NISMO RS MODELS) or

EC-652, "FUEL FILLER CAP WARNING SYSTEM : System Description"

 (MR

EXCEPT FOR NISMO RS MODELS).

Low Tire Pressure Warning

• The combination meter judges showing/hiding of “low tire pressure warning”, according to the signals below:

• For further information, refer to

WT-8, "System Description"

.

Signal name

Signal path

Ignition signal

—

Fuel filler cap warning display signal

ECM

 Combination meter

Signal name

Signal Path

Ignition signal

—

Low tire pressure warning lamp signal

BCM

Combination

meter

MWI-20

< SYSTEM DESCRIPTION >

OPERATION

OPERATION

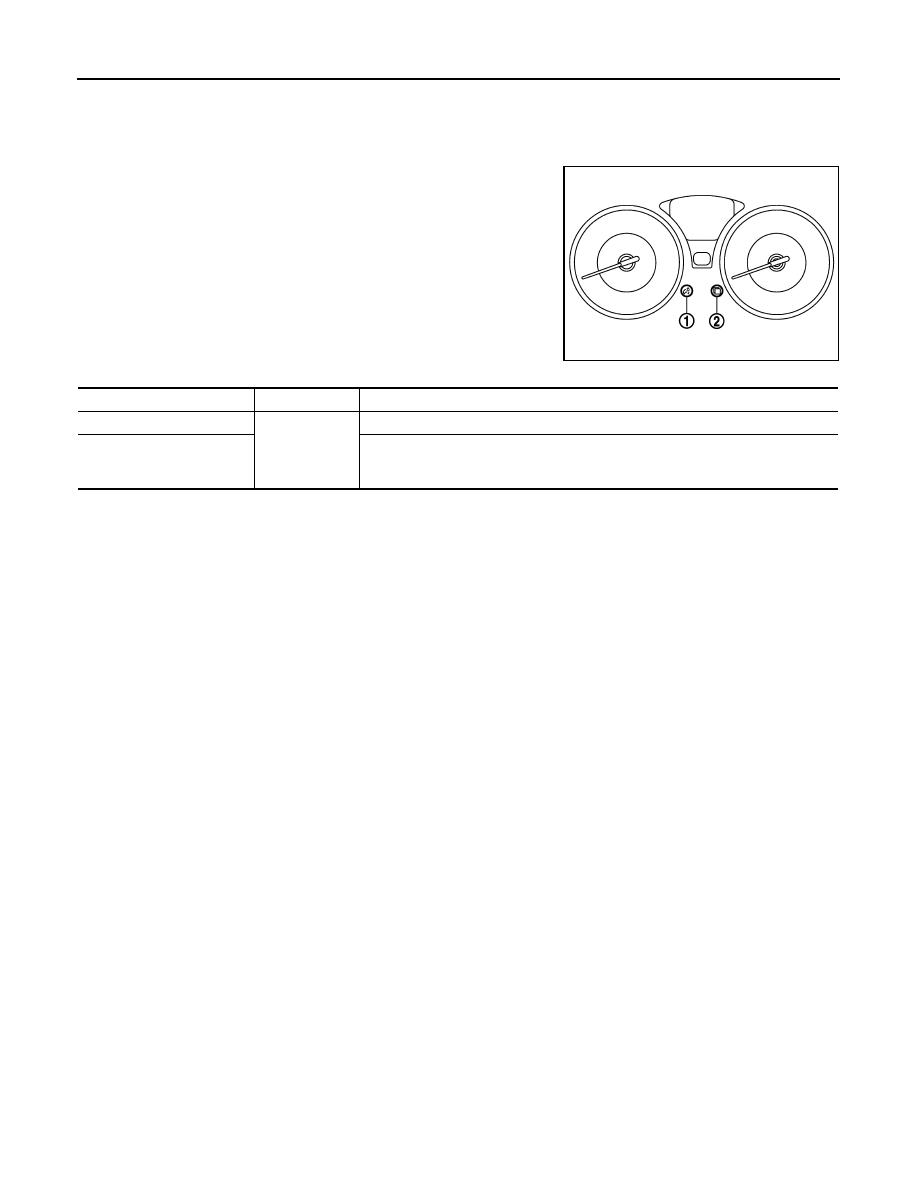

Switch Name and Function

INFOID:0000000012201312

JSNIA3203ZZ

Switch name

Operation

Description

Illumination control switch (1)

Press

An illuminance level of the back light of the combination meter can be adjusted.

Meter control switch (2)

• The information display screen can be switched.
• An indicated value of the trip computer can be reset by pressing and holding the

meter control switch.

MWI

DIAGNOSIS SYSTEM (COMBINATION METER)

MWI-21

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

DIAGNOSIS SYSTEM (COMBINATION METER)

On Board Diagnosis Function

INFOID:0000000012201313

ON BOARD DIAGNOSIS ITEM

The combination meter allows the following diagnosis items with the on-board diagnosis function.

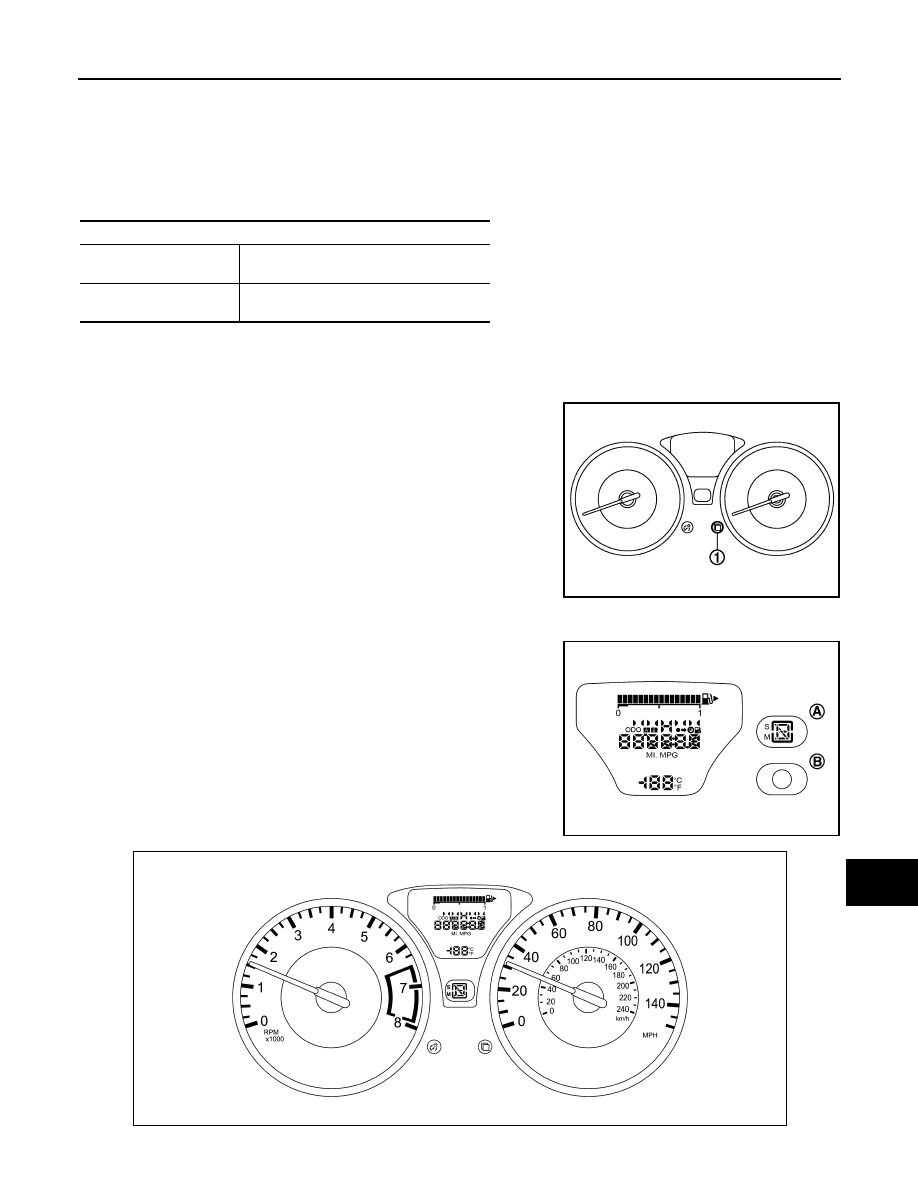

METHOD OF STARTING

1. Turn ignition switch ON, and switch the trip meter to “trip A” or “trip B”.
2. Turn ignition switch OFF.
3. While pressing the meter control switch (1), turn ignition switch

ON.

4. Make sure that the trip meter displays “0000.0”.
5. Press the meter control switch at least 3 times. (Within 7 sec-

onds after the ignition switch is turned ON.)

6. The combination meter is turned to self-diagnosis mode.

All of the segments of fuel gauge, odo/trip meter, shift position

indicator (A) for CVT models and information display illuminate.

NOTE:

• Check combination meter power supply and ground circuit

when the self-diagnosis mode of the combination meter does

not start. Replace combination meter if power supply and

ground circuit are normal.

• If any of the dots are not displayed, replace combination

meter.

• For M/T models, start-up lamp (B) illuminate instead of shift

position indicator.

7. Each meter activates by pressing the meter control switch.

NOTE:

Diagnosis item

Drive circuit check

• Speedometer
• Tachometer

LCD (liquid crystal dis-
play) check

Information display

JSNIA3204ZZ

JSNIA8952ZZ

JSNIA8953ZZ
