• Turbocharger cooling pump may operate in a few minutes after the ignition switch is turned OFF.

• Example of high-load driving

- Driving for 30 minutes or more at 140 km/h (86 MPH) or more.

- Driving for 30 minutes or more on a steep slope.

• For vehicles with the 2-batteries, be sure to connect the main battery and the sub battery before turning ON

the ignition switch.

NOTE:

If the ignition switch is turned ON with any one of the terminals of main battery and sub battery discon-

nected, then DTC may be detected.

• After installing the 12V battery, always check "Self Diagnosis Result" of all ECUs and erase DTC.

NOTE:

The removal of 12V battery may cause a DTC detection error.

MIR-4

< PREPARATION >

PREPARATION

PREPARATION

PREPARATION

Commercial Service Tools

INFOID:0000000012201500

Tool name

Description

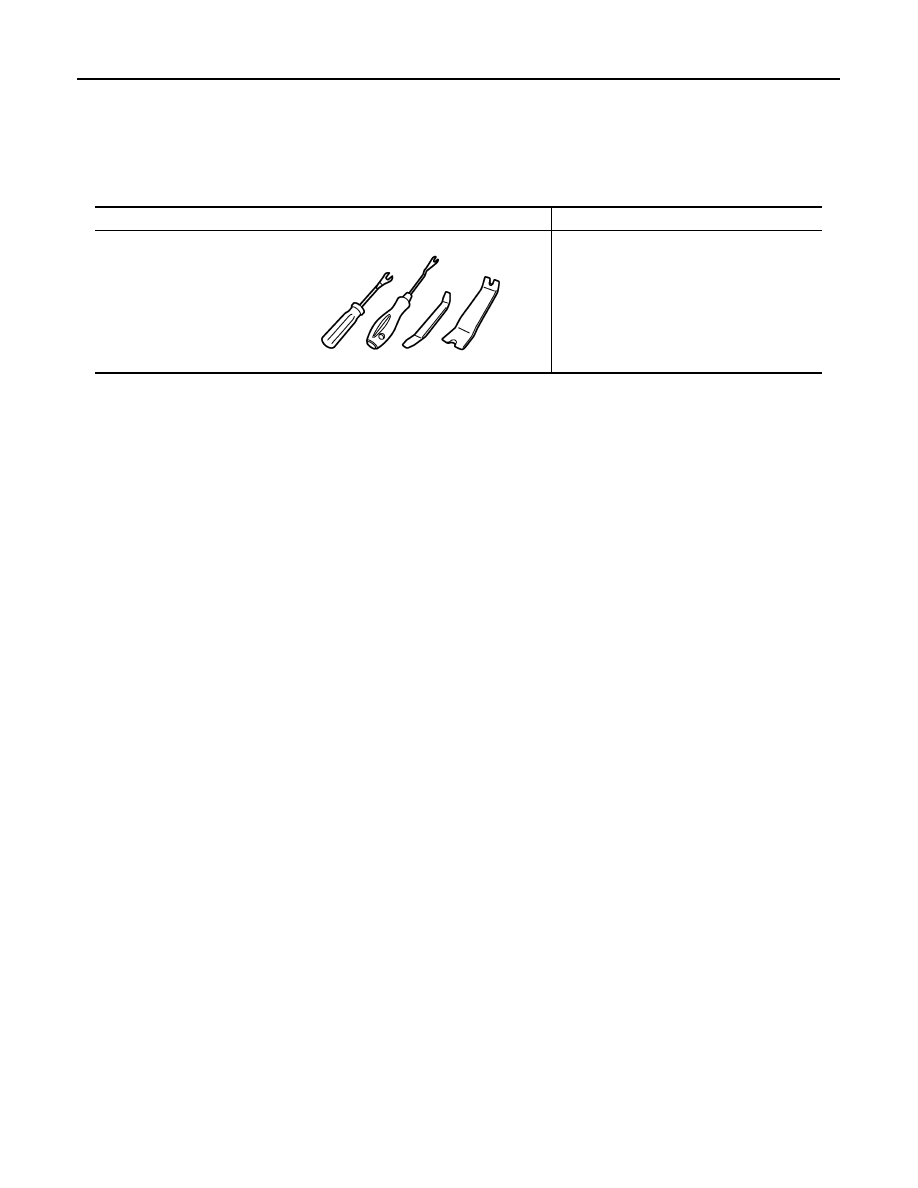

Remover tool

Removes the clips, pawls and metal clips

JMKIA3050ZZ

COMPONENT PARTS

MIR-5

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

M

A

B

MIR

N

O

P

SYSTEM DESCRIPTION

COMPONENT PARTS

Component Description

INFOID:0000000012201501

Item

Function

Door mirror remote control switch (mir-
ror switch)

It supplies power to mirror motor through mirror switch and changeover switch.

Door mirror remote control switch
(changeover switch)

It transmits the LH/RH control of door mirror that supplies power.

Door mirror motor

It makes mirror face operate from side to side and up and down via integrated motor.

MIR-6

< WIRING DIAGRAM >

DOOR MIRROR SYSTEM

WIRING DIAGRAM

DOOR MIRROR SYSTEM

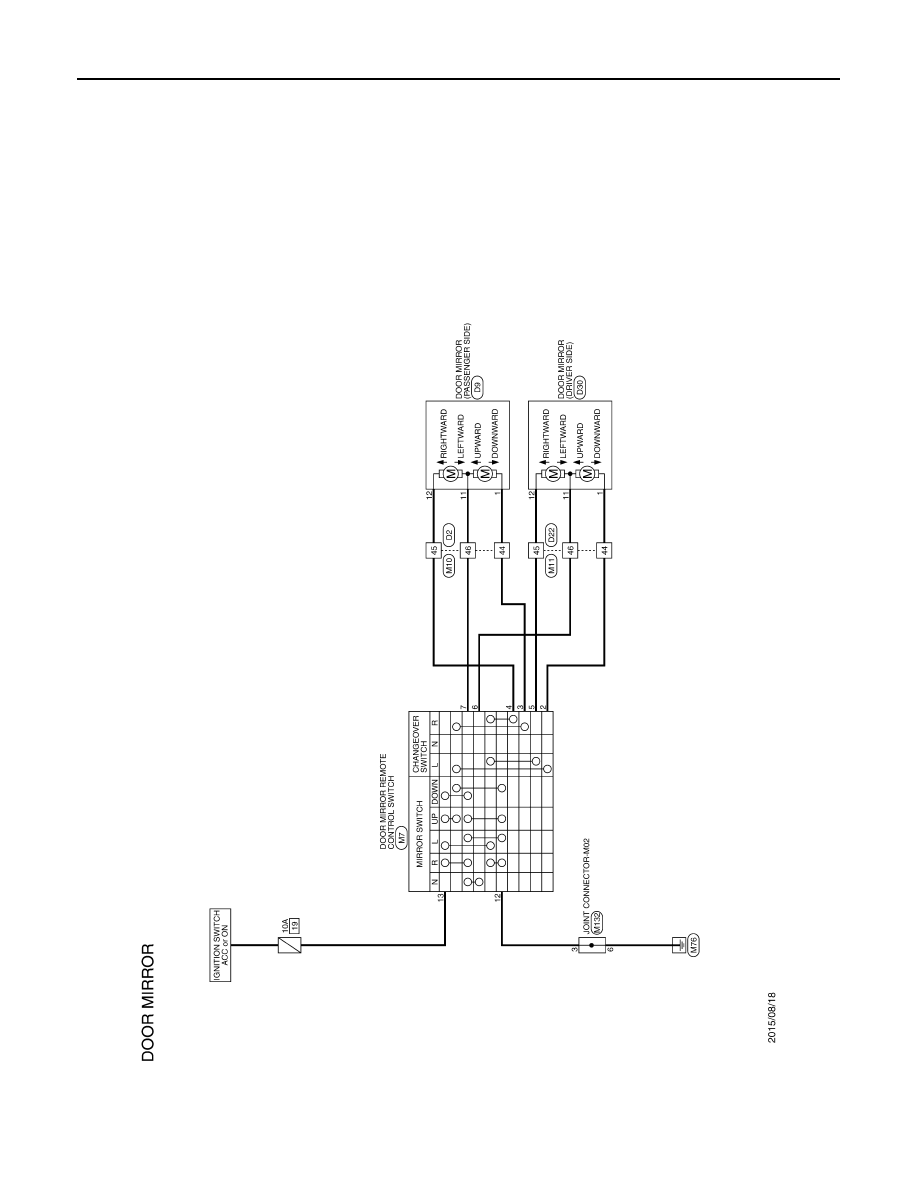

Wiring Diagram

INFOID:0000000012201502

JRLWF5308GB
