DOOR MIRROR SYSTEM

MIR-7

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

M

A

B

MIR

N

O

P

JRLWF5309GB

MIR-8

< WIRING DIAGRAM >

DOOR MIRROR SYSTEM

JRLWF5310GB

DOOR MIRROR REMOTE CONTROL SWITCH (MIRROR SWITCH/

CHANGEOVER SWITCH)

MIR-9

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

MIR

N

O

P

DTC/CIRCUIT DIAGNOSIS

DOOR MIRROR REMOTE CONTROL SWITCH (MIRROR SWITCH/
CHANGEOVER SWITCH)

Component Inspection

INFOID:0000000012201503

1.

CHECK MIRROR SWITCH & CHANGEOVER SWITCH

1. Turn ignition switch OFF.

2. Disconnect door mirror remote control switch connector.

3. Check door mirror remote control switch.

Is the inspection result normal?

YES

>> INSPECTION END.

NO

>> Replace door mirror remote control switch. Refer to

MIR-21, "Removal and Installation"

.

Door mirror remote control switch

condition

Continuity

Terminal

Change over

switch

Mirror switch

Driver side

13

6

LEFT

RIGHT

Existed

12

5

13

5

LEFT

12

6

13

2

UP

12

6

13

6

DOWN

12

2

Passenger side

13

7

RIGHT

RIGHT

12

4

13

4

LEFT

12

7

13

3

UP

12

7

13

7

DOWN

12

3

MIR-10

< SYMPTOM DIAGNOSIS >

SQUEAK AND RATTLE TROUBLE DIAGNOSES

SYMPTOM DIAGNOSIS

SQUEAK AND RATTLE TROUBLE DIAGNOSES

Work Flow

INFOID:0000000012201504

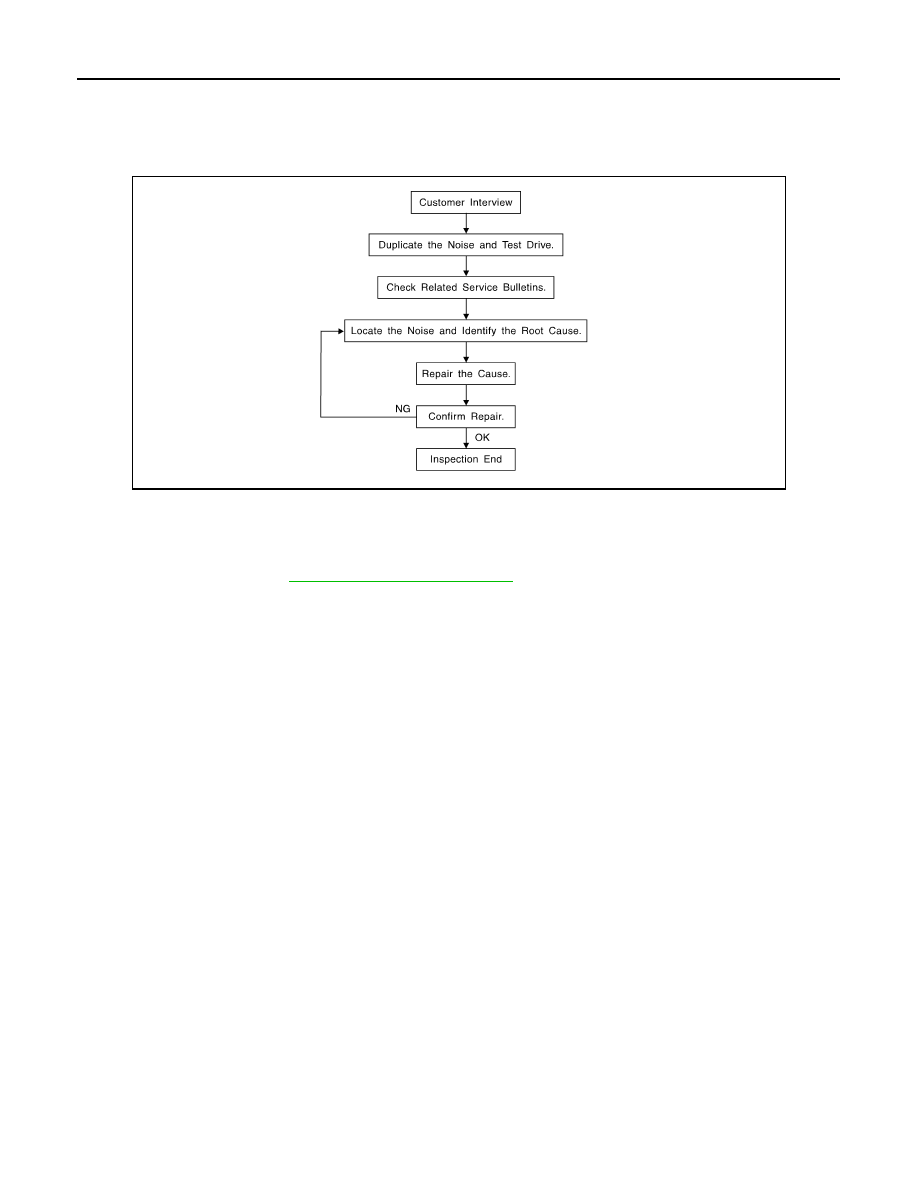

CUSTOMER INTERVIEW

Interview the customer if possible, to determine the conditions that exist when the noise occurs. Use the Diag-

nostic Worksheet during the interview to document the facts and conditions when the noise occurs and any

customer comments. Refer to

MIR-14, "Diagnostic Worksheet"

. This information is necessary to duplicate the

conditions that exist when the noise occurs.

• The customer may not be able to provide a detailed description or the location of the noise. Attempt to obtain

all the facts and conditions that exist when the noise occurs (or does not occur).

• If there is more than one noise in the vehicle, perform a diagnosis and repair the noise that the customer is

concerned about. This can be accomplished by performing a test drive with the customer.

• After identifying the type of noise, isolate the noise in terms of its characteristics. The noise characteristics

are provided so that the customer, service adviser, and technician use the same language when describing

the noise.

• Squeak – (Like tennis shoes on a clean floor)

Squeak characteristics include the light contact / fast movement / brought on by road conditions / hard sur-

faces = high-pitched noise / softer surfaces = low-pitched noises / edge to surface = chirping

• Creak – (Like walking on an old wooden floor)

Creak characteristics include firm contact / slow movement/twisting with a rotational movement / pitch

dependent on materials / often brought on by activity.

• Rattle – (Like shaking a baby rattle)

Rattle characteristics include fast repeated contact / vibration or similar movement / loose parts/missing clip

or fastener / incorrect clearance.

• Knock – (Like a knock on a door)

Knock characteristics include hollow sounds / sometimes repeating / often brought on by driver action.

• Tick – (Like a clock second hand)

Tick characteristics include gentle contacting of light materials / loose components / can be caused by driver

action or road conditions.

• Thump – (Heavy, muffled knock noise)

Thump characteristics include softer knock / dull sounds often brought on by activity.

• Buzz – (Like a bumblebee)

Buzz characteristics include high frequency rattle / firm contact.

• Often the degree of acceptable noise level varies depending upon the person. A noise that a technician may

judge as acceptable may be very irritating to a customer.

• Weather conditions, especially humidity and temperature, may have a great effect on noise level.

DUPLICATE THE NOISE AND TEST DRIVE

SBT842
