MA-44

< PERIODIC MAINTENANCE >

CHASSIS MAINTENANCE

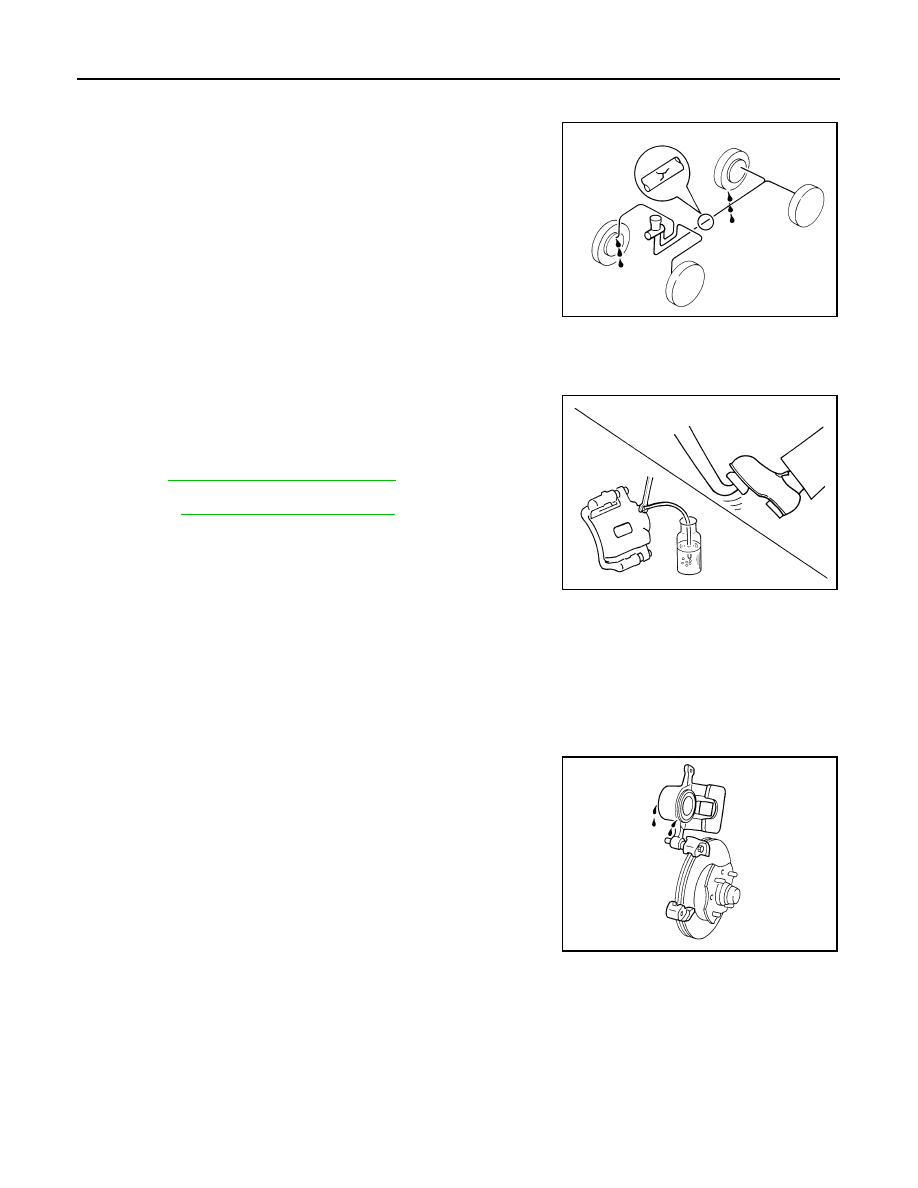

BRAKE LINES AND CABLES : Inspection

INFOID:0000000012200234

• Check brake fluid lines and parking brake cables for improper

attachment, leaks, chafing, abrasions, deterioration, etc.

BRAKE FLUID
BRAKE FLUID : Changing

INFOID:0000000012200235

1. Drain brake fluid from each bleed valve.
2. Refill until new brake fluid comes out from each bleed valve.

Use same procedure as in bleeding hydraulic system to refill

brake fluid.

Refer to

BR-13, "Bleeding Brake System"

• Refill with recommended brake fluid.

Refer to

MA-11, "Fluids and Lubricants"

• Never reuse drained brake fluid.

• Be careful not to splash brake fluid on painted areas.

DISC BRAKE
DISC BRAKE : Inspection

INFOID:0000000012200236

DISC ROTOR

Check condition, wear, and damage.

CALIPER

• Check for leakage.

BRAKE PAD

SBR389C

SBR419C

SMA922A

CHASSIS MAINTENANCE

MA-45

< PERIODIC MAINTENANCE >

• Check for wear or damage.

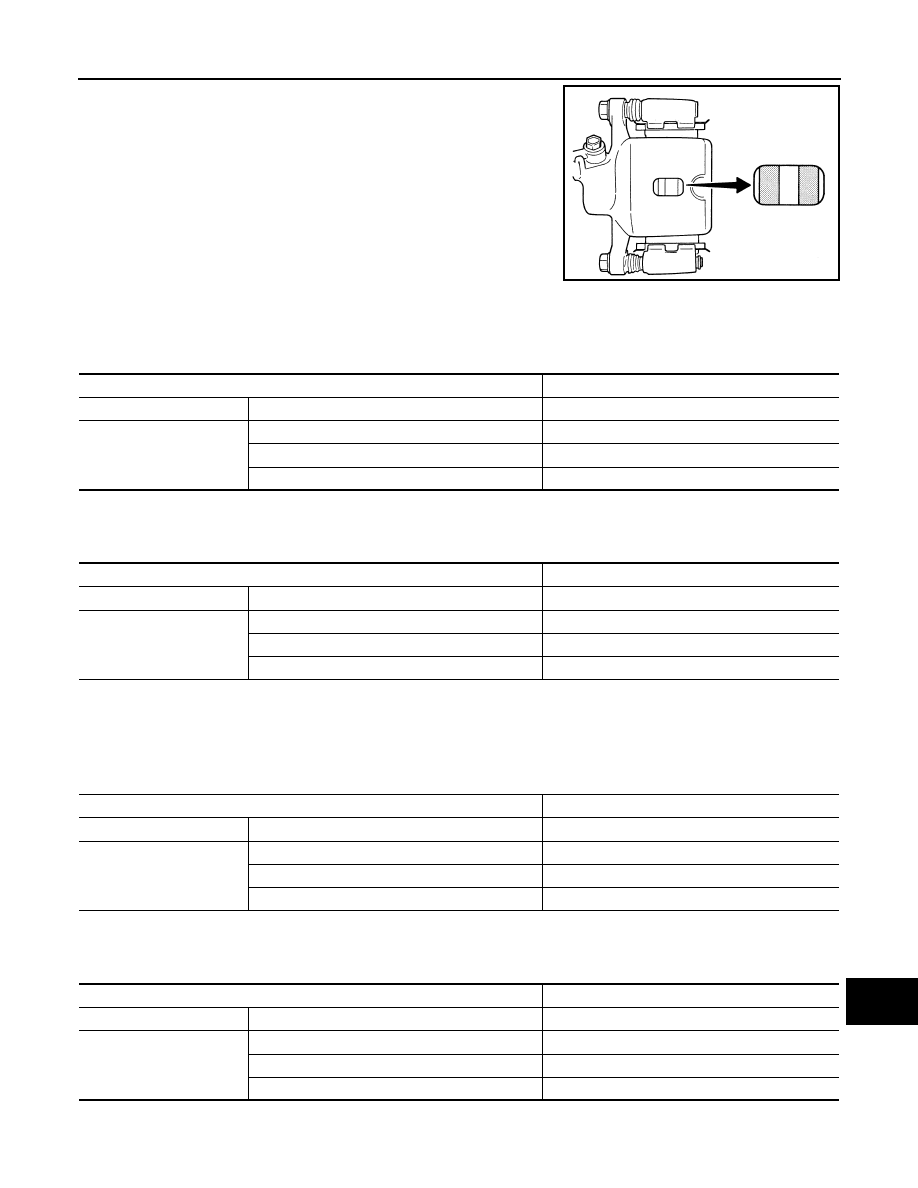

DISC BRAKE : Front Disc Brake

INFOID:0000000013001851

EXCEPT NISMO RS

Unit: mm (in)

*To check if rotor imbalance, rotor runout deformation is occured.

NISMO RS

Unit: mm (in)

*To check if rotor imbalance, rotor runout deformation is occured.

DISC BRAKE : Rear Disc Brake

INFOID:0000000013001852

EXCEPT NISMO RS

Unit: mm (in)

*To check if rotor imbalance, rotor runout deformation is occured.

NISMO RS

Unit: mm (in)

*To check if rotor imbalance, rotor runout deformation is occured.

STEERING GEAR AND LINKAGE

BRA0010D

Item

Limit

Brake pad

Wear thickness

2.0 (0.079)

Disc rotor

Wear thickness

24.0 (0.945)

Thickness variation (measured at 8 positions)*

0.008 (0.0003)

Runout (with it attached to the vehicle)

0.035 (0.0014)

Item

Limit

Brake pad

Wear thickness

2.0 (0.079)

Disc rotor

Wear thickness

26.0 (1.024)

Thickness variation (measured at 8 positions)*

0.008 (0.0003)

Runout (with it attached to the vehicle)

0.035 (0.0014)

Item

Limit

Brake pad

Wear thickness

2.0 (0.079)

Disc rotor

Wear thickness

8.0 (0.315)

Thickness variation (measured at 8 positions)*

0.016 (0.0006)

Runout (with it attached to the vehicle)

0.1 (0.004)

Item

Limit

Brake pad

Wear thickness

2.0 (0.079)

Disc rotor

Wear thickness

14.0 (0.551)

Thickness variation (measured at 8 positions)*

0.016 (0.0006)

Runout (with it attached to the vehicle)

0.1 (0.004)

MA-46

< PERIODIC MAINTENANCE >

CHASSIS MAINTENANCE

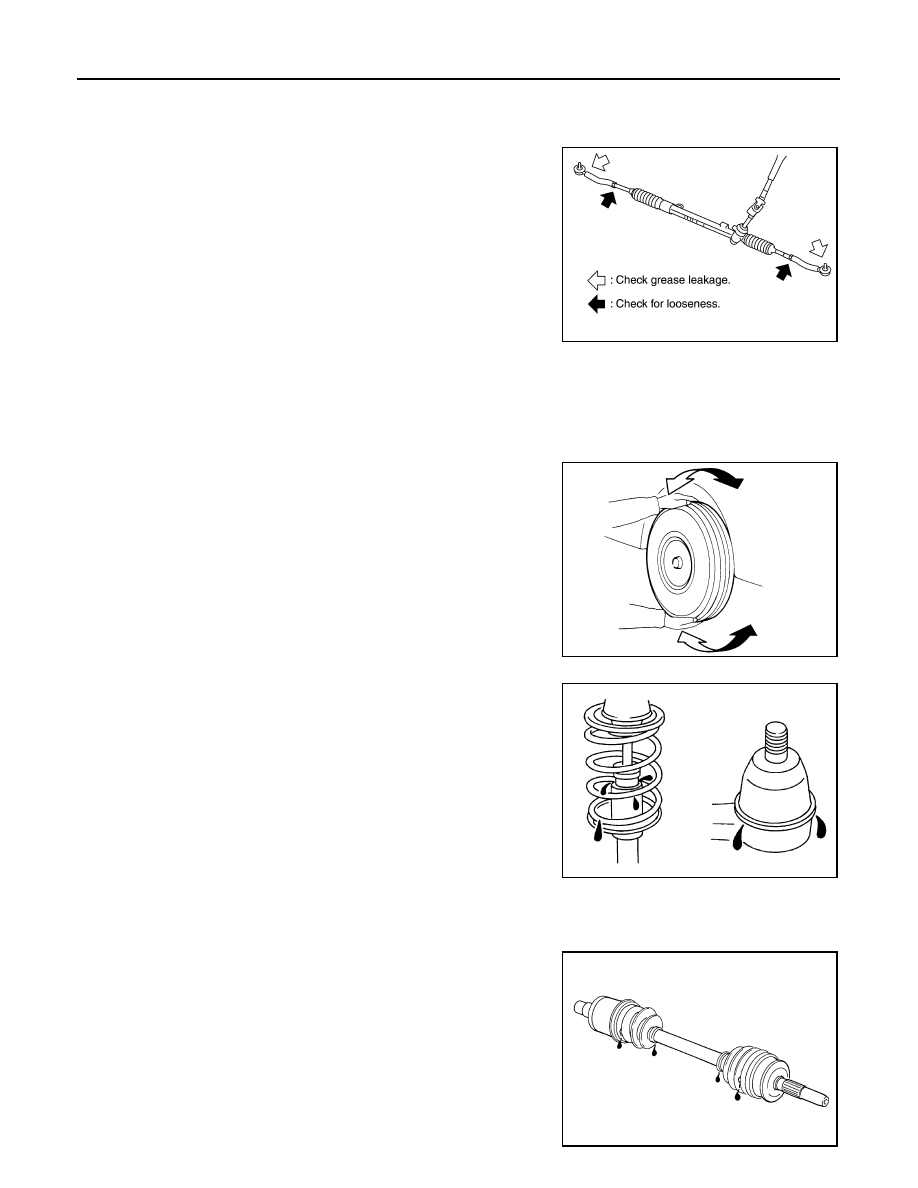

STEERING GEAR AND LINKAGE : Inspection

INFOID:0000000012200239

STEERING GEAR

• Check gear housing and boots for looseness, damage and grease

leakage.

• Check connection with steering column for looseness.

STEERING LINKAGE

Check ball joint, dust cover and other component parts for looseness, wear, damage and grease leakage.

AXLE AND SUSPENSION PARTS
AXLE AND SUSPENSION PARTS : Inspection

INFOID:0000000012200240

Check front and rear axle and suspension parts for excessive play,

cracks, wear or other damage.

• Shake each wheel to check for excessive play.

• Check wheel bearings for smooth operation.

• Check axle and suspension nuts and bolts for looseness.

• Check strut (shock absorber) for oil leakage or other damage.

• Check suspension ball joint for grease leakage and ball joint dust

cover for cracks or other damage.

DRIVE SHAFT
DRIVE SHAFT : Inspection

INFOID:0000000012200241

Check boot and drive shaft for cracks, wear, damage and grease

leakage.

JPPIA0013GB

SMA525A

JPPIA0011ZZ

SFA108A

BODY MAINTENANCE

MA-47

< PERIODIC MAINTENANCE >

BODY MAINTENANCE

LOCKS, HINGES AND HOOD LATCH
LOCKS, HINGES AND HOOD LATCH : Lubricating

INFOID:0000000012200242

For hood and hood lock illustration.

• Hood: Refer to

DLK-124, "Exploded View"

• Hood lock: Refer to

DLK-154, "Exploded View"

For door and door lock illustration.

• Front door: Refer to

DLK-135, "Exploded View"

• Front door lock: Refer to

DLK-157, "Exploded View"

• Rear door: Refer to

DLK-140, "Exploded View"

• Rear door lock: Refer to

DLK-161, "Exploded View"

For back door and back door lock illustration.

• Back door: Refer to

DLK-145, "Exploded View"

• Back door lock: Refer to

DLK-164, "Exploded View"

SEAT BELT, BUCKLES, RETRACTORS, ANCHORS AND ADJUSTERS
SEAT BELT, BUCKLES, RETRACTORS, ANCHORS AND ADJUSTERS : Inspection

INFOID:0000000012200243

For front seat belt illustration. Refer to

SB-5, "Exploded View"

For rear seat belt illustration. Refer to

SB-11, "Exploded View"

CAUTION:

• After any collision, inspect all seat belt assemblies, including retractors and other attached hard-

wares (I.e. anchor bolt, guide rail set). Nissan recommends to replace all seat belt assemblies in use

during a collision, unless not damaged and properly operating after minor collision.

Also inspect seat belt assemblies not in use during a collision, and replace if damaged or improperly

operating.

Seat belt pre-tensioner should be replaced even if the seat belts are not in use during a frontal colli-

sion where the driver and passenger air bags are deployed.

• If any component of seat belt assembly is questionable, do not repair.

Replace as seat belt assembly.

• If webbing is cut, frayed, or damaged, replace belt assembly.

• Never oil tongue and buckle.

• Use a genuine NISSAN seat belt assembly.

For details, refer to

SB-7, "SEAT BELT RETRACTOR : Inspection"

SB-14, "SEAT BELT RETRACTOR :

Inspection"

in SB section.

• Check anchors for loose mounting

• Check belts for damage

• Check retractor for smooth operation

• Check function of buckles and tongues when buckled and released
