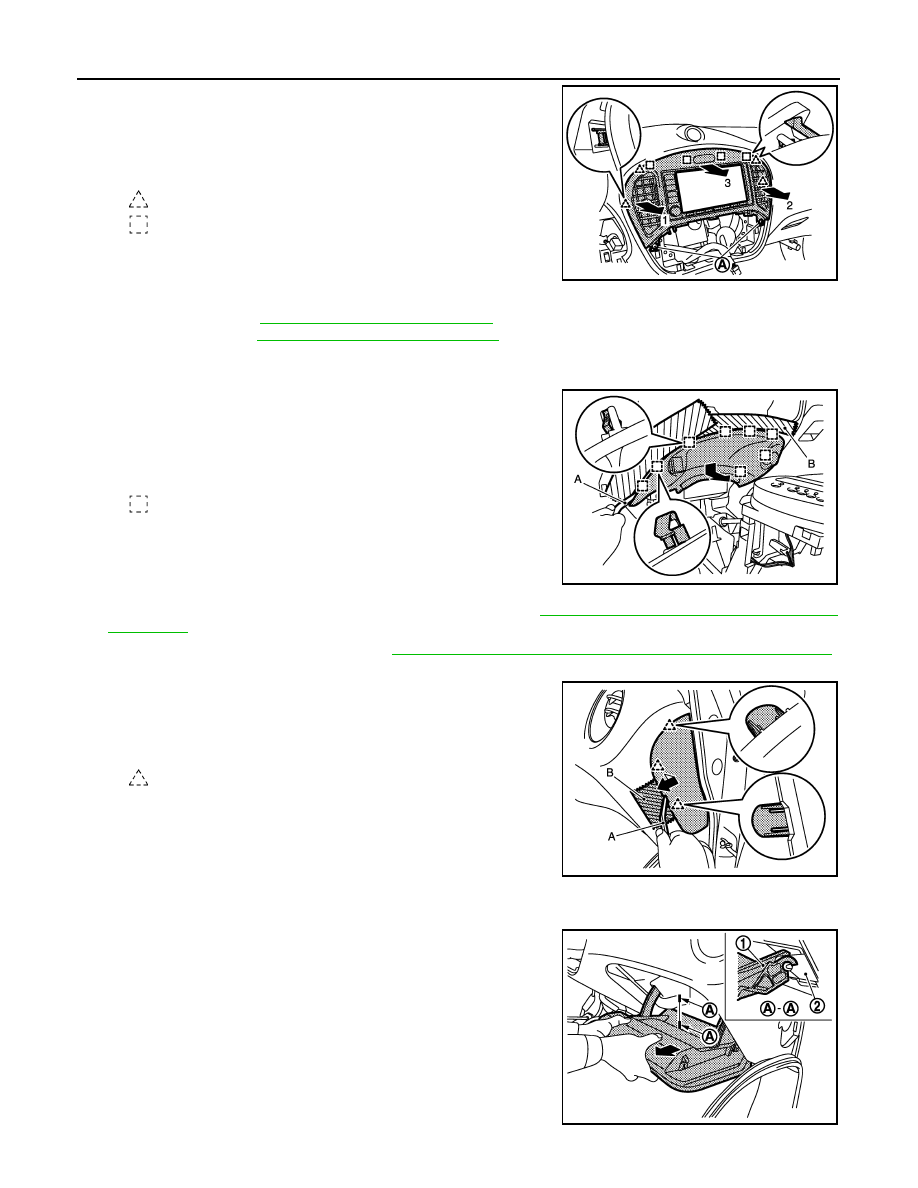

IP-20

< REMOVAL AND INSTALLATION >

INSTRUMENT PANEL ASSEMBLY

21. Remove cluster lid C.

1. Remove fixing screws (A).

2. Pull back cluster lid C, and disengage the pawls and metal

clips.

3. Disconnect harness connector.

22. Remove audio unit or NAVI C/U.

• Audio unit: Refer to

AV-50, "Removal and Installation"

.

• NAVI C/U: Refer to

AV-182, "Removal and Installation"

.

23. Disconnect hazard switch harness connector.
24. Remove cluster tray.

1. Insert a remover tool (A) between cluster tray and instru-

ment panel assembly, and then pull downward and disen-

gage metal clips.

2. Pull back cluster tray.

3. Disconnect harness connectors.

CAUTION:

Apply protective tape (B) on the part to protect it from dam-

age.

25. Release front pillar portion of front body side welt RH. Refer to

INT-21, "BODY SIDE WELT : Removal and

Installation"

.

26. Remove front pillar garnish RH. Refer to

INT-18, "FRONT PILLAR GARNISH : Removal and Installation"

.

27. Remove instrument side finisher RH.

1. Insert remover tool (A) between instrument side finisher RH

and instrument panel assembly to disengage the pawls as

shown in the figure.

2. Pull back instrument side finisher RH.

CAUTION:

Apply protective tape (B) on the part to protect it from dam-

age.

28. Remove glove box lid.

1. Open glove box lid.

2. Pull glove box lid (1) toward vehicle rear, and then disen-

gage the joint from instrument panel assembly (2).

: Pawl

: Metal clip

JMJIA4559ZZ

: Metal clip

JMJIA4560ZZ

: Pawl

JMJIA4561ZZ

JMJIA4563ZZ

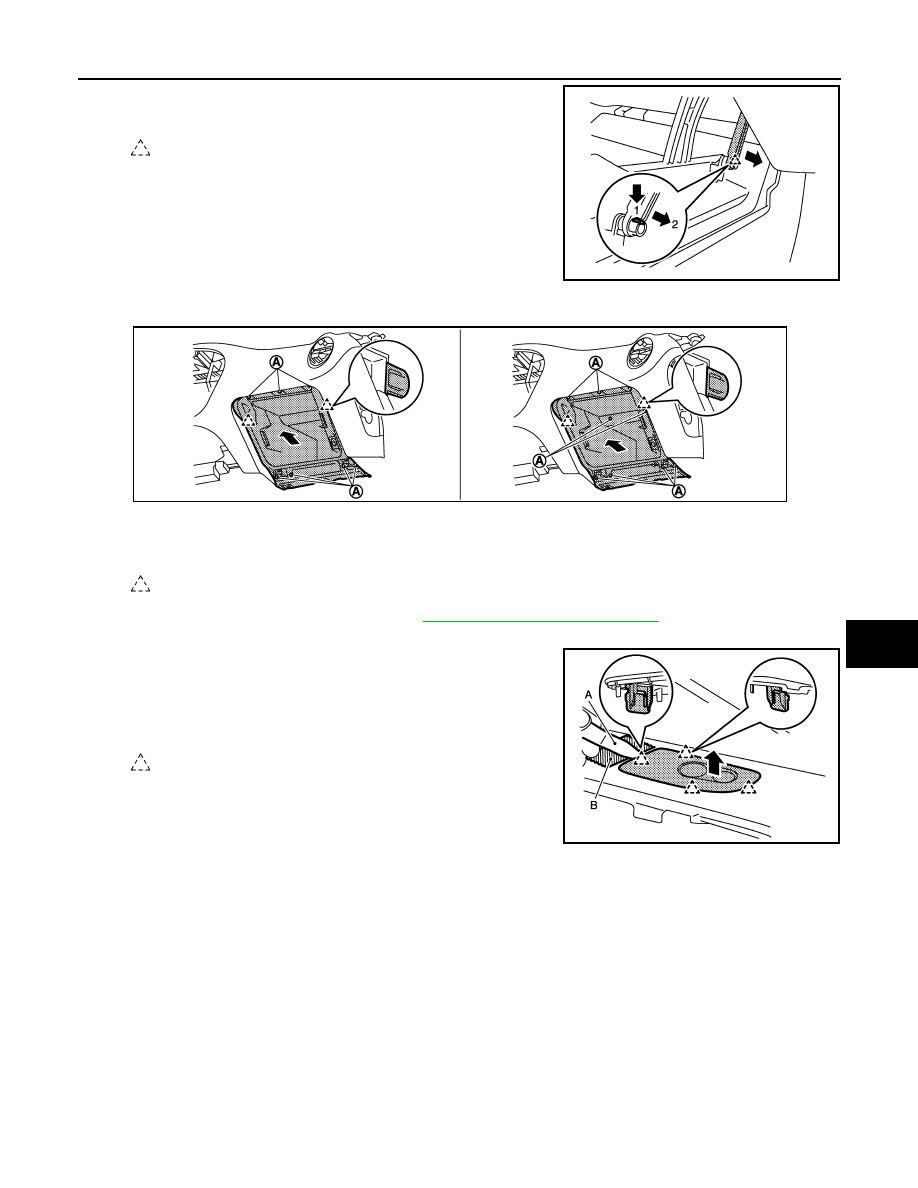

INSTRUMENT PANEL ASSEMBLY

IP-21

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

IP

N

O

P

3. Disengage the pawl, and then remove damper pin on right

side.

CAUTION:

Never excessively pull string of glove box damper.

29. Remove glove box assembly.

1. Remove fixing screws (A).

2. Pull back the glove box cover assembly while holding the lower side and disengage the pawls.

3. Disconnect glove box lamp harness connector.

30. Remove passenger air bag module. Refer to

SR-18, "Removal and Installation"

.

31. Remove switch panel.

1. Insert remover tool (A) between switch panel and instru-

ment panel assembly to disengage the pawls as shown in

the figure.

2. Pull up switch panel, and then disconnect harness connec-

tors.

CAUTION:

Apply protective tape (B) on the part to protect it from dam-

age.

32. Remove instrument panel assembly.

: Pawl

JMJIA4564ZZ

: Pawl

JMJIA4565ZZ

: Pawl

JMJIA4566ZZ

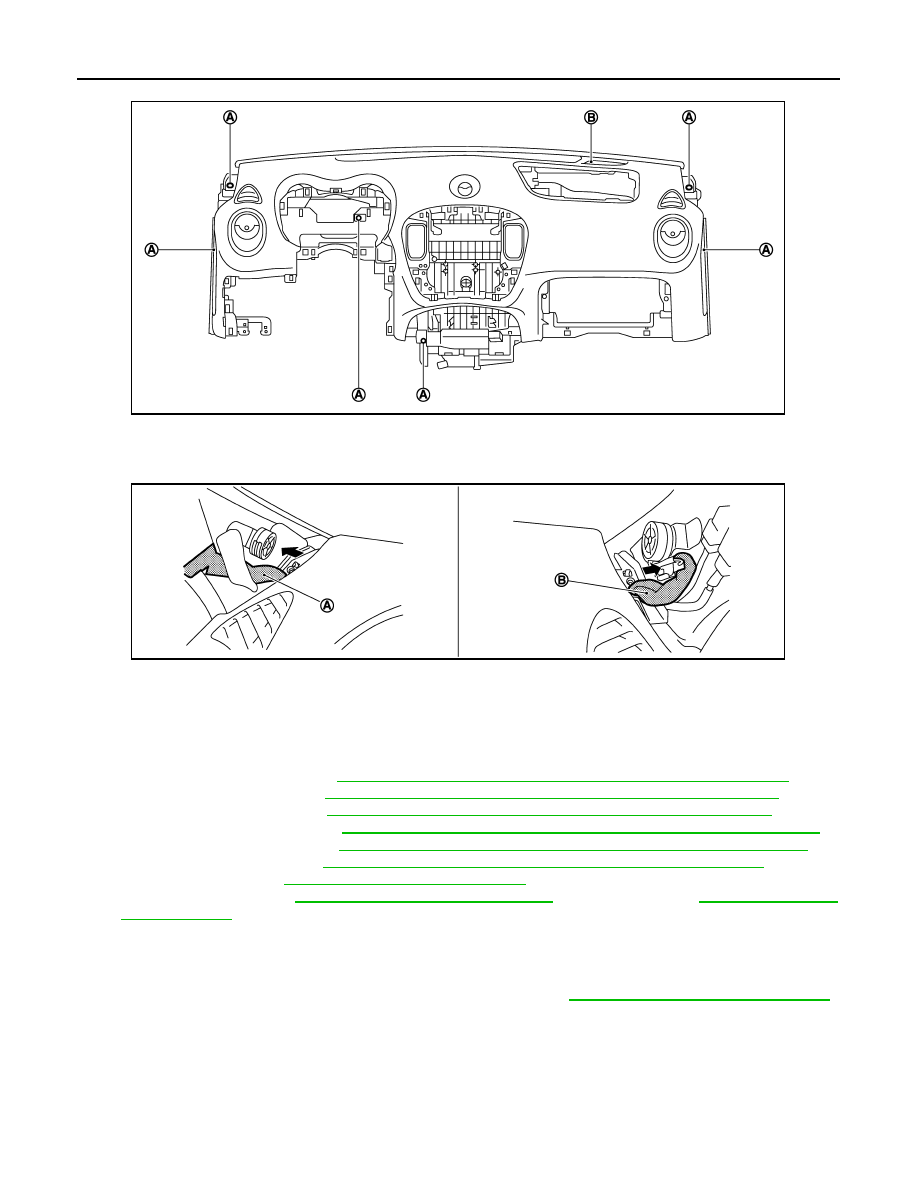

IP-22

< REMOVAL AND INSTALLATION >

INSTRUMENT PANEL ASSEMBLY

1. Remove instrument panel assembly mounting screws (A) and bolts (B).

CAUTION:

Cover tool with a shop cloth to prevent windshield glass from being damaged.

2. Disengage harness (A) and harness (B) of front pillar LH and RH portions from instrument panel

assembly.

3. Remove instrument panel from passenger door opening portion.

CAUTION:

• Cover CVT shift selector upper surface with a shop cloth to prevent it from being damaged.

• When removing instrument panel assembly, 2 workers are required to prevent it from drop-

ping.

33. Remove the following parts after removing instrument panel assembly.

• Side defroster nozzle: Refer to

VTL-9, "SIDE DEFROSTER NOZZLE : Removal and Installation"

.

• Side defroster grille: Refer to

VTL-10, "SIDE DEFROSTER GRILLE : Removal and Installation"

.

• Side ventilator grille: Refer to

VTL-9, "SIDE VENTILATOR GRILLE : Removal and Installation"

.

• Front defroster nozzle: Refer to

VTL-10, "FRONT DEFROSTER NOZZLE : Removal and Installation"

.

• Center ventilator duct: Refer to

VTL-11, "CENTER VENTILATOR DUCT : Removal and Installation"

.

• Side ventilator duct: Refer to

VTL-11, "SIDE VENTILATOR DUCT : Removal and Installation"

.

• GPS antenna: Refer to

AV-188, "Removal and Installation"

.

• Hazard switch: Refer to

EXL-107, "Removal and Installation"

 (XENON TYPE) or

EXL-218, "Removal

and Installation"

 (HALOGEN TYPE).

INSTALLATION

Note the following item, and then install in the reverse order of removal.

CAUTION:

• After installation, adjust the parking brake lever stroke. Refer to

PB-4, "Inspection and Adjustment"

.

• Never use the steering wheel mounting nut after removal, replace with the new nut.

• Never use the driver air bag module mounting bolts after removal, replace with the new bolts.

• Never use the passenger air bag module mounting bolts after removal, replace with the new bolts.

JMJIA4567ZZ

JMJIA4568ZZ

CENTER CONSOLE ASSEMBLY

IP-23

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

IP

N

O

P

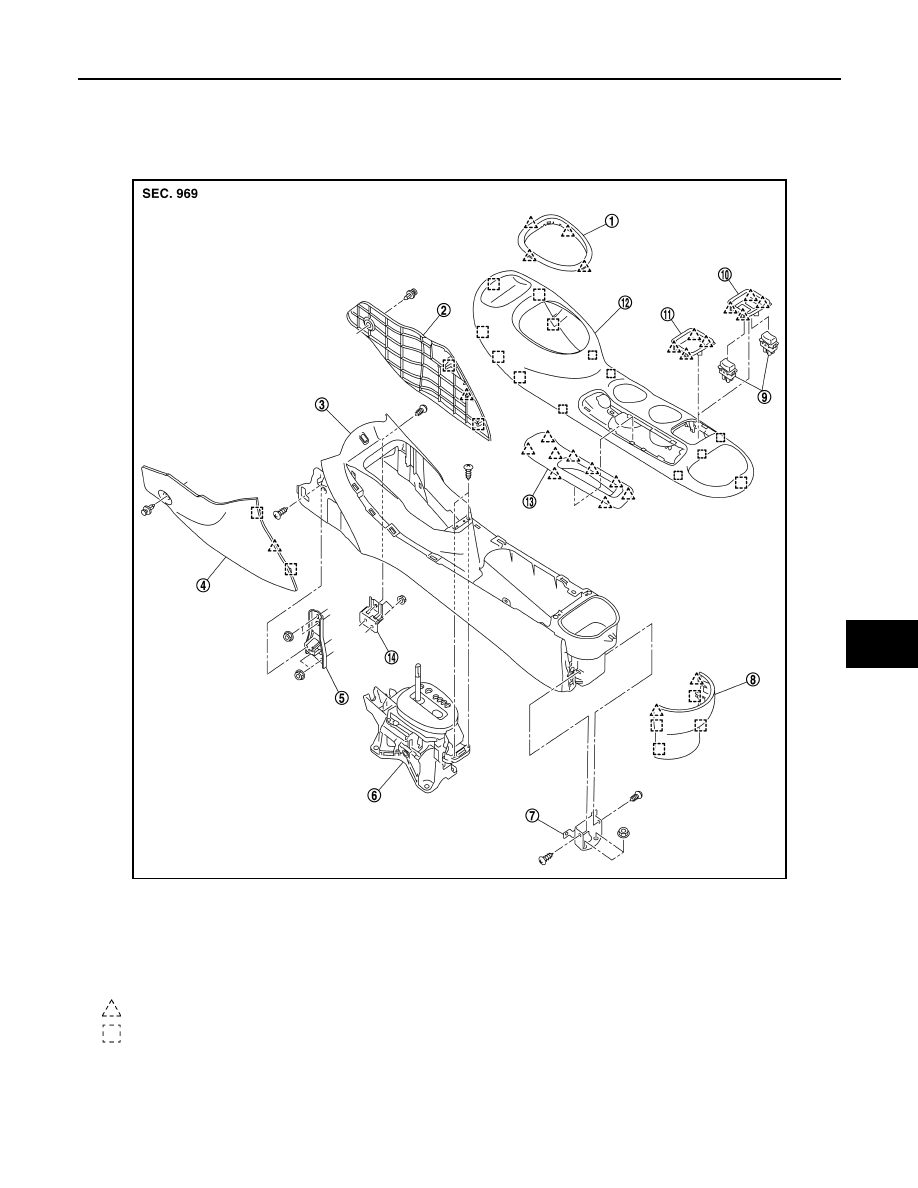

CENTER CONSOLE ASSEMBLY

Exploded View

INFOID:0000000012199208

CVT models

JSJIA0055ZZ

1.

Console indicator finisher

2.

Instrument lower cover RH

3.

Center console assembly

4.

Instrument lower cover LH

5.

Instrument stay

6.

CVT shift selector assembly

7.

Console rear bracket

8.

Console rear finisher

9.

Seat heated switch (If equipped)

10. Console switch finisher

11. Console switch finisher

12. Console finisher assembly

13. Console mask

14. Console front bracket

: Pawl

: Metal clip
