IP-12

< REMOVAL AND INSTALLATION >

INSTRUMENT PANEL ASSEMBLY

REMOVAL AND INSTALLATION

INSTRUMENT PANEL ASSEMBLY

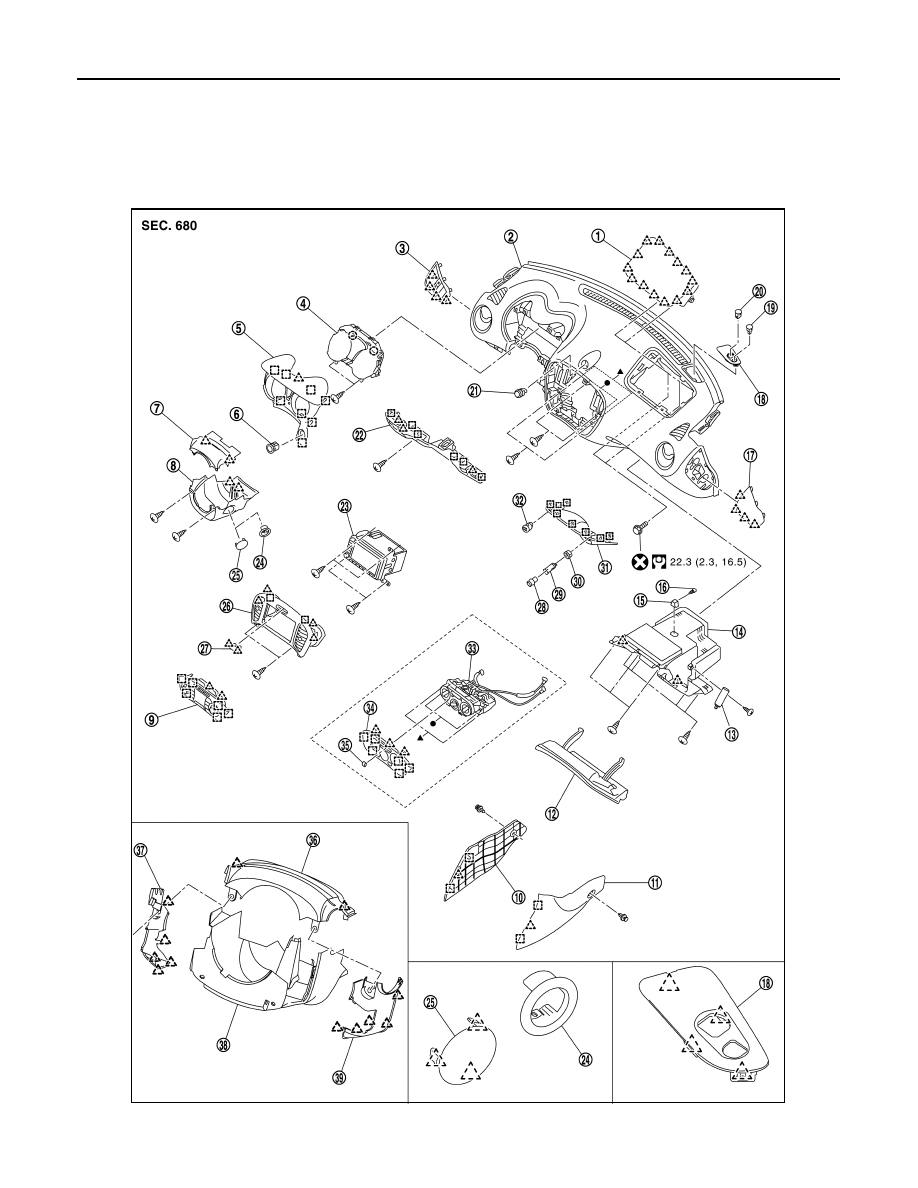

Exploded View

INFOID:0000000012199206

JSJIA0096GB

INSTRUMENT PANEL ASSEMBLY

IP-13

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

IP

N

O

P

Removal and Installation

INFOID:0000000012199207

WORK STEP

When removing instrument panel assembly, combination meter, audio unit, NAVI C/U, or center console

assembly take steps in the order shown by the numbers below.

1.

Front passenger air bag module

2.

Instrument panel assembly

3.

Instrument side finisher LH

4.

Combination meter

5.

Cluster lid A

6.

Push-button ignition switch

7.

Steering column upper cover (with-
out paddle shifter)

8.

Steering column lower cover (without
paddle shifter)

9.

Multi display unit

10. Instrument lower cover LH

11. Instrument lower cover RH

12. Glove box lid

13. Glove box dumper

14. Glove box assembly

15. Illumination lamp

16. Socket and bulb

17. Instrument side finisher RH

18. Switch panel

19. Sunload sensor

20. Optical sensor

21. Hazard switch

22. Instrument lower panel LH

23. Audio unit or AV C/U

24. Steering lock escutcheon (without In-

telligent Key)

25. Steering column mask (with Intelli-

gent Key)

26. Cluster lid C

27. Warning lamp

28. Socket knob

29. Inner socket

30. Socket ring

31. Cluster tray

32. USB connector

33. A/C controller (manual A/C)

34. A/C finisher (manual A/C)

35. Knob

36. Steering column upper cover (with

paddle shifter)

37. Steering column LH cover (with pad-

dle shifter)

38. Steering column lower cover (with

paddle shifter)

39. Steering column RH cover (with pad-

dle shifter)

: Clip

: Pawl

: Metal clip

: Always replace after every disassembly.

: N·m (kg-m, ft-lb)

,   : Indicates that the part is connected at points with same symbol in actual vehicle.

PARTS

INSTRUMENT

PANEL

ASSEMBLY

COMBINATION

METER

AUDIO UNIT

or

NAVI C/U

CENTER

CONSOLE

ASSEMBLY

Shift lever knob (MT models only)

[1]

[1]

Console finisher assembly

[2]

[2]

Console rear finisher

[3]

[3]

Center console assembly fixing screws (rear side)

[4]

[4]

Instrument lower cover LH

[5]

[5]

Instrument lower cover RH

[6]

[6]

Center console assembly

[7]

[7]

Front body side welt LH

[8]

Front pillar garnish LH

[9]

Instrument side finisher LH

[10]

Instrument lower panel LH

[11]

[1]

Driver air bag module

[12]

Steering wheel assembly

[13]

Steering column covers

[14]

Spiral cable

[15]

Combination switch

[16]

IP-14

< REMOVAL AND INSTALLATION >

INSTRUMENT PANEL ASSEMBLY

[]: Number indicates step in removal procedure.

WARNING:

Before servicing, turn ignition switch OFF, disconnect battery negative terminal and wait 3 minutes or

more.

REMOVAL

CAUTION:

When removing, always use a remover tool that is made of plastic.
1. Remove shift lever knob (MT models only). Refer to

TM-25, "Removal and Installation"

 (6MT: RS6F94R)

or

TM-83, "Removal and Installation"

 (6MT: RS6F52H).

2. Remove console finisher assembly.

1. Put selector lever in “N” position.

2. Loosen the parking brake lever stroke by turning the adjusting nut with a socket wrench. Refer to

PB-

4, "Inspection and Adjustment"

.

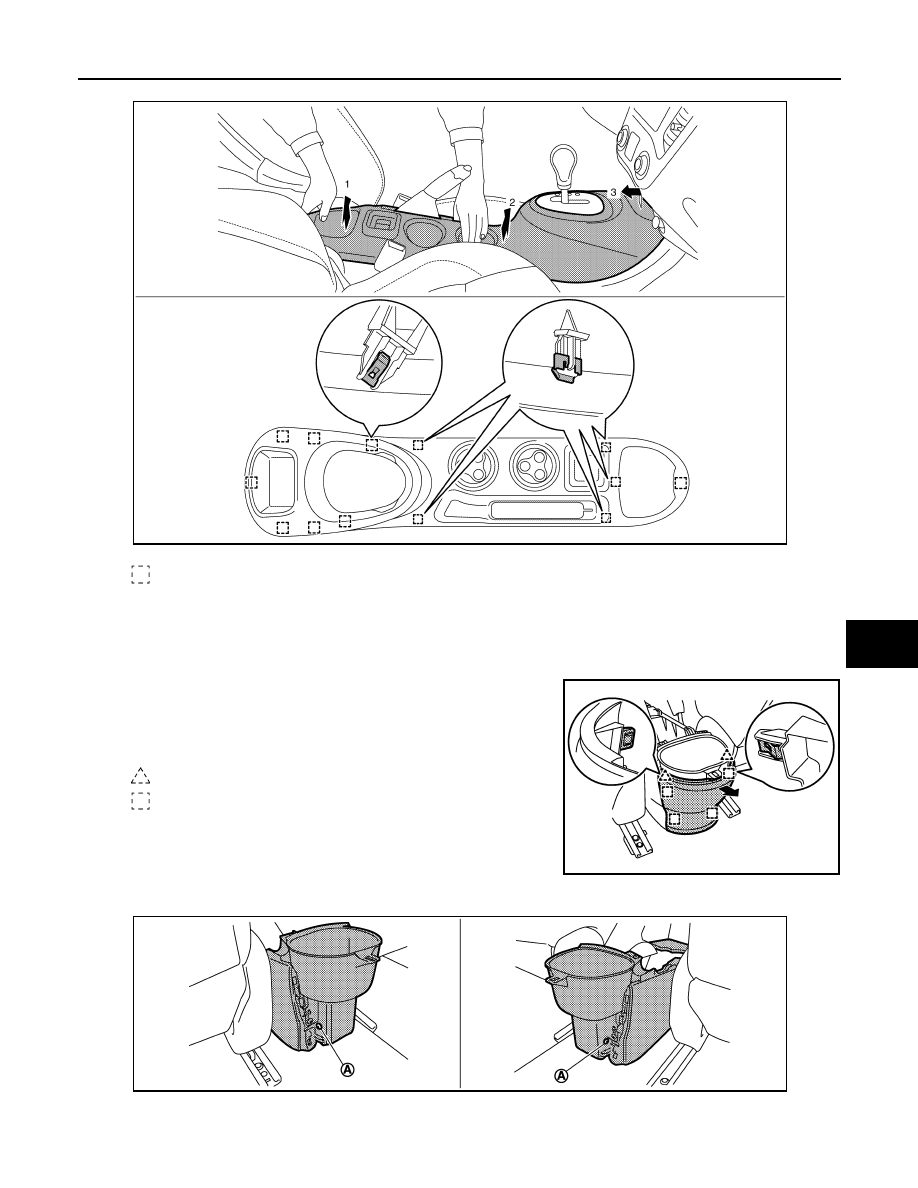

3. Lift up console finisher assembly in numerical order shown in the figure and disengage metal clips.

4. Remove console finisher assembly while pulling it towards vehicle rear.

Cluster lid A

[17]

[2]

Combination meter

[18]

[3]

Multi display unit (with auto A/C) or A/C finisher
(with manual A/C)

[19]

[1]

A/C control fixing screws (with manual A/C)

[20]

Cluster lid C

[21]

[2]

Audio unit or AV C/U

[22]

[3]

Harness connector of hazard switch

[23]

Cluster tray

[24]

Front body side welt RH

[25]

Front pillar garnish RH

[26]

Instrument side finisher RH

[27]

Glove box lid

[28]

Glove box assembly

[29]

Passenger air bag module

[30]

Switch panel

[31]

Instrument panel assembly

[32]

INSTRUMENT PANEL ASSEMBLY

IP-15

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

IP

N

O

P

CAUTION:

• Be careful not for damaging parts in surrounding area.

• Remove metal clips slowly so that they are not damaged.

5. Disconnect seat heated switch harness connectors (with seat heated switch).

3. Remove console rear finisher.

1. Put front seat assembly (LH and RH) to frontmost position.

2. Pull back console rear finisher, and disengage the pawls

and metal clips.

4. Remove center console assembly fixing screws (A).

5. Remove instrument lower cover LH.

1. Put front seat assembly LH to rearmost position.

: Metal clip

JSJIA0057ZZ

: Pawl

: Metal clip

JMJIA4183ZZ

JMJIA4202ZZ
