IP-24

< REMOVAL AND INSTALLATION >

CENTER CONSOLE ASSEMBLY

MT models

Removal and Installation

INFOID:0000000012199209

WARNING:

Before servicing, turn ignition switch OFF, disconnect battery negative terminal and wait 3 minutes or

more.

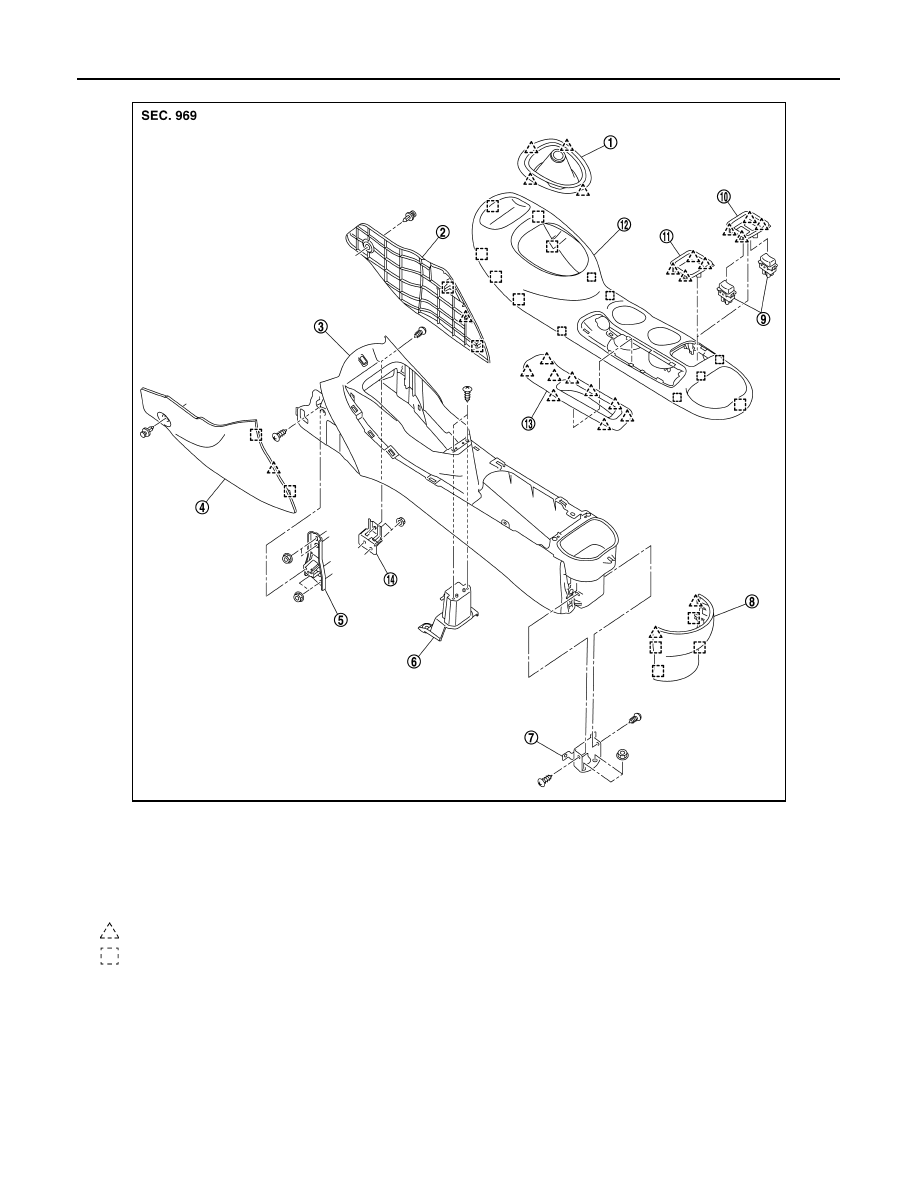

REMOVAL

CAUTION:

When removing, always use a remover tool that is made of plastic.

JSJIA0056ZZ

1.

Console boot

2.

Instrument lower cover RH

3.

Center console assembly

4.

Instrument lower cover LH

5.

Instrument stay

6.

Console center bracket

7.

Console rear bracket

8.

Console rear finisher

9.

Seat heated switch (If equipped)

10. Console switch finisher

11. Console switch finisher

12. Console finisher assembly

13. Console mask

14. Console front bracket

: Pawl

: Metal clip

CENTER CONSOLE ASSEMBLY

IP-25

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

IP

N

O

P

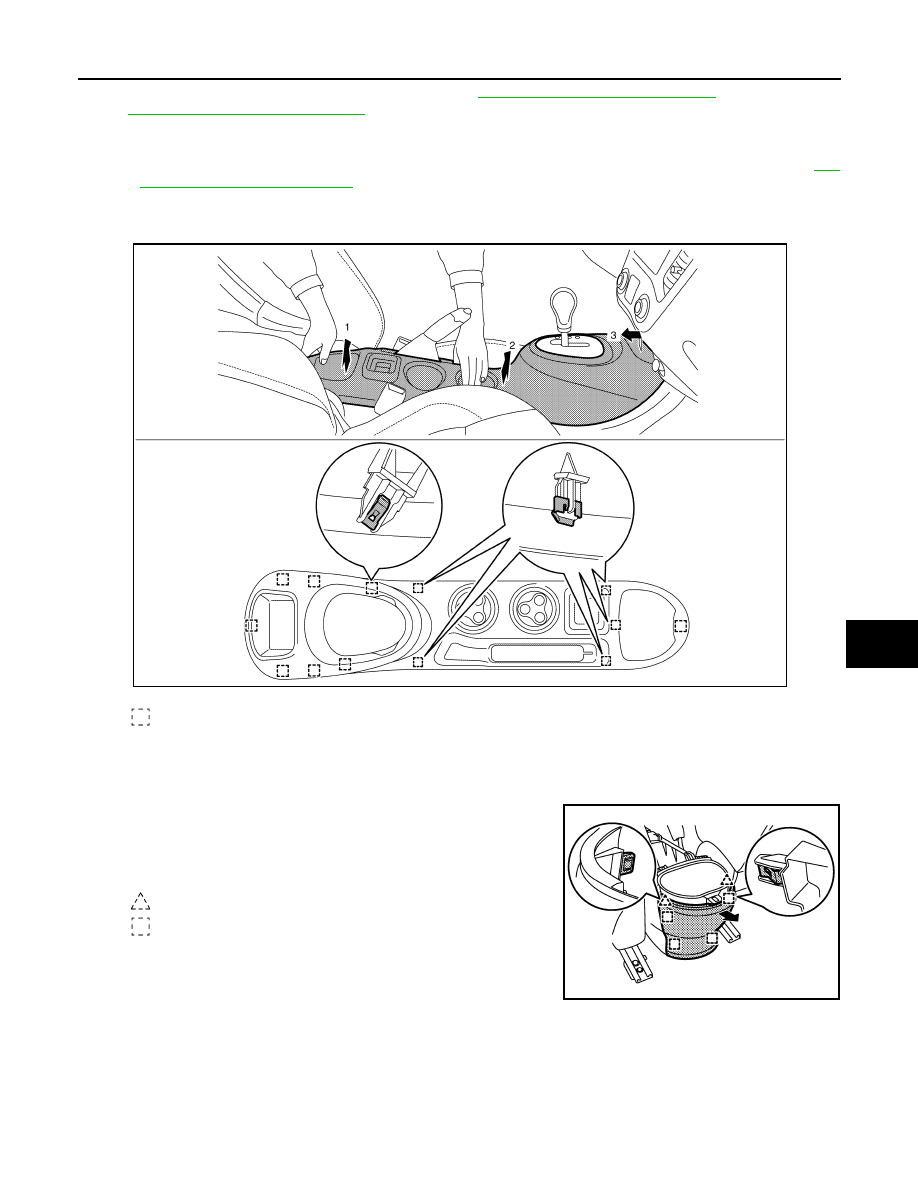

1. Remove shift lever knob (MT models only). Refer to

TM-25, "Removal and Installation"

 (6MT: RS6F94R)

or

TM-83, "Removal and Installation"

 (6MT: RS6F52H).

2. Remove console finisher assembly.

1. Put selector lever in “N” position.

2. Loosen the parking brake lever stroke by turning the adjusting nut with a socket wrench. Refer to

PB-

4, "Inspection and Adjustment"

.

3. Lift up console finisher assembly in numerical order shown in the figure and disengage metal clips.

4. Remove console finisher assembly while pulling it towards vehicle rear.

CAUTION:

• Be careful not for damaging parts in surrounding area.

• Remove metal clips slowly so that they are not damaged.

3. Remove console rear finisher.

1. Put front seat assembly (LH and RH) to frontmost position.

2. Pull back console rear finisher, and disengage the pawls

and metal clips.

: Metal clip

JSJIA0057ZZ

: Pawl

: Metal clip

JMJIA4183ZZ

IP-26

< REMOVAL AND INSTALLATION >

CENTER CONSOLE ASSEMBLY

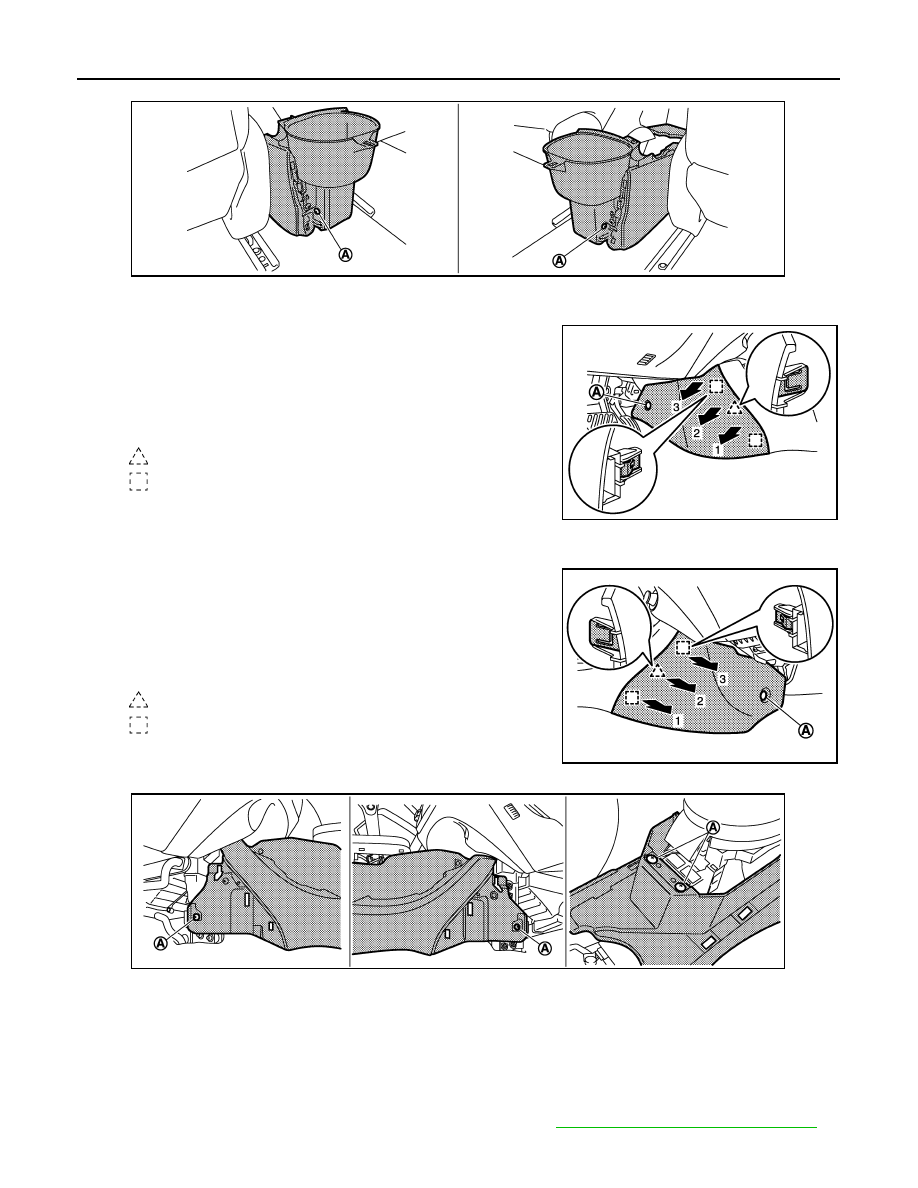

4. Remove center console assembly fixing screws (A).

5. Remove instrument lower cover LH.

1. Put front seat assembly LH to rearmost position.

2. Remove fixing clip (A).

3. Pull the instrument lower cover LH crosswise, and disen-

gage the pawl and metal clips.

CAUTION:

Remove pawl and metal clips slowly so that they are not

damaged.

6. Remove instrument lower cover RH.

1. Put front seat assembly RH to rearmost position.

2. Remove fixing clip (A).

3. Pull the instrument lower cover RH crosswise, and disen-

gage the pawl and metal clips.

CAUTION:

Remove pawl and metal clips slowly so that they are not

damaged.

7. Remove center console assembly.

1. Remove center console fixing screws (A).

2. Lift up center console assembly back side.

CAUTION:

Be careful not for damaging parts in surrounding area.

INSTALLATION

Note the following item, and then install in the reverse order of removal.

CAUTION:

After installation, adjust the parking brake lever stroke. Refer to

PB-4, "Inspection and Adjustment"

.

JMJIA4202ZZ

: Pawl

: Metal clip

JMJIA4551ZZ

: Pawl

: Metal clip

JMJIA4552ZZ

JMJIA4553ZZ

CENTER CONSOLE ASSEMBLY

IP-27

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

IP

N

O

P

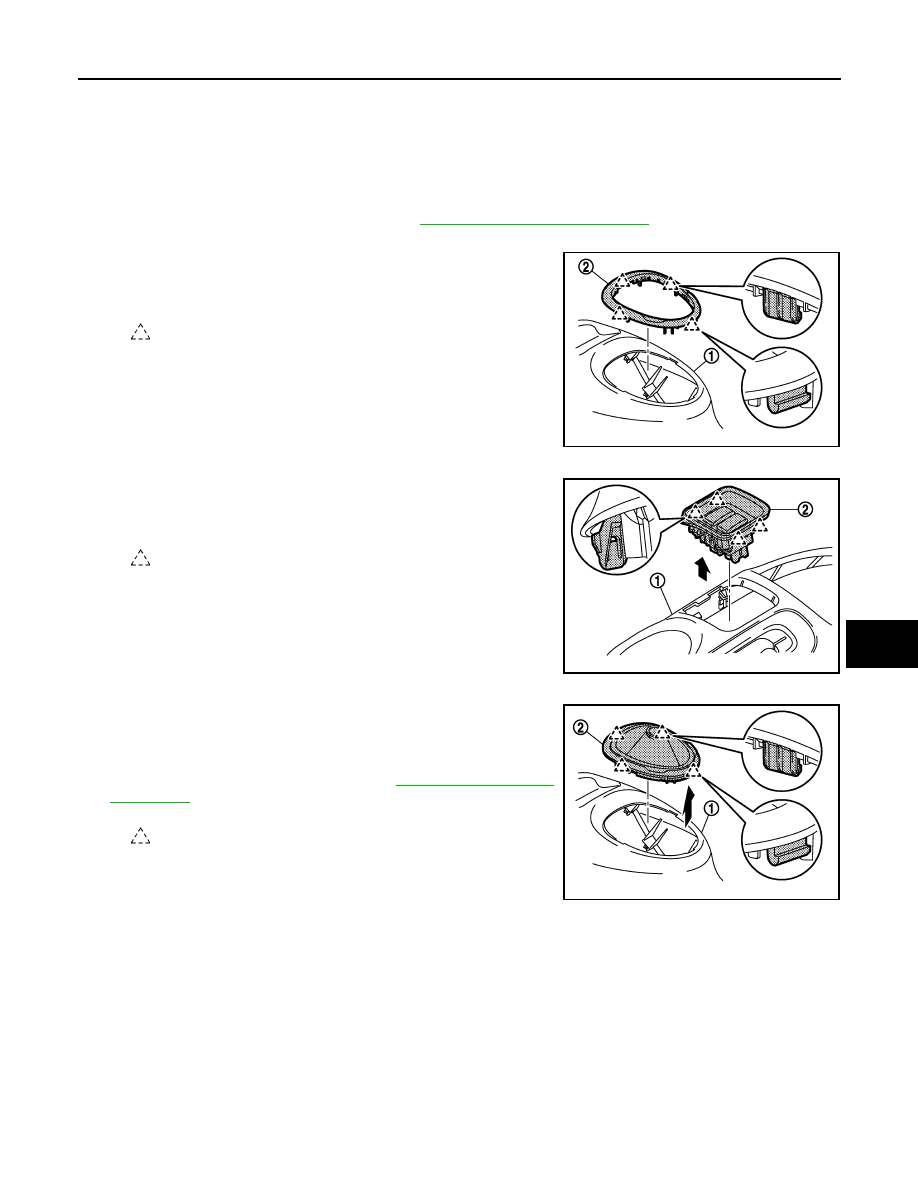

Disassembly and Assembly

INFOID:0000000012199210

Disassembly and Assembly of Console Finisher Assembly

CAUTION:

When disassembling, always use a remover tool that is made of plastic.

DISASSEMBLY

1. Remove console finisher assembly. Refer to

IP-24, "Removal and Installation"

.

2. Remove console indicator finisher (CVT models)

Disengage connection of the console indicator finisher (2) fixing

pawls from the inside of the console finisher assembly (1)

toward the outside, and remove.

3. Remove console indicator finisher (MT models)

Disengage connection of the console boot (2) fixing pawls from

the inside of the console finisher assembly (1) toward the out-

side, and remove.

4. Remove console switch finisher.

Disengage connection of the console switch finisher (2) fixing

pawls from the inside of the console finisher assembly (1)

toward the outside, and remove.

NOTE:

Remove seat heated switch. Refer to

SE-41, "Removal and

Installation"

.

ASSEMBLY

Assemble in the reverse order of disassembly.

: Pawl

JMJIA4204ZZ

: Pawl

JMJIA4573ZZ

: Pawl

JMJIA4574ZZ
