FLOOR TRIM

FLOOR TRIM

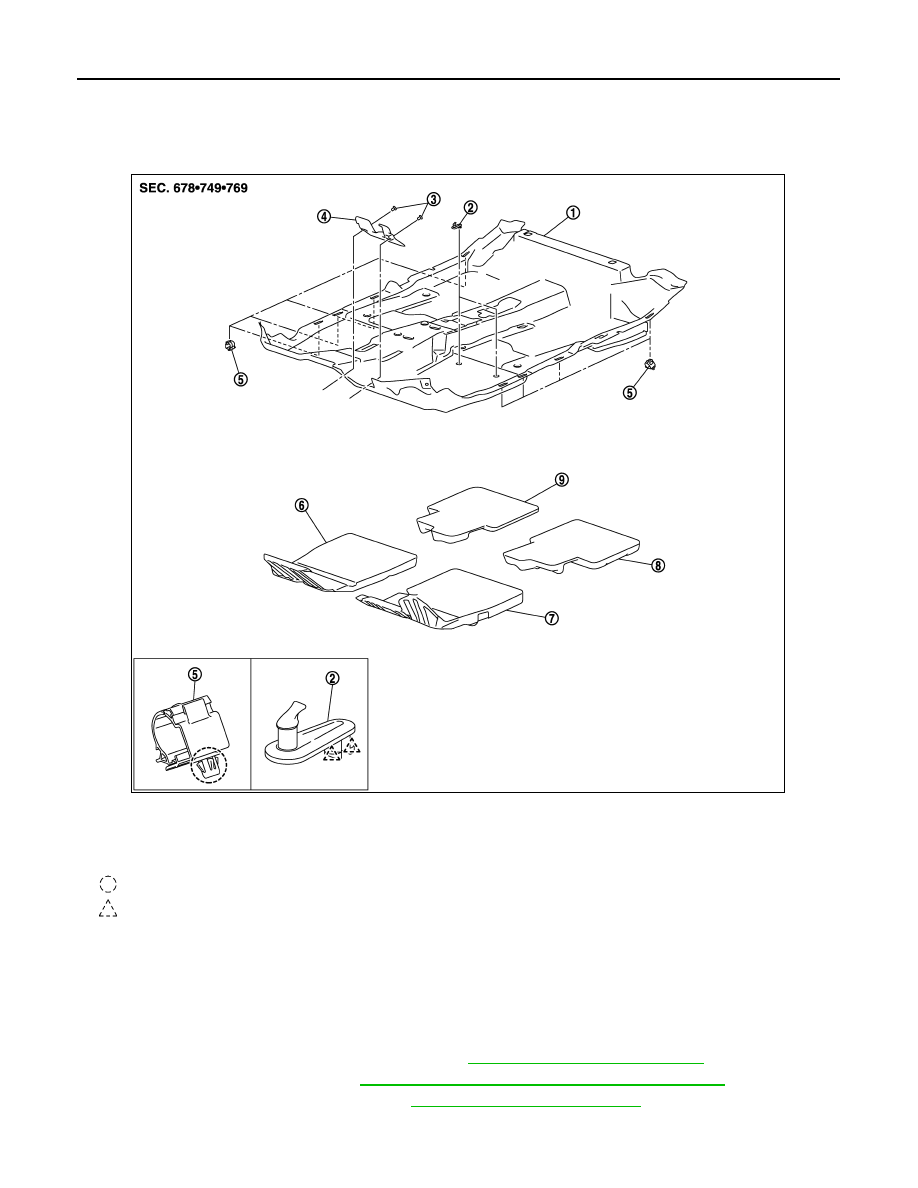

Exploded View

INFOID:0000000012199179

Removal and Installation

INFOID:0000000012199180

REMOVAL

CAUTION:

• When removing, always use a remover tool that is made of plastic.

• Never damage the body.
1. Remove front seat assembly (LH and RH). Refer to

SE-21, "Removal and Installation"

.

2. Remove rear seat cushion. Refer to

SE-32, "SEAT CUSHION : Removal and Installation"

.

3. Remove center console assembly. Refer to

IP-24, "Removal and Installation"

.

4. Remove instrument stay.

1.

Floor carpet

2.

Carpet hook

3.

Trim clip

4.

Column hole cover

5.

Harness clip

6.

Front floor spacer RH

7.

Front floor spacer LH

8.

Rear floor spacer LH

9.

Rear floor spacer RH

: Clip

: Pawl

JMJIA4530ZZ

FLOOR TRIM

INT-25

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

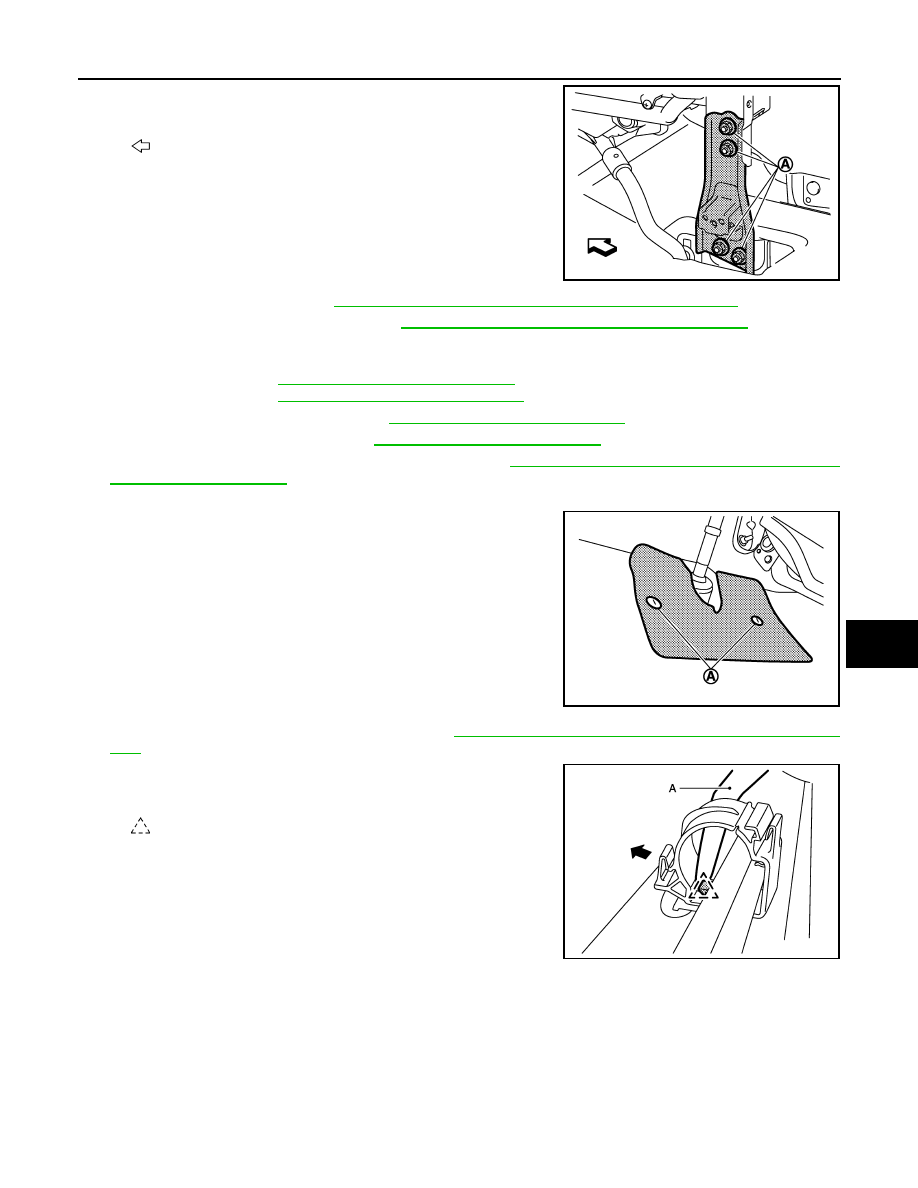

Remove instrument stay mounting nuts (A), and then remove

instrument stay.

5. Disconnect drain hose. Refer to

HA-43, "A/C UNIT ASSEMBLY : Removal and Installation"

.

6. Remove foot ducts (LH and RH). Refer to

VTL-13, "FOOT DUCT : Removal and Installation"

 (Models with

foot ducts).

7. Remove shift selector assembly

• 6MT models: Refer to

TM-25, "Removal and Installation"

.

• CVT models: Refer to

TM-316, "Removal and Installation"

.

8. Remove diagnosis sensor unit. Refer to

SR-29, "Removal and Installation"

.

9. Remove parking brake lever. Refer to

PB-7, "Removal and Installation"

.

10. Remove center pillar lower garnish (LH and RH). Refer to

INT-22, "CENTER PILLAR LOWER GARNISH :

Removal and Installation"

.

11. Remove column hole cover.

Disengage trim clip (A), and then remove column hole cover.

12. Remove dash side finisher (LH and RH). Refer to

INT-21, "DASH SIDE FINISHER : Removal and Installa-

tion"

.

13. Disengage pawl using a remover tool (A) and open the harness

clip.

14. Remove floor carpet.
NOTE:

: Vehicle front

JMJIA4531ZZ

JMJIA4532ZZ

: Pawl

JMJIA4396ZZ

INT-26

< REMOVAL AND INSTALLATION >

FLOOR TRIM

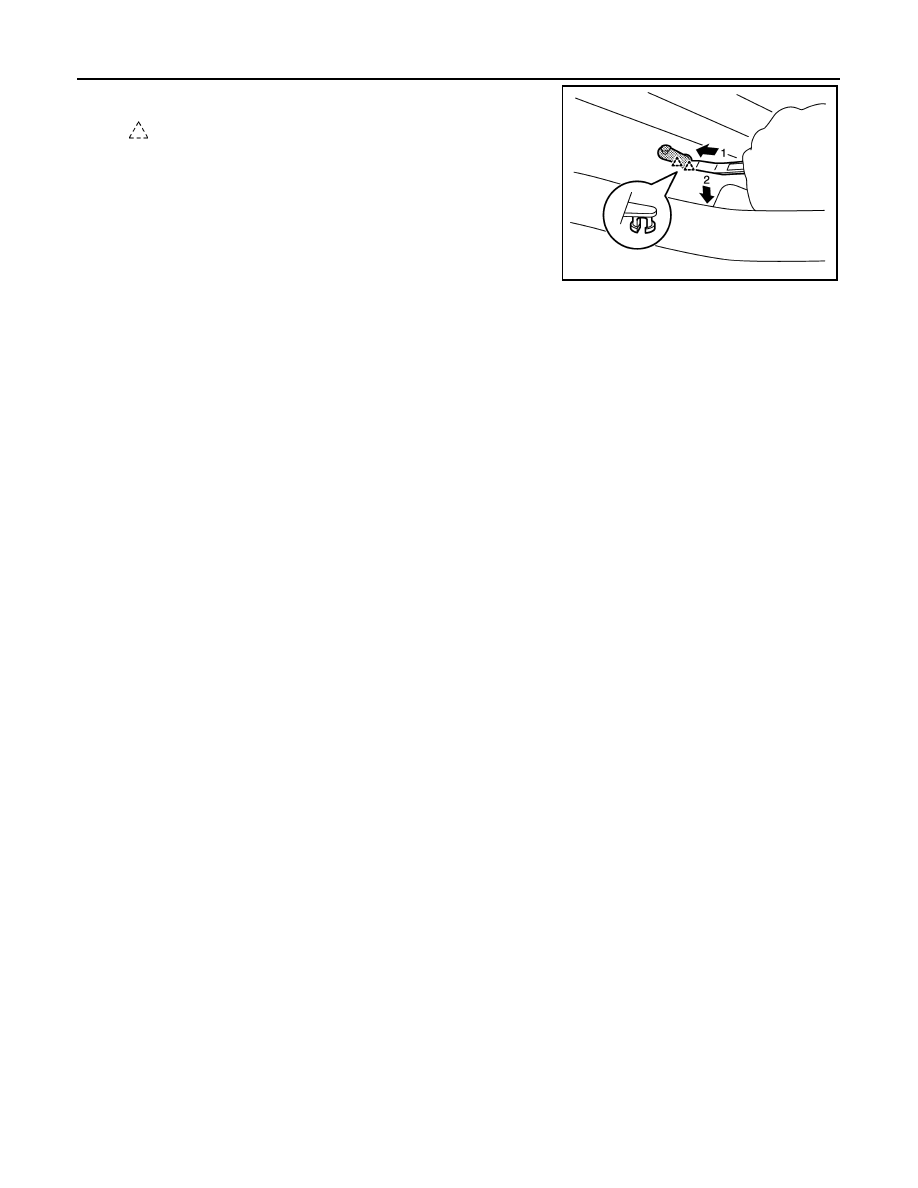

Disengage pawls using a remover tool and remove carpet hook.

INSTALLATION

Note the following item, and install in the reverse order of removal.

CAUTION:

Replace diagnosis sensor unit fixing bolts with a new part after removal. Never reuse diagnosis sen-

sor unit fixing bolts.

: Pawl

JMJIA3620ZZ

HEADLINING

INT-27

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

HEADLINING

NORMAL ROOF

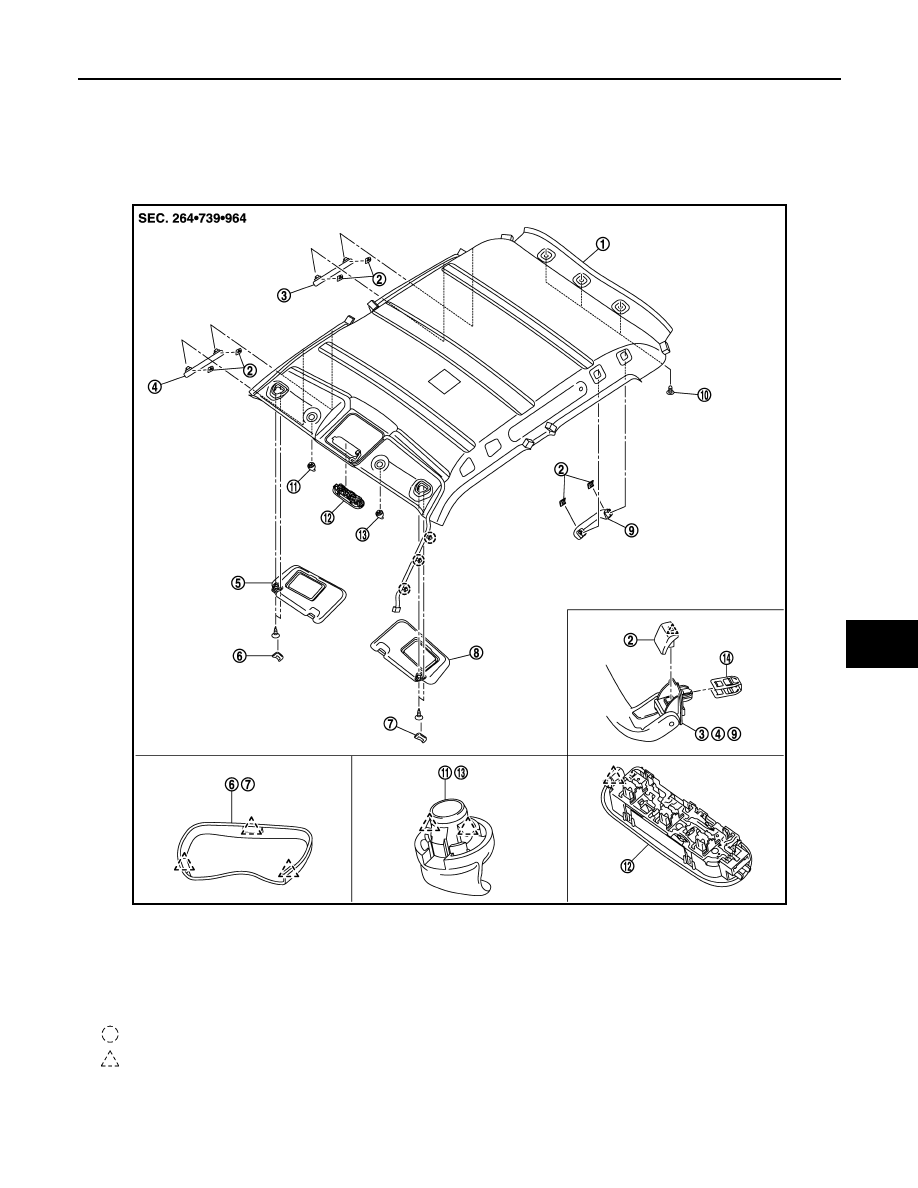

NORMAL ROOF : Exploded View

INFOID:0000000012199181

NORMAL ROOF

NORMAL ROOF : Removal and Installation

INFOID:0000000012199182

REMOVAL

JMJIA4533ZZ

1.

Headlining assembly

2.

Assist grip clip

3.

Rear assist grip RH

4.

Front assist grip RH

5.

Sun visor assembly RH

6.

Sun visor cover RH

7.

Sun visor cover LH

8.

Sun visor assembly LH

9.

Rear assist grip LH

10. Headlining clip

11. Sun visor holder RH

12. Map lamp

13. Sun visor holder LH

14. Metal clip

: Clip

: Pawl
