INT-16

< REMOVAL AND INSTALLATION >

REAR DOOR FINISHER

REAR DOOR FINISHER

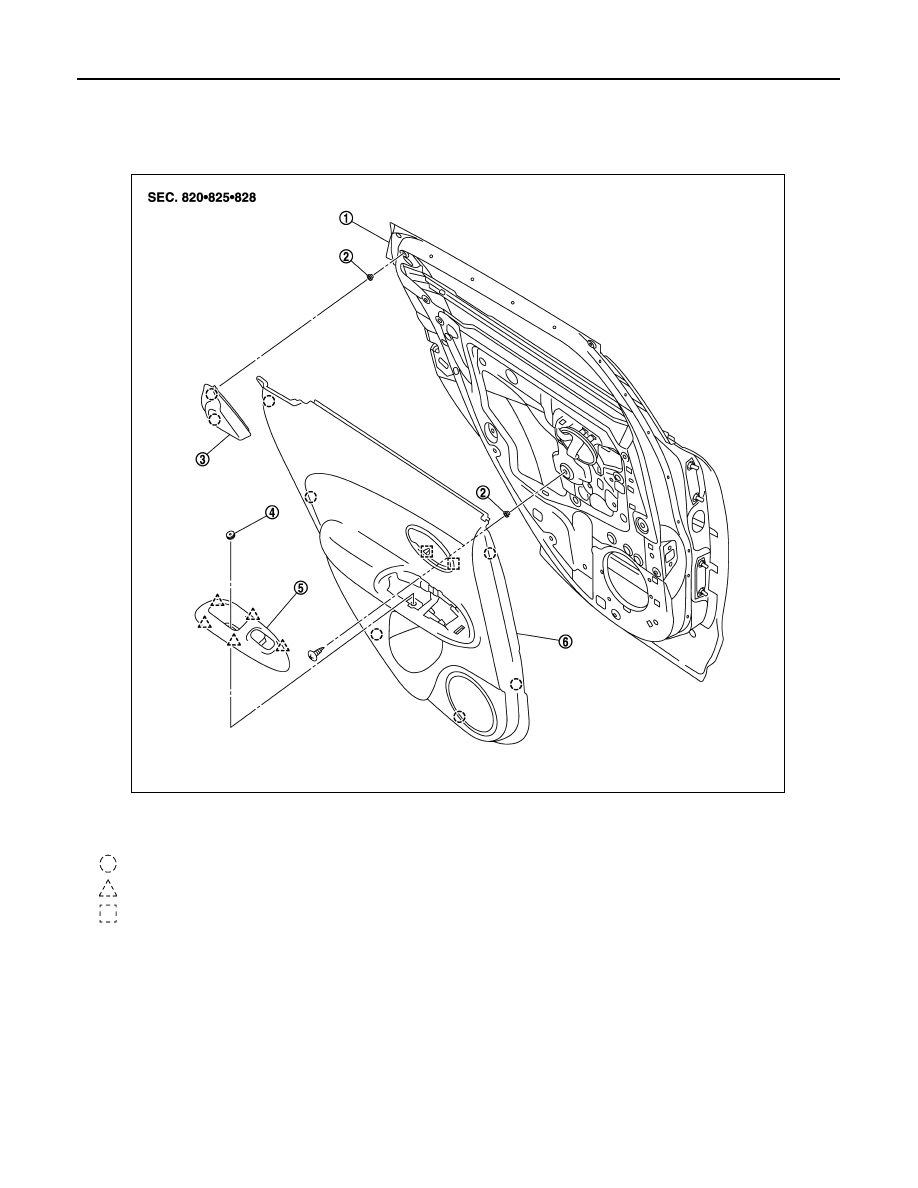

Exploded View

INFOID:0000000012199170

Removal and Installation

INFOID:0000000012199171

REMOVAL

CAUTION:

• When removing, always use a remover tool that is made of plastic.

• Never damage the door panel.
1. Fully open door window.
2. Remove rear corner cover inner.

1.

Rear door panel

2.

Grommet

3.

Rear door corner cover inner

4.

Cap

5.

Power window switch finisher

6.

Rear door finisher

: Clip

: Pawl

: Metal clip

JMJIA4522ZZ

REAR DOOR FINISHER

INT-17

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

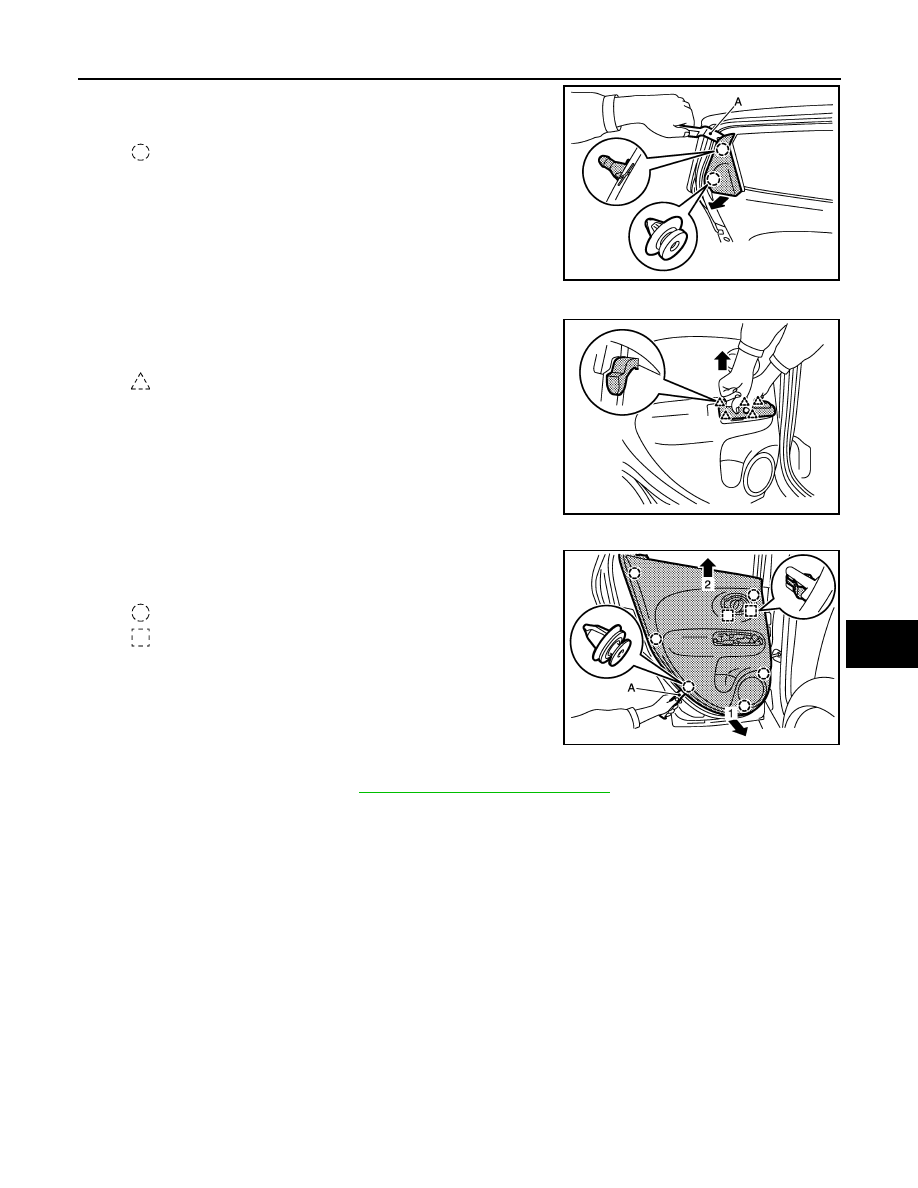

Disengage rear corner cover inner fixing pawl with a remover

tool (A).

3. Remove power window switch finisher and power window switch in one body.

Pull up power window switch finisher and power window switch

with one body and disconnect harness connector.

4. Remove rear door finisher fixing screw.
5. Disengage rear door finisher fixing clips and metal clips with a

remover tool (A), and then remove rear door finisher.

CAUTION:

Insert a remover tool between body side panel and clip and

disengage pawl.

NOTE:

Remove power window switch. Refer to

PWC-54, "Removal and Installation"

.

INSTALLATION

Note the following item, and install in the reverse order of removal.

CAUTION:

When installing rear door finisher, check that clips, and metal clips are securely in body panel holes,

and press them in.

: Clip

JMJIA4523ZZ

: Pawl

JMJIA4525ZZ

: Clip

: Metal clip

JMJIA4526ZZ

INT-18

< REMOVAL AND INSTALLATION >

BODY SIDE TRIM

BODY SIDE TRIM

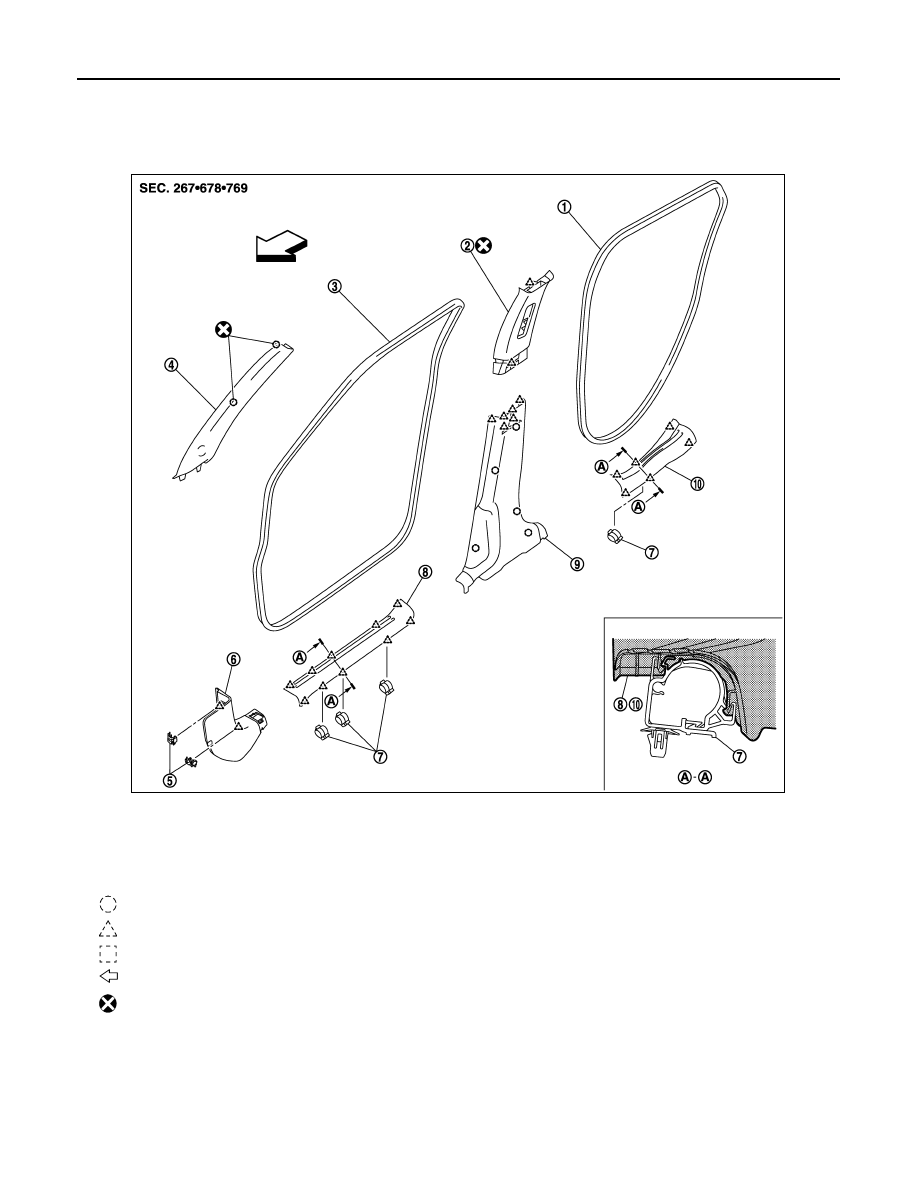

Exploded View

INFOID:0000000012199172

FRONT PILLAR GARNISH
FRONT PILLAR GARNISH : Removal and Installation

INFOID:0000000012199173

REMOVAL

CAUTION:

1.

Rear body side welt

2.

Center pillar upper garnish

3.

Front body side welt

4.

Front pillar garnish

5.

Metal clip

6.

Dash side finisher RH

7.

Harness clip

8.

Front kicking plate inner

9.

Center pillar lower garnish

10. Rear kicking plate inner

: Clip

: Pawl

: Metal clip

: Vehicle front

: Always replace after every disassembly.

JMJIA4527ZZ

BODY SIDE TRIM

INT-19

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

• When removing, always use a remover tool that is made of plastic.

• Never damage the body.

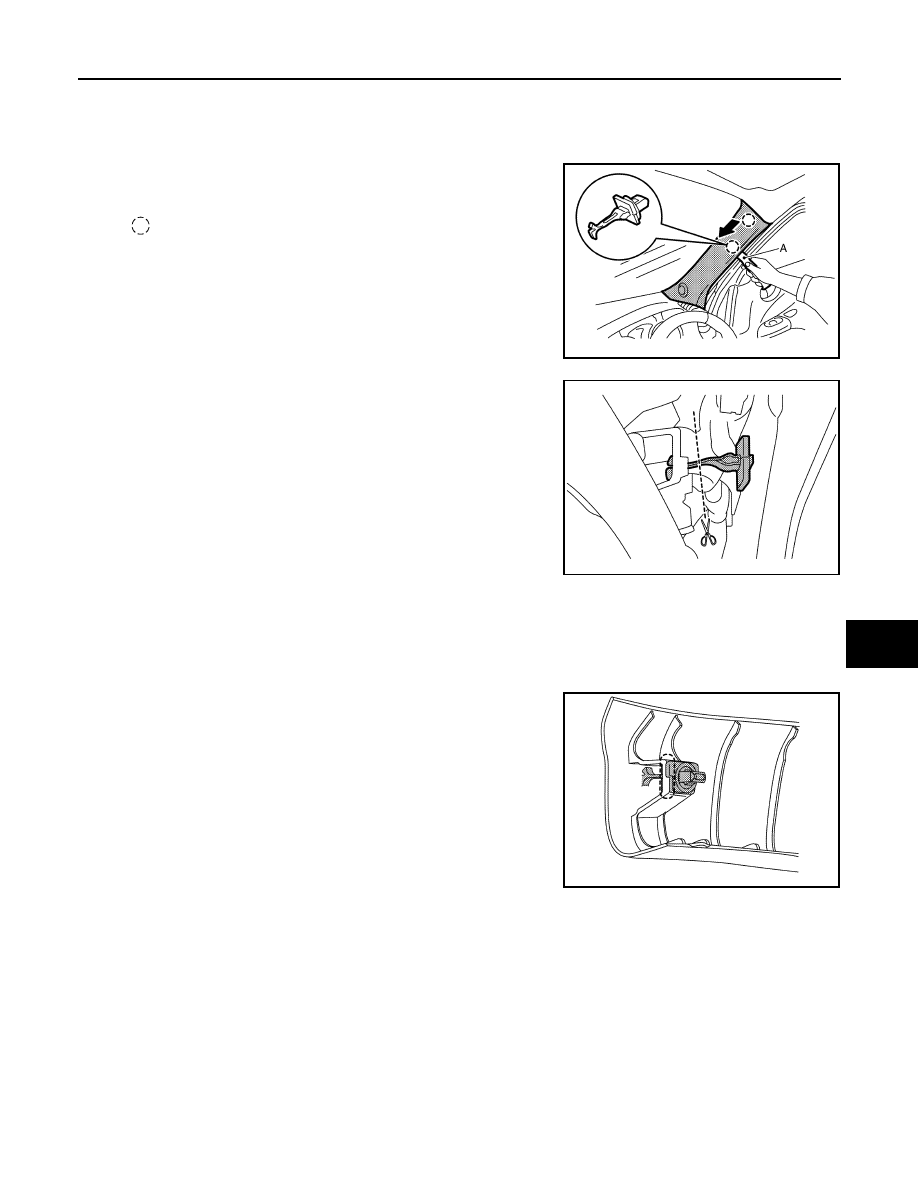

1. Release front pillar garnish portion of front body side welt.
2. Remove front pillar garnish.

1. Disengage front pillar garnish fixing anchor clips with a

remover tool (A).

2. Cut anchor clip portion, and then remove front pillar garnish.

INSTALLATION

Note the following items, and install in the reverse order of removal.

CAUTION:

• Replace anchor clip with a new part after removal. Never reuse anchor clip.

• Be sure to install anchor clip to front pillar garnish before installing front pillar garnish to the vehicle

body.

• When installing anchor clip to front pillar garnish, be sure to

align the notch and then insert anchor clip.

• After installing anchor clip to front pillar garnish, check that anchor clip is engaged securely to front

pillar garnish. If anchor clip is not engaged securely, front pillar garnish may be lifted and disen-

gaged from the vehicle body.

• When installing front pillar garnish, check that anchor clips are securely in body panel holes, and

press them in.

KICKING PLATE INNER
KICKING PLATE INNER : Removal and Installation

INFOID:0000000012199174

REMOVAL

CAUTION:

• When removing, always use a remover tool that is made of plastic to prevent damage to the parts.

• Never damage the body.

: Anchor Clip
