INT-20

< REMOVAL AND INSTALLATION >

BODY SIDE TRIM

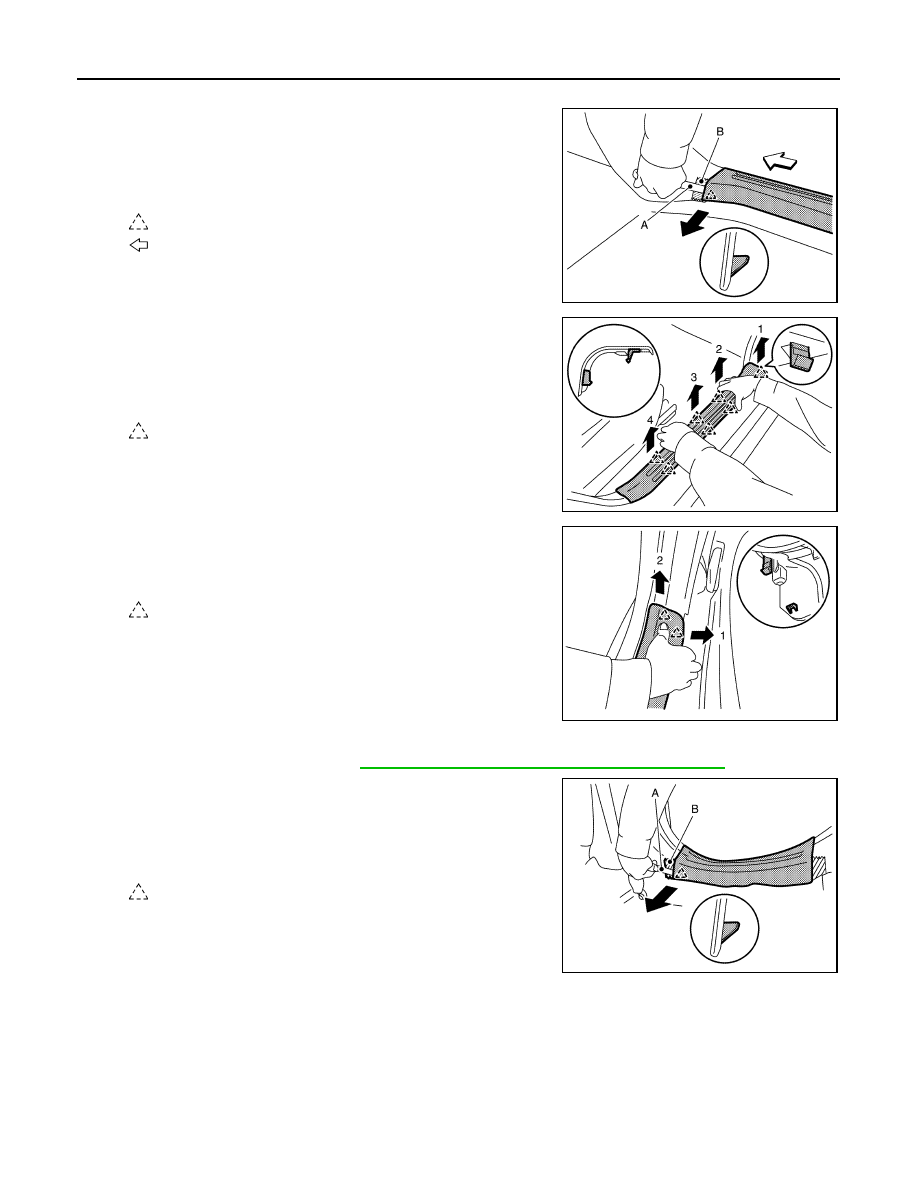

FRONT KICKING PLATE INNER

1. Disengage fixing pawls on front lower end of front kicking plate

inner using a remover tool (A).

CAUTION:

Apply protective tape (B) on the parts to protect it from

damage.

2. Lift up toward vehicle upper and disengage fixing pawls of front

kicking plate inner starting from the front.

CAUTION:

Never lift up excessively. Otherwise, rear end of front kick-

ing plate inner may be damaged.

3. Lift up lower rear end of front kicking plate inner while pulling it

toward vehicle inside, disengage fixing pawls of front kicking

plate inner, and then remove front kicking plate inner.

REAR KICKING PLATE INNER

1. Remove rear seat cushion. Refer to

SE-32, "SEAT CUSHION : Removal and Installation"

.

2. Disengage fixing pawls on front lower end of rear kicking plate

inner using a remover tool (A).

CAUTION:

Apply protective tape (B) on the parts to protect it from

damage.

: Pawl

: Vehicle front

JMJIA6562ZZ

: Pawl

JMJIA6563ZZ

: Pawl

JMJIA6564ZZ

: Pawl

JMJIA6565ZZ

BODY SIDE TRIM

INT-21

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

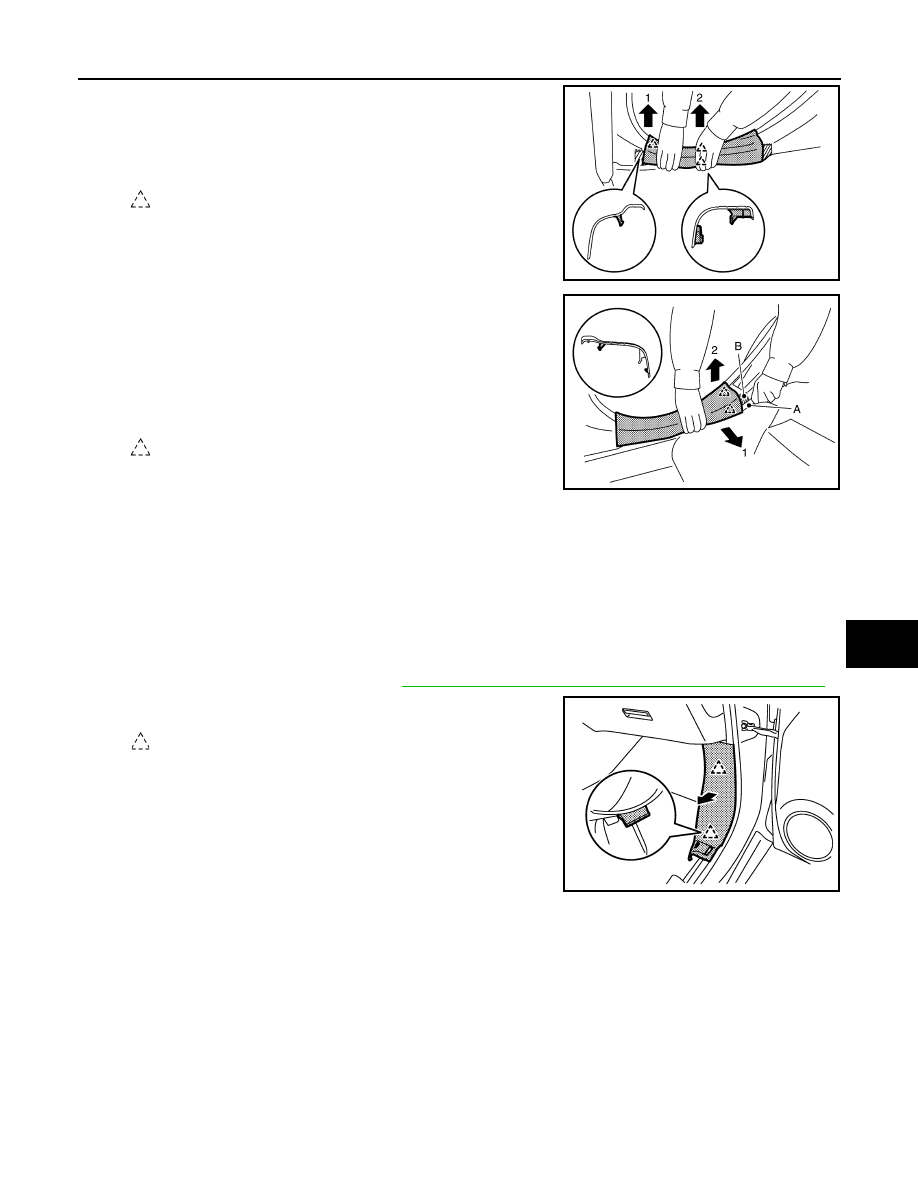

3. Lift up toward vehicle upper and disengage fixing pawls of rear

kicking plate inner starting from the front.

CAUTION:

Never lift up excessively. Otherwise, rear end of rear kicking

plate inner may be damaged.

4. Using a remover tool (A), lift up lower rear end of rear kicking

plate inner while disengaging a fixing pawl on lower rear end of

rear kicking plate inner, disengage remaining fixing pawls, and

then remove rear kicking plate inner.

CAUTION:

Apply protective tape (B) on the parts to protect it from

damage.

INSATALLATION

Install in the reverse order of removal.

DASH SIDE FINISHER
DASH SIDE FINISHER : Removal and Installation

INFOID:0000000012199175

REMOVAL

CAUTION:

Never damage the body.
1. Remove front kicking plate inner. Refer to

INT-19, "KICKING PLATE INNER : Removal and Installation"

.

2. Pull back dash side finisher, and then disengage the pawls.

3. Disconnect dash side finisher, vehicle front side, from stud bolt and remove dash side finisher.

INSTALLATION

Install in the reverse order of removal.

BODY SIDE WELT
BODY SIDE WELT : Removal and Installation

INFOID:0000000012199176

REMOVAL

CAUTION:

• Never excessively pull body side welt.

• Never damage the body.

FRONT BODY SIDE WELT

: Pawl

JMJIA6566ZZ

: Pawl

JMJIA6567ZZ

: Pawl

JMJIA4529ZZ

INT-22

< REMOVAL AND INSTALLATION >

BODY SIDE TRIM

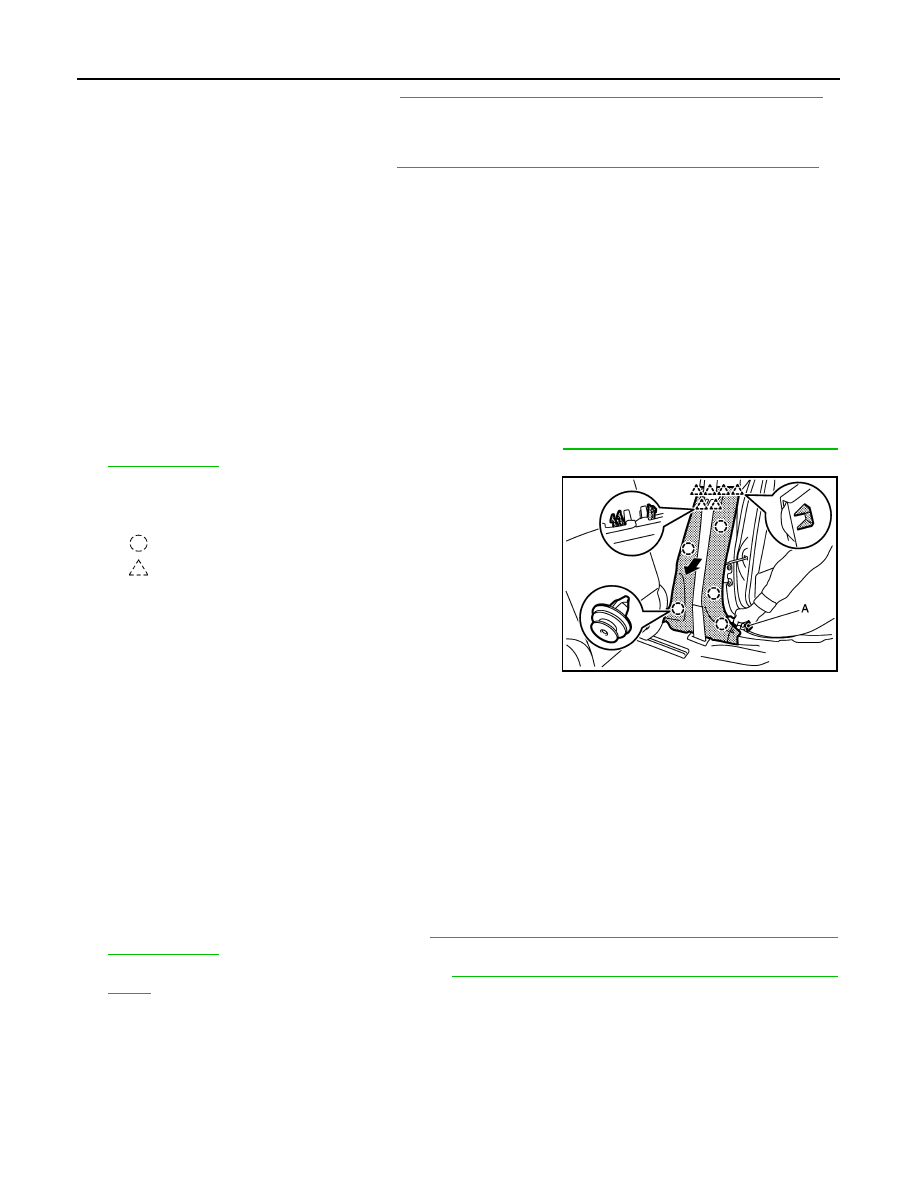

1. Remove front kicking plate inner. Refer to

INT-19, "KICKING PLATE INNER : Removal and Installation"

.

2. Remove front body side welt.

REAR BODY SIDE WELT

1. Remove rear kicking plate inner. Refer to

INT-19, "KICKING PLATE INNER : Removal and Installation"

.

2. Remove rear body side welt.

INSTALLATION

Install in the reverse order of removal.

CENTER PILLAR LOWER GARNISH
CENTER PILLAR LOWER GARNISH : Removal and Installation

INFOID:0000000012199177

REMOVAL

CAUTION:

• When removing, always use a remover tool that is made of plastic.

• Never damage the body.
1. Fully open front door and rear door.
2. Slide front seat to the fully forward position. Tilt seatback forward.
3. Remove Front body side welt and rear body side welt. Refer to

INT-21, "BODY SIDE WELT : Removal

and Installation"

.

4. Disengage center pillar lower garnish fixing clips and pawls with

a remover tool (A), and then remove center pillar lower garnish.

INSTALLATION

Note the following item, and install in the reverse order of removal.

CAUTION:

When installing center pillar lower garnish, check that clips are securely in body panel holes, and

press them in.

CENTER PILLAR UPPER GARNISH
CENTER PILLAR UPPER GARNISH : Removal and Installation

INFOID:0000000012199178

REMOVAL

CAUTION:

• When removing, always use a remover tool that is made of plastic.

• Never damage the body.
1. Remove center pillar lower garnish. Refer to

INT-22, "CENTER PILLAR LOWER GARNISH : Removal

and Installation"

.

2. Remove front seat belt shoulder anchor. Refer to

SB-6, "SEAT BELT RETRACTOR : Removal and Instal-

lation"

.

: Clip

: Pawl

JMJIA4390ZZ

BODY SIDE TRIM

INT-23

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

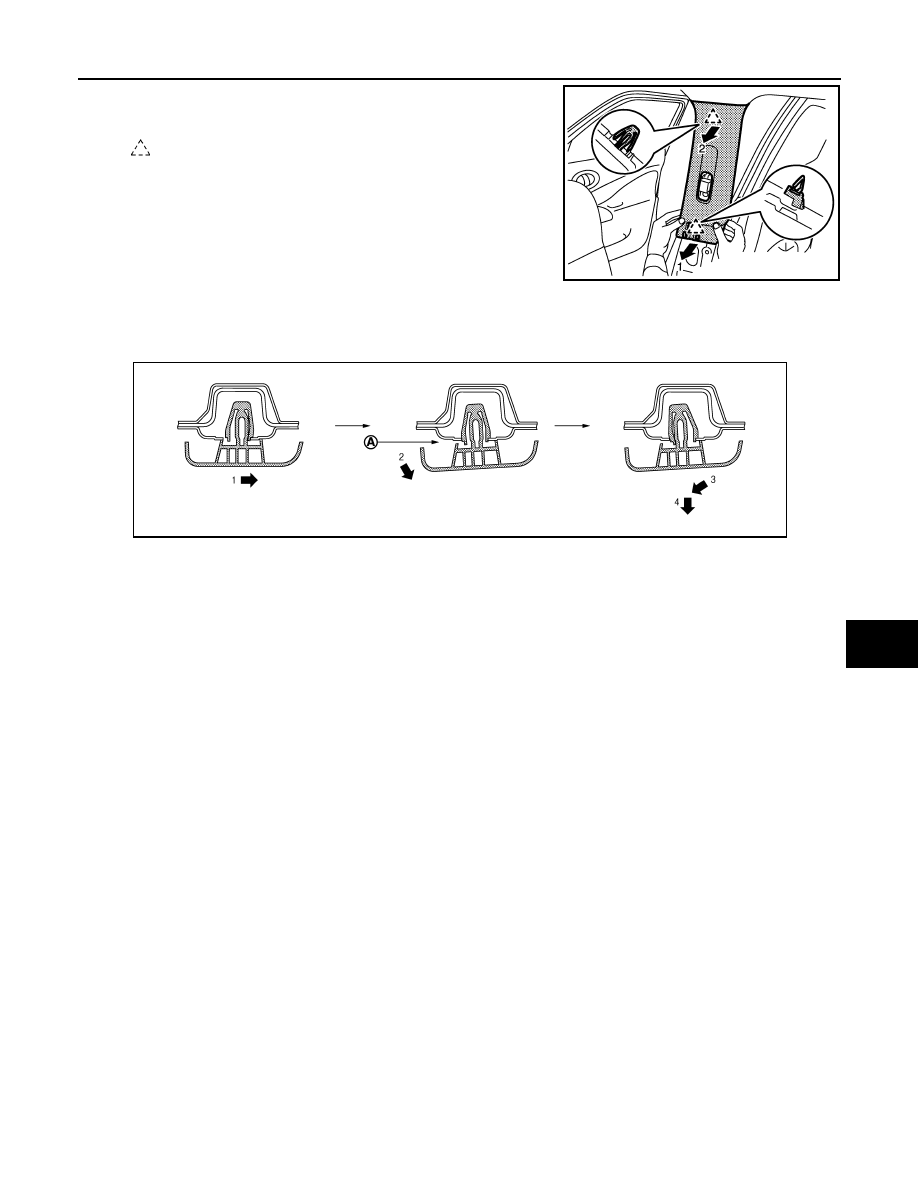

3. Disengage center pillar upper garnish lower side fixing pawl

using a remover tool.

4. Disengage center pillar upper garnish upper side fixing clip using a remover tool (A).

NOTE:

Removal operation can be performed easily when pressing pawl by inserting a removal tool from direction

(A) as shown in the figure.

CAUTION:

Be careful not to apply excessive force when removing center pillar upper garnish. Otherwise,

pawl may be damaged and fragments may drop in panel holes on body.

INATALLATION

Note the following items, and install in the reverse order of removal.

CAUTION:

• Replace center pillar upper garnish with a new part after removal. Never reuse center pillar upper

garnish.

• When installing center pillar upper garnish, check that pawls are securely in body panel holes, and

press them in.

: Pawl

JMJIA4391ZZ

PIIB7674J
