FRONT DRIVE SHAFT BOOT

FAX-79

< REMOVAL AND INSTALLATION >

[TYPE 2]

C

E

F

G

H

I

J

K

L

M

A

B

FAX

N

O

P

9. Install the boot securely into grooves (indicated by “*” marks)

shown in the figure.

CAUTION:

If grease adheres to the boot mounting surface (indicated

by “*” marks) on the shaft or joint sub-assembly, boot may

be removed. Remove all grease from the boot mounting

surface.

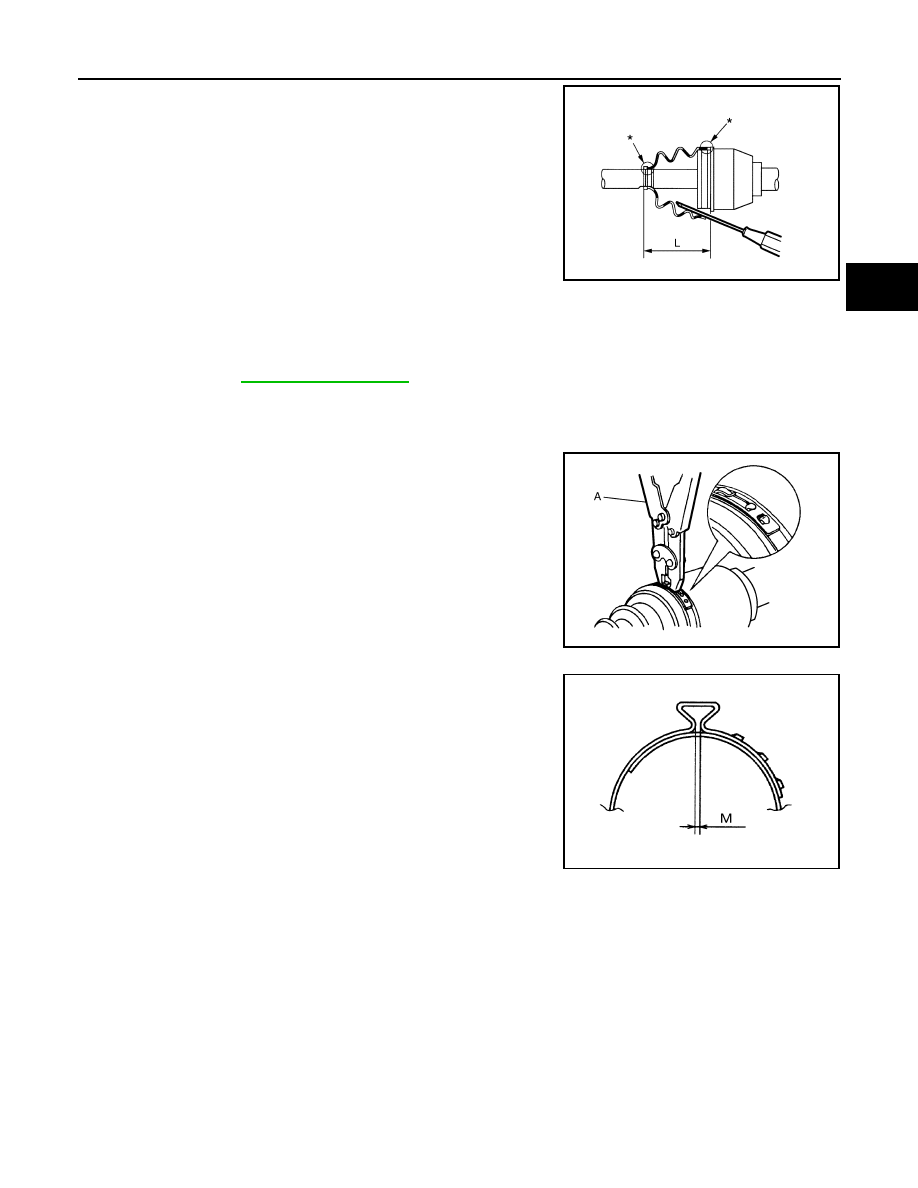

10. To prevent the deformation of the boot, adjust the boot installation length (L) to the specified value shown

below by inserting the suitable tool into inside of the boot from the large diameter side of the boot and dis-

charging the inside air.

CAUTION:

• If the boot installation length exceeds the standard, it may cause breakage of the boot.

• Be careful not to touch the inside of the boot with a tip of tool.

11. Secure the large and small ends of the boot with boot bands

using the boot band crimping tool (A) [SST:KV40107300 ( —

)].

CAUTION:

• Never reuse boot band.

• Secure boot band so that dimension (M) meets the speci-

fication as shown in the figure.

12. Check that displacement does not occur when boot is rotated with the joint sub-assembly and shaft fixed.

CAUTION:

• Reinstall them using boot bands when boot installation positions become incorrect.

• Never reuse boot band.

13. Clean the matching surface of wheel hub lock nut and wheel hub assembly.

CAUTION:

Never apply lubricating oil to these matching surface.

JSDIA2261ZZ

L

: Refer to

FAX-109, "Drive Shaft"

.

JPDIF0012ZZ

Dimension (M)

: 2.0 – 3.0 mm (0.079 – 0.118 in)

DSF0047D

FAX-80

< REMOVAL AND INSTALLATION >

[TYPE 2]

FRONT DRIVE SHAFT BOOT

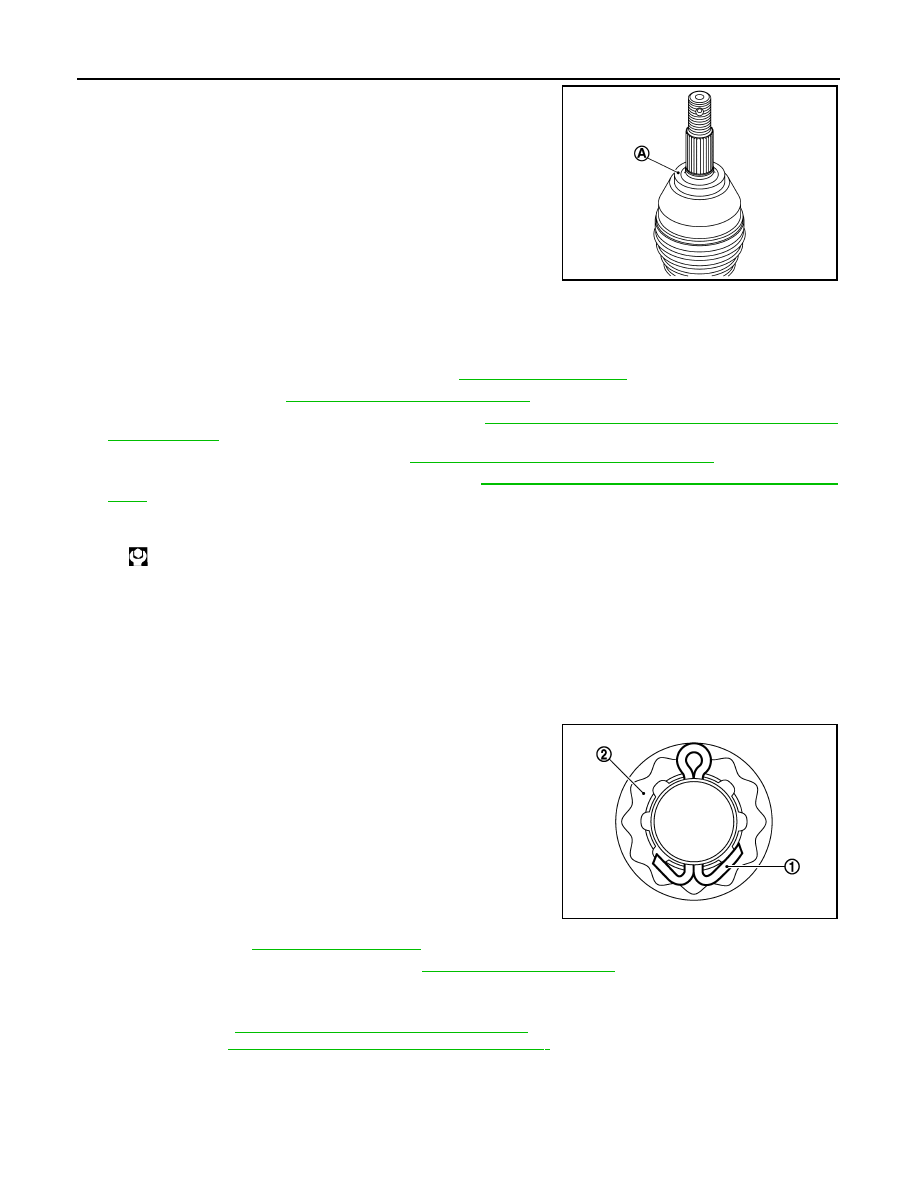

14. Clean the matching surface of drive shaft, wheel hub assembly.

And then apply paste [service parts (440037S000)] to surface

(A) of joint sub-assembly of drive shaft.

CAUTION:

Apply paste to cover entire flat surface of joint sub-assem-

bly of drive shaft.

15. Insert drive shaft to wheel hub assembly, and then temporarily tighten wheel hub lock nut.

CAUTION:

• Be sure to use torque wrench to tighten the wheel hub lock nut. Never use a power tool.

• Never reuse wheel hub lock nut.

16. Install strut assembly to steering knuckle. Refer to

FSU-9, "Exploded View"

.

17. Install disc rotor. Refer to

FAX-66, "Removal and Installation"

.

18. Install caliper assembly to steering knuckle. Refer to

BR-55, "BRAKE CALIPER ASSEMBLY : Removal

and Installation"

.

19. Install lock plate to strut assembly. Refer to

BR-25, "FRONT : Removal and Installation"

.

20. Install wheel sensor and sensor harness. Refer to

BRC-147, "FRONT WHEEL SENSOR : Exploded

View"

.

21. Use the following torque range for tightening the wheel hub lock nut.

CAUTION:

• Since the drive shaft is assembled by press-fitting, use the tightening torque range for the wheel

hub lock nut.

• Be sure to use torque wrench to tighten the wheel hub lock nut. Never use a power tool.

• Never reuse wheel hub lock nut.

NOTE:

Wheel hub lock nut tightening torque does not over torque for avoiding axle noise, and does not less than

torque for avoiding looseness.

22. When installing a cotter pin (1) and adjusting cap (2), securely

bend the basal portion to prevent rattles.

CAUTION:

Never reuse cotter pin.

23. Install tires. Refer to

WT-39, "Exploded View"

.

24. Perform inspection after installation. Refer to

FAX-80, "AWD : Inspection"

.

Transaxle Side

• Install drive shaft to vehicle.

- Installation: Refer to

FAX-97, "AWD : Removal and Installation"

.

- Assembly: Refer to

FAX-101, "AWD : Disassembly and Assembly"

.

AWD : Inspection

INFOID:0000000012201559

INSPECTION AFTER INSTALLATION

Amount paste

: 1.0 – 3.0 g (0.04 – 0.10 oz)

JSDIA2844ZZ

: 180 – 185 N·m (18.4 – 18.8 kg-m, 133 – 136 ft-lb)

JPDIF0295ZZ

FRONT DRIVE SHAFT BOOT

FAX-81

< REMOVAL AND INSTALLATION >

[TYPE 2]

C

E

F

G

H

I

J

K

L

M

A

B

FAX

N

O

P

1. Check wheel sensor harness for proper connection. Refer to

BRC-147, "FRONT WHEEL SENSOR :

Exploded View"

.

2. Check the wheel alignment. Refer to

FSU-7, "Inspection"

.

3. Adjust neutral position of steering angle sensor. Refer to

BRC-63, "Work Procedure"

.

FAX-82

< REMOVAL AND INSTALLATION >

[TYPE 2]

FRONT DRIVE SHAFT

FRONT DRIVE SHAFT

2WD

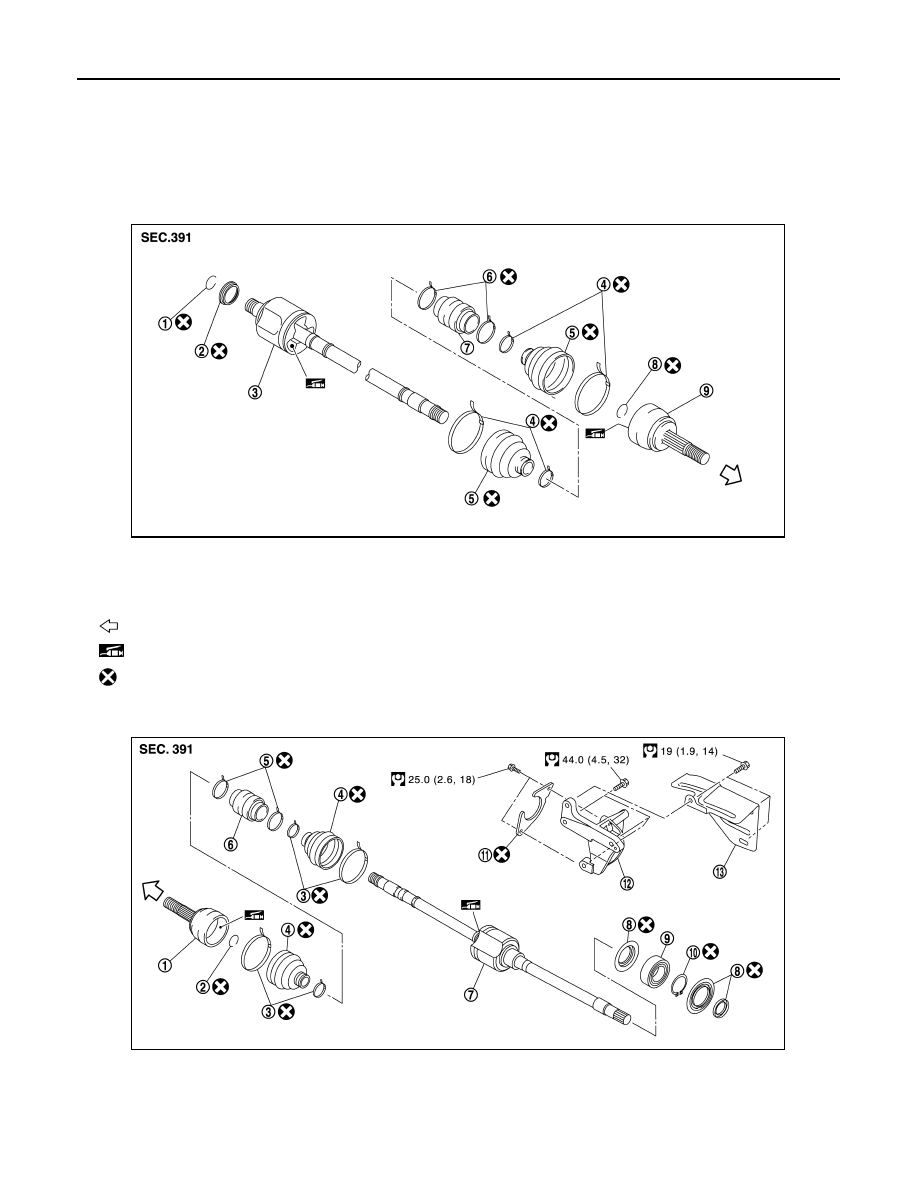

2WD : Exploded View

INFOID:0000000012201560

LEFT SIDE

RIGHT SIDE

1.

Circular clip

2.

Dust shield

3.

Housing assembly

4.

Boot band

5.

Boot

6.

Damper band

7.

Dynamic damper

8.

Circular clip

9.

Joint sub-assembly

: Wheel side

: Fill NISSAN Genuine grease or equivalent.

: Always replace after every disassembly.

JSDIA2093ZZ

1.

Joint sub-assembly

2.

Circular clip

3.

Boot band

4.

Boot

5.

Damper band

6.

Dynamic damper

7.

Housing assembly

8.

Dust shield

9.

Support bearing

10. Snap ring

11. Plate

12. Support bearing bracket

JSDIA2094GB
