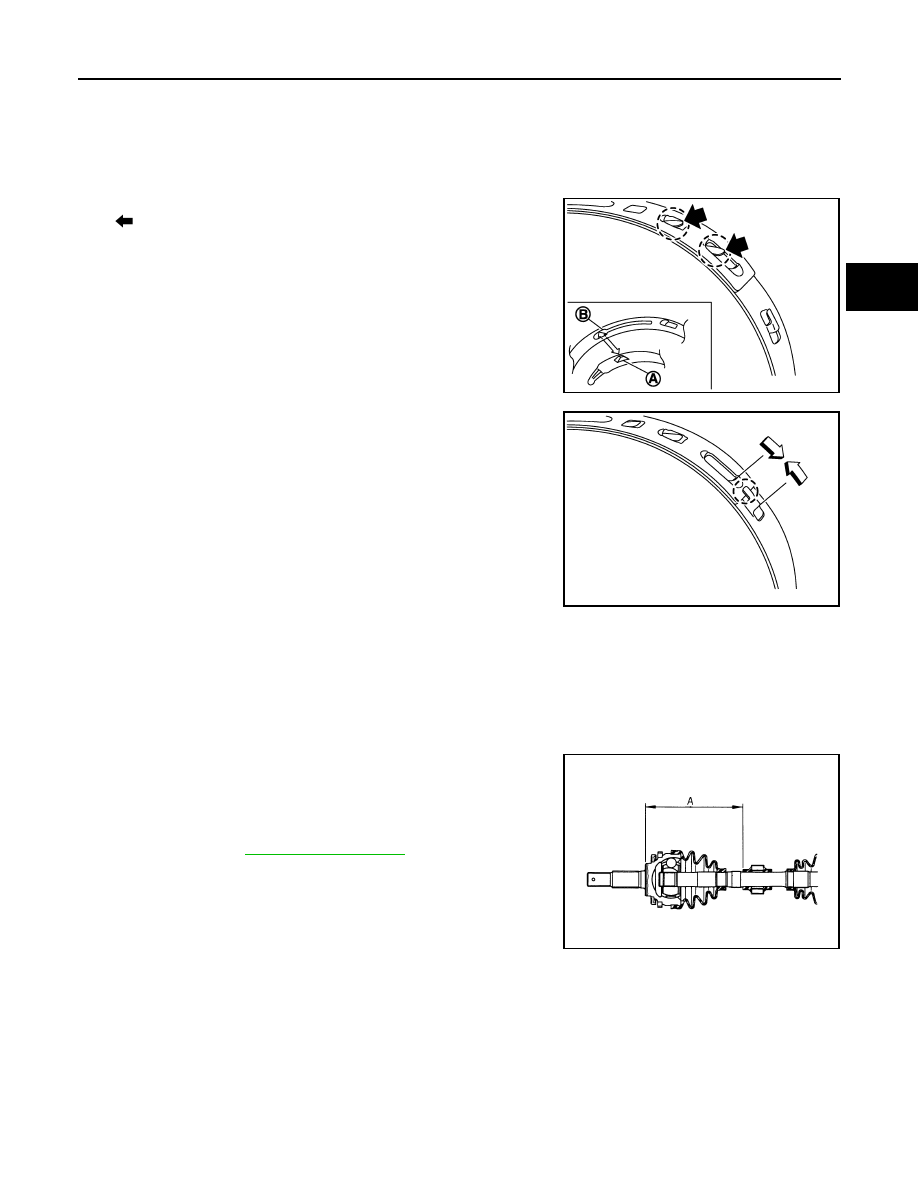

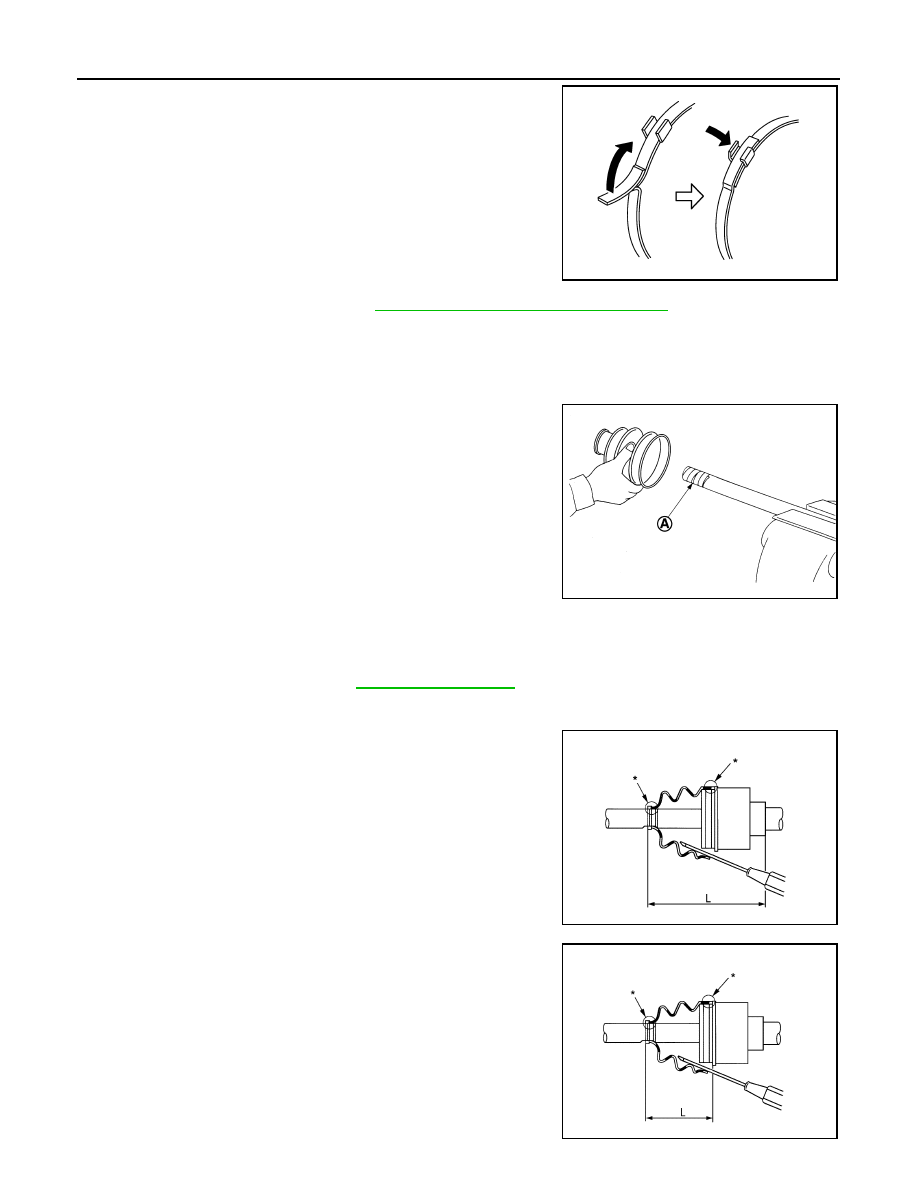

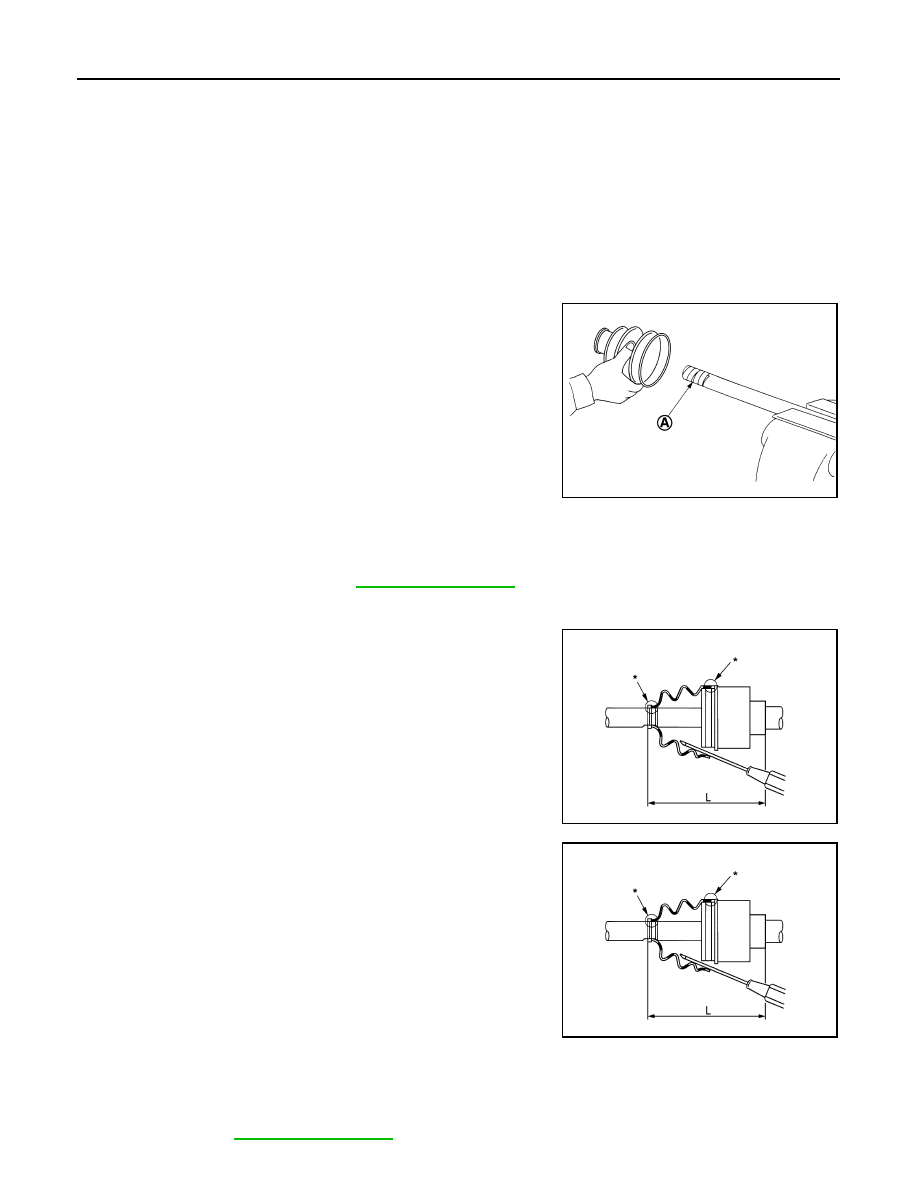

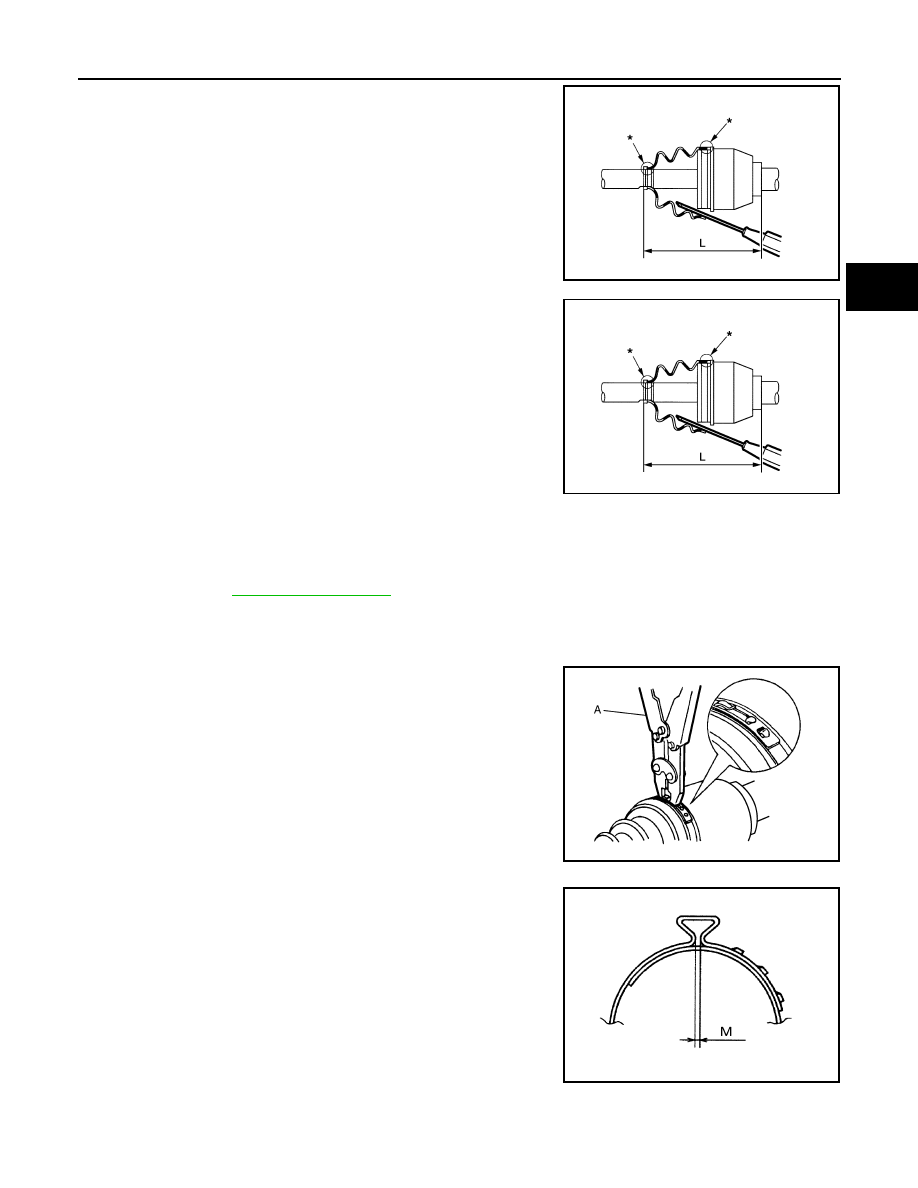

FRONT DRIVE SHAFT FAX-51 < REMOVAL AND INSTALLATION > [TYPE 1] C E F G H I J K L M A B FAX N O P a. For NISMO RS models. CAUTION: If grease adheres to the boot mounting surface (indicated by “*” marks) on the shaft or joint sub-assembly, boot may be removed. Remove all grease from the boot mounting surface. b. Except for NISMO RS models. CAUTION: If grease adheres to the boot mounting surface (indicated by “*” marks) on the shaft or joint sub-assembly, boot may be removed. Remove all grease from the boot mounting surface. 10. To prevent the deformation of the boot, adjust the boot installation length (L) to the specified value shown below by inserting the suitable tool into inside of the boot from the large diameter side of the boot and dis- charging the inside air. CAUTION: • If the boot installation length exceeds the standard, it may cause breakage of the boot. • Be careful not to touch the inside of the boot with a tip of tool. 11. Secure the large and small ends of the boot with boot bands using the boot band crimping tool (A) [SST:KV40107300 ( — )]. CAUTION: • Never reuse boot band. • Secure boot band so that dimension (M) meets the speci- fication as shown in the figure. 12. Check that displacement does not occur when boot is rotated with the joint sub-assembly and shaft fixed. CAUTION: • Reinstall them using boot bands when boot installation positions become incorrect. JPDIF0222ZZ JPDIF0222ZZ L : Refer to . JPDIF0012ZZ Dimension (M) : 2.0 – 3.0 mm (0.079 – 0.118 in) DSF0047D |
