FRONT DRIVE SHAFT

FAX-55

< REMOVAL AND INSTALLATION >

[TYPE 1]

C

E

F

G

H

I

J

K

L

M

A

B

FAX

N

O

P

6. To prevent the deformation of the boot, adjust the boot installation length to the value shown below (L) by

inserting the suitable tool into the inside of boot from the large diameter side of boot and discharging

inside air.

CAUTION:

• If the boot installation length exceeds the standard, it may cause breakage of the boot.

• Be careful not to touch the inside of the boot with the tip of tool.

7. Install boot bands securely.

CAUTION:

Never reuse boot bands.

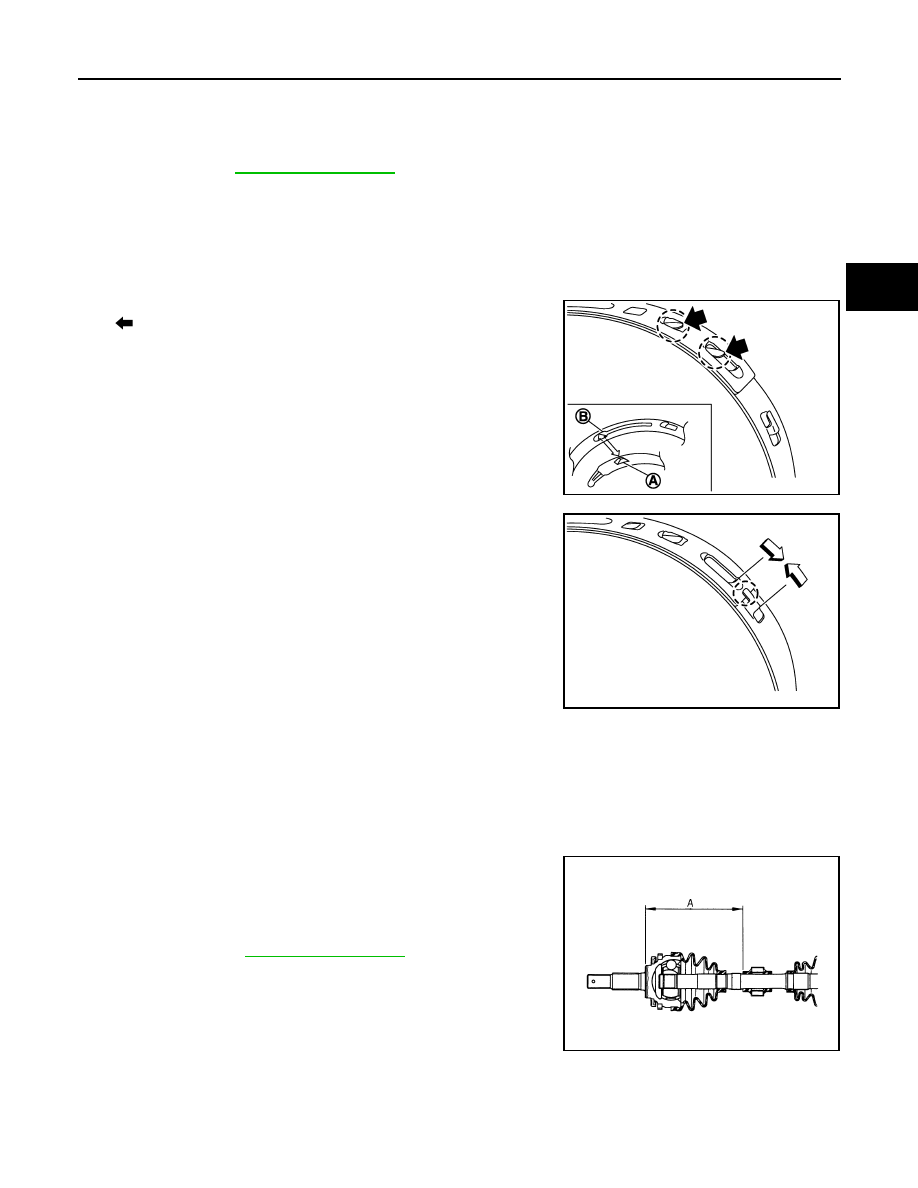

a. Put boot band in the groove on drive shaft boot. Then fit pawls

(

) into holes to temporary installation.

NOTE:

For the large diameter side, fit projection (A) and guide slit (B) at

first.

b. Pinch projection on the band with suitable pliers to tighten band.
c. Insert the tip of band into the lower part of pawl (marked with

dotted circle) as shown in the figure.

8. Check that displacement does not occur when boot is rotated with the housing assembly fixed.

CAUTION:

• If displacement occurs, reinstall band.

• Never reuse boot band.

9. Install dynamic damper, follow the procedure described below.
a. Install dynamic damper to shaft.
b. Secure dynamic damper with bands in the following specified

position (A) when installing.

CAUTION:

Never reuse bands.

L

:  Refer  to

FAX-57, "Drive Shaft"

.

JPDIF0157ZZ

JPDIF0158ZZ

A :

Refer

to

FAX-57, "Drive Shaft"

.

JPDIF0178ZZ

FAX-56

< REMOVAL AND INSTALLATION >

[TYPE 1]

FRONT DRIVE SHAFT

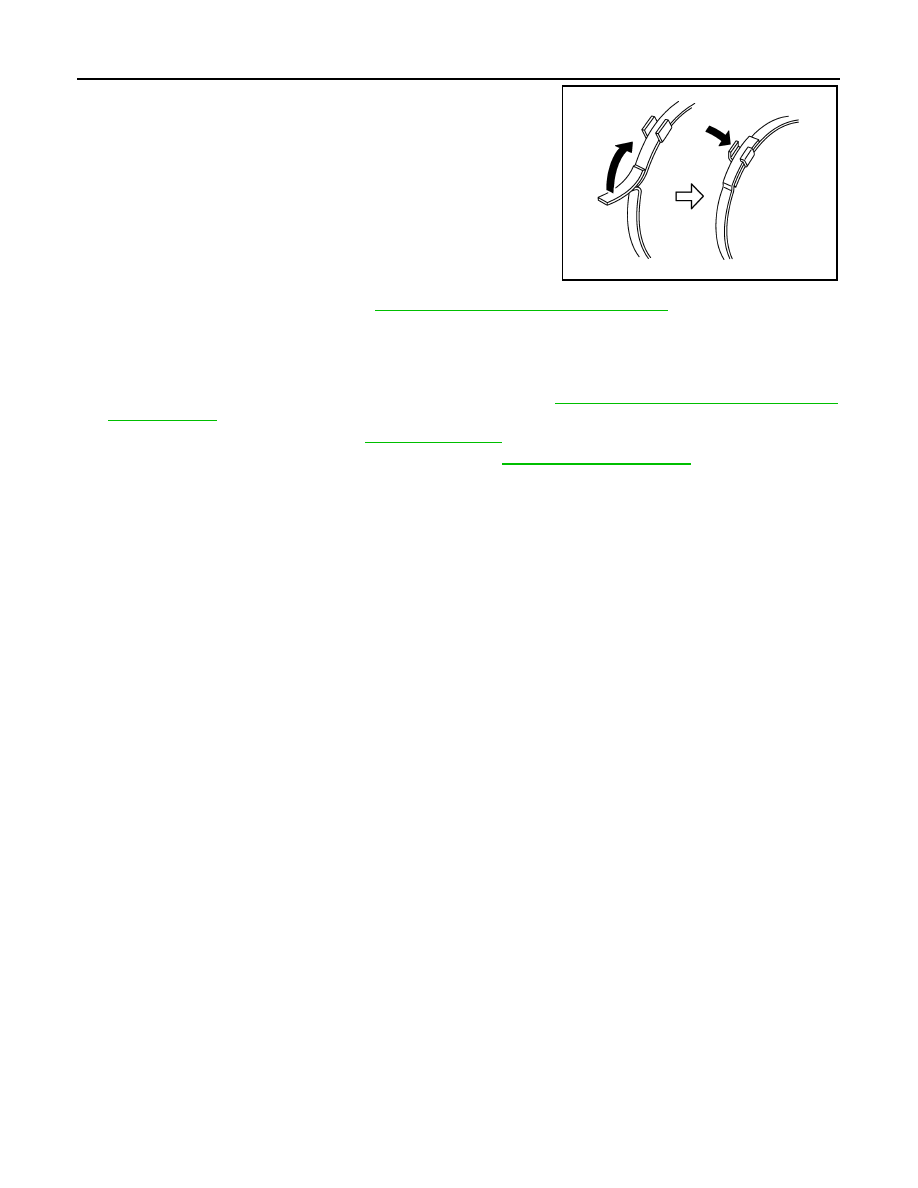

c.

Install boot bands securely as showin in the figure.

10. Install boot to the wheel side. Refer to

FAX-22, "AWD : Removal and Installation"

.

AWD : Inspection

INFOID:0000000012201540

INSPECTION AFTER INSTALLATION

1. Check wheel sensor harness for proper connection. Refer to

BRC-147, "FRONT WHEEL SENSOR :

Exploded View"

.

2. Check the wheel alignment. Refer to

FSU-7, "Inspection"

.

3. Adjust neutral position of steering angle sensor. Refer to

BRC-63, "Work Procedure"

.

PDIA1188J

SERVICE DATA AND SPECIFICATIONS (SDS)

FAX-57

< SERVICE DATA AND SPECIFICATIONS (SDS)

[TYPE 1]

C

E

F

G

H

I

J

K

L

M

A

B

FAX

N

O

P

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

Wheel Bearing

INFOID:0000000012201541

Drive Shaft

INFOID:0000000012201542

2WD (Except for NISMO RS models)

*: For measuring position, refer to

FAX-32, "2WD : Disassembly and Assembly"

.

2WD (For NISMO RS models)

*: For measuring position, refer to

FAX-32, "2WD : Disassembly and Assembly"

.

AWD

*: For measuring position, refer to

FAX-32, "2WD : Disassembly and Assembly"

.

Item

Standard

Axial end play

0.05 mm (0.002 in) or less

Item

Standard

Left side

Right side

Grease quantity

Wheel side

115 – 125 g (4.05 – 4.40 oz)

Transaxle side

132 – 142 g (4.65 – 5.00 oz)

Boots installed length

*

Wheel side

97.1 mm (3.82 in)

Transaxle side

85.0 mm (3.35 in)

Dimension of dynamic damper

*

267 –273 mm (10.51 – 10.75 in)

257 – 263 mm (10.12 – 10.35 in)

Item

Standard

Left side

Right side

Grease quantity

Wheel side

115 – 135 g (4.06 – 4.76 oz)

Transaxle side

215 – 235 g (7.58 – 8.28 oz)

Boots installed length

*

Wheel side

133.5 mm (5.26 in)

Transaxle side

185.1mm (6.34 in)

173.1mm (6.81 in)

Dimension of dynamic damper

*

249 – 255 mm (9.80 – 10.04 in)

252 – 258 mm (9.92 – 10.16 in)

Item

Standard

Left side

Right side

Grease quantity

Wheel side

88 – 108 g (3.01 – 3.80 oz)

Transaxle side

114 – 124 g (4.02 – 4.37 oz)

Boots installed length

*

Wheel side

95.4 mm (3.75 in)

Transaxle side

93.2 mm (3.66 in)

Dimension of dynamic damper

*

267 – 273 mm (10.51 – 10.75 in)
