HOW TO SELECT PISTON AND BEARING

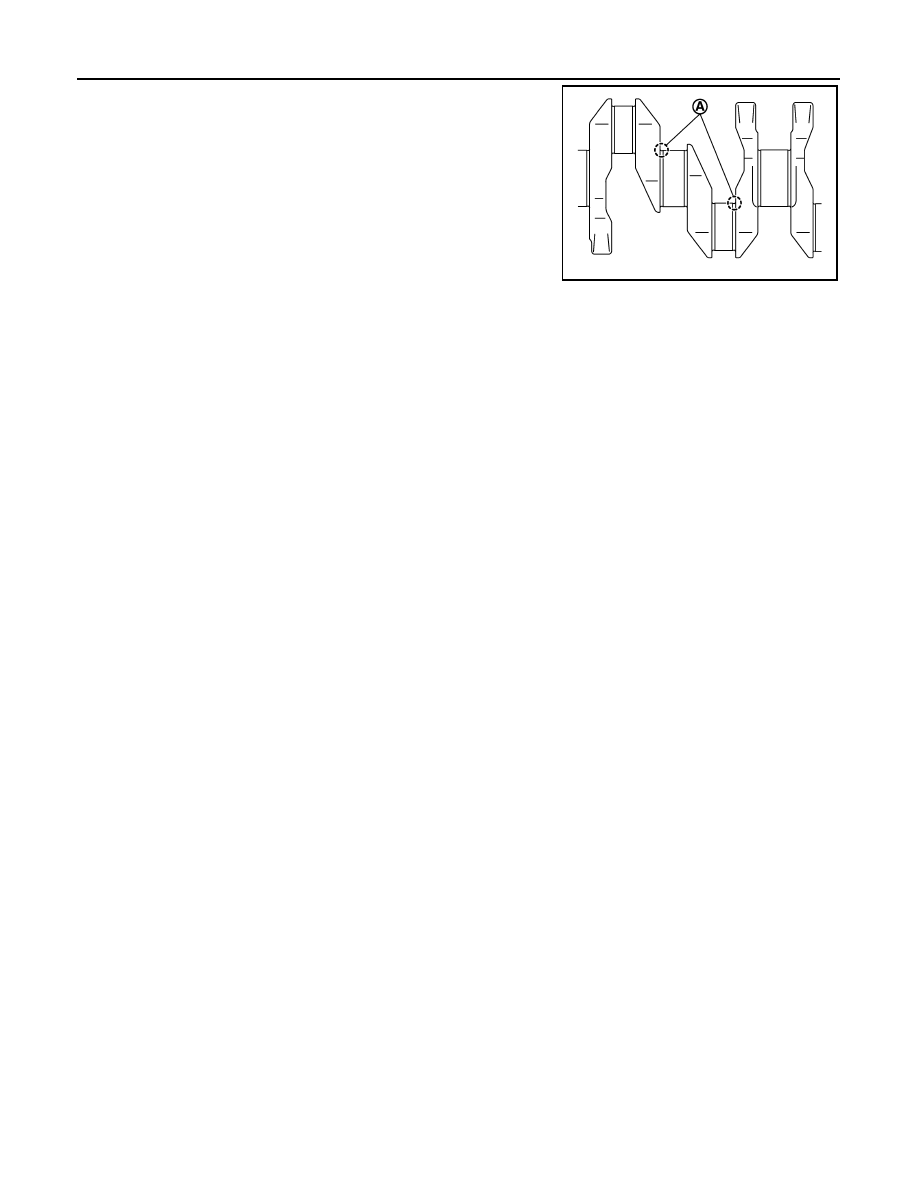

When grinding crankshaft journal to use undersize bearing,

never damage fillet roll area [1.5 – 1.7 mm (0.059 – 0.067 in)] (A).

PBIC3263J

SERVICE DATA AND SPECIFICATIONS (SDS)

EM-311

< SERVICE DATA AND SPECIFICATIONS (SDS)

[MR EXCEPT FOR NISMO RS MODELS]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

General Specification

INFOID:0000000012197448

GENERAL SPECIFICATIONS

Unit: degree

Engine type

MR16DDT

Cylinder arrangement

In-line 4

Displacement    cm

3

 (cu in)

1,618 (98.73)

Bore and stroke    mm (in)

79.7

×81.1 (3.138×3.193)

Valve arrangement

DOHC

Firing order

1-3-4-2

Number of piston rings

Compression

2

Oil

1

Compression ratio

10.5

Compression pressure
kPa (kg/cm

2

, psi)/200 rpm

Standard

1,550 (15.81, 224.7)

Minimum

1,290 (13.15, 187.0)

Differential limit between cylinders

100 (1.0, 14.5)

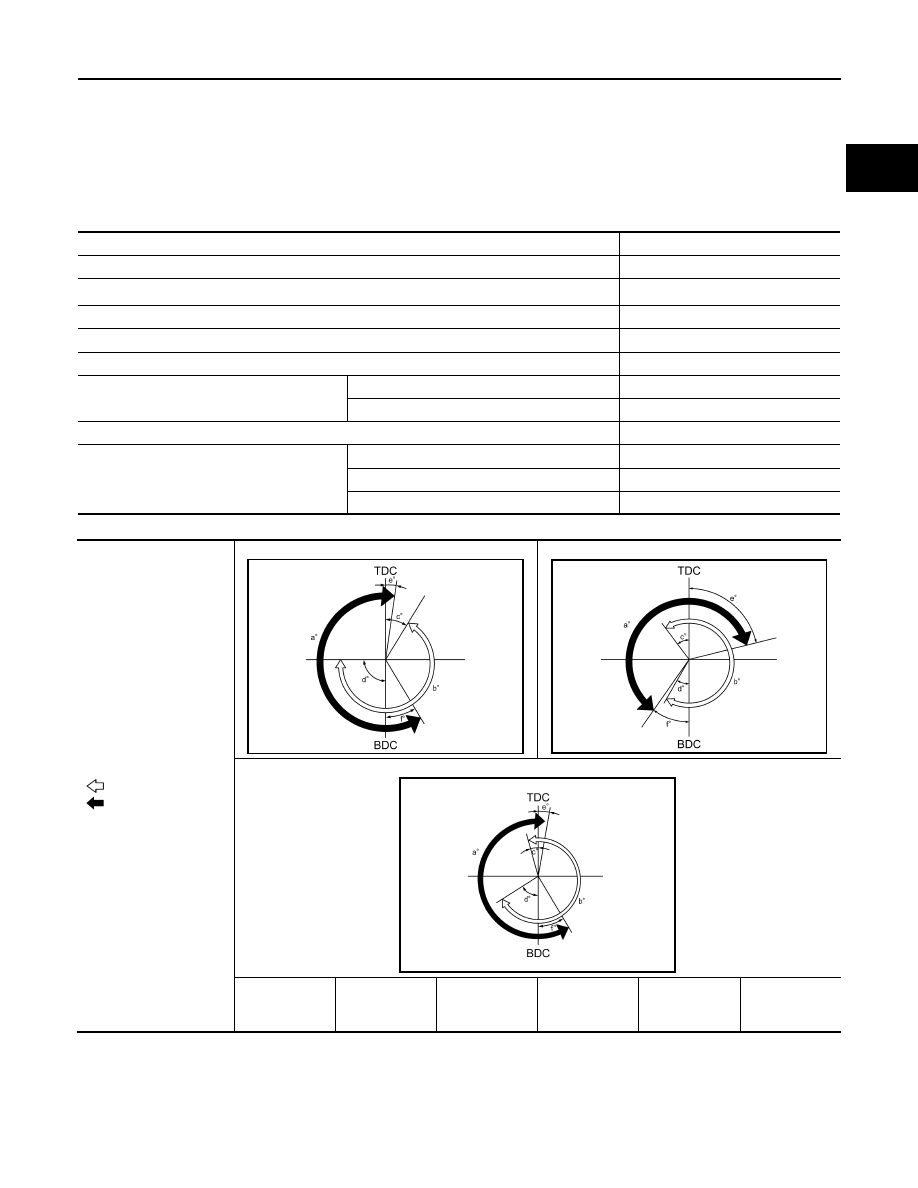

Valve timing

: Intake valve
: Exhaust valve

VTC Minimum phasing (Mechanical)

VTC Maximum phasing (Mechanical)

Engine start (Mechanical)

a

EXH valve

opening angle

b

INT valve open-

ing angle

c

INT open

d

INT closed

e

EXH closed

f

EXH open

JSBIA5742ZZ

JSBIA5743ZZ

JSBIA5744ZZ

EM-312

< SERVICE DATA AND SPECIFICATIONS (SDS)

[MR EXCEPT FOR NISMO RS MODELS]

SERVICE DATA AND SPECIFICATIONS (SDS)

• *1: Idling at coolant temperature of 60

°C or more

• *2: At maximum operation
• *3: At coolant temperature of 60

°C or less, or at engine start

Drive Belt

INFOID:0000000012197449

DRIVE BELT

Air Cleaner

INFOID:0000000012197450

AIR CLEANER ELEMENT

Spark Plug

INFOID:0000000012197451

SPARK PLUG

Unit: mm (in)

Exhaust Manifold

INFOID:0000000012197452

EXHAUST MANIFOLD

Unit: mm (in)

Camshaft

INFOID:0000000012197453

CAMSHAFT

Unit: mm (in)

VTC Minimum phasing

(Mechanical)

*1

212

236

ATDC34

ABDC90

ATDC3

BBDC29

VTC Maximum phasing

(Mechanical)

*2

BTDC31

ABDC25

ATDC63

ABDC31

Engine start (Mechani-

cal)

*3

BTDC2

ABDC54

ATDC3

BBDC29

Tension of drive belt

Belt tension is not necessary, as it is automatically adjusted by drive belt auto-tensioner.

Replacement Interval

Every 60,000 km

Make

NGK

Standard type

DILKAR7E9HS

Gap (Nominal)

Standard

0.9 (0.035)

Limit

1.1 (0.043)

Items

                                Limit

Surface distortion

Each exhaust port

0.1 (0.004)

Entire part

0.3 (0.012)

Standard

Limit

Camshaft journal oil clearance

No. 1

0.038 - 0.086 (0.0015 - 0.0034)

0.15 (0.0059)

No. 2, 3, 4, 5

0.030 - 0.071 (0.0012 - 0.0028)

Camshaft bracket inner diameter

No. 1

28.000 - 28.021 (1.1024 - 1.1032)

—

No. 2, 3, 4, 5

25.000 - 25.021 (0.9843 - 0.9851)

—

Camshaft journal diameter

No. 1

27.935 - 27.962 (1.0998 - 1.1009)

—

No. 2, 3, 4, 5

24.950 - 24.970 (0.9823 - 0.9831)

—

Camshaft end play

0.075 - 0.153 (0.0030 - 0.0060)

0.24 (0.0095)

SERVICE DATA AND SPECIFICATIONS (SDS)

EM-313

< SERVICE DATA AND SPECIFICATIONS (SDS)

[MR EXCEPT FOR NISMO RS MODELS]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

*: Total indicator reading

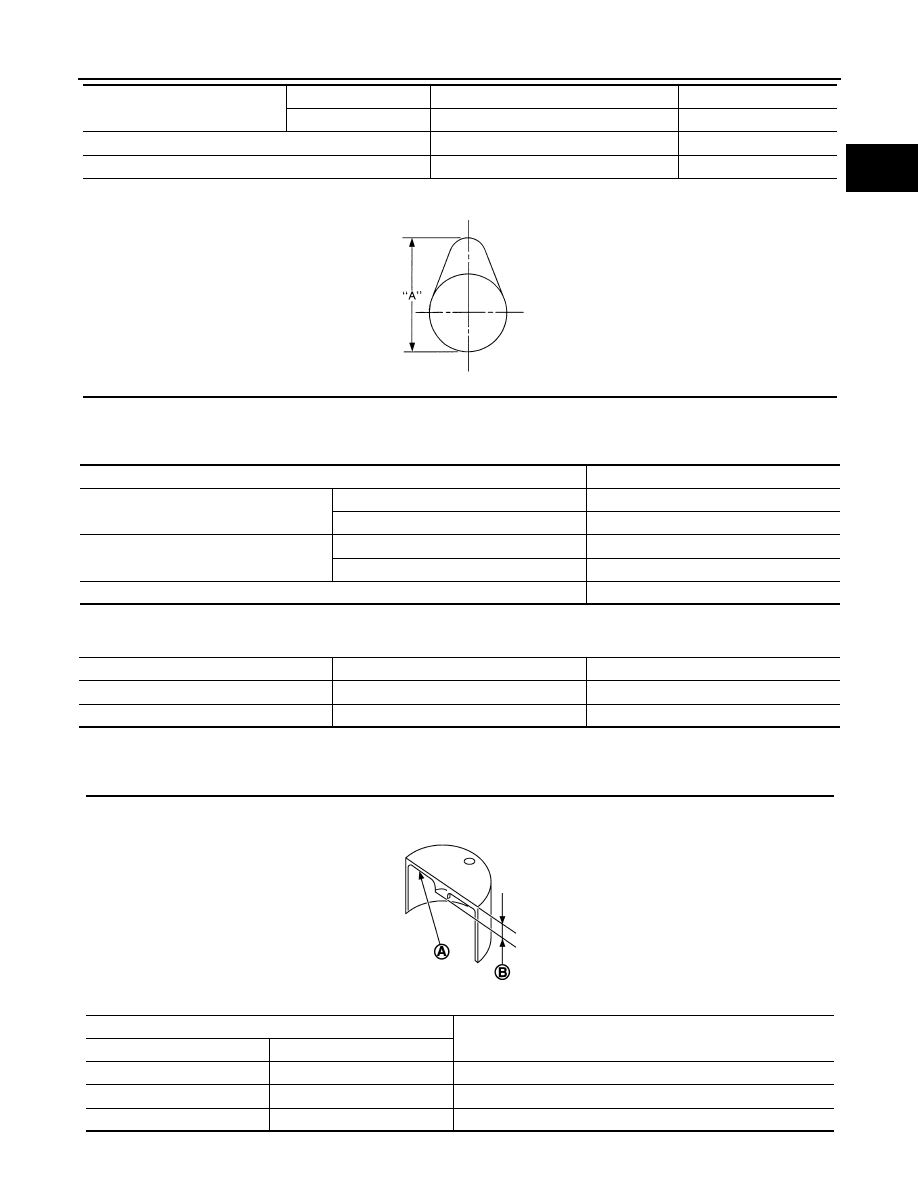

VALVE LIFTER

Unit: mm (in)

VALVE CLEARANCE

Unit: mm (in)

*: Approximately 80

°C (176°F)

AVAILABLE VALVE LIFTER

Unit: mm (in)

Camshaft nose height (A)

Intake

44.565 - 44.755 (1.7545 - 1.7620)

44.365 (1.7467)

Exhaust

42.875 - 43.065 (1.6880 - 1.6955)

44.905 (1.7679)

Camshaft runout [TIR*]

Less than 0.02 (0.0008)

0.05 (0.0020)

Camshaft sprocket runout [TIR*]

—

0.15 (0.0059)

SEM671

Items

Standard

Valve lifter outer diameter

Intake

33.977 - 33.987 (1.3377 - 1.3381)

Exhaust

29.977 - 29.987 (1.1802 - 1.1806)

Valve lifter hole diameter

Intake

34.000 - 34.021 (1.3386 - 1.3394)

Exhaust

30.000 - 30.021 (1.1811 - 1.1819)

Valve lifter clearance

0.013 - 0.044 (0.0005 - 0.0017)

Items

Cold

Hot* (reference data)

Intake

0.24 - 0.32 (0.009 - 0.013)

0.304 - 0.416 (0.012 - 0.016)

Exhaust

0.25 - 0.33 (0.010 - 0.013)

0.308 - 0.432 (0.012 - 0.017)

Stamp mark (A)

Valve lifter thickness (B)

Intake

Exhaust

300 or 300H

300J or 300j or 300H

3.00 (0.1181)

302 or 302H

302J or 302j or 302H

3.02 (0.1189)

304 or 304H

304J or 304j or 304H

3.04 (0.1197)

JPBIA0170ZZ
