Nissan Juke F15. Manual - part 690





EM-314

< SERVICE DATA AND SPECIFICATIONS (SDS)

[MR EXCEPT FOR NISMO RS MODELS]

SERVICE DATA AND SPECIFICATIONS (SDS)

Cylinder Head

INFOID:0000000012197454

CYLINDER HEAD

Unit: mm (in)

306 or 306H

306J or 306j or 306H

3.06 (0.1205)

308 or 308H

308J or 308j or 308H

3.08 (0.1213)

310 or 310H

310J or 310j or 310H

3.10 (0.1220)

312 or 312H

312J or 312j or 312H

3.12 (0.1228)

314 or 314H

314J or 314j or 314H

3.14 (0.1236)

316 or 316H

316J or 316j or 316H

3.16 (0.1244)

318 or 318H

318J or 318j or 318H

3.18 (0.1252)

320 or 320H

320J or 320j or 320H

3.20 (0.1260)

322 or 322H

322J or 322j or 322H

3.22 (0.1268)

324 or 324H

324J or 324j or 324H

3.24 (0.1276)

326 or 326H

326J or 326j or 326H

3.26 (0.1283)

328 or 328H

328J or 328j or 328H

3.28 (0.1291)

330 or 330H

330J or 330j or 330H

3.30 (0.1299)

332 or 332H

332J or 332j or 332H

3.32 (0.1307)

334 or 334H

334J or 334j or 334H

3.34 (0.1315)

336 or 336H

336J or 336j or 336H

3.36 (0.1323)

338 or 338H

338J or 338j or 338H

3.38 (0.1331)

340 or 340H

340J or 340j or 340H

3.40 (0.1339)

342 or 342H

342J or 342j or 342H

3.42 (0.1346)

344 or 344H

344J or 344j or 344H

3.44 (0.1354)

346 or 346H

346J or 346j or 346H

3.46 (0.1362)

348 or 348H

348J or 348j or 348H

3.48 (0.1370)

350 or 350H

350J or 350j or 350H

3.50 (0.1378)

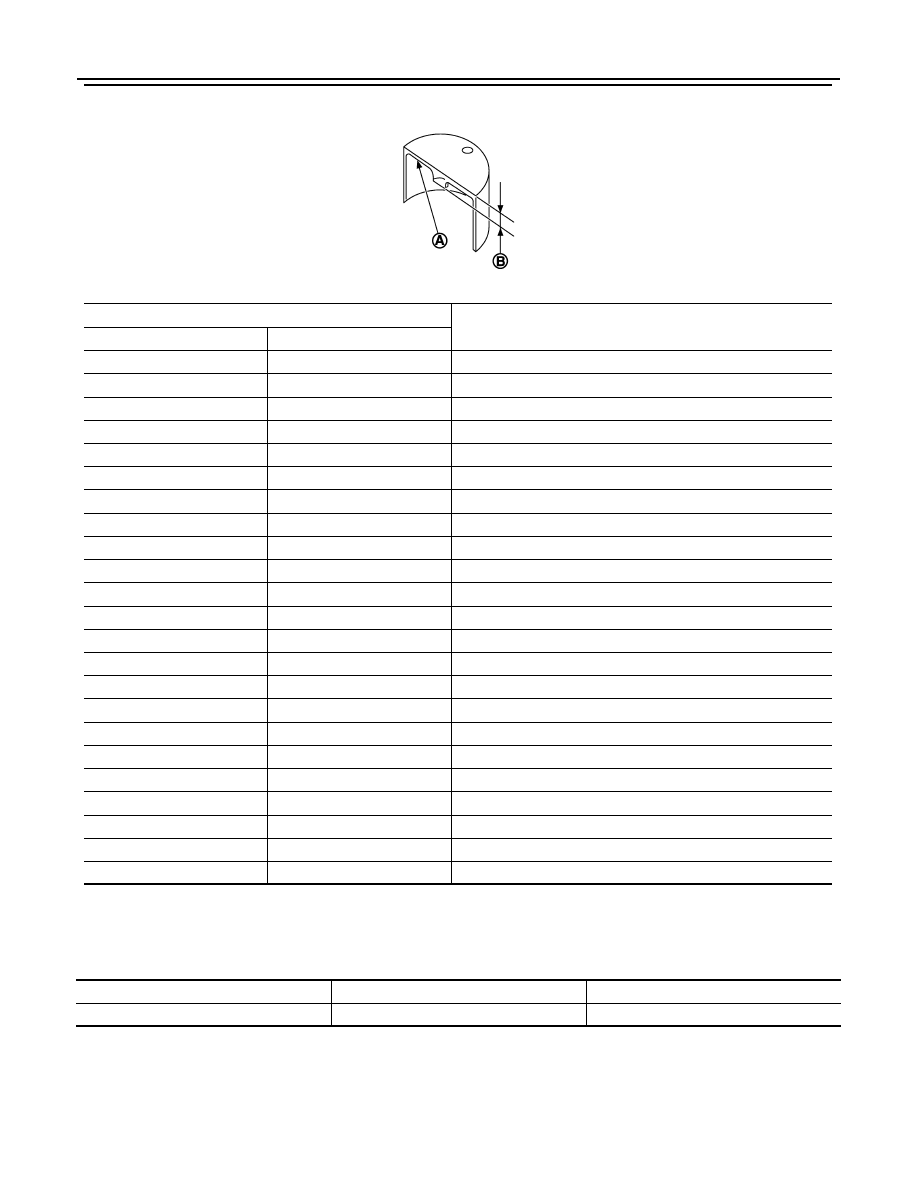

Stamp mark (A)

Valve lifter thickness (B)

Intake

Exhaust

JPBIA0170ZZ

Items

Standard

Limit

Head surface distortion

0.1 (0.004)

SERVICE DATA AND SPECIFICATIONS (SDS)

EM-315

< SERVICE DATA AND SPECIFICATIONS (SDS)

[MR EXCEPT FOR NISMO RS MODELS]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

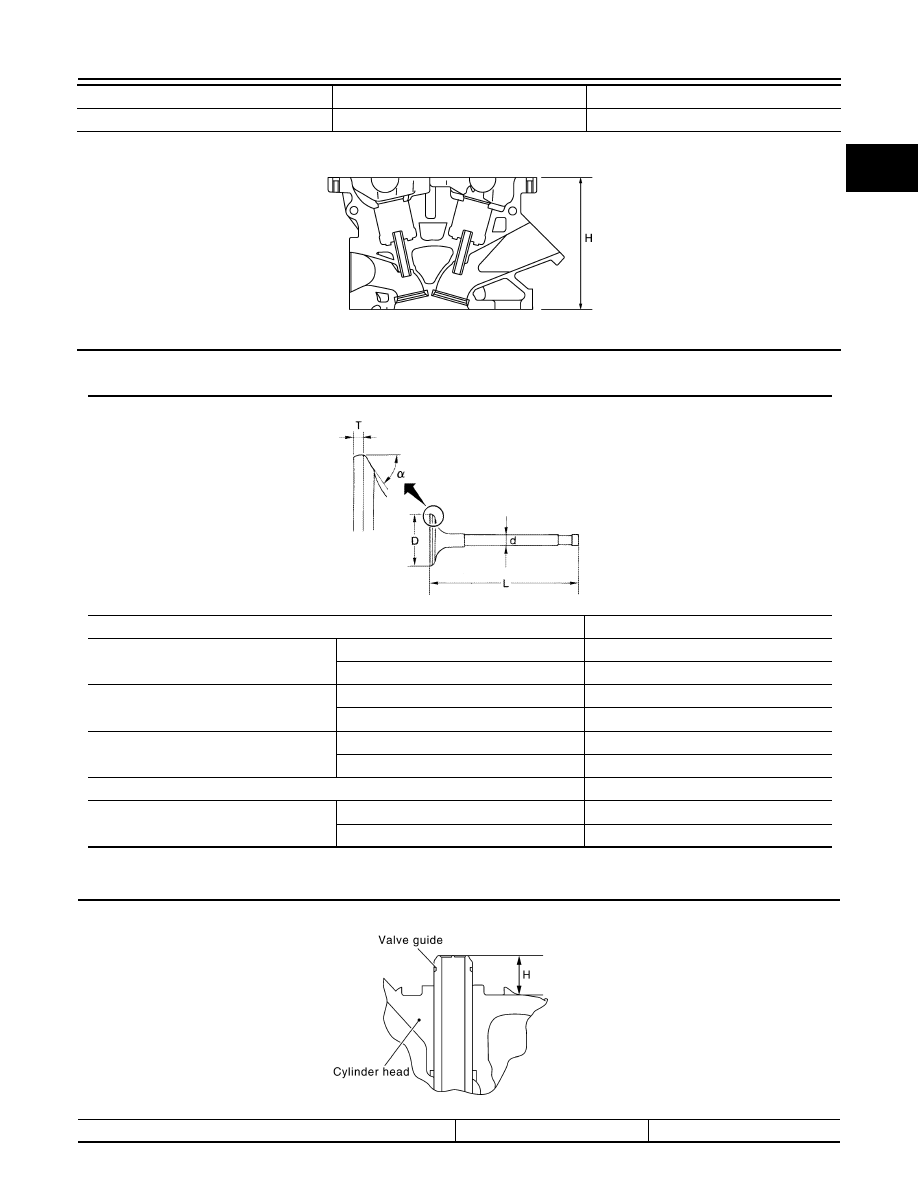

VALVE DIMENSIONS

Unit: mm (in)

VALVE GUIDE

Unit: mm (in)

Normal cylinder head height “H”

130.9 (5.15)

Items

Standard

Limit

PBIC0924E

Measuring point

Standard

Valve head diameter “D”

Intake

31.2 - 31.5 (1.228 - 1.240)

Exhaust

25.6 - 25.9 (1.008 - 1.020)

Valve total length “L”

Intake

105.48 (4.15)

Exhaust

106.06 (4.18)

Stem diameter “d”

Intake

5.465 - 5.520 (0.2152 - 0.2173)

Exhaust

5.455 - 5.530 (0.2148 - 0.2177)

Seat angle “

α”

45

°15′ − 45°45′

Valve thickness “T”

Intake

1.4 (0.055)

Exhaust

1.4 (0.055)

JSBIA1166ZZ

Items

Standard

Oversize (service) [0.2 (0.008)]

PBIC2187E

EM-316

< SERVICE DATA AND SPECIFICATIONS (SDS)

[MR EXCEPT FOR NISMO RS MODELS]

SERVICE DATA AND SPECIFICATIONS (SDS)

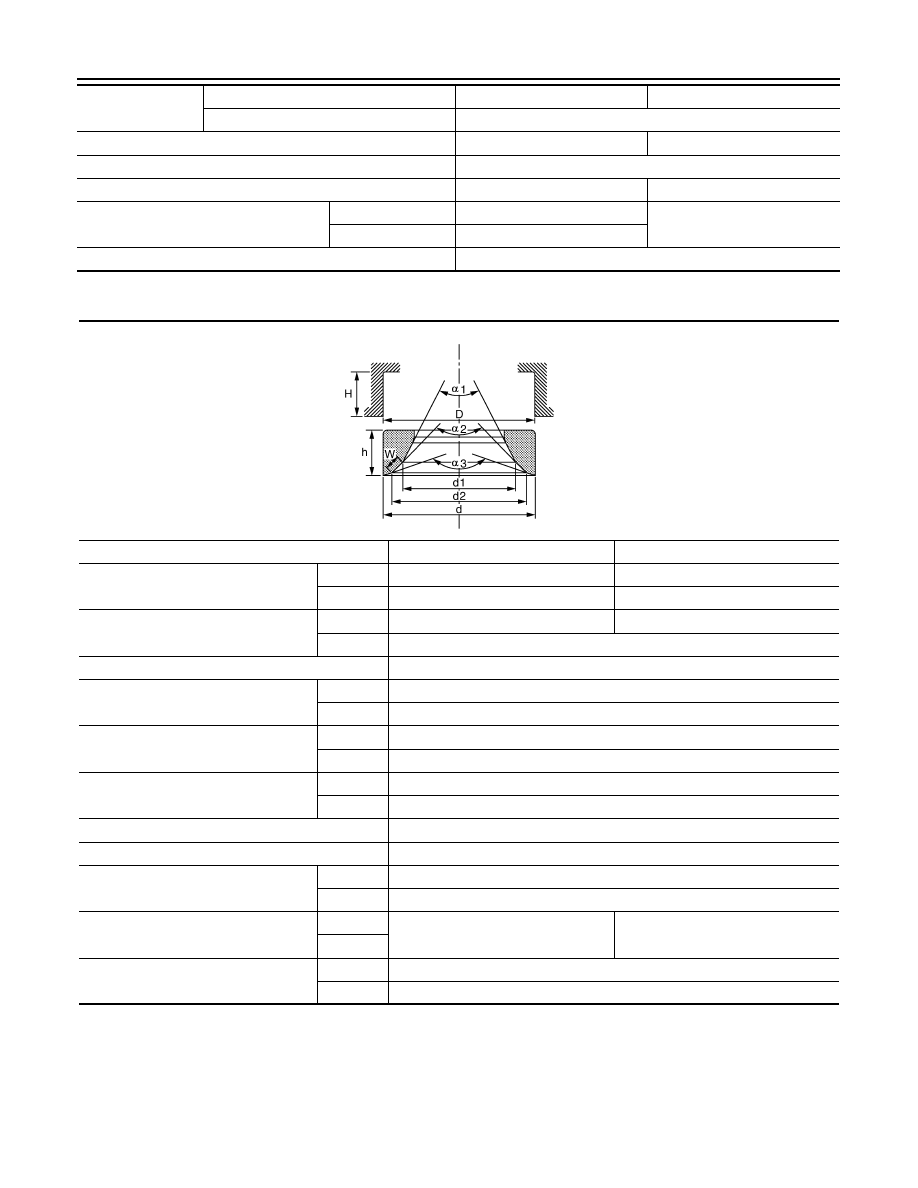

VALVE SEAT

Unit: mm (in)

*

1

: Diameter made by intersection point of conic angles “

α1” and “α2”

*

2

: Diameter made by intersection point of conic angles “

α2” and “α3”

*

3

: Machining data

VALVE SPRING

Valve guide

Outer diameter

9.523 - 9.534 (0.3749 - 0.3754)

9.723 - 9.734 (0.3828 - 0.3832)

Inner diameter (Finished size)

5.500 - 5.518 (0.2165 - 0.2172)

Cylinder head valve guide hole diameter

9.475 - 9.496 (0.3730 - 0.3739)

9.675 - 9.696 (0.3809 - 0.3817)

Interference fit of valve guide

0.027 - 0.059 (0.0011 - 0.0023)

Items

Standard

Limit

Valve guide clearance

Intake

0.020 - 0.053 (0.0008 - 0.0021)

0.1 (0.004)

Exhaust

0.030 - 0.063 (0.0012 - 0.0025)

Projection length “H”

13.35 - 13.65 (0.5256 - 0.5374)

Items

Standard

Oversize (service) [0.5 (0.020)]

Cylinder head seat recess diameter “D”

Intake

31.900 - 31.927 (1.2559 - 1.2570)

35.200 - 35.227 (1.3858 - 1.3869)

Exhaust

26.300 - 26.327 (1.0354 - 1.0365)

29.200 - 29.227 (1.1496 - 1.1507)

Valve seat outer diameter “d”

Intake

31.997 - 32.013 (1.2597 - 1.2604)

32.497 - 32.513 (1.2794 - 1.2800)

Exhaust

26.408 - 26.424 (1.0397 - 1.0403)

Valve seat interference fit

0.07 - 0.113 (0.0028 - 0.0044)

Diameter “d1”*

1

Intake

29.2 (1.150)

Exhaust

23.3 (0.917)

Diameter “d2”*

2

Intake

30.5 - 31.0 (1.201 - 1.220)

Exhaust

24.9 - 25.4 (0.980 - 1.0)

Angle “

α1”

Intake

70

°

Exhaust

45

°

Angle “

α2”

88

°45′ - 90°15′

Angle “

α3”

120

°

Contacting width “W”*

3

Intake

1.0 - 1.4 (0.039 - 0.055)

Exhaust

1.2 - 1.6 (0.047 - 0.063)

Height “h”

Intake

5.9 - 6.0 (0.232 - 0.236)

5.09 - 5.10 (0.2004 - 0.2008)

Exhaust

Depth “H”

Intake

6.01 (0.2366)

Exhaust

6.07 (0.2390)

PBIC2745E

SERVICE DATA AND SPECIFICATIONS (SDS)

EM-317

< SERVICE DATA AND SPECIFICATIONS (SDS)

[MR EXCEPT FOR NISMO RS MODELS]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

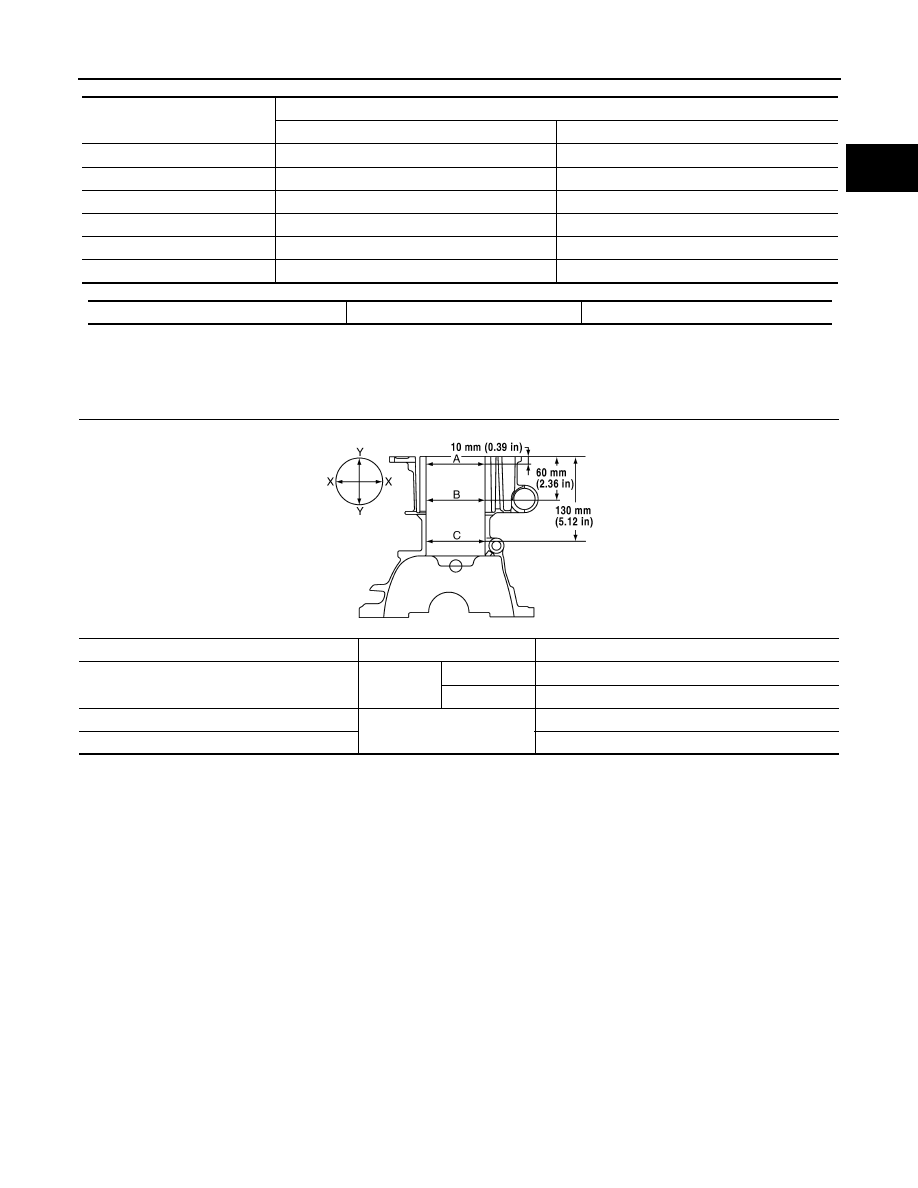

Cylinder Block

INFOID:0000000012197455

CYLINDER BLOCK

Unit: mm (in)

Standard

Intake

Exhaust

Free height

49.4 - 49.6 mm (1.945 - 1.953 in)

54.5 - 54.7 mm (2.146 - 2.154 in)

Installation height

37.46 mm (1.4748 in)

37.46 mm (1.4748 in)

Installation load

153

− 173N (15.6 − 17.6 kg, 34.3 - 38.9 lb)

259

− 287N (26.4 − 29.3 kg, 58.2 -  64.5 lb)

Height during valve open

27.86 mm (1.0968 in)

29.03 mm (1.1429 in)

Load when valve open

346

− 390N (35.3 − 39.8 kg, 77.8 - 87.7 lb)

452

− 500N (46.1 − 51.0 kg, 101.6 - 112.4 lb)

Identification color

White

Yellowish green

Valve spring squareness

Limit

1.0 (0.039)

Cylinder block top surface distortion

Limit

0.1 (0.004)

Cylinder bore inner diameter

Standard

Grade No. 1

79.700 - 79.710 (3.1378 - 3.1382)

Grade No. 2

79.710 - 79.720 (3.1382 - 3.1386)

Out-of-round

Limit

0.015 (0.0006)

Taper

0.010 (0.0004)

PBIC4017E
