EM-306

< UNIT DISASSEMBLY AND ASSEMBLY >

[MR EXCEPT FOR NISMO RS MODELS]

HOW TO SELECT PISTON AND BEARING

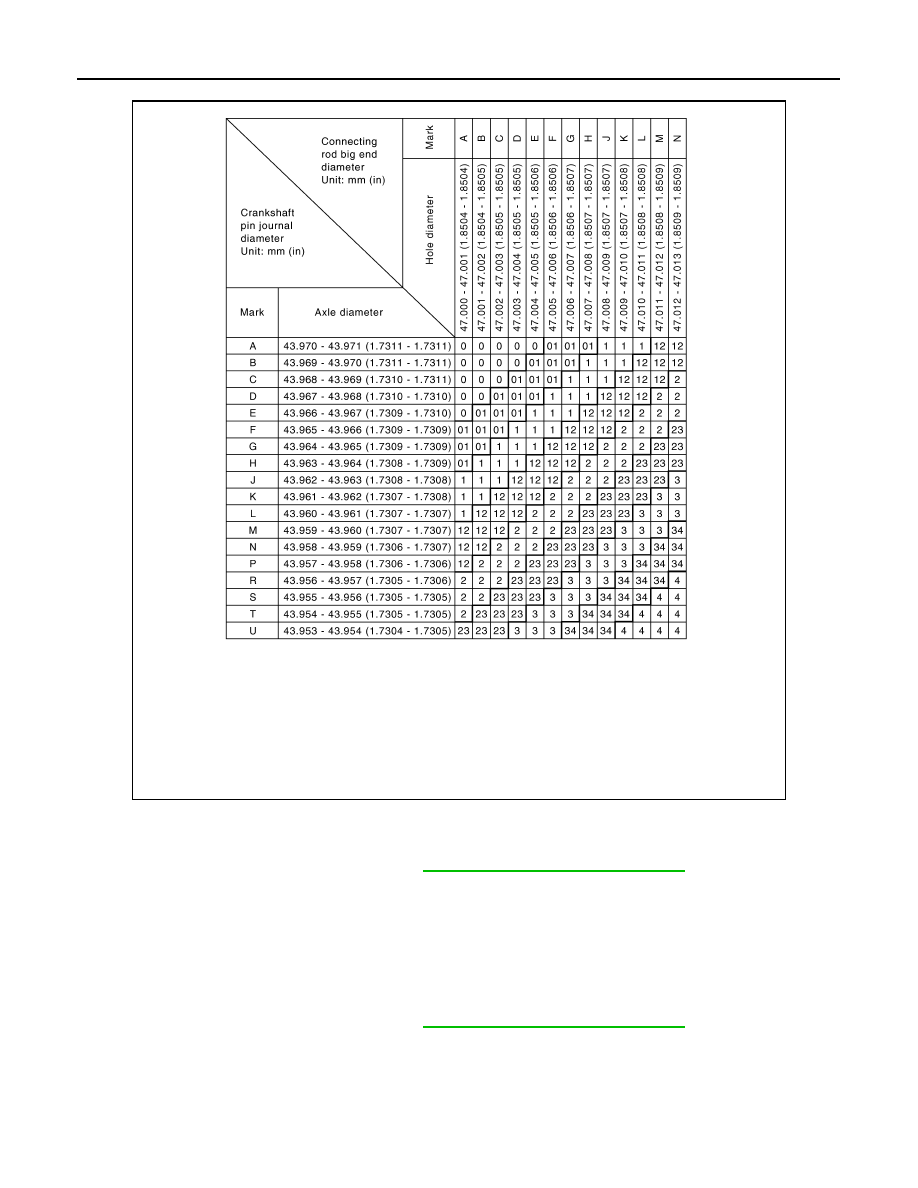

Selective-fit Service Parts Table

Connecting Rod Bearing Grade Table

Using Undersize Bearing

• If the standard oil clearance cannot be obtained by standard size connecting rod bearing, use undersize

(US) bearing.

• When using undersize bearing, install it, measure bearing inner diameter, and then grind crankshaft pin to

obtain specified oil clearance.

CAUTION:

PBIC4077E

Connecting rod bearing
grade table

: Refer to

EM-321, "Connecting Rod Bearing"

.

Available undersize bear-
ings

: Refer to

EM-321, "Connecting Rod Bearing"

.

HOW TO SELECT PISTON AND BEARING

EM-307

< UNIT DISASSEMBLY AND ASSEMBLY >

[MR EXCEPT FOR NISMO RS MODELS]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

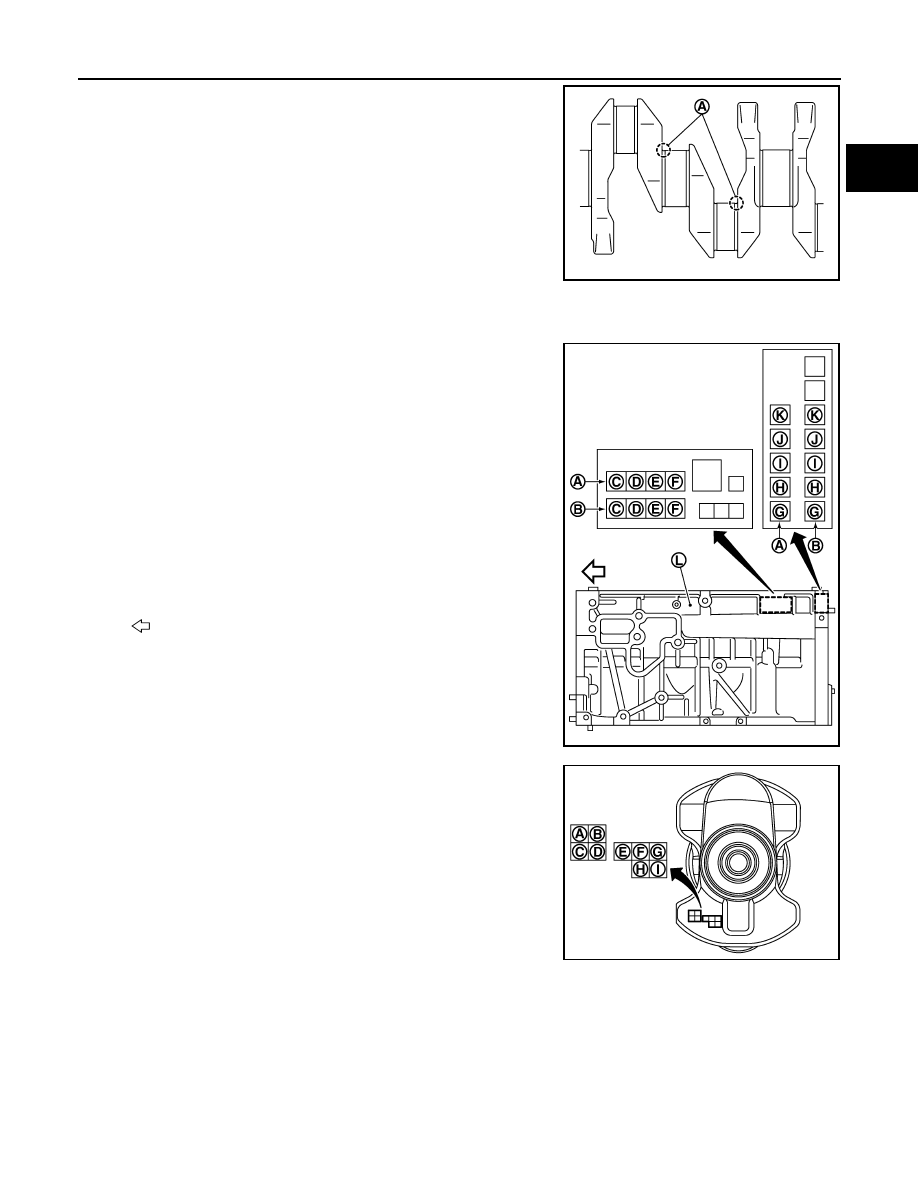

When grinding crankshaft pin to use undersize bearing, never

damage fillet roll area [1.5 – 1.7 mm (0.059 – 0.067 in)] (A).

SELECTIVE-FIT MAIN BEARING

Using New Cylinder Block and Crankshaft

1. Find the bearing housing grade of cylinder block LH side (L) in

the row of the Selective-fit Service Parts Table.

• If there is a correction stamp, the symbol is the correct one.

2. Find the journal diameter grade of crankshaft front surface in the

column of the Selective-fit Service Parts Table.

3. Find the symbol at the intersection of the selected row and column in the Selective-fit Service Parts Table.

CAUTION:

The setting clearance is different between journal No. 1 and 4, and No. 2, 3, and 5. Use either 2

selective-fit service parts depending on the position.

4. Find the symbol at the intersection in "MAIN BEARING GRADE TABLE" and select it.

NOTE:

Set the upper/lower values for service parts as a set.

PBIC3263J

A

: Correction stamp position

B

: Standard stamp position

C

: Cylinder No. 1 bore grade

D

: Cylinder No. 2 bore grade

E

: Cylinder No. 3 bore grade

F

: Cylinder No. 4 bore grade

G

: No. 1 main bearing housing grade

H

: No. 2 main bearing housing grade

I

: No. 3 main bearing housing grade

J

: No. 4 main bearing housing grade

K

: No. 5 main bearing housing grade

: Engine front

PBIC3264J

A

: No. 1 pin journal grade

B

: No. 2 pin journal grade

C

: No. 3 pin journal grade

D

: No. 4 pin journal grade

E

: No. 1 main journal grade

F

: No. 2 main journal grade

G : No. 3 main journal grade
H

: No. 4 main journal grade

I

: No. 5 main journal grade

PBIC3261J

EM-308

< UNIT DISASSEMBLY AND ASSEMBLY >

[MR EXCEPT FOR NISMO RS MODELS]

HOW TO SELECT PISTON AND BEARING

When Reusing Cylinder Block and Crankshaft

1. Measure each dimension of cylinder block main bearing housing inner diameter and crankshaft journal

outer diameter.

2. Find the measured dimension in the Selective-fit Service Parts Table.
3. The procedure below is the same procedure as step 3 and later steps of "Using new cylinder block and

crankshaft".

Selective-fit Service Parts Table

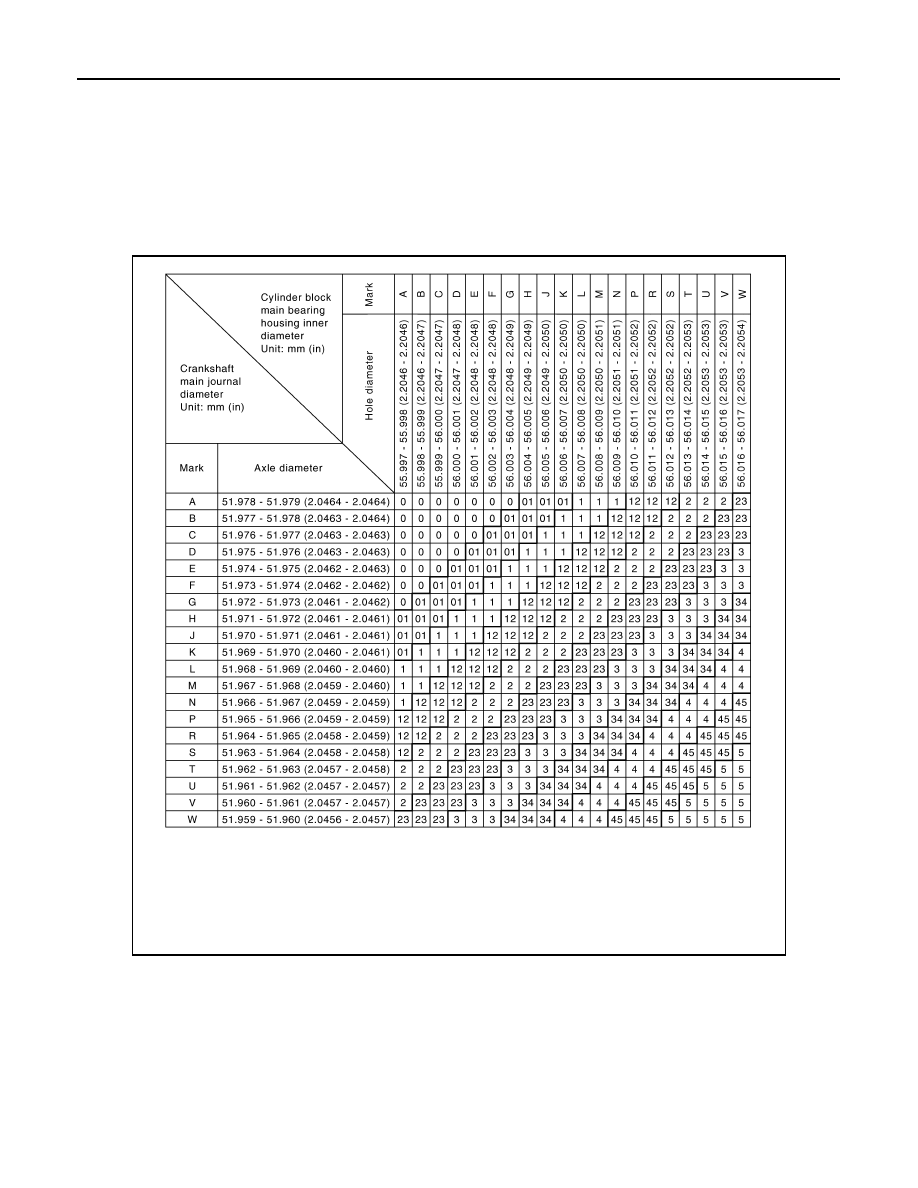

For No. 1 and 4 journal

PBIC4078E

HOW TO SELECT PISTON AND BEARING

EM-309

< UNIT DISASSEMBLY AND ASSEMBLY >

[MR EXCEPT FOR NISMO RS MODELS]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

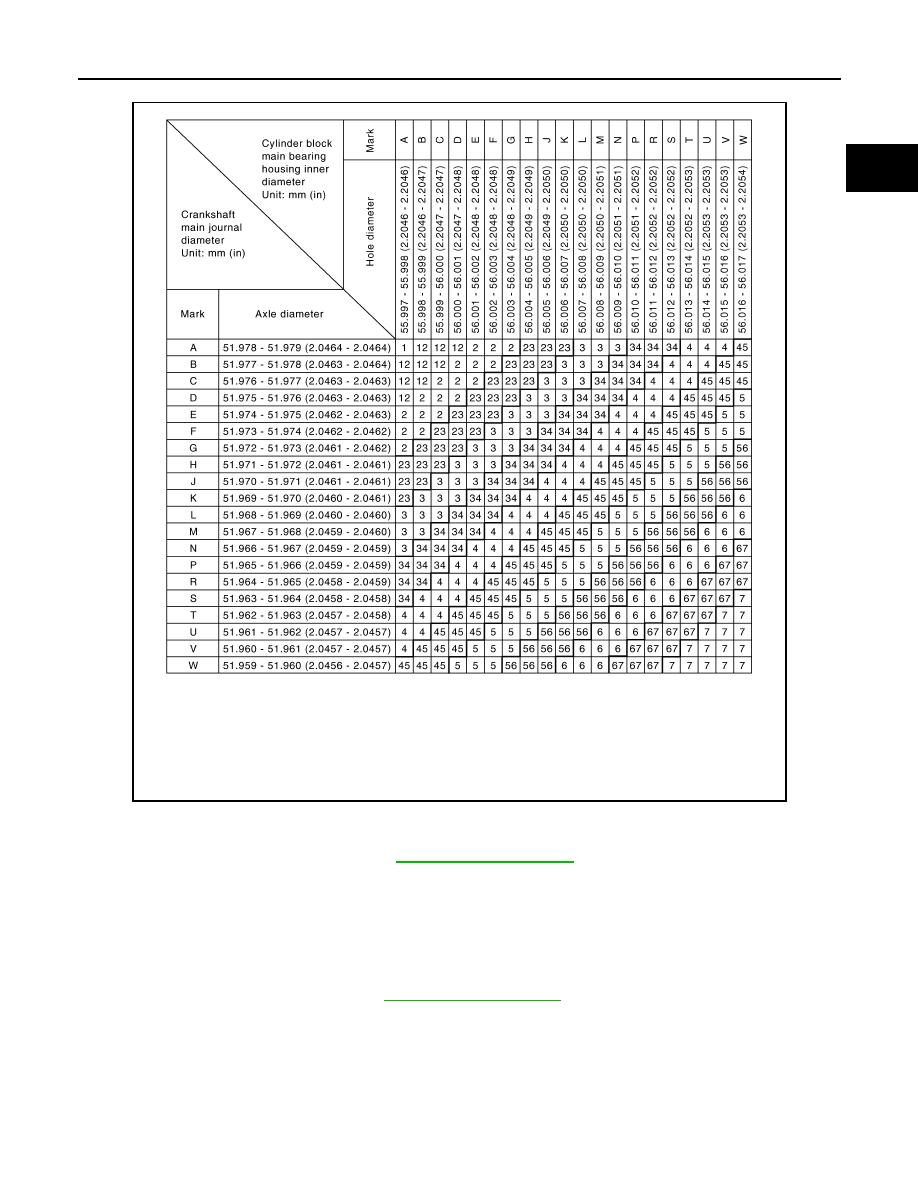

For No. 2, 3, and 5 journal

Main Bearing Grade Table

Using Undersize Bearing

• If the standard oil clearance cannot be obtained by standard size main bearing, use undersize (US) bearing.

• When using undersize bearing, install it, measure bearing inner diameter, and then grind journal to obtain

specified oil clearance.

CAUTION:

PBIC4079E

Main bearing grade ta-
ble

: Refer to

EM-321, "Main Bearing"

.

Available undersize
bearings

: Refer to

EM-321, "Main Bearing"

.
