Nissan Juke F15. Manual - part 684

EM-290

< UNIT DISASSEMBLY AND ASSEMBLY >

[MR EXCEPT FOR NISMO RS MODELS]

CYLINDER BLOCK

NOTE:

• There is no positioning pawl.

• For service operation, the center position can be checked visually.

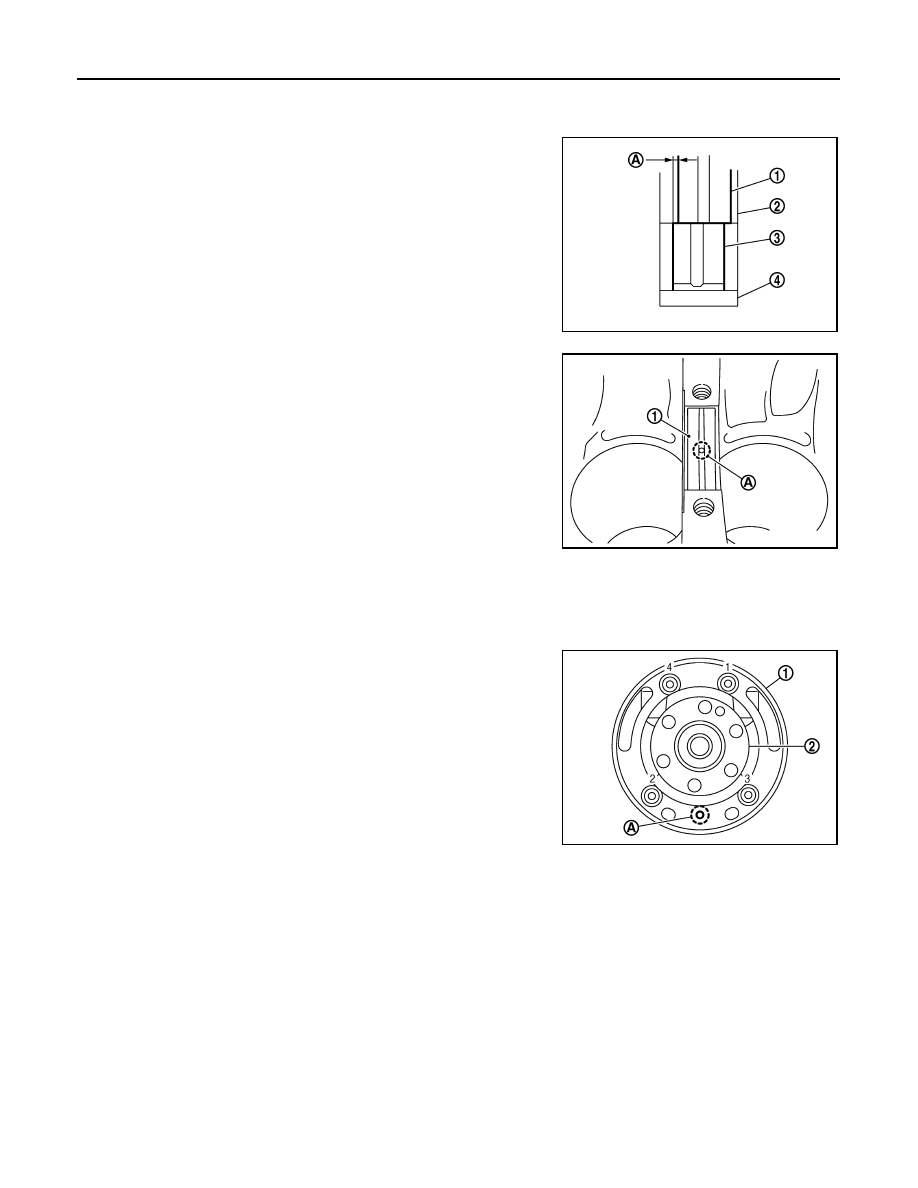

• The difference (A) between main bearing (upper) (1) and main

bearing (lower) (3) should be 0.85 mm or less when installing.

• Check that the oil hole in cylinder block and the oil hole (A) in

main bearing (1) are aligned.

4. Install the signal plate to the crankshaft according to the following procedure.
a. Set the signal plate with the flange facing toward the counterweight side (engine front side) to the crank-

shaft rear surface.

b. Lubricate threads and seat surface of each bolt with new engine oil.
c.

After positioning crankshaft (2) and signal plate (1) with position-

ing dowel pin (service parts), tighten bolts in the numerical order

shown in the figure.

NOTE:

• Dowel pin is included with crankshaft and signal plate respec-

tively.

• Use a TORX bit (size: T30) when installing the signal plate.

d. Tighten bolts again in the numerical order shown in the figure.
e. Remove dowel pin.

CAUTION:

Be sure to remove dowel pin.

5. Install the crankshaft to the cylinder block.

• Clean the journal to remove any foreign material, dust, and oil.

• Check that the crankshaft rotates smoothly by hand.

6. Install the main bearing cap.

2

: Cylinder block

4

: Main bearing cap

PBIC3237J

PBIC3236J

A : Dowel pin hole

PBIC3238J

CYLINDER BLOCK

EM-291

< UNIT DISASSEMBLY AND ASSEMBLY >

[MR EXCEPT FOR NISMO RS MODELS]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

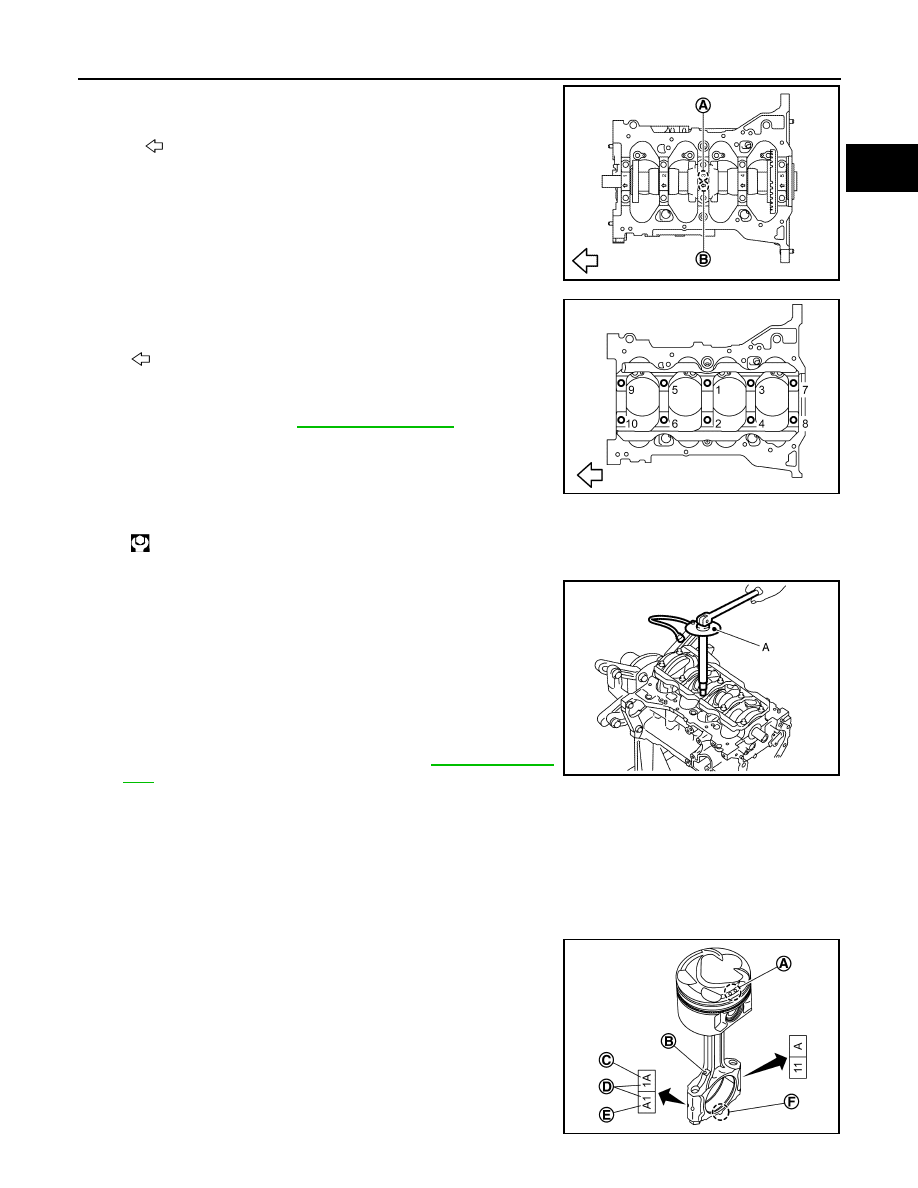

• Install the main bearing cap, while referring to the front mark

(B) and the journal No. stamp (A).

NOTE:

Main bearing cap is machined together with cylinder block and

cannot be replaced by itself.

7. Tighten main bearing cap bolts in the numerical order shown in

the figure with the following steps.

CAUTION:

If the main bearing cap bolt is reused, check the outer diam-

eter in advance. Refer to

EM-294, "Inspection"

.

• Use a TORX socket (size: E14).

a. Lubricate threads and seat surface of each bolt with new engine

oil.

b. Tighten the mounting bolts.

c. Tighten an additional 70

° (angle tightening).

• Use an angle wrench [SST: KV10112100 (BT8653-A)] (A) to

check tightening angle.

• If angle wrench is not available, put a matching mark on main

bearing cap bolts before turning them, and check turning angle

with a protractor.

CAUTION:

Check tightening angle using an angle wrench or a pro-

tractor. Never estimate tightening angle visually.

• After tightening main bearing cap bolts, rotate crankshaft by

hand and check that it turns smoothly.

• Check crankshaft side clearance. Refer to

EM-294, "Inspec-

tion"

.

8. Install the piston to the connecting rod.
a. Use snap ring pliers (commercial service tool) to install snap ring in snap ring installation groove on rear

side of piston.

CAUTION:

Check that snap ring is securely seated in the groove.

b. Install the piston to the connecting rod.

• Using an industrial drier, heat piston to 60 – 70

°C so that piston pin can be easily inserted by hand.

Insert piston pin into piston and connecting rod from front side of piston.

• Assemble so that piston head front mark (A), connecting rod

oil hole (B), and connecting rod cylinder No. stamp (D) on are

positioned as shown in the figure.

NOTE:

• The symbol of connecting rod is one example.

• The symbols without notes are for management

c. Install a new snap ring to the groove on the front side of piston.

: Engine front

JPBIA4432ZZ

: Engine front

: 34.3 N·m (3.5 kg-m, 25 ft-lb)

C

: Engine type

E

: Large end grade

F

: Connecting rod front mark

JSBIA5909ZZ

JPBIA4433ZZ

JSBIA5917ZZ

EM-292

< UNIT DISASSEMBLY AND ASSEMBLY >

[MR EXCEPT FOR NISMO RS MODELS]

CYLINDER BLOCK

CAUTION:

Check that snap ring is securely seated in the groove.

• Check that the connecting rod moves smoothly.

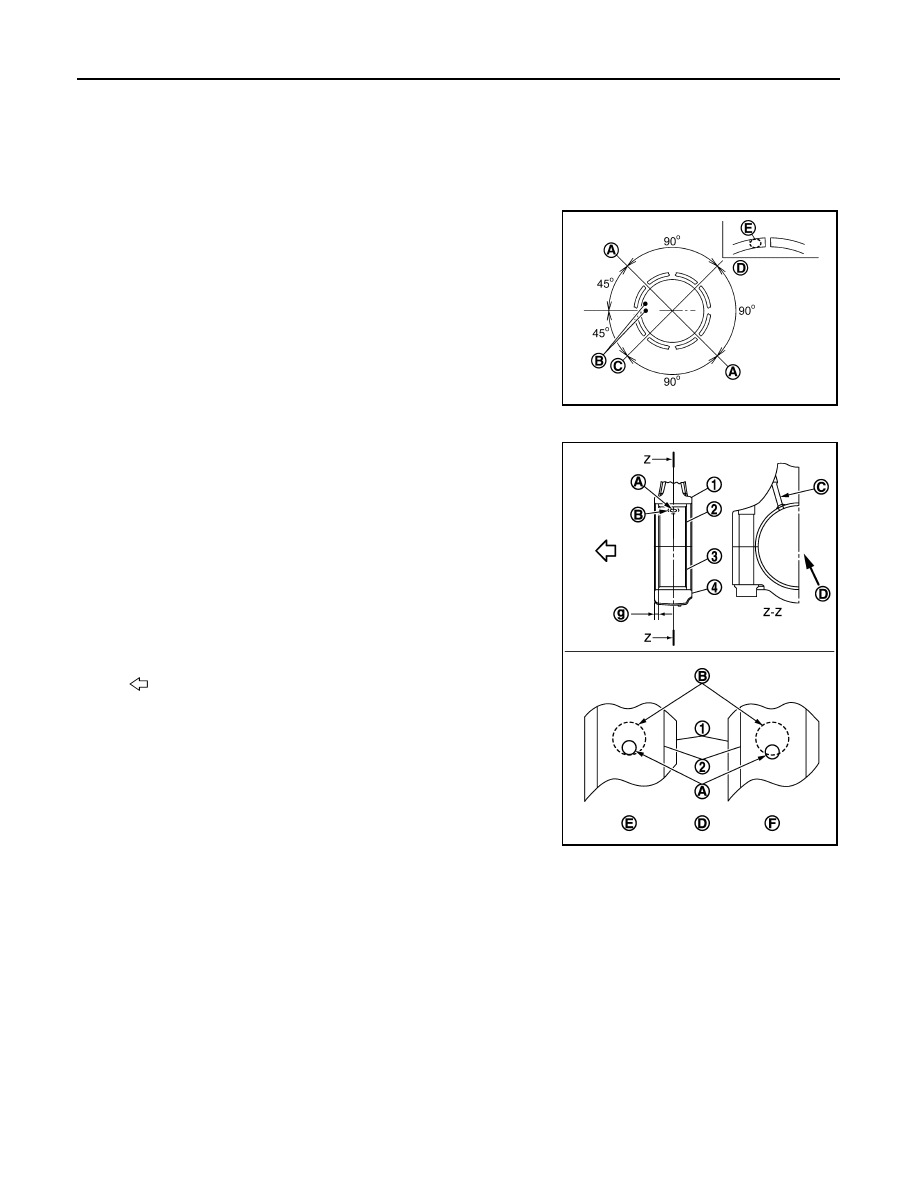

9. Install piston rings using a piston ring expander (commercial service tool).

CAUTION:

• Never damage piston.

• Be careful that the piston ring does not spread out too much and break.

• Position end gaps of each piston ring as shown in the figure.

CAUTION:

Never allow the rail end gap under the oil ring to contact

the oil drain cast groove of piston.

• Install top ring and second ring with stamp mark sides facing

up.

10. Install connecting rod bearing to connecting rod (1) and connect-

ing rod cap (4).

• Apply engine oil to the bearing surface (sliding surface). Do

not apply engine oil to the reverse side of the bearing, but thor-

oughly clean it.

• Install the connecting rod in the dimension as shown in the fig-

ure.

NOTE:

• There is no positioning pawl.

• When it is installed at the position as shown in the figure, the

connecting rod bearing is at the center. For service opera-

tion, the center position can be checked visually.

• Check that the bearing oil hole is in the inside of the connecting rod oil hole chamfered area completely.

• Temporarily install the connecting rod cap with the bearing to the connecting rod, and then check that

the connecting rod bearings (upper) and (lower) are in the correct positions.

11. Install the piston and connecting rod assembly to the crankshaft.

• Set crankshaft pin at the installation position to BDC on compression stroke.

• Apply engine oil to the cylinder bore, the piston, and the crankshaft pin journal.

A

: On oil ring or on lower rail end gap (either location)

B

: Front mark

C

: Second ring end gap, oil ring spacer end gap

D

: Top ring end gap

E

: Stamp (top ring: 1N, second ring: 2N)

2

: Connecting rod bearing (upper)

3

: Connecting rod bearing (lower)

A

: Connecting rod bearing (upper) oil hole

B

: Connecting rod oil hole chamfered area

C

: Oil hole

D

: Arrow view D

E

:  OK

F

:  Not  OK

g

: 2.05 – 2.45 mm (0.081 – 0.096 in)

: Engine front

JSBIA5910GB

JPBIA2155ZZ

CYLINDER BLOCK

EM-293

< UNIT DISASSEMBLY AND ASSEMBLY >

[MR EXCEPT FOR NISMO RS MODELS]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

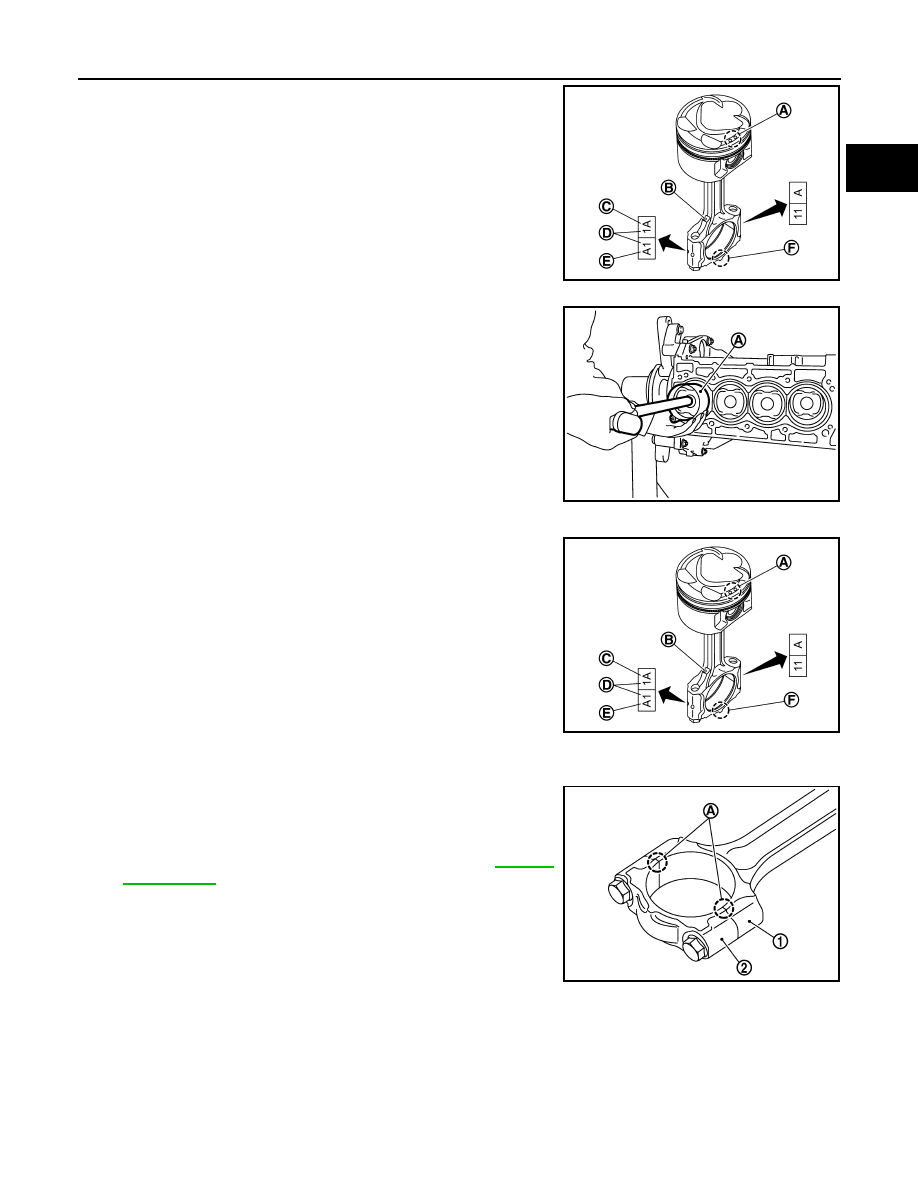

• Match the cylinder position and the connecting rod cylinder

No. (D), and install.

• Install so that the front mark on the piston head faces engine

front.

• Install piston using a piston ring compressor (commercial ser-

vice tool) (A) so that front mark on piston head faces toward

engine front.

CAUTION:

• Never damage mating surface with connecting rod cap.

• Never damage cylinder inner wall or crankshaft pin by

interfering with connecting rod large end.

12. Install the connecting rod bearing cap.

• Match the cylinder No. stamp (D) on the connecting rod and

the cylinder No. stamp on the cap and install.

NOTE:

• The symbol of connecting rod is one example.

• The symbols without notes are for management purposes.

13. Tighten connecting rod bolts according to the following procedure.

CAUTION:

• Check that there is no clearance in the thrust surface (A)

of the joint between connecting rod (1) and connecting

rod cap (2) and check that the parts are in the correct

positions.

• Tighten the connecting rod bolts. Refer to

EM-294,

"Inspection"

.

a. Apply new engine oil to the main bearing cap bolt threads and

seat surfaces.

b. Tighten to 27.4 N·m (2.8 kg-m, 20 ft-lb).
c. Loosen all the way to 0 N·m (0 kg-m).
d. Tighten at 19.6 N·m (2.0 kg-m, 14 ft-lb).
e. Put a matching mark on each bolt and connecting rod cap in the same direction (when using a protractor).
f.

Tighten an additional 60

° (angle tightening).

CAUTION:

A

: Piston front mark

B

: Oil hole

C

: Engine type

E

: Large end grade

F

: Connecting rod front mark

JSBIA5917ZZ

PBIC3244J

A

: Piston front mark

B

: Oil hole

C

: Engine type

E

: Large end grade

F

: Connecting rod front mark

JSBIA5917ZZ

PBIC3510J
