CYLINDER BLOCK

CYLINDER BLOCK

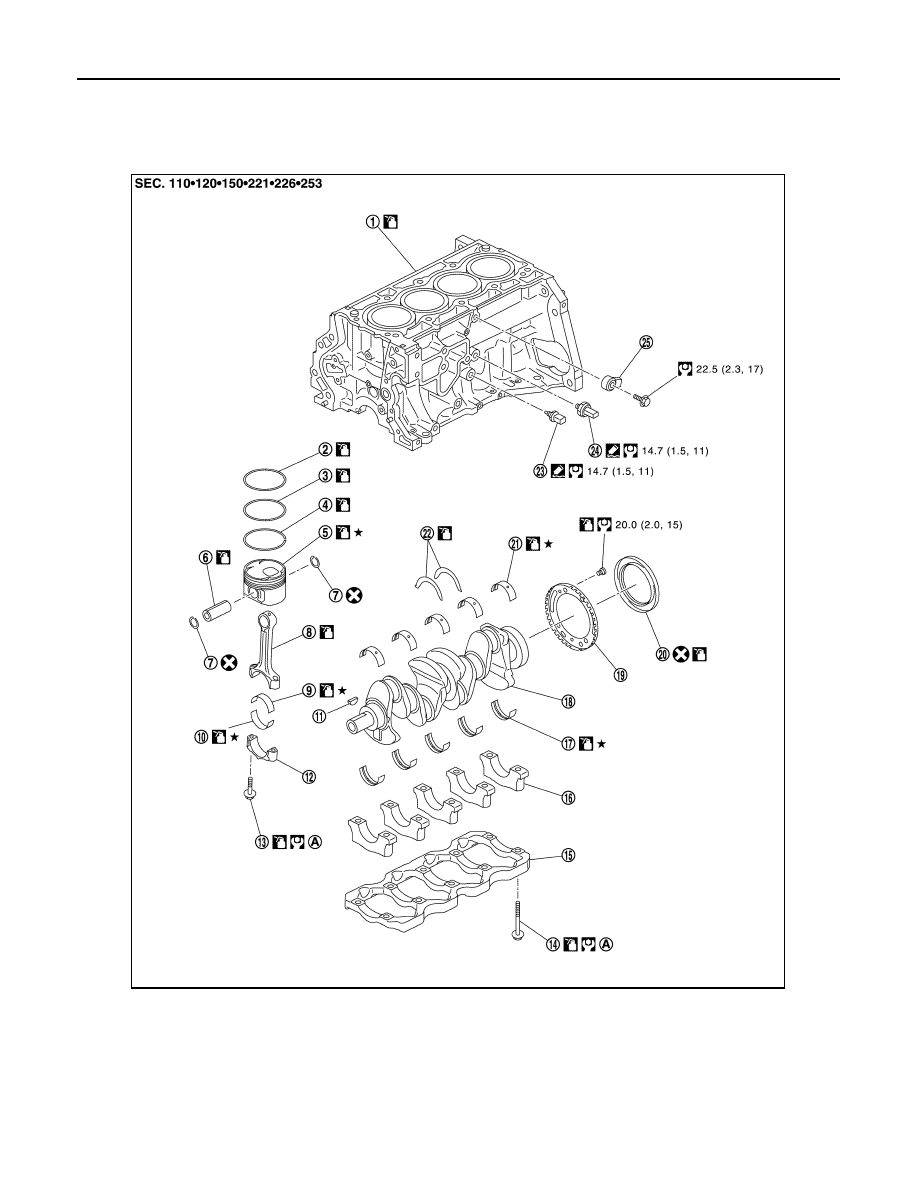

Exploded View

INFOID:0000000012197444

1.

Cylinder block

2.

Top ring

3.

Second ring

4.

Oil ring

5.

Piston

6.

Piston pin

7.

Snap ring

8.

Connecting rod

9.

Connecting rod bearing (upper)

10. Connecting rod bearing (lower)

11. Crankshaft key

12. Connecting rod cap

13. Connecting rod cap bolt

14. Main bearing cap bolt

15. Main bearing beam

16. Main bearing cap

17. Main bearing (lower)

18. Crankshaft

19. Signal plate

20. Rear oil seal

21. Main bearing (upper)

JPBIA5036GB

CYLINDER BLOCK

EM-287

< UNIT DISASSEMBLY AND ASSEMBLY >

[MR EXCEPT FOR NISMO RS MODELS]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

Disassembly and Assembly

INFOID:0000000012197445

DISASSEMBLY

1. Remove the crankshaft position sensor from the oil pan (upper). Refer to

EM-282, "Removal and Installa-

tion"

.

2. Remove the oil pan (upper). Refer to

EM-282, "Removal and Installation"

.

3. Remove the water pump housing. Refer to

CO-54, "Exploded View"

.

4. Remove the knock sensor.

CAUTION:

Never subject parts to impact.

5. Remove the piston and connecting rod according to the following procedure.

• Check the connecting rod side clearance before removing the piston and connecting rod assembly.

Refer to

EM-294, "Inspection"

.

a. Set crankshaft pin at removal position to BDC on compression stroke.
b. Remove connecting rod cap.

CAUTION:

• Never damage mating surface with connecting rod.

• Never place the drive plate with mating surface of connecting rod facing down.

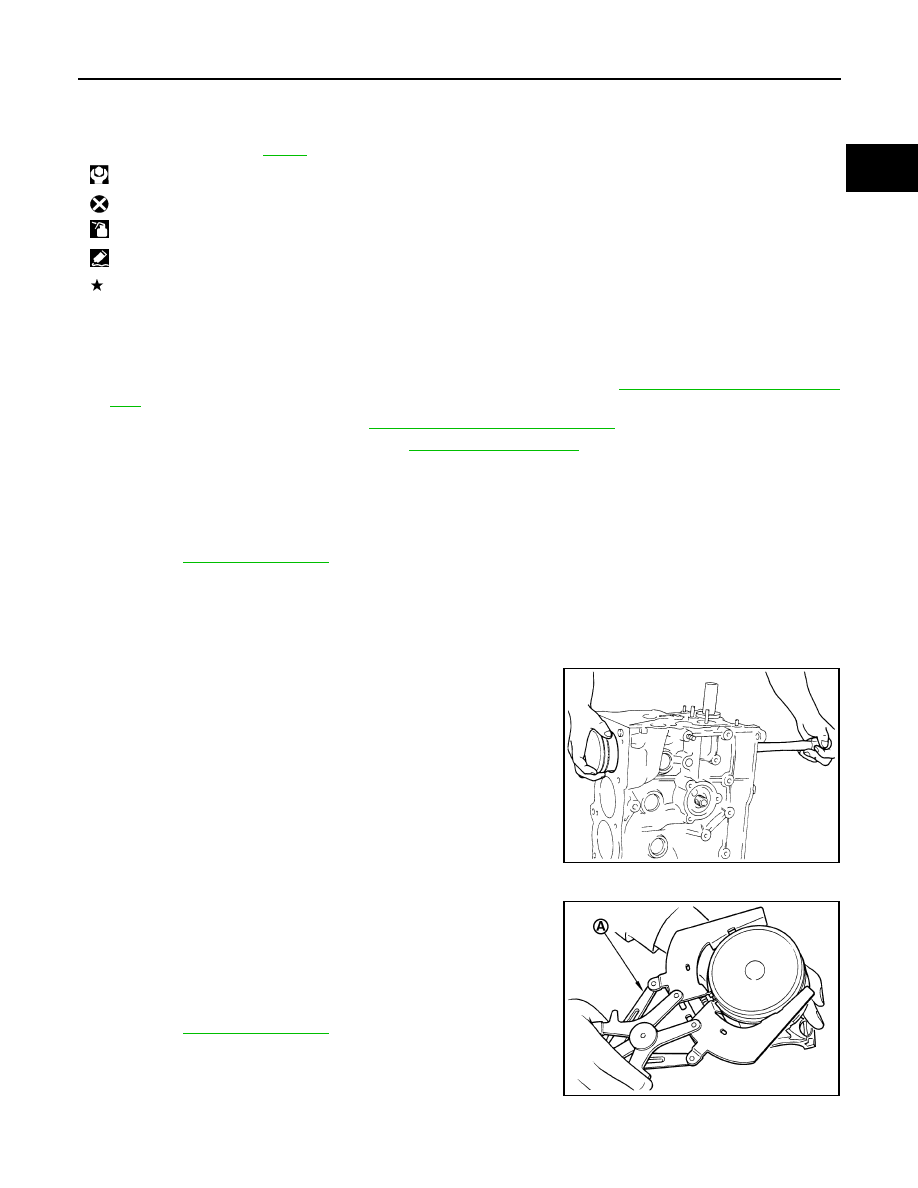

c. Push the piston and connecting rod assembly to the cylinder

head side with a hammer handle or an equivalent.

CAUTION:

• Never damage mating surface with connecting rod cap.

• Never place the mating surface of connecting rod cap fac-

ing down.

• Never damage cylinder inner wall and crankshaft pin by

contact with the large end of the connecting rod.

6. Remove connecting rod bearing.

CAUTION:

When removing, check location of each part, and store

them in a manner that prevents them from being mixed up.

7. Remove the piston rings from the piston.

• Remove using piston ring expander (commercial service tool)

(A).

CAUTION:

• Never damage piston.

• Never expand piston rings excessively. It can damage

piston rings.

• Check piston ring side clearance before removing piston ring.

Refer to

EM-294, "Inspection"

.

8. Remove piston from connecting rod according to the following procedure.

22. Thrust bearing

23. Oil temperature sensor

24. Oil pressure sensor

25. Knock sensor

A.

Comply with the assembly procedure
when tightening. Refer to

EM-287

.

 : N·m (kg-m, ft-lb)

 : Always replace after every disassembly.

 : Should be lubricated with oil.

 : Sealing point

Select correct part.

PBIC0259E

PBIC3233J

EM-288

< UNIT DISASSEMBLY AND ASSEMBLY >

[MR EXCEPT FOR NISMO RS MODELS]

CYLINDER BLOCK

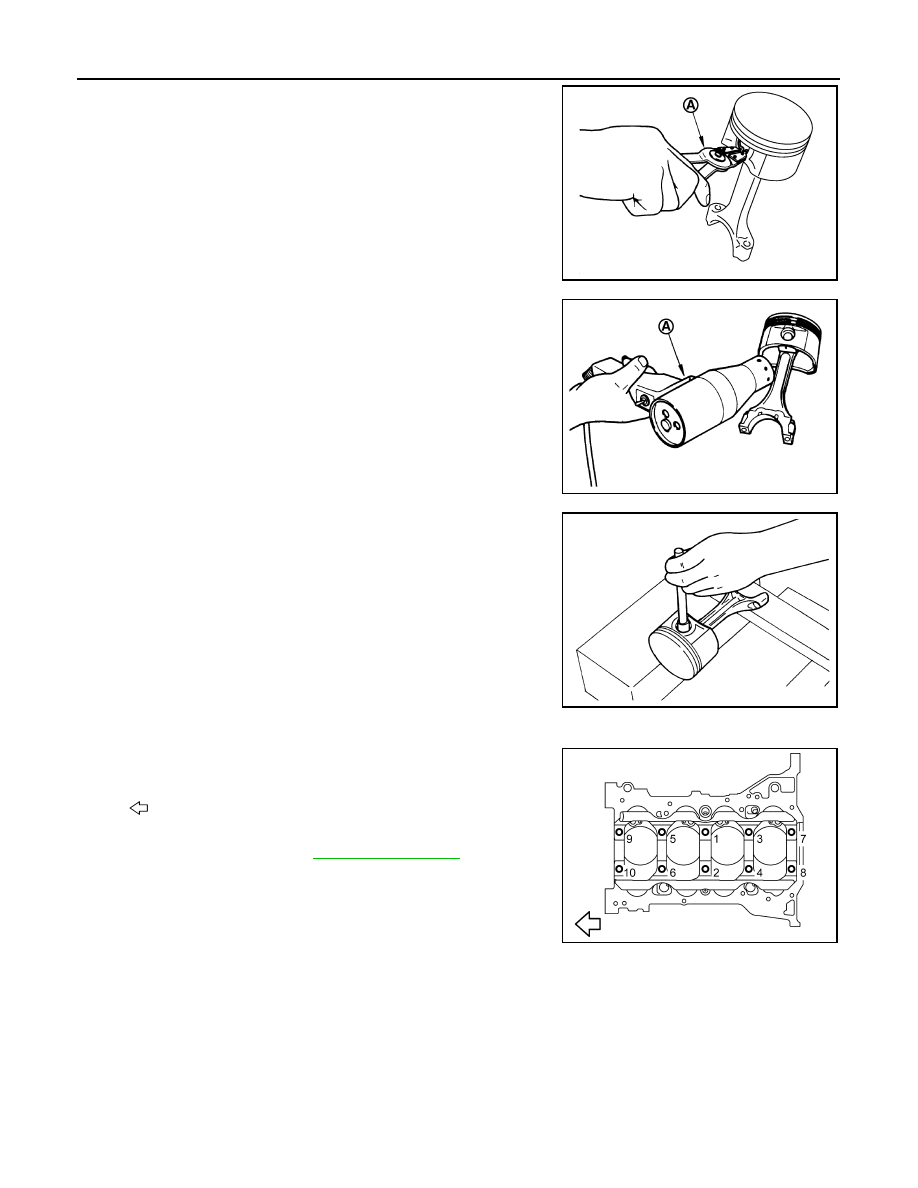

a. Remove snap ring using snap ring pliers (commercial service

tool) (A).

b. Heat piston to 60 – 70

°C using an industrial dryer (A).

c.

Using a round bar with outer diameter of approximately 18 mm

(0.71 in), press out piston pin.

9. Follow the procedure below and remove the main bearing cap bolts.
a. Loosen and remove bolts in several steps in the reverse order of

the numerical order shown in the figure.

• Measure crankshaft side clearance before loosening main

bearing cap bolts.  Refer to

EM-294, "Inspection"

.

• Use a TORX socket (size: E14).

b. Remove the main bearing cap from the cylinder block while tap-

ping lightly with a plastic hammer.

CAUTION:

Never damage the mounting surface when removing.

10. Remove the crankshaft.

CAUTION:

PBIC3230J

PBIC3231J

PBIC3232J

: Engine front

JSBIA5909ZZ

CYLINDER BLOCK

EM-289

< UNIT DISASSEMBLY AND ASSEMBLY >

[MR EXCEPT FOR NISMO RS MODELS]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

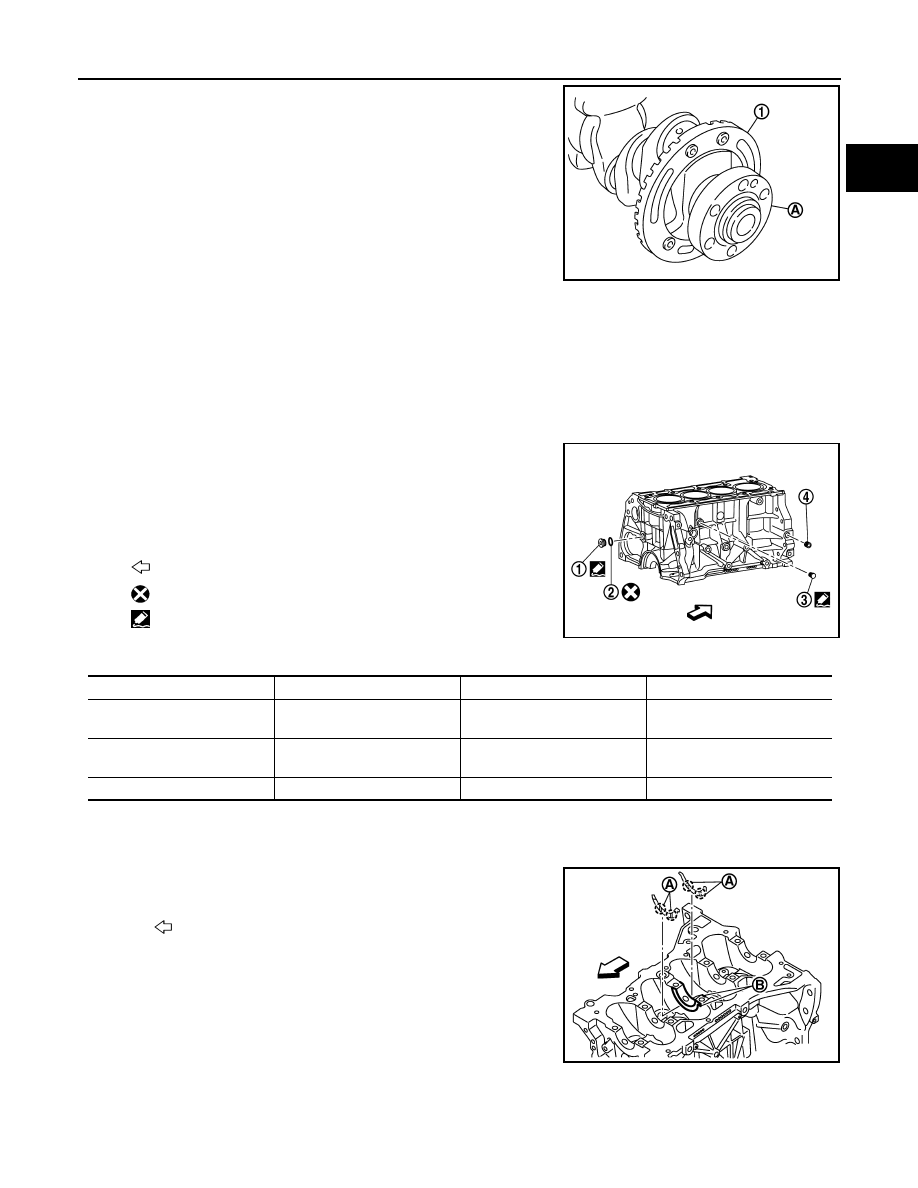

• Never deform or damage the signal plate (1) of crankshaft

rear end (A).

• Never place crankshaft onto the floor or another flat sur-

face. Use a block of wood for maintaining a clearance and

preventing signal plate from interfering with the floor.

• Never remove the signal plate unless necessary.

NOTE:

Use a TORX bit (size: T30) for removal of the signal plate.

11. Pull the rear oil seal out from the rear end of crankshaft.
12. Remove the main bearings and the thrust bearings from the cyl-

inder block and the main bearing caps.

CAUTION:

Check the installation position of each part. Store the removed parts to prevent them from being

mixed up.

ASSEMBLY

1. Thoroughly clean engine coolant and oil passages in cylinder block, as well as inside of crankcase and

cylinder bores, with compressed air.

CAUTION:

Be sure to wear protective goggles for protection from flying substances.

2. Refer to the figure and install each plug into the cylinder block.

3. Install main bearing and thrust bearing according to the following procedure.
a. Clean bearing mounting surfaces on cylinder block and main bearing cap to remove any foreign material,

dust, and oil.

b. Install thrust bearings on both sides (B) of cylinder block No. 3

housing.

• Install thrust bearing with its oil groove (A) facing crankshaft

arm side (outer side).

c. Install the main bearing.

• Before installing bearing, lubricate bearing surface (inside) with new engine oil.

• Do not apply engine oil to reverse side of main bearing, but thoroughly clean it.

• Install main bearing to the center position between cylinder block and main bearing cap.

PBIC3234J

1

:  Plug

2

:  Washer

3

: Engine coolant drain plug

4

:  Plug

: Engine front

 : Always replace after every disassembly.

 : Sealing point

JSBIA5918ZZ

Plug

Liquid gasket

Washer

Tightening torque

1

Liquid gasket
(TB1386B or an equivalent)

Yes

54.0 N·m (5.5 kg-m, 40 ft-lb)

3

Liquid gasket
(TB1215 or an equivalent)

No

9.8 N·m (1.0 kg-m, 87 in-lb)

4

Not necessary

No

19.6 N·m (2.0 kg-m, 14 ft-lb)

: Engine front

PBIC3258J
