AIR CLEANER FILTER

AIR CLEANER FILTER

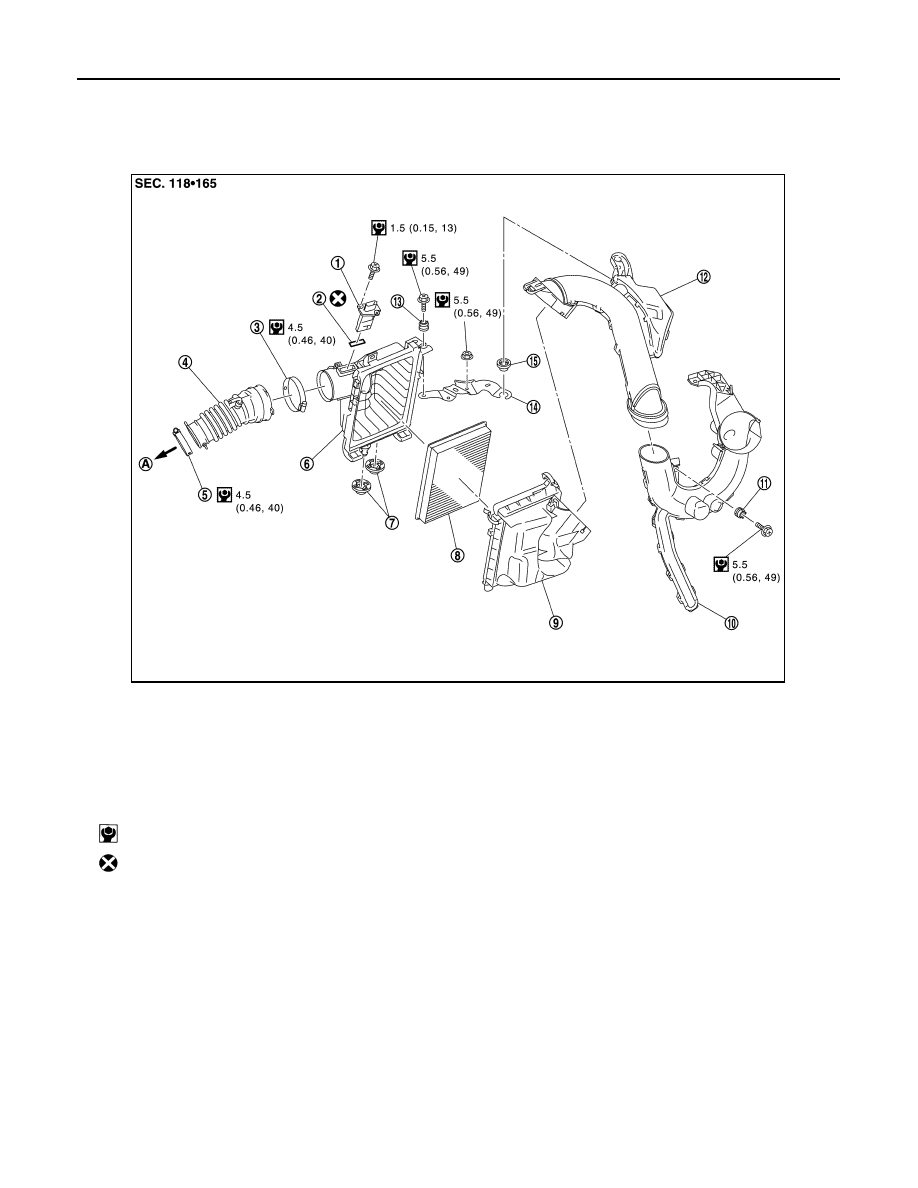

Exploded View

INFOID:0000000012197244

Removal and Installation

INFOID:0000000012197245

REMOVAL

1.

Mass air flow sensor

2.

Gasket

3.

Clamp

4.

Air duct (suction side)

5.

Clamp

6.

Air cleaner cover assembly

7.

Mounting rubber

8.

Air cleaner filter

9.

Air cleaner body assembly

10. Air duct inlet (lower)

11. Grommet

12. Air duct inlet (upper)

13. Grommet

14. Bracket

15. Mounting rubber

A.

To turbocharger

 : N·m (kg-m, in-lb)

 : Always replace after every disassembly.

JPBIA4305GB

AIR CLEANER FILTER

EM-23

< PERIODIC MAINTENANCE >

[MR FOR NISMO RS MODELS]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

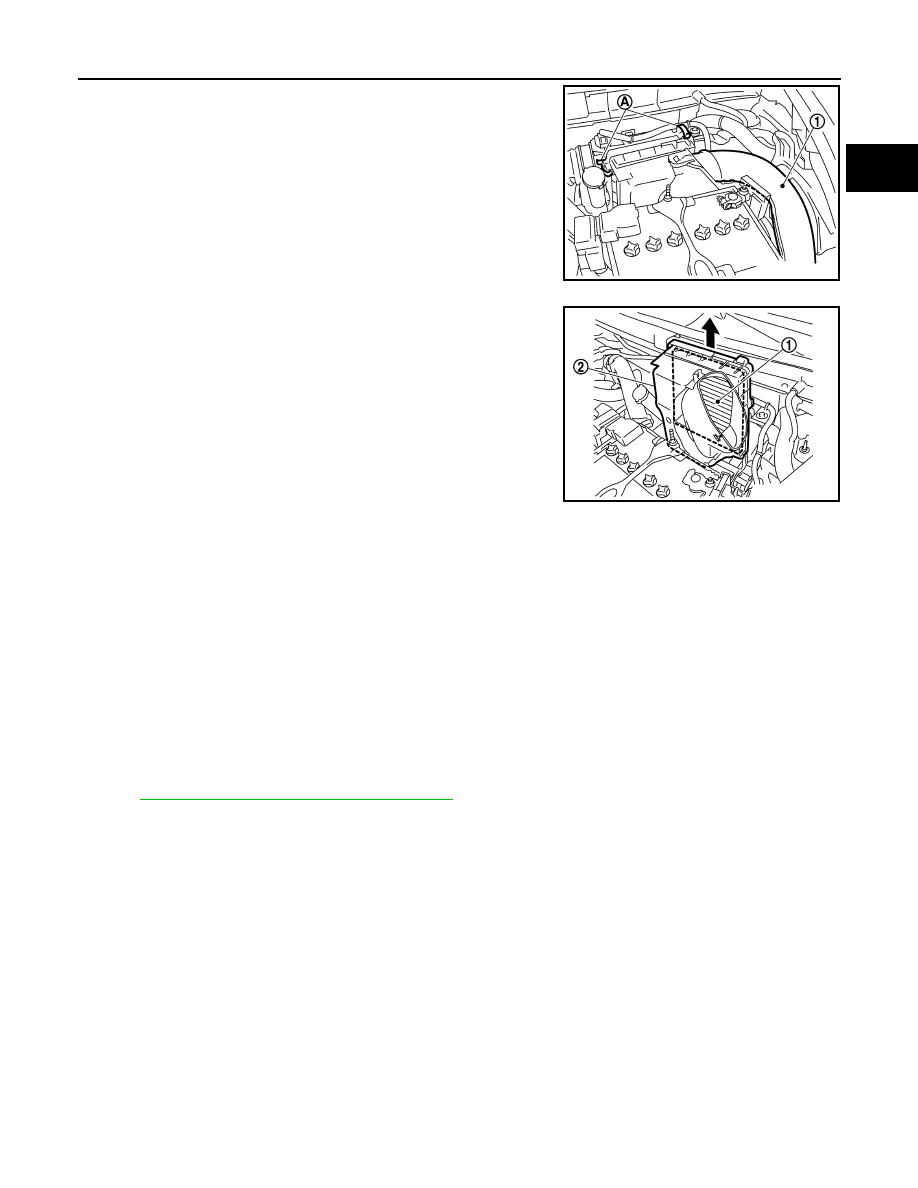

1. Remove air duct inlet (upper) (1).
2. Unhook the tabs (A) of both ends of the air cleaner cover.

3. Remove the air cleaner filter (1) and air cleaner body (2) from

the air cleaner case.

4. Remove the air cleaner filter from the air cleaner body.

INSTALLATION

Note the following, and install in the reverse order of removal.

• Fixing clips shall be fixed after inserting air cleaner body protrusion to air cleaner case notch hole.

• Make sure that whether air cleaner body has been firmly installed by shaking it.

Inspection (Viscous Paper Type)

INFOID:0000000012197246

INSPECTION AFTER REMOVAL

Examine with eyes that there is no stain, clogging, or damage on air cleaner element.

• Remove dusts (such as dead leafs) on air cleaner element surface and inside cleaner case.

• If clogging or damage is observed, replace the air cleaner element.

CAUTION:

Never clean the viscous paper type air cleaner element by blowing as there is a risk of deterioration of

its performance

MAINTENANCE INTERVAL

Refer to

MA-7, "Introduction of Periodic Maintenance"

.

JPBIA4352ZZ

JPBIA4353ZZ

EM-24

< PERIODIC MAINTENANCE >

[MR FOR NISMO RS MODELS]

SPARK PLUG

SPARK PLUG

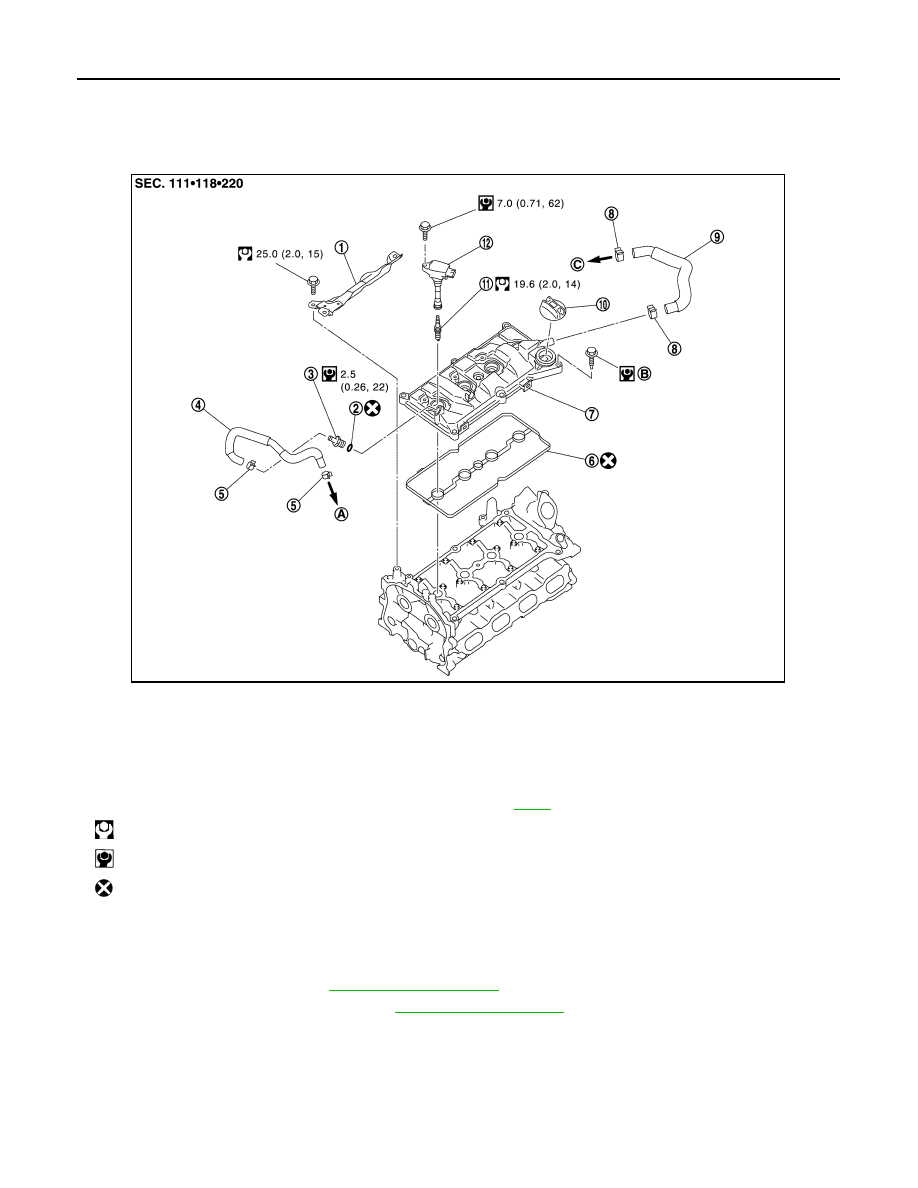

Exploded View

INFOID:0000000012197247

Removal and Installation

INFOID:0000000012197248

REMOVAL

1. Remove engine cover. Refer to

EM-26, "Exploded View"

.

2. Remove air inlet tube assembly. Refer to

EM-32, "Exploded View"

.

3. Remove ignition coil.

1.

Rocker cover protector

2.

O-ring

3.

PCV valve

4.

PCV hose

5.

Clamp

6.

Rocker cover gasket

7.

Rocker cover

8.

Clamp

9.

PCV hose

10. Oil filler cap

11. Spark plug

12. Ignition coil

A.

To intake manifold

B.

Comply with the assembly procedure
when tightening. Refer to

EM-60

C.

To air duct

 : N·m (kg-m, ft-lb)

 : N·m (kg-m, in-lb)

 : Always replace after every disassembly.

JPBIA4303GB

SPARK PLUG

EM-25

< PERIODIC MAINTENANCE >

[MR FOR NISMO RS MODELS]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

4. Remove spark plug with a spark plug wrench (commercial ser-

vice tool).

CAUTION:

Never drop or shock spark plug.

INSTALLATION

Install in the reverse order of removal.

Inspection

INFOID:0000000012197249

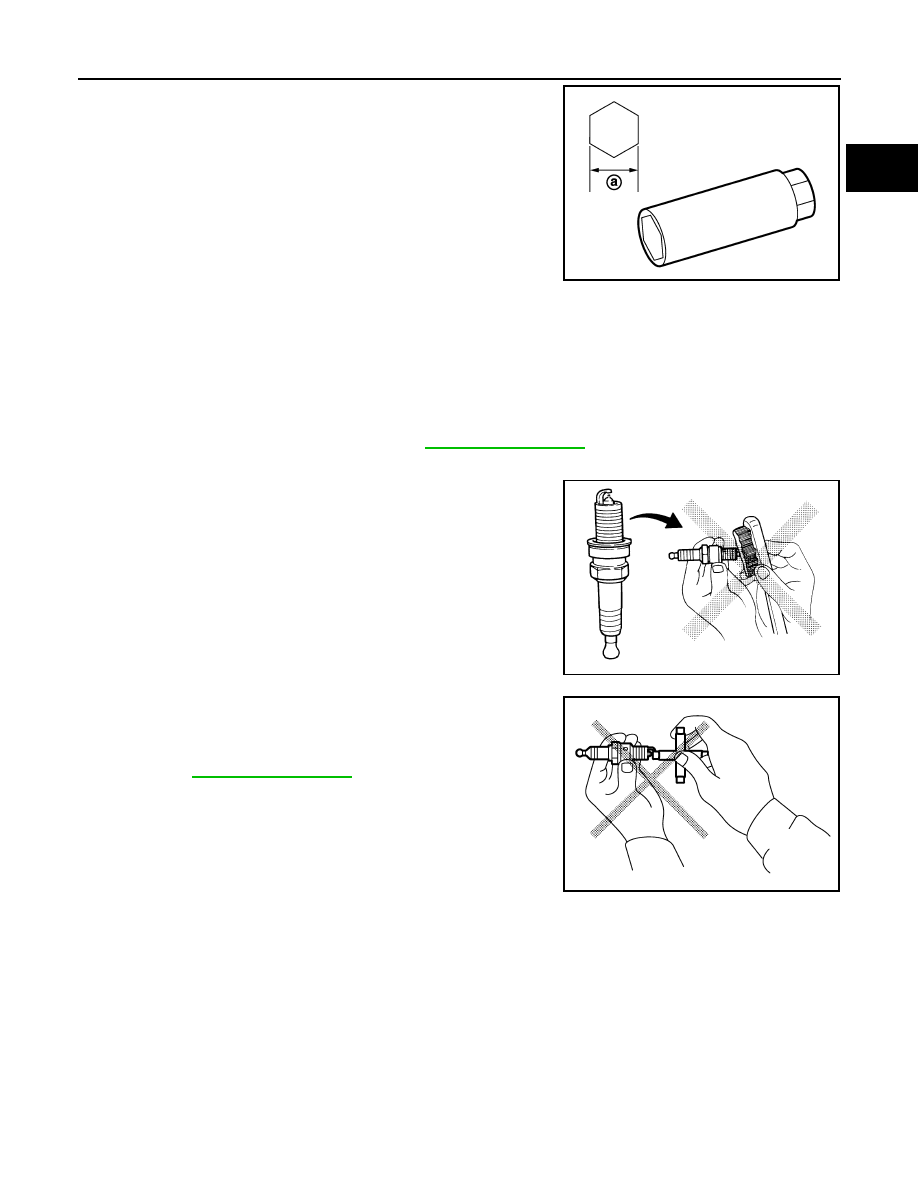

INSPECTION AFTER REMOVAL

Use the standard type spark plug for normal condition.

CAUTION:

• Never drop or shock spark plug.

• Never use a wire brush for cleaning.

• If plug tip is covered with carbon, spark plug cleaner may be

used.

• Spark plug gap adjustment is not required between replace-

ment intervals.

• Measure spark plug gap. when it exceeds the limit, replace

spark plug even if it is with in the specified replacement mile-

age. Refer to

EM-139, "Spark Plug"

.

a

: 14 mm (0.55 in)

JPBIA0030ZZ

Spark plug (Standard type)

Refer to

EM-139, "Spark Plug"

.

Cleaner air pressure : Less than 588 kPa (6 kg/cm

2

85 psi)

Cleaning time

: Less than 20 seconds

SMA773C

JPBIA0031ZZ
