ENGINE COVER

REMOVAL AND INSTALLATION

ENGINE COVER

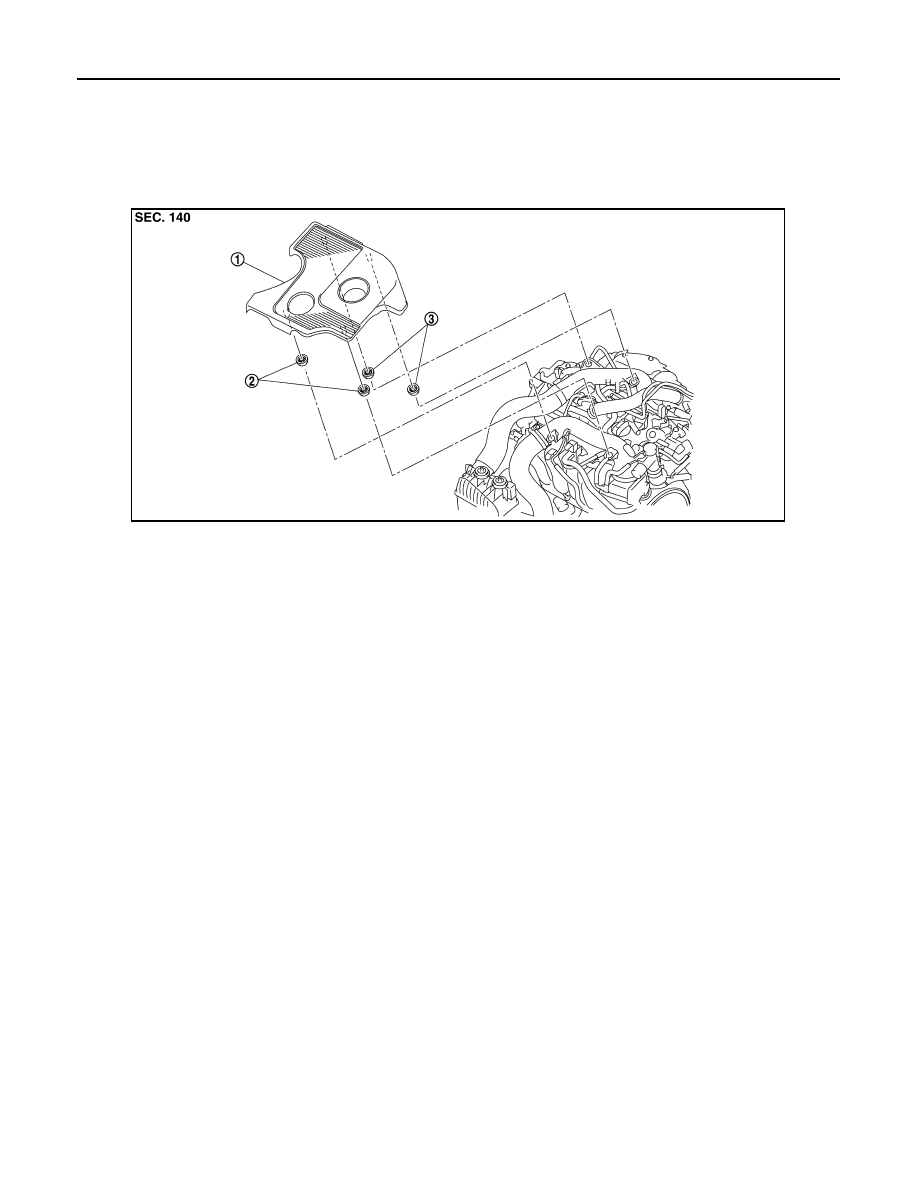

Exploded View

INFOID:0000000012197250

Removal and Installation

INFOID:0000000012197251

REMOVAL

Remove engine cover.

CAUTION:

Never damage or scratch engine cover when installing or removing.

INSTALLATION

Install in the reverse order of removal.

1.

Engine cover

2.

Mounting rubber (Black)

3.

Mounting rubber (Gray)

JPBIA4311ZZ

AIR CLEANER AND AIR DUCT

EM-27

< REMOVAL AND INSTALLATION >

[MR FOR NISMO RS MODELS]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

AIR CLEANER AND AIR DUCT

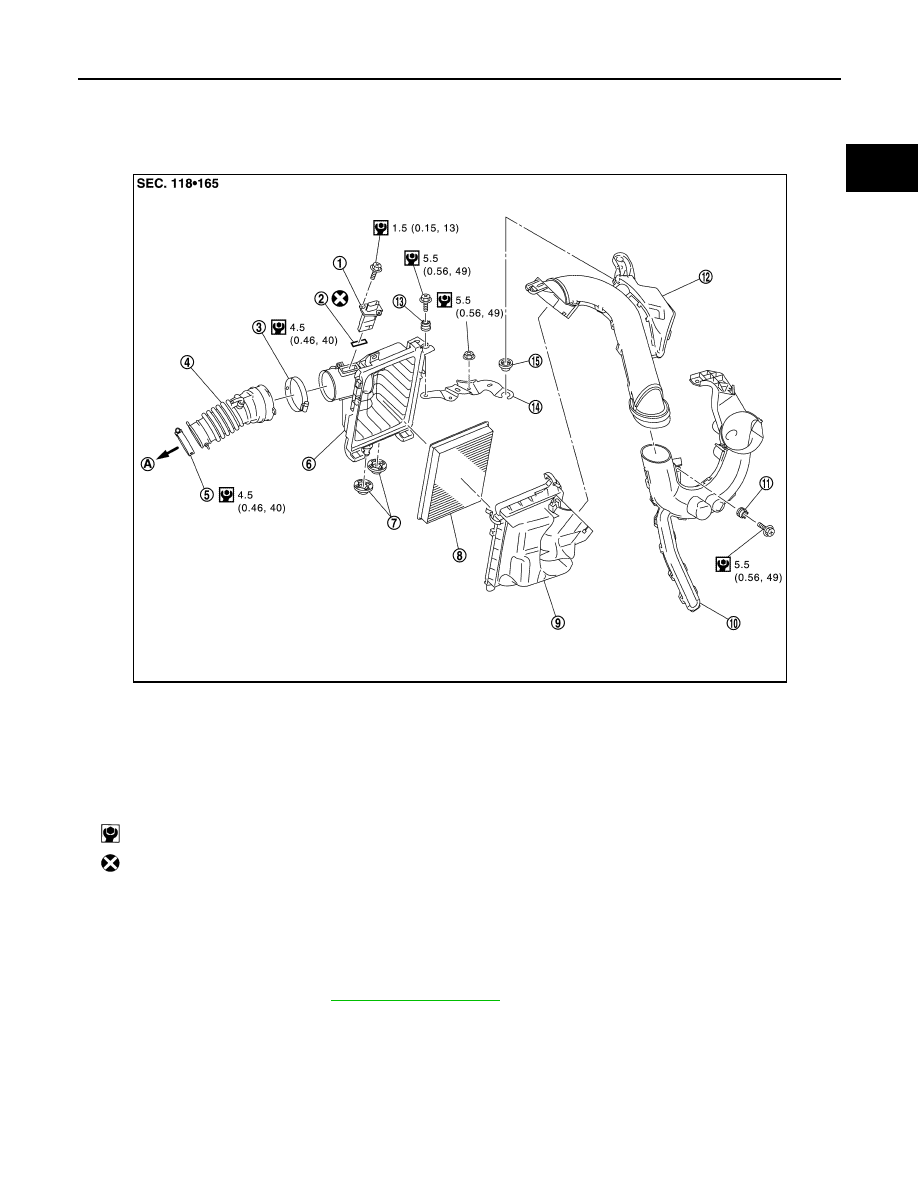

Exploded View

INFOID:0000000012197252

Removal and Installation

INFOID:0000000012197253

REMOVAL

NOTE:

Mass air flow sensor is removable under the car-mounted condition.
1. Remove engine cover. Refer to

EM-26, "Exploded View"

.

2. Remove air duct inlet (upper).
3. Remove the air cleaner filter from the air cleaner case.
4. Disconnect mass air flow sensor harness connector, and remove harness clamp from air cleaner body.
5. Remove air cleaner body assembly.
6. Remove the air duct (suction side).

• Add matching marks if necessary for easier installation.

1.

Mass air flow sensor

2.

Gasket

3.

Clamp

4.

Air duct (suction side)

5.

Clamp

6.

Air cleaner cover assembly

7.

Mounting rubber

8.

Air cleaner filter

9.

Air cleaner body assembly

10. Air duct inlet (lower)

11. Grommet

12. Air duct inlet (upper)

13. Grommet

14. Bracket

15. Mounting rubber

A.

To turbocharger

 : N·m (kg-m, in-lb)

 : Always replace after every disassembly.

JPBIA4305GB

EM-28

< REMOVAL AND INSTALLATION >

[MR FOR NISMO RS MODELS]

AIR CLEANER AND AIR DUCT

7. Remove air cleaner cover assembly.
8. Remove mass air flow sensor from air cleaner cover, if necessary.

CAUTION:

Handle the mass air flow sensor with following cares.

• Never shock the mass air flow sensor.

• Never disassemble the mass air flow sensor.

• Never touch the sensor of the mass air flow sensor.

9. Remove air duct inlet (lower) with the following procedure.
a. Remove fender protector (LH). Refer to

EXT-31, "Exploded View"

.

b. Remove air duct inlet (lower).

INSTALLATION

Note the following, and install in the reverse order of removal.

• Align marks. Attach each joint. Screw clamps firmly.

• Fixing clips shall be fixed after inserting air cleaner body assembly protrusion to air cleaner case botch hole.

• Make sure whether air cleaner body has been firmly installed by shaking it.

Inspection

INFOID:0000000012197254

INSPECTION AFTER REMOVAL

Inspect air duct and resonator assembly for crack or tear.

• If anything found, replace air duct and resonator assembly.

INTAKE MANIFOLD

EM-29

< REMOVAL AND INSTALLATION >

[MR FOR NISMO RS MODELS]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

INTAKE MANIFOLD

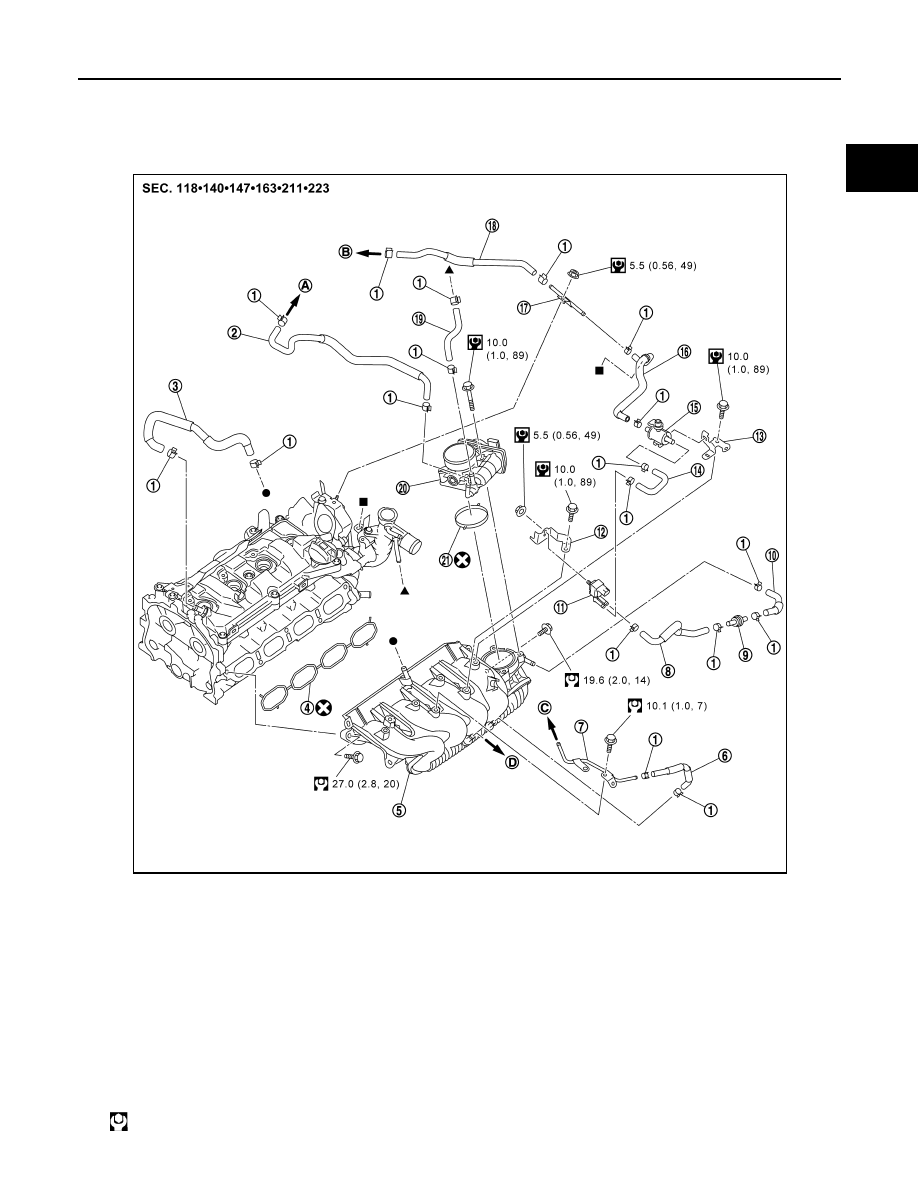

Exploded View

INFOID:0000000012197255

1.

Clamp

2.

Water hose

3.

PCV hose

4.

Gasket

5.

Intake manifold

6.

Vacuum tube

7.

Vacuum hose (with check valve)

8.

Vacuum hose

9.

Vacuum gallery assembly

10. EVAP hose

11. EVAP check valve

12. EVAP hose

13.

EVAP canister purge volume control
solenoid valve

14. Bracket

15. Bracket

16. EVAP hose

17. EVAP service port

18. EVAP hose

19. EVAP tube

20. EVAP hose

21. Water hose

22. Electric throttle control actuator

23. Gasket



A.

To turbocharger

B.

To centralized under-floor piping

C.

To recirculation valve hose

D.

To break booster hose

 : N·m (kg-m, ft-lb)

JSBIA5991GB
